contentLister/inc/erConnect.h File Reference

contentLister - connect finite state machine and process launcher More...

#include <pthread.h>

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	connectStruct_t
Defines
#define	COMMAND_STRING_MAX   1024
Enumerations
enum	connectCmd_e { connectCmdNone, connectCmdStart, connectCmdStop }
enum	connectState_e { connectStateIdle = 0, connectStateConnected, connectStateDisconnected }
enum	connectScr_e {   connectScrUnchanged, connectScrDownloadHistory, connectScrMode, connectScrNews,   connectScrBooks, connectScrDocs, connectScrNotes }
Functions
void	erConnectInit (connectStruct_t *connect)
pid_t	erConnectPid (void)

---

Detailed Description

contentLister - connect finite state machine and process launcher

<File description>="">

Definition in file erConnect.h.

---

Define Documentation

#define COMMAND_STRING_MAX   1024

Definition at line 41 of file erConnect.h.

---

Enumeration Type Documentation

enum connectCmd_e

Enumerator:

connectCmdNone
connectCmdStart
connectCmdStop

Definition at line 43 of file erConnect.h.

{
    connectCmdNone,
    connectCmdStart,
    connectCmdStop
} connectCmd_e;

enum connectScr_e

Enumerator:

connectScrUnchanged
connectScrDownloadHistory
connectScrMode
connectScrNews
connectScrBooks
connectScrDocs
connectScrNotes

Definition at line 57 of file erConnect.h.

{
    connectScrUnchanged,
    connectScrDownloadHistory,
    connectScrMode,
    connectScrNews,
    connectScrBooks,
    connectScrDocs,
    connectScrNotes,
} connectScr_e;

enum connectState_e

Enumerator:

connectStateIdle
connectStateConnected
connectStateDisconnected

Definition at line 50 of file erConnect.h.

{
    connectStateIdle = 0,
    connectStateConnected,
    connectStateDisconnected
} connectState_e;

---

Function Documentation

void erConnectInit

(

connectStruct_t *

connect

)

Definition at line 70 of file erConnect.c.

{
    connect->command              = connectCmdNone;
    connect->state                = connectStateIdle;
    connect->screen               = connectScrDownloadHistory;
    connect->background           = FALSE;
    connect->connect_from_pincode = FALSE;
    connect->connect_after_reboot = FALSE;
    connect->szCommand[0]         = '\0';

    if (pthread_mutex_init(&(connect->mutex), NULL) )
    {
        CL_ERRORPRINTF("Could not initialize connect mutex");
        perror("Could not initialize mutex");
    }
    else
    {
        CL_ERRORPRINTF("Lock the connect mutex");
        pthread_mutex_lock( &(connect->mutex) );
    }

    // Start the download thread
    pthread_t thread_id;
    if (pthread_create(&thread_id, NULL, connectThread, (void *) connect) != 0)
    {
        CL_CTPRINTF("%s %s: ", __FILE__, __FUNCTION__);
        perror("Could not create thread\n");
    }

    timed_ids_init();
}

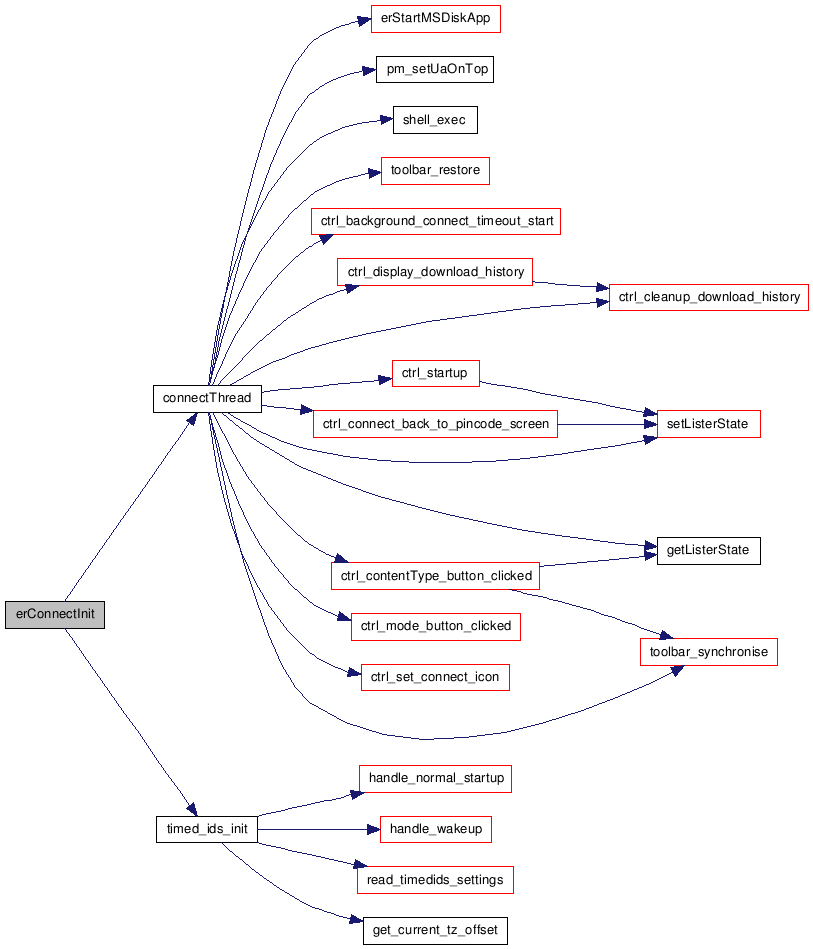

Here is the call graph for this function:

pid_t erConnectPid

(

void

)

Definition at line 102 of file erConnect.c.

{
    return g_connect_pid;
}
