contentLister/inc/gtkContentListItem.h File Reference

content lister - GTK widget for the eReader content Lister item. The eReader content Lister item contains one thumb, 2 labels and a texfield More...

#include <gtk/gtk.h>
#include <gdk/gdk.h>

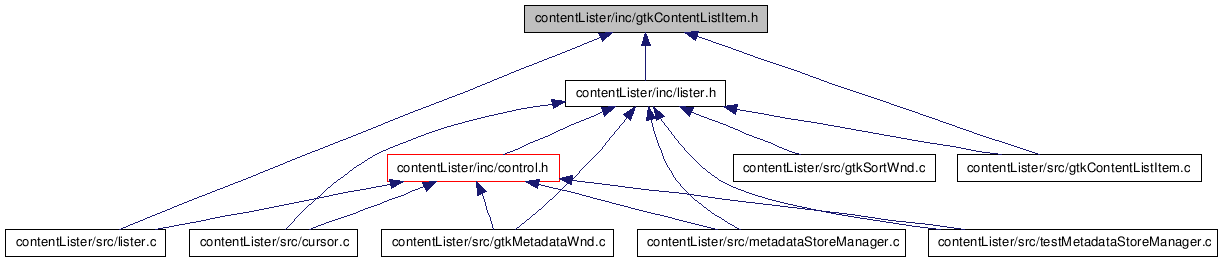

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  _GtkContentListItem
struct  _GtkContentListItemClass

Defines

#define ITEM_MAX_THUMB_WIDTH   91
#define ITEM_MAX_THUMB_HEIGHT   115
#define HBOX_TEXT_THUMB_SPACING   5
#define HBOX_TEXT_TEXT_SPACING   4
#define HBOX_TEXT_BORDER   15
#define VBOX_TEXT_TEXT_SPACING   2
#define VBOX_TEXT_BORDER   11
#define THUMB_BOX_MIN_WIDTH   91
#define TEXT_BOX_MIN_WIDTH   570
#define CURSOR_BOX_MIN_WIDTH   (LISTER_BOX_BORDER - HBOX_TEXT_THUMB_SPACING)
#define GTK_CONTENT_LIST_ITEM_TYPE   (gtk_content_list_item_get_type ())
#define GTK_CONTENT_LIST_ITEM(obj)   (G_TYPE_CHECK_INSTANCE_CAST ((obj), GTK_CONTENT_LIST_ITEM_TYPE, GtkContentListItem))
#define GTK_CONTENT_LIST_ITEM_CLASS(klass)   (G_TYPE_CHECK_CLASS_CAST ((klass), GTK_CONTENT_LIST_ITEM_TYPE, GtkContentListItemClass))
#define IS_GTK_CONTENT_LIST_ITEM(obj)   (G_TYPE_CHECK_INSTANCE_TYPE ((obj), GTK_CONTENT_LIST_ITEM_TYPE))
#define IS_GTK_CONTENT_LIST_ITEM_CLASS(klass)   (G_TYPE_CHECK_CLASS_TYPE ((klass), GTK_CONTENT_LIST_ITEM_TYPE))

Typedefs

typedef struct _GtkContentListItem GtkContentListItem
typedef struct
_GtkContentListItemClass 		GtkContentListItemClass

Functions

GtkWidget * gtk_content_list_item_new (int index)
GType gtk_content_list_item_get_type (void)
void gtk_content_list_item_set_title (GtkContentListItem *item, const gchar *text)
void gtk_content_list_item_set_subtitle (GtkContentListItem *item, const gchar *text)
void gtk_content_list_item_set_description (GtkContentListItem *item, const gchar *text)
void gtk_content_list_item_set_thumb (GtkContentListItem *item, const char *iconURL)
void gtk_content_list_item_set_icon_thumb (GtkContentListItem *item, unsigned int iconID)
void gtk_content_list_item_hide_thumb (GtkContentListItem *item)
void gtk_content_list_item_show_cursor (GtkContentListItem *item, gboolean show)
void gtk_content_list_item_set_information (GtkContentListItem *item, const gchar *text)

Detailed Description

content lister - GTK widget for the eReader content Lister item. The eReader content Lister item contains one thumb, 2 labels and a texfield

<File description>="">

Definition in file gtkContentListItem.h.

Define Documentation

#define CURSOR_BOX_MIN_WIDTH   (LISTER_BOX_BORDER - HBOX_TEXT_THUMB_SPACING)

Definition at line 49 of file gtkContentListItem.h.

#define GTK_CONTENT_LIST_ITEM ( obj   )     (G_TYPE_CHECK_INSTANCE_CAST ((obj), GTK_CONTENT_LIST_ITEM_TYPE, GtkContentListItem))

Definition at line 61 of file gtkContentListItem.h.

#define GTK_CONTENT_LIST_ITEM_CLASS ( klass   )     (G_TYPE_CHECK_CLASS_CAST ((klass), GTK_CONTENT_LIST_ITEM_TYPE, GtkContentListItemClass))

Definition at line 62 of file gtkContentListItem.h.

#define GTK_CONTENT_LIST_ITEM_TYPE   (gtk_content_list_item_get_type ())

Definition at line 60 of file gtkContentListItem.h.

#define HBOX_TEXT_BORDER   15

Definition at line 43 of file gtkContentListItem.h.

#define HBOX_TEXT_TEXT_SPACING   4

Definition at line 42 of file gtkContentListItem.h.

#define HBOX_TEXT_THUMB_SPACING   5

Definition at line 41 of file gtkContentListItem.h.

#define IS_GTK_CONTENT_LIST_ITEM ( obj   )     (G_TYPE_CHECK_INSTANCE_TYPE ((obj), GTK_CONTENT_LIST_ITEM_TYPE))

Definition at line 63 of file gtkContentListItem.h.

#define IS_GTK_CONTENT_LIST_ITEM_CLASS ( klass   )     (G_TYPE_CHECK_CLASS_TYPE ((klass), GTK_CONTENT_LIST_ITEM_TYPE))

Definition at line 64 of file gtkContentListItem.h.

#define ITEM_MAX_THUMB_HEIGHT   115

Definition at line 39 of file gtkContentListItem.h.

#define ITEM_MAX_THUMB_WIDTH   91

Definition at line 38 of file gtkContentListItem.h.

#define TEXT_BOX_MIN_WIDTH   570

Definition at line 48 of file gtkContentListItem.h.

#define THUMB_BOX_MIN_WIDTH   91

Definition at line 47 of file gtkContentListItem.h.

#define VBOX_TEXT_BORDER   11

Definition at line 45 of file gtkContentListItem.h.

#define VBOX_TEXT_TEXT_SPACING   2

Definition at line 44 of file gtkContentListItem.h.

Typedef Documentation

typedef struct _GtkContentListItem GtkContentListItem

Definition at line 66 of file gtkContentListItem.h.

typedef struct _GtkContentListItemClass GtkContentListItemClass

Definition at line 67 of file gtkContentListItem.h.

Function Documentation

GType gtk_content_list_item_get_type ( void   )

returns type of GtkListItem widget

Returns:
type

Definition at line 64 of file gtkContentListItem.c.

00065 {
00066     static GType content_list_item_type = 0;
00067
00068     if (!content_list_item_type)
00069     {
00070         static const GTypeInfo content_list_item_info = {
00071             sizeof(GtkContentListItemClass),
00072             NULL,               /* base_init */
00073             NULL,               /* base_finalize */
00074             (GClassInitFunc) gtk_content_list_item_class_init,
00075             NULL,               /* class_finalize */
00076             NULL,               /* class_data */
00077             sizeof(GtkContentListItem),
00078             0,                  /* n_preallocs */
00079             (GInstanceInitFunc) gtk_content_list_item_init,
00080         };
00081
00082         content_list_item_type = g_type_register_static(GTK_TYPE_HBOX, "ListItem", &content_list_item_info, 0);
00083     }
00084     return content_list_item_type;
00085 }

Here is the call graph for this function:

void gtk_content_list_item_hide_thumb ( GtkContentListItem *  item  )

Hide thumb

Parameters:
item the GtkListItem widget

Definition at line 290 of file gtkContentListItem.c.

00291 {
00292     g_return_if_fail(IS_GTK_CONTENT_LIST_ITEM(item));
00293     gtk_widget_hide(GTK_WIDGET(item->image));
00294 }

GtkWidget* gtk_content_list_item_new ( int  index  )

creates a new GtkListItem widget

Parameters:
index - the widget location on the lister page
Returns:
reference to created widget

void gtk_content_list_item_set_description ( GtkContentListItem *  item,
const gchar *  text
)

Set description text of GtkListItem widget

Parameters:
item the GtkListItem widget
text

Definition at line 213 of file gtkContentListItem.c.

00214 {
00215     g_return_if_fail(IS_GTK_CONTENT_LIST_ITEM(item));
00216     g_return_if_fail(text != NULL);
00217     CL_LOGPRINTF("text %s", text);
00218
00219     // check length
00220     if (strlen(text) >= 2 * MAX_CHARACTERS || get_string_lines(text) >= 2)
00221     {
00222         // can not handle multi lines, TODO
00223         gtk_label_set_ellipsize(GTK_LABEL(item->description), PANGO_ELLIPSIZE_END);
00224     }
00225     else
00226     {
00227         gtk_label_set_ellipsize(GTK_LABEL(item->description), PANGO_ELLIPSIZE_NONE);
00228     }
00229     gtk_label_set_text(GTK_LABEL(item->description), text);
00230 }

Here is the call graph for this function:

void gtk_content_list_item_set_icon_thumb ( GtkContentListItem *  item,
unsigned int  iconID
)

Set thumb of GtkListItem widget

Parameters:
item the GtkListItem widget
iconID icon identification

Definition at line 270 of file gtkContentListItem.c.

00271 {
00272     GdkPixbuf *pixbuf;
00273
00274     g_return_if_fail(IS_GTK_CONTENT_LIST_ITEM(item));
00275
00276     pixbuf = icons_get(iconID);
00277
00278     if (pixbuf)
00279     {
00280         gtk_image_set_from_pixbuf(GTK_IMAGE(item->image), pixbuf);
00281         gtk_widget_show(GTK_WIDGET(item->image));
00282     }
00283     else
00284     {
00285         gtk_widget_hide(GTK_WIDGET(item->image));
00286     }
00287     return;
00288 }

Here is the call graph for this function:

void gtk_content_list_item_set_information ( GtkContentListItem *  item,
const gchar *  text
)

Set information text of GtkListItem widget

Parameters:
item the GtkListItem widget
text

Definition at line 232 of file gtkContentListItem.c.

00233 {
00234     g_return_if_fail(IS_GTK_CONTENT_LIST_ITEM(item));
00235     g_return_if_fail(text != NULL);
00236     CL_LOGPRINTF("text %s", text);
00237     gtk_label_set_text(GTK_LABEL(item->information), text);
00238 }

void gtk_content_list_item_set_subtitle ( GtkContentListItem *  item,
const gchar *  text
)

Set subtitle text of GtkListItem widget

Parameters:
item the GtkListItem widget
text

Definition at line 203 of file gtkContentListItem.c.

00204 {
00205     g_return_if_fail(IS_GTK_CONTENT_LIST_ITEM(item));
00206     g_return_if_fail(text != NULL);
00207
00208     CL_LOGPRINTF("text %s", text);
00209
00210     gtk_label_set_text(GTK_LABEL(item->subtitle), text);
00211 }

void gtk_content_list_item_set_thumb ( GtkContentListItem *  item,
const char *  iconURL
)

Set thumb of GtkListItem widget

Parameters:
item the GtkListItem widget
iconURL icon path

Definition at line 240 of file gtkContentListItem.c.

00241 {
00242     GdkPixbuf *pixbuf = NULL;
00243
00244     g_return_if_fail(IS_GTK_CONTENT_LIST_ITEM(item));
00245     g_return_if_fail(NULL != iconURL);
00246
00247     pixbuf = icons_load(iconURL);
00248     if (pixbuf)
00249     {
00250         // free the old one
00251         if (item->pixmap)
00252         {
00253             icons_unload(item->pixmap);
00254             item->pixmap = NULL;
00255         }
00256         // set the new one
00257         item->pixmap = pixbuf;
00258
00259         gtk_image_set_from_pixbuf(GTK_IMAGE(item->image), pixbuf);
00260
00261         gtk_widget_show(GTK_WIDGET(item->image));
00262     }
00263     else
00264     {
00265         gtk_widget_hide(GTK_WIDGET(item->image));
00266     }
00267     return;
00268 }

Here is the call graph for this function:

void gtk_content_list_item_set_title ( GtkContentListItem *  item,
const gchar *  text
)

Set title text of GtkListItem widget

Parameters:
text

Definition at line 193 of file gtkContentListItem.c.

00194 {
00195     g_return_if_fail(IS_GTK_CONTENT_LIST_ITEM(item));
00196     g_return_if_fail(text != NULL);
00197
00198     CL_LOGPRINTF("text %s", text);
00199
00200     gtk_label_set_text(GTK_LABEL(item->title), text);
00201 }

void gtk_content_list_item_show_cursor ( GtkContentListItem *  item,
gboolean  show
)

Clear thumb and free allocated resources of the GtkListItem widget

Parameters:
item the GtkListItem widget
show

Definition at line 296 of file gtkContentListItem.c.

00297 {
00298     g_return_if_fail(IS_GTK_CONTENT_LIST_ITEM(item));
00299
00300     CL_CURSORPRINTF("entry %s", (show == TRUE) ? "TRUE" : "FALSE");
00301
00302     if (show)
00303     {
00304         gtk_widget_show(item->cursorbox);
00305     }
00306     else
00307     {
00308         gtk_widget_hide(item->cursorbox);
00309     }
00310 }
