contentLister/src/gtkPincodeScreen.c File Reference

content lister - Input Pincode Screen More...

#include <glib.h>
#include <gdk/gdk.h>
#include <gtk/gtk.h>
#include <gdk/gdkkeysyms.h>
#include <liberdm/display.h>
#include <liberdm/erdm.h>
#include <libergtk/ergtk.h>
#include <liberipc/eripctoolbar.h>
#include <libermanifest/ermanifest.h>
#include "contentListerLog.h"
#include "system.h"
#include "pincodeIdleTime.h"
#include "gtkPincodeScreen.h"
#include "displayUpdate.h"
#include "erConnect.h"
#include "control.h"
#include "erbusy.h"
#include "languages.h"

Go to the source code of this file.

Defines
#define	PINCODE_UI_MIN_LENGTH   4
#define	PINCODE_UI_MAX_LENGTH   4
Functions
static void	gtk_pincode_screen_class_init (GtkPincodeScreenClass *klass)
static void	gtk_pincode_screen_init (GtkPincodeScreen *screen)
static GtkWidget *	create_pincode_input_widget (GtkPincodeScreen *screen)
static GtkWidget *	create_pincode_message_widget (GtkPincodeScreen *screen)
static void	gtk_pincode_screen_set_text (GtkPincodeScreen *screen)
static void	pincode_message_widget_set_text (GtkPincodeScreen *screen, gchar *text)
static void	gtk_pincode_screen_show_input_widget (GtkPincodeScreen *screen)
static void	gtk_pincode_screen_show_message_widget (GtkPincodeScreen *screen)
static GtkWidget *	create_pincode_stars (GtkPincodeScreen *screen)
static void	destroy_pincode_stars (GtkPincodeScreen *screen)
static void	pincode_stars_append_number (pincodeStars *stars, gint number)
static void	pincode_stars_backspace (pincodeStars *stars)
static gchar *	pincode_stars_get_text (pincodeStars *stars)
static gboolean	pincode_stars_check_text (pincodeStars *stars)
static void	pincode_stars_reset (pincodeStars *stars)
static gboolean	delayed_on_changed (gpointer user_data)
static gboolean	on_gtk_pincode_screen_expose_event (GtkPincodeScreen *screen, GdkEventExpose *event, gpointer user_data)
static gboolean	on_gtk_pincode_screen_hide (GtkPincodeScreen *screen, gpointer user_data)
static gboolean	on_gtk_pincode_screen_button_press (GtkPincodeScreen *screen, GdkEventButton *event, gpointer user_data)
static gboolean	on_gtk_pincode_motion_notify_event (GtkPincodeScreen *screen, GdkEventMotion *event, gpointer user_data)
static gboolean	on_gtk_pincode_screen_button_release (GtkPincodeScreen *screen, GdkEventButton *event, gpointer user_data)
static gboolean	on_gtk_pincode_screen_key_press (GtkPincodeScreen *screen, GdkEventKey *event, gpointer user_data)
static gboolean	on_gtk_pincode_screen_key_release (GtkPincodeScreen *screen, GdkEventKey *event, gpointer user_data)
static gboolean	on_gtk_pincode_screen_destroy (GtkPincodeScreen *screen, GdkEvent *event, gpointer user_data)
static gboolean	on_gtk_pincode_keyboard_button_press (GtkWidget *keyboard, GdkEventButton *event, gpointer user_data)
static gint	get_clicked_number (gint x, gint y)
static void	on_confirm_button_toggled (GtkToggleButton *button, gpointer screen)
static gboolean	delayed_on_confirm_button_clicked (gpointer user_data)
static gboolean	pincode_shutdown (gpointer user_data)
static gboolean	pincode_passed (gpointer user_data)
static gboolean	pincode_decrease_display_level (gpointer data)
static gboolean	on_message_widget_clicked_event (GtkWidget *widget, GdkEventButton *event, gpointer user_data)
GtkWidget *	gtk_pincode_screen_new ()
GType	gtk_pincode_screen_get_type (void)
static void	gtk_pincode_show_message_info_label (GtkPincodeScreen *screen, gboolean show)
void	gtk_pincode_screen_layout_reset (GtkWidget *screen)
void	gtk_pincode_screen_data_reset (GtkWidget *screen)
void	gtk_pincode_screen_set_pincode_settings (GtkWidget *screen, gboolean on, const gchar *pincode)
void	gtk_pincode_screen_get_pincode_settings (GtkWidget *screen, gboolean *on, gchar *pincode)
void	gtk_pincode_screen_set_reason (GtkWidget *screen, showPincodeReason_t reason)
showPincodeReason_t	gtk_pincode_screen_get_reason (GtkWidget *screen)
void	gtk_pincode_screen_set_on_cancel_callback (GtkWidget *screen, on_cancel_callback_t *func)
void	gtk_pincode_screen_on_cancel_callback (GtkWidget *screen)
void	gtk_pincode_screen_set_on_passed_callback (GtkWidget *screen, on_passed_callback_t *func)
Variables
static gint	g_timeout_handler_id = 0

---

Detailed Description

content lister - Input Pincode Screen

(1)when user boot system, if PINCODE is set ON, first show this pincode screen at here, user can input PINCODE. if PINCODE passed, on_passed_callback is invoked(boot device normally) if PINCODE not passed after users try 3 times, power down the device in some other case, no user activities happened, after some time e.g 5mins, power down the device too

(2)when user click 'lock screen' icon on toolbar to lock screen, show pincode screen if PINCODE passed, on_passed_callback is invoked(go back to the previous state) otherwise deal with the same as PINCODE at startup

(3)when signing a document(only pincode is on, CB can allow signing), show pincode screen if PINCODE passed, on_passed_callback is invoked(signed the document) otherwise deal with the same as PINCODE at startup

(4)before user enter the settings, show pincode screen if PINCODE passed, on_passed_callback is invoked(let user enter the settings application) otherwise deal with the same as PINCODE at startup

as above, (1)(2)for locking purpose, CB locks all keys except 'CONNECT LONG' which is for RESET pinocde (3)(4)for authorizing purpose, CB locks all keys except 'OVERVIEW' which is for cancel(leaving) the pincode

Copyright (C) 2006-2008 iRex Technologies BV. All rights reserved.

Definition in file gtkPincodeScreen.c.

---

Define Documentation

#define PINCODE_UI_MAX_LENGTH   4

Definition at line 76 of file gtkPincodeScreen.c.

#define PINCODE_UI_MIN_LENGTH   4

Definition at line 75 of file gtkPincodeScreen.c.

---

Function Documentation

static GtkWidget * create_pincode_input_widget

(

GtkPincodeScreen *

screen

)

[static]

Definition at line 246 of file gtkPincodeScreen.c.

{
    GtkWidget *box;
    GtkWidget *fixed;
    GtkWidget *inputLabel;
    GtkWidget *starsWidget;
    GtkWidget *keyboard;
    GtkWidget *confirmButton;
    GtkWidget *inputInfoLabel;
    // box
    box = gtk_event_box_new();
    gtk_widget_set_name(box, "pincode_input_background");
    gtk_widget_set_size_request(box, PINCODE_BACKGROUND_WIDTH, PINCODE_BACKGROUND_HEIGHT);
    // fixed
    fixed = gtk_fixed_new();
    gtk_container_add(GTK_CONTAINER(box), fixed);
    // inputLabel
    inputLabel = gtk_label_new("");
    gtk_fixed_put(GTK_FIXED(fixed), inputLabel, PINCODE_INPUT_LABEL_XPOS, PINCODE_INPUT_LABEL_YPOS);
    gtk_widget_set_name(inputLabel, "pincode_input_title_text");
    gtk_widget_set_size_request(inputLabel, PINCODE_INPUT_LABEL_WIDTH, PINCODE_INPUT_LABEL_HEIGHT);
    gtk_label_set_justify(GTK_LABEL(inputLabel), GTK_JUSTIFY_CENTER);
    // starsWidget
    starsWidget = create_pincode_stars(screen);
    gtk_fixed_put(GTK_FIXED(fixed), starsWidget, PINCODE_STARS_XPOS, PINCODE_STARS_YPOS);
    // keyboard
    keyboard = gtk_event_box_new();
    gtk_fixed_put(GTK_FIXED(fixed), keyboard, PINCODE_KEYBOARD_XPOS, PINCODE_KEYBOARD_YPOS);
    gtk_widget_set_name(keyboard, "pincode_keyboard_background");
    gtk_widget_set_size_request(GTK_WIDGET(keyboard), PINCODE_KEYBOARD_WIDTH, PINCODE_KEYBOARD_HEIGHT);
    // confirmButton
    confirmButton = ergtk_toggle_button_new();
    gtk_widget_set_name(confirmButton, "pincode_confirm");
    gtk_fixed_put(GTK_FIXED(fixed), confirmButton, PINCODE_BUTTON_XPOS, PINCODE_BUTTON_YPOS);
    gtk_widget_set_size_request(confirmButton, PINCODE_BUTTON_WIDTH, PINCODE_BUTTON_HEIGHT);
    // inputInfoLabel
    inputInfoLabel = gtk_label_new("");
    gtk_fixed_put(GTK_FIXED(fixed), inputInfoLabel, PINCODE_INFO_LABEL_XPOS, PINCODE_INFO_LABEL_YPOS);
    gtk_widget_set_name(inputInfoLabel, "pincode_screen_info_text");
    gtk_widget_set_size_request(GTK_WIDGET(inputInfoLabel), PINCODE_INFO_LABEL_WIDTH, PINCODE_INFO_LABEL_HEIGHT);
    gtk_label_set_justify(GTK_LABEL(inputInfoLabel), GTK_JUSTIFY_CENTER);
    // set screen values
    screen->inputLabel = inputLabel;
    screen->keyboard = keyboard;
    screen->confirmButton = confirmButton;
    screen->inputInfoLabel = inputInfoLabel;
    // keyboard signals
    g_signal_connect(G_OBJECT(keyboard), "button-press-event",
                     G_CALLBACK(on_gtk_pincode_keyboard_button_press), screen);
    // confirmButton signals
    g_signal_connect(G_OBJECT(confirmButton), "toggled", G_CALLBACK(on_confirm_button_toggled), screen);
    // show widgets
    gtk_widget_show(fixed);
    gtk_widget_show(inputLabel);
    gtk_widget_show(starsWidget);
    gtk_widget_show(keyboard);
    gtk_widget_show(confirmButton);
    gtk_widget_show(inputInfoLabel);

    return box;
}

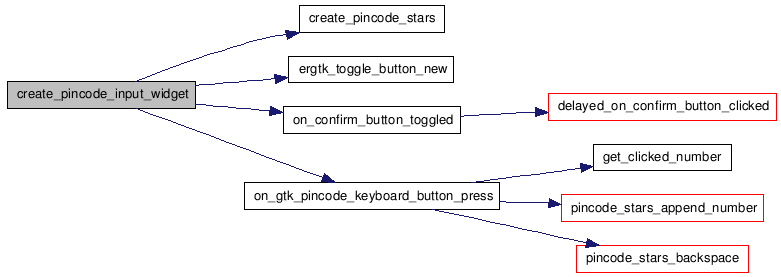

Here is the call graph for this function:

static GtkWidget * create_pincode_message_widget

(

GtkPincodeScreen *

screen

)

[static]

Definition at line 315 of file gtkPincodeScreen.c.

{
    GtkWidget *box;
    GtkWidget *vbox;
    GtkWidget *messageLabel;
    GtkWidget *messageInfoLabel;
    // box
    box = gtk_event_box_new();
    gtk_widget_set_name(box, "pincode_message_background");
    gtk_widget_set_size_request(box, PINCODE_BACKGROUND_WIDTH, PINCODE_BACKGROUND_HEIGHT);
    // vbox
    vbox = gtk_vbox_new(FALSE, 0);
    gtk_container_add(GTK_CONTAINER(box), vbox);
    // messageLabel
    messageLabel = gtk_label_new("");
    gtk_box_pack_start(GTK_BOX(vbox), messageLabel, FALSE, FALSE, 0);
    gtk_widget_set_name(messageLabel, "pincode_message_title_text");
    gtk_label_set_line_wrap(GTK_LABEL(messageLabel), TRUE);
    gtk_widget_set_size_request(messageLabel, PINCODE_MESSAGE_LABEL_WIDTH, PINCODE_MESSAGE_LABEL_HEIGHT);
    gtk_label_set_justify(GTK_LABEL(messageLabel), GTK_JUSTIFY_CENTER);
    // messageInfoLabel
    messageInfoLabel = gtk_label_new("");
    gtk_box_pack_start(GTK_BOX(vbox), messageInfoLabel, FALSE, FALSE, 0);
    gtk_widget_set_name(messageInfoLabel, "pincode_screen_info_text");
    gtk_widget_set_size_request(GTK_WIDGET(messageInfoLabel), PINCODE_INFO_LABEL_WIDTH, PINCODE_INFO_LABEL_HEIGHT);
    gtk_label_set_justify(GTK_LABEL(messageInfoLabel), GTK_JUSTIFY_CENTER);
    // signals
    g_signal_connect(G_OBJECT(box), "button-press-event", G_CALLBACK(on_message_widget_clicked_event), screen);
    // set screen values
    screen->messageLabel = messageLabel;
    screen->messageInfoLabel = messageInfoLabel;
    // show widgets
    gtk_widget_show_all(vbox);

    return box;
}

Here is the call graph for this function:

static GtkWidget * create_pincode_stars

(

GtkPincodeScreen *

screen

)

[static]

Definition at line 935 of file gtkPincodeScreen.c.

{
    pincodeStars *stars = NULL;

    GtkWidget *hbox;
    GtkWidget *vbox;
    GtkWidget *grayStar;
    GtkWidget *whiteStar;

    if (NULL == screen)
        return NULL;
    if (!IS_GTK_PINCODE_SCREEN(screen))
        return NULL;
    stars = g_new0(pincodeStars, 1);
    if (NULL == stars)
        return NULL;

    hbox = gtk_hbox_new(FALSE, PINCODE_STAR_SPACING);
    stars->hbox = hbox;
// vbox1
    vbox = gtk_vbox_new(FALSE, 0);
    gtk_box_pack_start(GTK_BOX(hbox), vbox, FALSE, FALSE, 0);
    stars->vbox1 = vbox;
    grayStar = gtk_event_box_new();
    gtk_box_pack_start(GTK_BOX(vbox), grayStar, FALSE, FALSE, 0);
    stars->grayStar1 = grayStar;
    gtk_widget_set_name(grayStar, "pincode_gray_star");
    gtk_widget_set_size_request(grayStar, PINCODE_STAR_WIDTH, PINCODE_STAR_HEIGHT);
    whiteStar = gtk_event_box_new();
    gtk_box_pack_start(GTK_BOX(vbox), whiteStar, FALSE, FALSE, 0);
    stars->whiteStar1 = whiteStar;
    gtk_widget_set_name(whiteStar, "pincode_white_star");
    gtk_widget_set_size_request(whiteStar, PINCODE_STAR_WIDTH, PINCODE_STAR_HEIGHT);
// vbox2
    vbox = gtk_vbox_new(FALSE, 0);
    gtk_box_pack_start(GTK_BOX(hbox), vbox, FALSE, FALSE, 0);
    stars->vbox2 = vbox;
    grayStar = gtk_event_box_new();
    gtk_box_pack_start(GTK_BOX(vbox), grayStar, FALSE, FALSE, 0);
    stars->grayStar2 = grayStar;
    gtk_widget_set_name(grayStar, "pincode_gray_star");
    gtk_widget_set_size_request(grayStar, PINCODE_STAR_WIDTH, PINCODE_STAR_HEIGHT);
    whiteStar = gtk_event_box_new();
    gtk_box_pack_start(GTK_BOX(vbox), whiteStar, FALSE, FALSE, 0);
    stars->whiteStar2 = whiteStar;
    gtk_widget_set_name(whiteStar, "pincode_white_star");
    gtk_widget_set_size_request(whiteStar, PINCODE_STAR_WIDTH, PINCODE_STAR_HEIGHT);
// vbox3
    vbox = gtk_vbox_new(FALSE, 0);
    gtk_box_pack_start(GTK_BOX(hbox), vbox, FALSE, FALSE, 0);
    stars->vbox3 = vbox;
    grayStar = gtk_event_box_new();
    gtk_box_pack_start(GTK_BOX(vbox), grayStar, FALSE, FALSE, 0);
    stars->grayStar3 = grayStar;
    gtk_widget_set_name(grayStar, "pincode_gray_star");
    gtk_widget_set_size_request(grayStar, PINCODE_STAR_WIDTH, PINCODE_STAR_HEIGHT);
    whiteStar = gtk_event_box_new();
    gtk_box_pack_start(GTK_BOX(vbox), whiteStar, FALSE, FALSE, 0);
    stars->whiteStar3 = whiteStar;
    gtk_widget_set_name(whiteStar, "pincode_white_star");
    gtk_widget_set_size_request(whiteStar, PINCODE_STAR_WIDTH, PINCODE_STAR_HEIGHT);
// vbox4
    vbox = gtk_vbox_new(FALSE, 0);
    gtk_box_pack_start(GTK_BOX(hbox), vbox, FALSE, FALSE, 0);
    stars->vbox4 = vbox;
    grayStar = gtk_event_box_new();
    gtk_box_pack_start(GTK_BOX(vbox), grayStar, FALSE, FALSE, 0);
    stars->grayStar4 = grayStar;
    gtk_widget_set_name(grayStar, "pincode_gray_star");
    gtk_widget_set_size_request(grayStar, PINCODE_STAR_WIDTH, PINCODE_STAR_HEIGHT);
    whiteStar = gtk_event_box_new();
    gtk_box_pack_start(GTK_BOX(vbox), whiteStar, FALSE, FALSE, 0);
    stars->whiteStar4 = whiteStar;
    gtk_widget_set_name(whiteStar, "pincode_white_star");
    gtk_widget_set_size_request(whiteStar, PINCODE_STAR_WIDTH, PINCODE_STAR_HEIGHT);
//
    memset(stars->pincode, 0, sizeof(stars->pincode));
// show widgets
    gtk_widget_show(stars->hbox);
    gtk_widget_show(stars->vbox1);
    gtk_widget_show(stars->grayStar1);
    gtk_widget_show(stars->vbox2);
    gtk_widget_show(stars->grayStar2);
    gtk_widget_show(stars->vbox3);
    gtk_widget_show(stars->grayStar3);
    gtk_widget_show(stars->vbox4);
    gtk_widget_show(stars->grayStar4);

    screen->stars = stars;
    stars->on_change_occurred = FALSE;
    stars->display_update_pending = FALSE;

    return hbox;
}

static gboolean delayed_on_changed

(

gpointer

user_data

)

[static]

Definition at line 1178 of file gtkPincodeScreen.c.

{
    pincodeStars *stars = user_data;

    if (NULL == stars)
        return FALSE;

    if (stars->on_change_occurred)
    {
        // item text has been changed: check again later
        stars->on_change_occurred = FALSE;
    }
    else
    {
        // for back to pincode after downloadMgr
         int level = display_update_get_level();
         if (level > TEXTENTRY_CHANGED_LEVEL)
         {
             display_update_decrease_level(TEXTENTRY_CHANGED_LEVEL);
         }
        // item text is stable: update screen
        display_update_request_screen_refresh(TEXTENTRY_CHANGED_LEVEL);
        stars->display_update_pending = FALSE;
    }

    return stars->display_update_pending;       // TRUE = call me again, FALSE = don't call
}

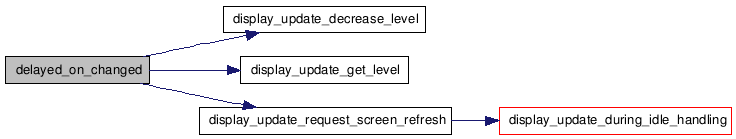

Here is the call graph for this function:

static gboolean delayed_on_confirm_button_clicked

(

gpointer

user_data

)

[static]

Definition at line 735 of file gtkPincodeScreen.c.

{
    GtkPincodeScreen *screen = user_data;
    GtkWidget *button = screen->confirmButton;
    const gchar *text = NULL;
    gboolean check = FALSE;

    erbusy_blink();

    //  check pincode
    if (screen->stars)
    {
        screen->tryTimes++;
        // for signing document, we don't check pincode onoff flag
        if (   (signDocument_t != screen->reason && FALSE == screen->pincodeOn)
            || (0 == strlen(screen->pincode)) )
        {
            check = TRUE;
        }
        else
        {
            check = pincode_stars_check_text(screen->stars);
        }
        if (FALSE == check)
        {
            screen->passed = FALSE;
            if (screen->tryTimes >= MAX_TRY_PINCODE_TIMES)
            {
//                pincode_message_widget_set_text(screen,_("Tried too many times! System is going to power off now."));
//                gtk_pincode_screen_show_message_widget(screen);
//                display_update_request_screen_refresh(TEXTENTRY_CHANGED_LEVEL, NULL);

//                g_timeout_handler_id = g_timeout_add(500, pincode_shutdown, NULL);
                pincode_shutdown(NULL);
            }
            else
            {
                pincode_message_widget_set_text(screen, _("PIN code is incorrect. Please try again."));
                gtk_pincode_screen_show_message_widget(screen);
                display_update_request_screen_refresh(TEXTENTRY_CHANGED_LEVEL);

                g_timeout_handler_id = g_timeout_add(3000, pincode_passed, (gpointer)screen);
            }
        }
        else
        {
            text = pincode_stars_get_text(screen->stars);
            if (   (signDocument_t != screen->reason && FALSE == screen->pincodeOn)
                || (0 == strlen(screen->pincode))
                || (0 == strcmp(screen->pincode, text)) )
            {
                screen->passed = TRUE;
                screen->tryTimes = 0;
            }
            else
            {
                screen->passed = FALSE;
            }
            if (FALSE == screen->passed)
            {
                if (screen->tryTimes >= MAX_TRY_PINCODE_TIMES)
                {
//                  pincode_message_widget_set_text(screen, _("Tried too many times! System is going to power off now."));
//                  gtk_pincode_screen_show_message_widget(screen);
//                  display_update_request_screen_refresh(TEXTENTRY_CHANGED_LEVEL, NULL);

//                  g_timeout_handler_id = g_timeout_add(500, pincode_shutdown, NULL);
                   pincode_shutdown(NULL);
                }
                else
                {
                    pincode_message_widget_set_text(screen, _("PIN code is incorrect. Please try again."));
                    gtk_pincode_screen_show_message_widget(screen);
                    display_update_request_screen_refresh(TEXTENTRY_CHANGED_LEVEL);

                    g_timeout_handler_id = g_timeout_add(3000, pincode_passed, (gpointer)screen);
                }
            }
            else
            {
//                pincode_message_widget_set_text(screen, _("Your code is accepted."));
//                gtk_pincode_screen_show_message_widget(screen);
//                gtk_pincode_show_message_info_label(screen, FALSE);
//                display_update_request_screen_refresh(TEXTENTRY_CHANGED_LEVEL, NULL);

//                g_timeout_handler_id = g_timeout_add(500, pincode_passed, (gpointer) screen);
                pincode_passed(screen);
            }
        }
    }

    gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(button), FALSE);
    return FALSE;               // don't call me anymore
}

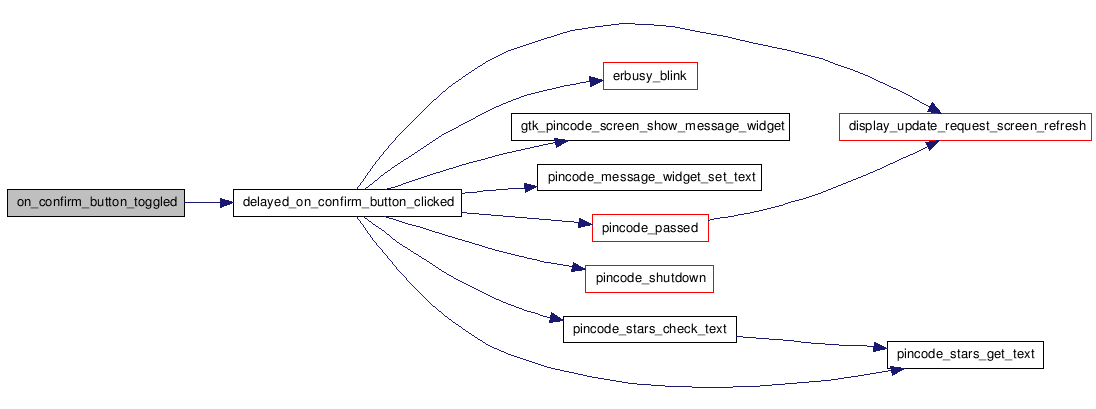

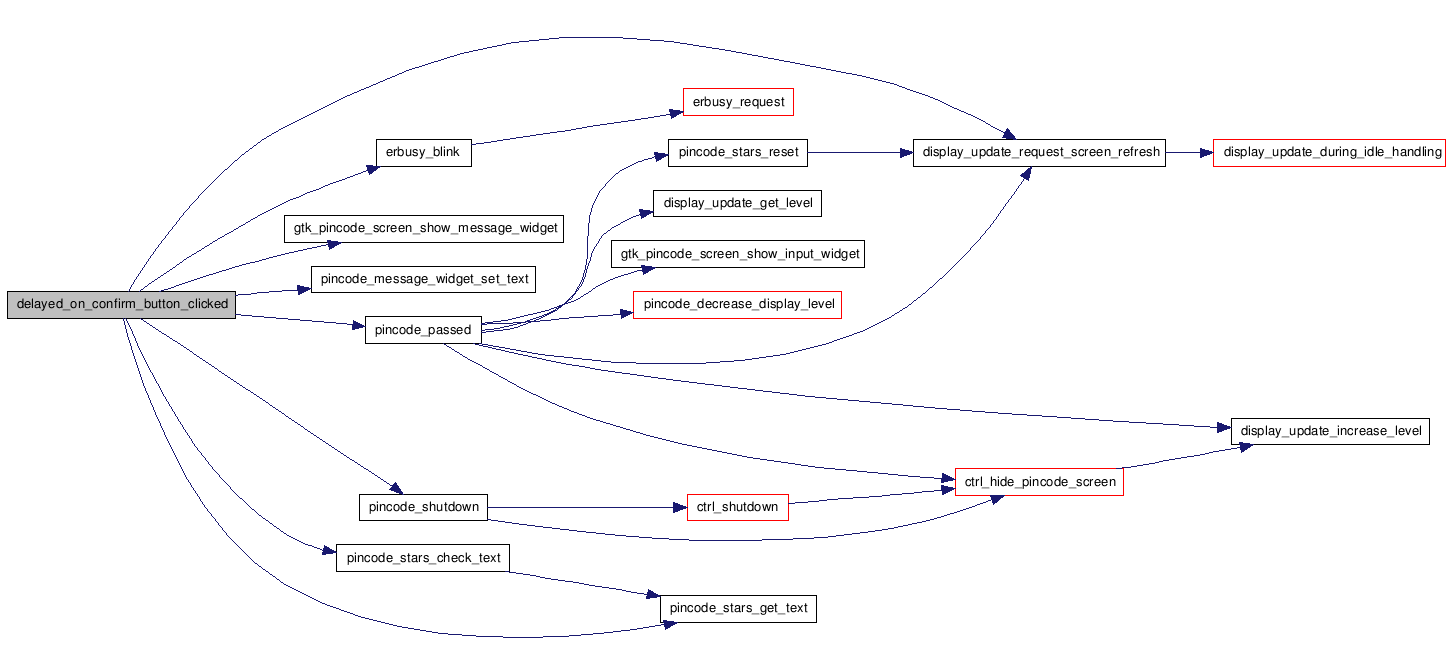

Here is the call graph for this function:

static void destroy_pincode_stars

(

GtkPincodeScreen *

screen

)

[static]

Definition at line 1030 of file gtkPincodeScreen.c.

{
    pincodeStars *stars;
    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));
    stars = (pincodeStars *) screen->stars;
    g_return_if_fail(NULL != stars);
    g_free(stars);
    screen->stars = NULL;
}

gint get_clicked_number	(	gint	x,
		gint	y
	)			[static]

Definition at line 664 of file gtkPincodeScreen.c.

{
    int i, numbers, w, h;
    int spacing, leftPadding, rightPadding, topPadding, bottomPadding;
    int rcL, rcR, rcT, rcB;
    int returnVal = -2;

    numbers = 11;
    w = 35;
    h = 35;
    spacing = 4;
    leftPadding = 9;
    rightPadding = 9;
    topPadding = 7;
    bottomPadding = 7;

    if (x >= 0 && x <= PINCODE_KEYBOARD_WIDTH && y >= 0 && y <= PINCODE_KEYBOARD_HEIGHT)
    {
        rcT = topPadding;
        rcB = rcT + h;
        i = 0;
        for (i = 0; i <= numbers; i++)
        {
            if (0 == i)         // zero
            {
                rcL = leftPadding;
                rcR = rcL + w;
            }
            else if (10 == i)   // backspace
            {
                rcR = PINCODE_KEYBOARD_WIDTH - rightPadding;
                rcL = rcR - w;
            }
            else
            {
                rcL = leftPadding + i * (w + spacing);
                rcR = rcL + w;
            }
            if (x >= rcL && x <= rcR && y >= rcT && y <= rcB)
            {
                returnVal = i + 1;
                if (10 == returnVal)
                    returnVal = 0;
                else if (11 == returnVal)
                    returnVal = -1;
                break;
            }
        }                       // for
    }
    return returnVal;
}

static void gtk_pincode_screen_class_init

(

GtkPincodeScreenClass *

klass

)

[static]

Definition at line 229 of file gtkPincodeScreen.c.

{
    // nothing needs to be done here
}

void gtk_pincode_screen_data_reset

(

GtkWidget *

screen

)

reset screen->passed to be FALSE

Parameters:

	screen	the GtkPincodeScreen widget

Returns:

-

Definition at line 493 of file gtkPincodeScreen.c.

{
    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));

//    GTK_PINCODE_SCREEN(screen)->tryTimes = 0;// remove to- only pincode passed, reset tryTimes
    GTK_PINCODE_SCREEN(screen)->passed = 0;
}

void gtk_pincode_screen_get_pincode_settings	(	GtkWidget *	screen,
		gboolean *	on,
		gchar *	pincode
	)

get screen->pincodeOn, get screen->pincode

Parameters:

	screen	the GtkPincodeScreen widget
	on
	pincode

Returns:

-

Definition at line 511 of file gtkPincodeScreen.c.

{
    g_return_if_fail(NULL != screen && NULL != on && NULL != pincode);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));

    *on = GTK_PINCODE_SCREEN(screen)->pincodeOn;
    strcpy(pincode, GTK_PINCODE_SCREEN(screen)->pincode);
}

showPincodeReason_t gtk_pincode_screen_get_reason

(

GtkWidget *

screen

)

get screen->reason

Parameters:

screen

the GtkPincodeScreen widget

Returns:

-reason

Definition at line 528 of file gtkPincodeScreen.c.

{
    showPincodeReason_t reason = undefinedReason_t;
    if (NULL == screen)
        return reason;
    if (!IS_GTK_PINCODE_SCREEN(screen))
        return reason;

    return GTK_PINCODE_SCREEN(screen)->reason;
}

GType gtk_pincode_screen_get_type

(

void

)

returns type of GtkPincodeScreen widget

Returns:

type

Definition at line 137 of file gtkPincodeScreen.c.

{
    static GType pincode_screen_type = 0;

    if (!pincode_screen_type)
    {
        static const GTypeInfo pincode_screen_info = {
            sizeof(GtkPincodeScreenClass),
            NULL,               /* base_init */
            NULL,               /* base_finalize */
            (GClassInitFunc) gtk_pincode_screen_class_init,
            NULL,               /* class_finalize */
            NULL,               /* class_data */
            sizeof(GtkPincodeScreen),
            0,                  /* n_preallocs */
            (GInstanceInitFunc) gtk_pincode_screen_init,
        };
        pincode_screen_type = g_type_register_static(GTK_TYPE_EVENT_BOX, "PincodeScreen", &pincode_screen_info, 0);
    }
    return pincode_screen_type;
}

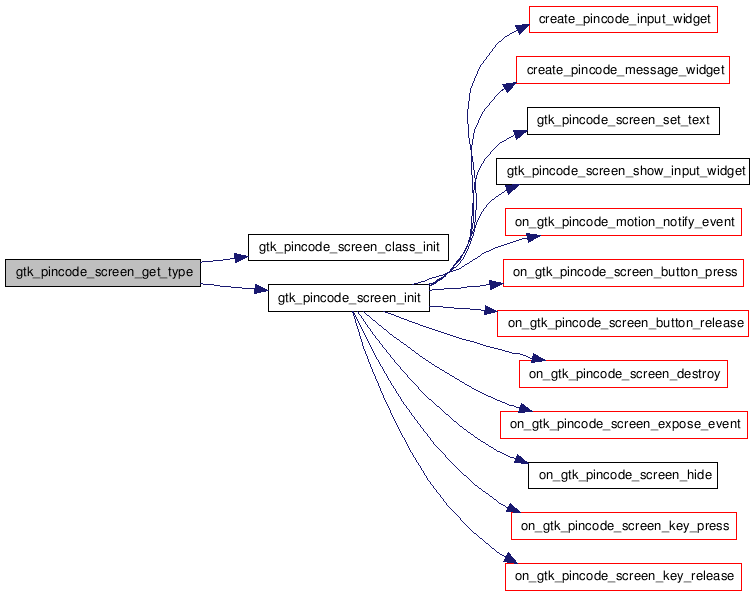

Here is the call graph for this function:

static void gtk_pincode_screen_init

(

GtkPincodeScreen *

screen

)

[static]

Definition at line 169 of file gtkPincodeScreen.c.

{
    GtkWidget *alignment;
    GtkWidget *clientArea;      // GtkVBox
    GtkWidget *inputWidget;     // input widget
    GtkWidget *messageWidget;   // message widget
    gboolean enable = FALSE;
    gchar pincode[PINCODE_MAX_LENGTH + 1] = "";

    if (NULL == screen)
        return;
    gtk_widget_set_name(GTK_WIDGET(screen), "pincode_screen_background");
    gtk_widget_set_size_request(GTK_WIDGET(screen), PINCODE_SCREEN_WIDTH, PINCODE_SCREEN_HEIGHT);
    // alignment
    alignment = gtk_alignment_new(0.0, 0.0, 0.0, 0.0);
    gtk_container_add(GTK_CONTAINER(screen), GTK_WIDGET(alignment));
    gtk_alignment_set_padding(GTK_ALIGNMENT(alignment),
                              PINCODE_SCREEN_PADDING_TOP,
                              PINCODE_SCREEN_PADDING_BOTTOM, PINCODE_SCREEN_PADDING_LEFT, PINCODE_SCREEN_PADDING_RIGHT);
    // clientArea
    clientArea = gtk_vbox_new(FALSE, 0);
    gtk_container_add(GTK_CONTAINER(alignment), clientArea);
    // inputWidget
    inputWidget = create_pincode_input_widget(screen);
    gtk_box_pack_start(GTK_BOX(clientArea), GTK_WIDGET(inputWidget), FALSE, FALSE, 0);
    // messageWidget
    messageWidget = create_pincode_message_widget(screen);
    gtk_box_pack_start(GTK_BOX(clientArea), GTK_WIDGET(messageWidget), FALSE, FALSE, 0);
    // signals
    g_signal_connect(G_OBJECT(screen), "expose_event", G_CALLBACK(on_gtk_pincode_screen_expose_event), NULL);
    g_signal_connect(G_OBJECT(screen), "hide", G_CALLBACK(on_gtk_pincode_screen_hide), NULL);
    g_signal_connect(G_OBJECT(screen), "button-press-event", G_CALLBACK(on_gtk_pincode_screen_button_press), NULL);
    g_signal_connect(G_OBJECT(screen), "motion_notify_event", G_CALLBACK(on_gtk_pincode_motion_notify_event), NULL);
    g_signal_connect(G_OBJECT(screen), "button-release-event", G_CALLBACK(on_gtk_pincode_screen_button_release), NULL);
    g_signal_connect(G_OBJECT(screen), "key_press_event", G_CALLBACK(on_gtk_pincode_screen_key_press), NULL);
    g_signal_connect(G_OBJECT(screen), "key_release_event", G_CALLBACK(on_gtk_pincode_screen_key_release), NULL);
    g_signal_connect(G_OBJECT(screen), "destroy", G_CALLBACK(on_gtk_pincode_screen_destroy), NULL);
    // set gtkPincodeScreen default values
    screen->clientArea = clientArea;
    screen->inputWidget = inputWidget;
    screen->messageWidget = messageWidget;
    screen->tryTimes = 0;
    screen->passed = FALSE;
    screen->isVisible = FALSE;
    // store 'enable' and 'pincode' to gtkPincodeScreen
    screen->pincodeOn = enable;
    strcpy(screen->pincode, pincode);
    //
    gtk_pincode_screen_set_text(screen);
    // show widget
    gtk_widget_show(GTK_WIDGET(clientArea));
    gtk_widget_show(GTK_WIDGET(alignment));
    gtk_pincode_screen_show_input_widget(screen);
//  add timeout in order to compute user idle time later
//  accumulate_idle_time_begin();
}

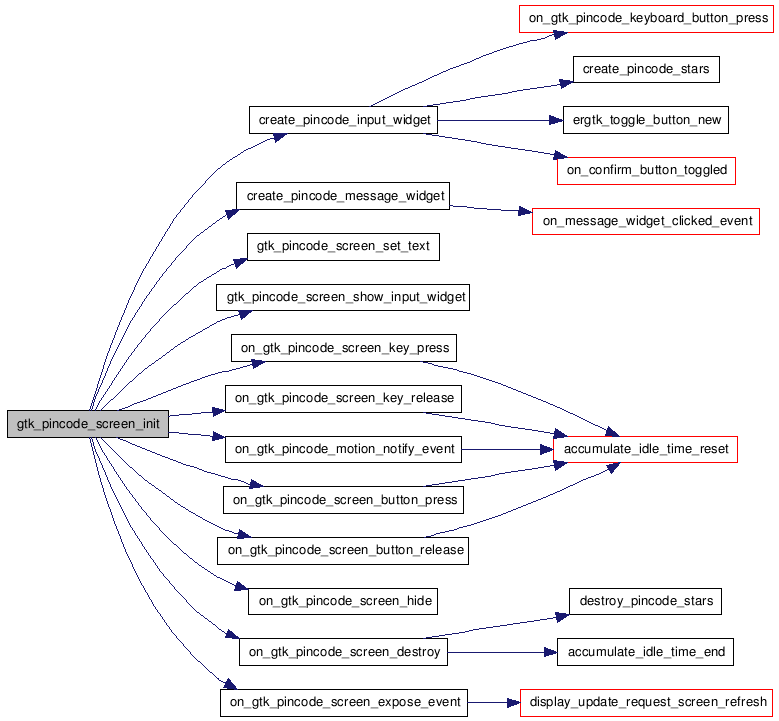

Here is the call graph for this function:

void gtk_pincode_screen_layout_reset

(

GtkWidget *

screen

)

reset screen layout, such as, reset all stars to be grey, set text

Parameters:

	screen	the GtkPincodeScreen widget

Returns:

-

Definition at line 482 of file gtkPincodeScreen.c.

{
    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));

    gtk_pincode_screen_set_text(GTK_PINCODE_SCREEN(screen));
    pincode_stars_reset(GTK_PINCODE_SCREEN(screen)->stars);
    gtk_pincode_screen_show_input_widget(GTK_PINCODE_SCREEN(screen));
    gtk_pincode_show_message_info_label(GTK_PINCODE_SCREEN(screen), TRUE);
}

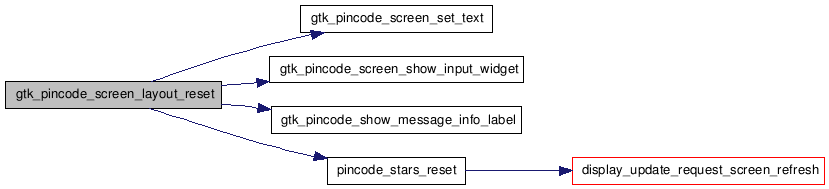

Here is the call graph for this function:

GtkWidget* gtk_pincode_screen_new

(

)

creates a new GtkPincodeScreen widget

Parameters:

-

Returns:

reference to created widget

Definition at line 130 of file gtkPincodeScreen.c.

{
    GtkPincodeScreen *screen;
    screen = (GtkPincodeScreen *) g_object_new(GTK_PINCODE_SCREEN_TYPE, NULL);
    return GTK_WIDGET(screen);
}

void gtk_pincode_screen_on_cancel_callback

(

GtkWidget *

screen

)

run screen->on_passed_callback

Parameters:

screen

the GtkPincodeScreen widget

Returns:

-

Definition at line 547 of file gtkPincodeScreen.c.

{
    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));
    if (GTK_PINCODE_SCREEN(screen)->on_cancel_callback)
    {
        GTK_PINCODE_SCREEN(screen)->on_cancel_callback();
    }
}

void gtk_pincode_screen_set_on_cancel_callback	(	GtkWidget *	screen,
		on_cancel_callback_t *	func
	)

set screen->on_cancel_callback

Parameters:

	screen	the GtkPincodeScreen widget
	func

Returns:

-

Definition at line 539 of file gtkPincodeScreen.c.

{
    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));

    GTK_PINCODE_SCREEN(screen)->on_cancel_callback = func;
}

void gtk_pincode_screen_set_on_passed_callback	(	GtkWidget *	screen,
		on_passed_callback_t *	func
	)

set screen->on_passed_callback

Parameters:

	screen	the GtkPincodeScreen widget
	func

Returns:

-

Definition at line 557 of file gtkPincodeScreen.c.

{
    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));

    GTK_PINCODE_SCREEN(screen)->on_passed_callback = func;
}

void gtk_pincode_screen_set_pincode_settings	(	GtkWidget *	screen,
		gboolean	on,
		const gchar *	pincode
	)

set screen->pincodeOn, set screen->pincode

Parameters:

	screen	the GtkPincodeScreen widget
	on
	pincode

Returns:

-

Definition at line 502 of file gtkPincodeScreen.c.

{
    g_return_if_fail(NULL != screen && NULL != pincode);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));

    GTK_PINCODE_SCREEN(screen)->pincodeOn = on;
    strcpy(GTK_PINCODE_SCREEN(screen)->pincode, pincode);
}

void gtk_pincode_screen_set_reason	(	GtkWidget *	screen,
		showPincodeReason_t	reason
	)

set screen->reason

Parameters:

	screen	the GtkPincodeScreen widget
	reason

Returns:

-

Definition at line 520 of file gtkPincodeScreen.c.

{
    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));

    GTK_PINCODE_SCREEN(screen)->reason = reason;
}

static void gtk_pincode_screen_set_text

(

GtkPincodeScreen *

screen

)

[static]

Definition at line 355 of file gtkPincodeScreen.c.

{
    CL_LOGPRINTF("entry");
    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));
    if (screen->inputLabel)
    {
        gtk_label_set_text(GTK_LABEL(screen->inputLabel), _("Enter your PIN code"));
    }
    if (screen->confirmButton)
    {
        gtk_button_set_label(GTK_BUTTON(screen->confirmButton), _("Confirm"));
    }
    if (screen->inputInfoLabel)
    {
        gtk_label_set_text(GTK_LABEL(screen->inputInfoLabel),
                           _("Forgot your PIN code? Please visit your MyiRex account."));
    }
    if (screen->messageInfoLabel)
    {
        gtk_label_set_text(GTK_LABEL(screen->messageInfoLabel),
                           _("Forgot your PIN code? Please visit your MyiRex account."));
    }
}

static void gtk_pincode_screen_show_input_widget

(

GtkPincodeScreen *

screen

)

[static]

Definition at line 392 of file gtkPincodeScreen.c.

{
    GtkWidget *clientArea = NULL;
    GtkWidget *inputWidget = NULL;
    GtkWidget *messageWidget = NULL;

    gboolean show = FALSE;

    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));

    clientArea = GTK_PINCODE_SCREEN(screen)->clientArea;
    messageWidget = GTK_PINCODE_SCREEN(screen)->messageWidget;
    inputWidget = GTK_PINCODE_SCREEN(screen)->inputWidget;

    g_return_if_fail(NULL != clientArea);
    g_return_if_fail(NULL != inputWidget);
    g_return_if_fail(NULL != messageWidget);

    show = GTK_WIDGET_VISIBLE(inputWidget);
    if (TRUE == show)
    {
        return;
    }

    gtk_widget_hide(messageWidget);
    gtk_widget_show(inputWidget);

    gtk_widget_grab_focus(GTK_WIDGET(inputWidget));
}

static void gtk_pincode_screen_show_message_widget

(

GtkPincodeScreen *

screen

)

[static]

Definition at line 426 of file gtkPincodeScreen.c.

{
    GtkWidget *clientArea = NULL;
    GtkWidget *inputWidget = NULL;
    GtkWidget *messageWidget = NULL;
    gboolean show = FALSE;

    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));

    clientArea = GTK_PINCODE_SCREEN(screen)->clientArea;
    messageWidget = GTK_PINCODE_SCREEN(screen)->messageWidget;
    inputWidget = GTK_PINCODE_SCREEN(screen)->inputWidget;

    g_return_if_fail(NULL != clientArea);
    g_return_if_fail(NULL != inputWidget);
    g_return_if_fail(NULL != messageWidget);

    show = GTK_WIDGET_VISIBLE(messageWidget);
    if (TRUE == show)
    {
        return;
    }

    gtk_widget_hide(inputWidget);
    gtk_widget_show(messageWidget);

    gtk_widget_grab_focus(GTK_WIDGET(GTK_PINCODE_SCREEN(screen)->messageWidget));
}

static void gtk_pincode_show_message_info_label	(	GtkPincodeScreen *	screen,
		gboolean	show
	)			[static]

Definition at line 456 of file gtkPincodeScreen.c.

{
    GtkWidget *messageInfoLabel = NULL;
    gboolean visible = FALSE;

    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));

    messageInfoLabel = GTK_PINCODE_SCREEN(screen)->messageInfoLabel;
    g_return_if_fail(NULL != messageInfoLabel);

    visible = GTK_WIDGET_VISIBLE(messageInfoLabel);
    if (show == visible)
    {
        return;
    }
    if (TRUE == show)
    {
        gtk_widget_show(messageInfoLabel);
    }
    else
    {
        gtk_widget_hide(messageInfoLabel);
    }
}

static void on_confirm_button_toggled	(	GtkToggleButton *	button,
		gpointer	screen
	)			[static]

Definition at line 721 of file gtkPincodeScreen.c.

{
    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));
    pincodeStars *stars = (pincodeStars *) (GTK_PINCODE_SCREEN(screen)->stars);
    g_return_if_fail(NULL != stars);

    gboolean active = gtk_toggle_button_get_active(button);
    if (active)
    {
        g_timeout_add(1000, delayed_on_confirm_button_clicked, screen);
    }
}

Here is the call graph for this function:

static gboolean on_gtk_pincode_keyboard_button_press	(	GtkWidget *	keyboard,
		GdkEventButton *	event,
		gpointer	user_data
	)			[static]

Definition at line 629 of file gtkPincodeScreen.c.

{
    GtkPincodeScreen *screen = user_data;
    gint xPos = 0;
    gint yPos = 0;
    gint number;

    if (NULL == screen)
        return FALSE;
    if (!IS_GTK_PINCODE_SCREEN(screen))
        return FALSE;
    if (event->type != GDK_BUTTON_PRESS)
    {
        CL_ERRORPRINTF("event->type(%d)",event->type);
        return FALSE;
    }
    xPos = event->x;
    yPos = event->y;
    number = get_clicked_number(xPos, yPos);
    if (number >= 0 && number <= 9)
    {
        pincode_stars_append_number(screen->stars, number);
    }
    else if (-1 == number)
    {
        pincode_stars_backspace(screen->stars);
    }
    return FALSE;
}

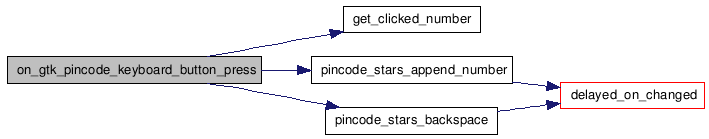

Here is the call graph for this function:

static gboolean on_gtk_pincode_motion_notify_event	(	GtkPincodeScreen *	screen,
		GdkEventMotion *	event,
		gpointer	user_data
	)			[static]

Definition at line 594 of file gtkPincodeScreen.c.

{
    accumulate_idle_time_reset();
    return FALSE;
}

Here is the call graph for this function:

static gboolean on_gtk_pincode_screen_button_press	(	GtkPincodeScreen *	screen,
		GdkEventButton *	event,
		gpointer	user_data
	)			[static]

Definition at line 587 of file gtkPincodeScreen.c.

{
    accumulate_idle_time_reset();
    return FALSE;
}

Here is the call graph for this function:

static gboolean on_gtk_pincode_screen_button_release	(	GtkPincodeScreen *	screen,
		GdkEventButton *	event,
		gpointer	user_data
	)			[static]

Definition at line 601 of file gtkPincodeScreen.c.

{
    accumulate_idle_time_reset();
    return FALSE;
}

Here is the call graph for this function:

static gboolean on_gtk_pincode_screen_destroy	(	GtkPincodeScreen *	screen,
		GdkEvent *	event,
		gpointer	user_data
	)			[static]

Definition at line 619 of file gtkPincodeScreen.c.

{
    accumulate_idle_time_end();
    destroy_pincode_stars(screen);
    return FALSE;
}

Here is the call graph for this function:

static gboolean on_gtk_pincode_screen_expose_event	(	GtkPincodeScreen *	screen,
		GdkEventExpose *	event,
		gpointer	user_data
	)			[static]

Definition at line 568 of file gtkPincodeScreen.c.

{
    // ignore partial exposure events
    if ( !screen->isVisible )
    {
        screen->isVisible = TRUE;
        display_update_request_screen_refresh(MAIN_WINDOW_EXPOSE_LEVEL);
    }
    return FALSE;
}

Here is the call graph for this function:

static gboolean on_gtk_pincode_screen_hide	(	GtkPincodeScreen *	screen,
		gpointer	user_data
	)			[static]

Definition at line 580 of file gtkPincodeScreen.c.

{
    screen->isVisible = FALSE;
    return FALSE;
}

static gboolean on_gtk_pincode_screen_key_press	(	GtkPincodeScreen *	screen,
		GdkEventKey *	event,
		gpointer	user_data
	)			[static]

Definition at line 607 of file gtkPincodeScreen.c.

{
    accumulate_idle_time_reset();
    return FALSE;
}

Here is the call graph for this function:

static gboolean on_gtk_pincode_screen_key_release	(	GtkPincodeScreen *	screen,
		GdkEventKey *	event,
		gpointer	user_data
	)			[static]

Definition at line 613 of file gtkPincodeScreen.c.

{
    accumulate_idle_time_reset();
    return FALSE;
}

Here is the call graph for this function:

static gboolean on_message_widget_clicked_event	(	GtkWidget *	widget,
		GdkEventButton *	event,
		gpointer	user_data
	)			[static]

Definition at line 899 of file gtkPincodeScreen.c.

{
    GtkPincodeScreen *screen = user_data;

    if (!IS_GTK_PINCODE_SCREEN(screen))
        return FALSE;
    if (screen->tryTimes >= MAX_TRY_PINCODE_TIMES)
    {
        pincode_shutdown(NULL);
    }
    else
    {
        // when error message appears, click to return back input pincode again
        // when passed message appears, click to (boot normally...)
        pincode_passed((gpointer) screen);
    }
    return FALSE;
}

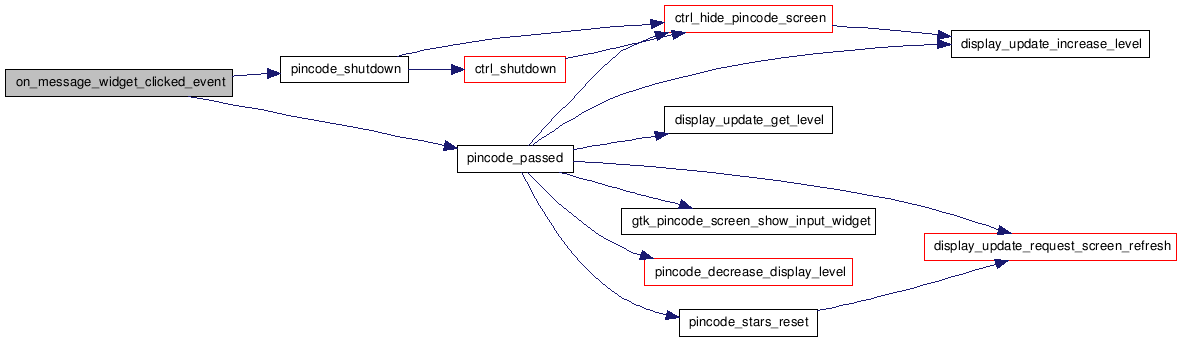

Here is the call graph for this function:

static gboolean pincode_decrease_display_level

(

gpointer

data

)

[static]

Definition at line 888 of file gtkPincodeScreen.c.

{
    // allow display updates again
    display_update_decrease_level((gint)data/*LOWEST_LEVEL*/);

    return FALSE;               // don't call me again
}

Here is the call graph for this function:

static void pincode_message_widget_set_text	(	GtkPincodeScreen *	screen,
		gchar *	text
	)			[static]

Definition at line 380 of file gtkPincodeScreen.c.

{
    g_return_if_fail(NULL != screen);
    g_return_if_fail(IS_GTK_PINCODE_SCREEN(screen));
    g_return_if_fail(NULL != screen->messageLabel);
    g_return_if_fail(NULL != text);
    gtk_label_set_text(GTK_LABEL(screen->messageLabel), text);
}

static gboolean pincode_passed

(

gpointer

user_data

)

[static]

Definition at line 842 of file gtkPincodeScreen.c.

{
    GtkPincodeScreen* screen = user_data;
    gboolean passed = screen->passed;

    if (g_timeout_handler_id)
    {
        gtk_timeout_remove(g_timeout_handler_id);
        g_timeout_handler_id = 0;
    }

    if (!passed)
    {
        // show input messaget to let user try again
        pincode_stars_reset(screen->stars);
        gtk_pincode_screen_show_input_widget(screen);
        display_update_request_screen_refresh( TEXTENTRY_CHANGED_LEVEL);
    }
    else
    {
        int level = display_update_get_level();

        // hide pincode
        if (screen->reason == enterSettings_t)
        {
            display_update_increase_level(NO_DISPLAY_UPDATE_LEVEL);
        }
        else
        {
             display_update_increase_level(MAIN_WINDOW_EXPOSE_LEVEL);
        }
        ctrl_hide_pincode_screen();
        if (screen->reason != startup_t)
        {
            g_idle_add(pincode_decrease_display_level, (gpointer)level);
        }

        // trigger on_passed_callback
        if (screen->on_passed_callback)
        {
            screen->on_passed_callback();
        }
    }
    return FALSE;               // not call again
}

Here is the call graph for this function:

static gboolean pincode_shutdown

(

gpointer

user_data

)

[static]

Definition at line 830 of file gtkPincodeScreen.c.

{
     if (g_timeout_handler_id)
    {
        gtk_timeout_remove(g_timeout_handler_id);
        g_timeout_handler_id = 0;
    }
   ctrl_hide_pincode_screen();
   ctrl_shutdown();
   return FALSE;
}

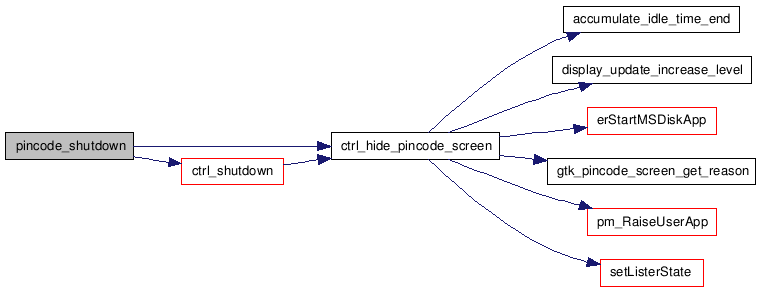

Here is the call graph for this function:

static void pincode_stars_append_number	(	pincodeStars *	stars,
		gint	number
	)			[static]

Definition at line 1041 of file gtkPincodeScreen.c.

{
    GtkWidget *vbox = NULL;
    GtkWidget *grayStar = NULL;
    GtkWidget *whiteStar = NULL;

    gchar string[2];
    int len;

    if (NULL == stars)
        return;
    len = strlen(stars->pincode);
    if (len >= PINCODE_UI_MAX_LENGTH)
    {
        CL_ERRORPRINTF("input pincode length reaches pincode_max_length");
        return;
    }
    sprintf(string, "%d", number);
    if (0 == len)
        strcpy(stars->pincode, string);
    else
        strcat(stars->pincode, string);
    len = strlen(stars->pincode);
    if (1 == len)
    {
        vbox = stars->vbox1;
        grayStar = stars->grayStar1;
        whiteStar = stars->whiteStar1;
    }
    else if (2 == len)
    {
        vbox = stars->vbox2;
        grayStar = stars->grayStar2;
        whiteStar = stars->whiteStar2;
    }
    else if (3 == len)
    {
        vbox = stars->vbox3;
        grayStar = stars->grayStar3;
        whiteStar = stars->whiteStar3;
    }
    else if (4 == len)
    {
        vbox = stars->vbox4;
        grayStar = stars->grayStar4;
        whiteStar = stars->whiteStar4;
    }
    else
    {
        CL_ERRORPRINTF("error");
    }
    if (vbox && grayStar && whiteStar)
    {
        gtk_widget_hide(vbox);
        gtk_widget_hide(grayStar);
        gtk_widget_show(whiteStar);
        gtk_widget_show(vbox);
    }

    if (stars->display_update_pending)
    {
        // timer already running: tell it that another change has occurred
        stars->on_change_occurred = TRUE;
    }
    else
    {
        // timer not running: start it now
        g_timeout_add(500, delayed_on_changed, stars);
        stars->display_update_pending = TRUE;
    }
}

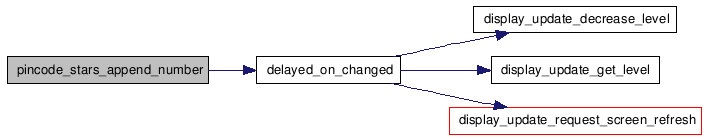

Here is the call graph for this function:

static void pincode_stars_backspace

(

pincodeStars *

stars

)

[static]

Definition at line 1113 of file gtkPincodeScreen.c.

{
    GtkWidget *vbox = NULL;
    GtkWidget *grayStar = NULL;
    GtkWidget *whiteStar = NULL;
    int len;

    if (NULL == stars)
        return;
    len = strlen(stars->pincode);
    if (len <= 0)
    {
        CL_ERRORPRINTF("input pincode length equals zero, neen't backspace");
        return;
    }
    stars->pincode[len - 1] = '\0';
    if (1 == len)
    {
        vbox = stars->vbox1;
        grayStar = stars->grayStar1;
        whiteStar = stars->whiteStar1;
    }
    else if (2 == len)
    {
        vbox = stars->vbox2;
        grayStar = stars->grayStar2;
        whiteStar = stars->whiteStar2;
    }
    else if (3 == len)
    {
        vbox = stars->vbox3;
        grayStar = stars->grayStar3;
        whiteStar = stars->whiteStar3;
    }
    else if (4 == len)
    {
        vbox = stars->vbox4;
        grayStar = stars->grayStar4;
        whiteStar = stars->whiteStar4;
    }
    else
    {
        CL_ERRORPRINTF("error");
    }
    if (vbox && grayStar && whiteStar)
    {
        gtk_widget_hide(vbox);
        gtk_widget_hide(whiteStar);
        gtk_widget_show(grayStar);
        gtk_widget_show(vbox);
    }

    if (stars->display_update_pending)
    {
        // timer already running: tell it that another change has occurred
        stars->on_change_occurred = TRUE;
    }
    else
    {
        // timer not running: start it now
        g_timeout_add(500, delayed_on_changed, stars);
        stars->display_update_pending = TRUE;
    }
}

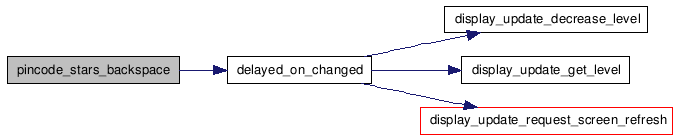

Here is the call graph for this function:

static gboolean pincode_stars_check_text

(

pincodeStars *

stars

)

[static]

Definition at line 1213 of file gtkPincodeScreen.c.

{
    gchar *text;
    int len;

    if (NULL == stars)
        return FALSE;
    text = pincode_stars_get_text(stars);
    if (NULL == text)
        return FALSE;
    len = strlen(text);
    if (len >= PINCODE_UI_MIN_LENGTH && len <= PINCODE_UI_MAX_LENGTH)
        return TRUE;
    else
        return FALSE;
}

Here is the call graph for this function:

static gchar * pincode_stars_get_text

(

pincodeStars *

stars

)

[static]

Definition at line 1206 of file gtkPincodeScreen.c.

{
    if (NULL == stars)
        return NULL;
    return stars->pincode;
}

static void pincode_stars_reset

(

pincodeStars *

stars

)

[static]

Definition at line 1230 of file gtkPincodeScreen.c.

{
    if (NULL == stars)
        return;
    memset(stars->pincode, 0, sizeof(stars->pincode));

    gtk_widget_hide(stars->vbox1);
    gtk_widget_hide(stars->vbox2);
    gtk_widget_hide(stars->vbox3);
    gtk_widget_hide(stars->vbox4);

    gtk_widget_hide(stars->whiteStar1);
    gtk_widget_hide(stars->whiteStar2);
    gtk_widget_hide(stars->whiteStar3);
    gtk_widget_hide(stars->whiteStar4);

    gtk_widget_show(stars->grayStar1);
    gtk_widget_show(stars->grayStar2);
    gtk_widget_show(stars->grayStar3);
    gtk_widget_show(stars->grayStar4);

    gtk_widget_show(stars->vbox1);
    gtk_widget_show(stars->vbox2);
    gtk_widget_show(stars->vbox3);
    gtk_widget_show(stars->vbox4);

    display_update_request_screen_refresh(TEXTENTRY_CHANGED_LEVEL);
}

Here is the call graph for this function:

---

Variable Documentation

gint g_timeout_handler_id = 0 [static]

Definition at line 78 of file gtkPincodeScreen.c.
