contentLister/src/toolbar.c File Reference

contentLister - toolbar interaction with contentLister application More...

#include <glib.h>
#include <gtk/gtk.h>
#include <liberipc/eripc.h>
#include <liberipc/eripctoolbar.h>
#include <liberipc/eripcbusyd.h>
#include <liberipc/eripccontentlister.h>
#include <libermanifest/ermanifest.h>
#include "contentListerLog.h"
#include "erConnect.h"
#include "system.h"
#include "gtkPincodeScreen.h"
#include "control.h"
#include "displayUpdate.h"
#include "toolbar.h"

Go to the source code of this file.

Functions

static void toolbar_clear_internal (void)
void toolbar_init ()
void toolbar_restore ()
void toolbar_clear ()
void toolbar_disableUpdate ()
void toolbar_enableUpdate ()
void toolbar_setIconState (int iconID, int iconState)
void toolbar_synchronise (void)
gboolean toolbar_is_trashcan_selected ()
gboolean toolbar_is_locked_selected ()
gboolean toolbar_is_tagging_selected ()
gboolean toolbar_is_search_selected ()
gboolean toolbar_is_sort_selected ()
gboolean toolbar_is_lock_screen_selected ()
gboolean toolbar_is_share_selected ()

Variables

static erClientChannel_t toolbarChannel
static gboolean g_trashcan_selected = FALSE
static gboolean g_locked_selected = FALSE
static gboolean g_tagging_selected = FALSE
static gboolean g_search_selected = FALSE
static gboolean g_sort_selected = FALSE
static gboolean g_share_selected = FALSE
static gint g_lock_screen_state = iconState_normal
static gint g_connect_state = iconState_grey

Detailed Description

contentLister - toolbar interaction with contentLister application

Copyright (C) 2005-2008 iRex Technologies B.V. All rights reserved.

<File description>="">

Definition in file toolbar.c.

Function Documentation

void toolbar_clear ( void   )

Definition at line 151 of file toolbar.c.

00152 {
00153     CL_TBPRINTF("entry");
00154
00155     // freeze toolbar layout
00156     tbDisableUpdate(toolbarChannel, ER_CONTENT_LISTER_UA_ID);
00157
00158     // clear the toolbar
00159     toolbar_clear_internal();
00160
00161     // redraw toolbar now
00162     tbEnableUpdate(toolbarChannel, ER_CONTENT_LISTER_UA_ID);
00163 }

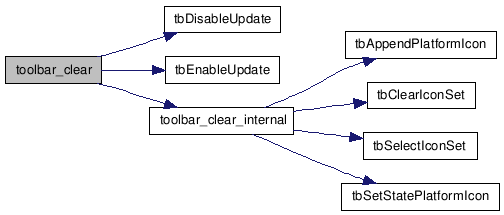

Here is the call graph for this function:

static void toolbar_clear_internal ( void   )  [static]

Definition at line 112 of file toolbar.c.

00113 {
00114     CL_TBPRINTF("entry");
00115
00116     // tell toolbar which iconset to display
00117     tbSelectIconSet(toolbarChannel, ER_CONTENT_LISTER_UA_ID);
00118
00119     // clear the toolbar
00120     tbClearIconSet(toolbarChannel, ER_CONTENT_LISTER_UA_ID);
00121
00122     // set system icons
00123     //
00124     //     disable trashcan icon
00125     tbAppendPlatformIcon(  toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_trashcan, ccClToolbarIcon);
00126     tbSetStatePlatformIcon(toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_trashcan, iconState_grey );
00127     g_trashcan_selected = FALSE;
00128     //
00129     //     restore connect icon
00130     tbAppendPlatformIcon(  toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_connect, ccClToolbarIcon);
00131     tbSetStatePlatformIcon(toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_connect, g_connect_state);
00132     //
00133     //    restore screen lock (PIN code) icon
00134     tbAppendPlatformIcon(  toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_lock_screen, ccClToolbarIcon);
00135     tbSetStatePlatformIcon(toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_lock_screen, g_lock_screen_state);
00136     //
00137     //     enable/disable locked icon
00138     tbAppendPlatformIcon(  toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_locked, ccClToolbarIcon);
00139     tbSetStatePlatformIcon(toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_locked, g_locked_selected ? iconState_selected : iconState_normal);
00140     //
00141     //     disable keyboard icon
00142     tbAppendPlatformIcon(  toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_keyboard, ccClToolbarIcon);
00143     tbSetStatePlatformIcon(toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_keyboard, iconState_grey );
00144     //
00145     //     disable tagging icon
00146     tbAppendPlatformIcon(  toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_tagging, ccClToolbarIcon);
00147     tbSetStatePlatformIcon(toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_tagging, iconState_grey );
00148     g_tagging_selected = FALSE;
00149 }

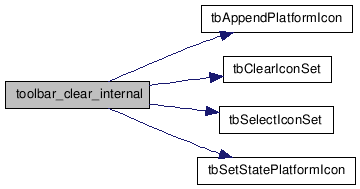

Here is the call graph for this function:

void toolbar_disableUpdate ( void   )

Definition at line 167 of file toolbar.c.

00168 {
00169     CL_TBPRINTF("entry");
00170
00171     tbDisableUpdate(toolbarChannel, ER_CONTENT_LISTER_UA_ID);
00172 }

Here is the call graph for this function:

void toolbar_enableUpdate ( void   )

Definition at line 175 of file toolbar.c.

00176 {
00177     CL_TBPRINTF("entry");
00178
00179     tbEnableUpdate(toolbarChannel, ER_CONTENT_LISTER_UA_ID);
00180 }

Here is the call graph for this function:

void toolbar_init ( void   )

Definition at line 65 of file toolbar.c.

00066 {
00067     int returnValue;
00068
00069     CL_TBPRINTF("entry");
00070
00071     // create/init the channel to communicate with the toolbar service
00072     returnValue = erIpcStartClient(ER_TOOLBAR_CHANNEL, &toolbarChannel);
00073
00074     if (returnValue != 0)
00075     {
00076         CL_WARNPRINTF("erIpcStartClient returned %d", returnValue);
00077         return;
00078     }
00079
00080     toolbar_restore();
00081 }

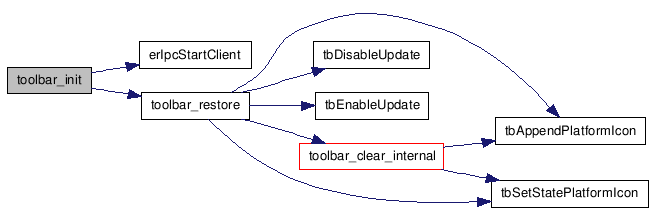

Here is the call graph for this function:

gboolean toolbar_is_lock_screen_selected (  )

Definition at line 254 of file toolbar.c.

00255 {
00256     if (g_lock_screen_state == iconState_selected)
00257         return TRUE;
00258     else
00259         return FALSE;
00260 }

gboolean toolbar_is_locked_selected ( void   )

Definition at line 231 of file toolbar.c.

00232 {
00233     CL_TBPRINTF("return [%d]", g_locked_selected);
00234     return g_locked_selected;
00235 }

gboolean toolbar_is_search_selected ( void   )

Definition at line 242 of file toolbar.c.

00243 {
00244     CL_TBPRINTF("return [%d]", g_search_selected);
00245     return g_search_selected;
00246 }

gboolean toolbar_is_share_selected (  )

Definition at line 262 of file toolbar.c.

00263 {
00264     CL_TBPRINTF("return [%d]", g_share_selected);
00265     return g_share_selected;
00266 }

gboolean toolbar_is_sort_selected (  )

Definition at line 248 of file toolbar.c.

00249 {
00250     CL_TBPRINTF("return [%d]", g_sort_selected);
00251     return g_sort_selected;
00252 }

gboolean toolbar_is_tagging_selected ( void   )

Definition at line 236 of file toolbar.c.

00237 {
00238     CL_TBPRINTF("return [%d]", g_tagging_selected);
00239     return g_tagging_selected;
00240 }

gboolean toolbar_is_trashcan_selected ( void   )

Definition at line 225 of file toolbar.c.

00226 {
00227     CL_TBPRINTF("return [%d]", g_trashcan_selected);
00228     return g_trashcan_selected;
00229 }

void toolbar_restore (  )

Definition at line 83 of file toolbar.c.

00084 {
00085     CL_TBPRINTF("entry");
00086
00087     // freeze toolbar layout
00088     tbDisableUpdate(toolbarChannel, ER_CONTENT_LISTER_UA_ID);
00089
00090     // clear toolbar, set system icons
00091     toolbar_clear_internal();
00092
00093     // set application-specific icons
00094     //
00095     //     disable search icon
00096     tbAppendPlatformIcon(  toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_search, ccClToolbarIcon);
00097     tbSetStatePlatformIcon(toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_search, iconState_grey );
00098     g_search_selected = FALSE;
00099      //     disable sort icon
00100     tbAppendPlatformIcon(  toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_sort, ccClToolbarIcon);
00101     tbSetStatePlatformIcon(toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_sort, iconState_grey );
00102     g_sort_selected = FALSE;
00103
00104     //     disable share icon
00105     tbAppendPlatformIcon(  toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_share, ccClToolbarIcon);
00106     tbSetStatePlatformIcon(toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID_share, iconState_grey );
00107
00108     // redraw toolbar now
00109     tbEnableUpdate(toolbarChannel, ER_CONTENT_LISTER_UA_ID);
00110 }

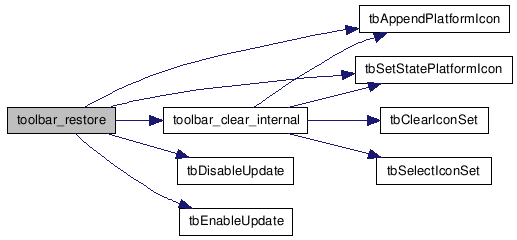

Here is the call graph for this function:

void toolbar_setIconState ( int  iconID,
int  iconState
)

Definition at line 182 of file toolbar.c.

00183 {
00184     CL_TBPRINTF("entry: iconID [%d] iconState [%d]", iconID, iconState);
00185
00186     tbSetStatePlatformIcon(toolbarChannel, ER_CONTENT_LISTER_UA_ID, iconID, iconState);
00187     switch (iconID)
00188     {
00189         case iconID_trashcan:
00190             g_trashcan_selected = (iconState == iconState_selected);
00191             break;
00192         case iconID_connect:
00193             g_connect_state = iconState;
00194             break;
00195         case iconID_lock_screen:
00196             g_lock_screen_state = iconState;
00197             break;
00198         case iconID_locked:
00199             g_locked_selected = (iconState == iconState_selected);
00200             break;
00201         case iconID_tagging:
00202             g_tagging_selected = (iconState == iconState_selected);
00203             break;
00204         case iconID_search:
00205             g_search_selected = (iconState == iconState_selected);
00206             break;
00207         case iconID_sort:
00208             g_sort_selected = (iconState == iconState_selected);
00209             break;
00210         case iconID_share:
00211             g_share_selected = (iconState == iconState_selected);
00212             break;
00213         default:
00214             /* ignore */ ;
00215     }
00216 }

Here is the call graph for this function:

void toolbar_synchronise ( void   )

Definition at line 218 of file toolbar.c.

00219 {
00220     CL_TBPRINTF("entry");
00221
00222     tbSynchronise(toolbarChannel, ER_CONTENT_LISTER_UA_ID, ccClToolbarSynchronised);
00223 }

Here is the call graph for this function:

Variable Documentation

gint g_connect_state = iconState_grey [static]

Definition at line 58 of file toolbar.c.

gint g_lock_screen_state = iconState_normal [static]

Definition at line 57 of file toolbar.c.

gboolean g_locked_selected = FALSE [static]

Definition at line 51 of file toolbar.c.

gboolean g_search_selected = FALSE [static]

Definition at line 53 of file toolbar.c.

gboolean g_share_selected = FALSE [static]

Definition at line 55 of file toolbar.c.

gboolean g_sort_selected = FALSE [static]

Definition at line 54 of file toolbar.c.

gboolean g_tagging_selected = FALSE [static]

Definition at line 52 of file toolbar.c.

gboolean g_trashcan_selected = FALSE [static]

Definition at line 50 of file toolbar.c.

erClientChannel_t toolbarChannel [static]

Definition at line 48 of file toolbar.c.
