erbrowser/src/pagebar.cpp File Reference

browser - pagebar interface with browser application More...

#include <liberipc/eripc.h>
#include <liberipc/eripcpagebar.h>
#include "browserTypes.h"
#include "pagebar.h"
#include "indexFileHandler.h"
#include "browserLog.h"
#include "erbusy.h"

Go to the source code of this file.

Functions

void pagebar_init ()
void pagebar_goto_page (int page)
void pagebar_set_pagecount (int count)
void pagebar_set_offset (int offset)
void pagebar_redraw ()
void browser_pagebar_page_selected (int pagenumber, Ereader *browser)
BrowserPageStatus * browser_create_page_status (void)
void browser_destroy_page_status (BrowserPageStatus *pageStatus)
gboolean browser_set_page_status_indexfile (BrowserPageStatus *pageStatus, char *indexfile)
gboolean page_status_handle_type_update (BrowserPageStatus *pageStatus, gchar *pageType)

Variables

static erClientChannel_t erPagebarChannel

Detailed Description

browser - pagebar interface with browser application

<File description>="">

Definition in file pagebar.cpp.

Function Documentation

BrowserPageStatus* browser_create_page_status ( void   )

creation and initalistaion of the BrowserPageStatus structure

Returns:
reference to a newly allocated BrowserPageStatus structure

Definition at line 139 of file pagebar.cpp.

00140 {
00141     BrowserPageStatus *pageStatus = NULL;
00142
00143     // create one BrowserPageStatus ereader struct and fill it with zeros
00144     pageStatus = g_new0(BrowserPageStatus, 1);
00145
00146     if (pageStatus)
00147     {
00148         pageStatus->currentType = g_strdup(INIT_PAGE_TYPE);
00149         pageStatus->currentPage = -1;
00150         pageStatus->pageCount = -1;
00151     }
00152
00153     BR_PAGEBARPRINTF("0x%x", pageStatus);
00154
00155     return pageStatus;
00156 }

void browser_destroy_page_status ( BrowserPageStatus *  pageStatus  )

free memory used by pageStatus and lcose the currenly used indexfile

Parameters:
pageStatus reference to struct containing current browser page status

Definition at line 159 of file pagebar.cpp.

00160 {
00161     BR_PAGEBARPRINTF("entry  0x%x", pageStatus);
00162
00163     if (pageStatus)
00164     {
00165         if (pageStatus->index.pagelist)
00166         {
00167             index_file_close(&pageStatus->index);
00168         }
00169         if (pageStatus->currentType)
00170         {
00171             // free string allocated with g_strdup
00172             g_free(pageStatus->currentType);
00173         }
00174
00175         g_free(pageStatus);
00176     }
00177 }

Here is the call graph for this function:

void browser_pagebar_page_selected ( int  pagenumber,
Ereader *  browser
)

THIS NEEDS A PROPER DESCRIPTION

Parameters:
pagenumber the newly selected page bar page
Ereader datastructure containing the "mozembed" reference and the current page status
Returns:
void

Definition at line 77 of file pagebar.cpp.

00078 {
00079     gchar  *location = NULL;
00080     gchar  *pointer;
00081
00082     BR_PAGEBARPRINTF("number %d -- Ereader pointer 0x%x ", pagenumber, (unsigned int) browser);
00083
00084     if (pagenumber > 0)
00085     {
00086         location = index_file_get_page_location(&browser->pageStatus->index, browser->pageStatus->currentType, pagenumber);
00087
00088         if (location)
00089         {
00090             gchar  *absolute_new_location;
00091             gchar  *end;
00092             int     length;
00093
00094             BR_PAGEBARPRINTF("gtk_moz_embed_load_url %s", location);
00095
00096             end = strrchr(browser->pageStatus->manifestFile, '/');
00097
00098             if (end)
00099             {
00100                 // size manifestfile path + last /
00101                 length = (end - browser->pageStatus->manifestFile) + 1;
00102
00103                 BR_PAGEBARPRINTF("path lenght %d", length);
00104
00105                 absolute_new_location = (char *) g_malloc0(length + strlen(location));
00106
00107                 memcpy(absolute_new_location, browser->pageStatus->manifestFile, length);
00108
00109                 BR_PAGEBARPRINTF("location %s", location);
00110                 BR_PAGEBARPRINTF("absolute_new_location %s", absolute_new_location);
00111
00112                 strcat(absolute_new_location, location);
00113
00114                 BR_PAGEBARPRINTF("gtk_moz_embed_load_url %s [%d]", absolute_new_location, strlen(absolute_new_location));
00115
00116                 BR_LOGPRINTF("BUSY ON");
00117                 erbusy_blink();
00118                 gtk_moz_embed_load_url(GTK_MOZ_EMBED(browser->mozEmbed), absolute_new_location);
00119
00120                 // free the allocated memory
00121                 g_free(absolute_new_location);
00122             }
00123         }
00124         else
00125         {
00126             BR_PAGEBARPRINTF("location = null");
00127             // reload the current page
00128             //erbusy_request(1);
00129             //gtk_moz_embed_reload(GTK_MOZ_EMBED(browser->mozEmbed), GTK_MOZ_EMBED_FLAG_RELOADNORMAL);
00130         }
00131     }
00132     else
00133     {
00134         BR_PAGEBARPRINTF("invalid pagenumber %d", pagenumber);
00135     }
00136
00137 }

Here is the call graph for this function:

gboolean browser_set_page_status_indexfile ( BrowserPageStatus *  pageStatus,
char *  indexfile
)

open the specified index file and update the reference in the pageStatus (closes the currently selected index file)

Parameters:
pageStatus reference to struct containing current browser page status
indexfile index file name
Returns:
TRUE when file opened

Definition at line 179 of file pagebar.cpp.

00180 {
00181     gboolean returnValue = FALSE;
00182
00183     BR_PAGEBARPRINTF("entry 0x%x file %s", pageStatus, indexfile);
00184
00185     if (pageStatus && indexfile)
00186     {
00187         //init the index file used for page handling
00188         if (pageStatus->index.pagelist)
00189         {
00190             index_file_close(&pageStatus->index);
00191         }
00192
00193         if (0 == index_file_init(indexfile, &pageStatus->index))
00194         {
00195             pageStatus->manifestFile = indexfile;
00196             returnValue = TRUE;
00197         }
00198     }
00199     else
00200     {
00201         BR_ERRORPRINTF("input parameter == NULL");
00202     }
00203     return returnValue;
00204 }

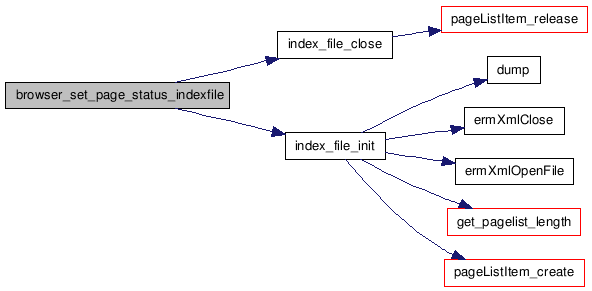

Here is the call graph for this function:

gboolean page_status_handle_type_update ( BrowserPageStatus *  pageStatus,
gchar *  pageType
)

updates the pageStatus when the pageType differs from current pageStatus pagetype return TRUE when the type was changed, FALSE when no type update was needed

Parameters:
pageStatus reference to struct containing current browser page status
pageType the page type
Returns:
TRUE when file opened

Definition at line 207 of file pagebar.cpp.

00208 {
00209     gint    result = -1;
00210
00211     if (*pageType)
00212     {
00213         BR_PAGEBARPRINTF("currentType %s --> type %s", pageStatus->currentType, pageType);
00214
00215         if (pageStatus->currentType)
00216         {
00217             result = strcmp(pageStatus->currentType, pageType);
00218         }
00219
00220         if (result == 0)
00221         {
00222             BR_PAGEBARPRINTF("no type update");
00223             BR_PAGEBARPRINTF("no page bar update needed => new page number => returning FALSE!!!");
00224             return FALSE;
00225
00226         }
00227         else
00228         {
00229             BR_PAGEBARPRINTF("type update from %s to %s", pageStatus->currentType, pageType);
00230
00231             if (pageStatus->currentType)
00232             {
00233                 g_free(pageStatus->currentType);
00234                 pageStatus->currentType = NULL;
00235             }
00236
00237             pageStatus->currentType = g_strdup(pageType);
00238
00239             BR_PAGEBARPRINTF("page bar update needed (%s) => new page bar, new page number => returning TRUE !!!", pageStatus->currentType);
00240             return TRUE;
00241         }
00242     }
00243
00244     return TRUE;
00245 }

void pagebar_goto_page ( int  page  )

Request from browser to goto page

Parameters:
page - page to go to
Returns:
-

Definition at line 49 of file pagebar.cpp.

00050 {
00051     BR_PAGEBARPRINTF("entry %d", page);
00052         pbSetCurrentPage(erPagebarChannel, ER_XHTML_VIEWER_UA_ID, page);
00053 }

Here is the call graph for this function:

void pagebar_init (  )

Open communication channel with pageBar deamon counts on the fact that pageBar is running

Returns:
void

Definition at line 41 of file pagebar.cpp.

00042 {
00043     BR_PAGEBARPRINTF("entry");
00044     erIpcStartClient(ER_PAGEBAR_CHANNEL, &erPagebarChannel);
00045         pbReset(erPagebarChannel, ER_XHTML_VIEWER_UA_ID);
00046 }

Here is the call graph for this function:

void pagebar_redraw (  )

Request from contentLister to redraw pagebar

Parameters:
-
Returns:
-

Definition at line 71 of file pagebar.cpp.

00072 {
00073     BR_PAGEBARPRINTF("redraw");
00074         pbRedraw(erPagebarChannel, ER_XHTML_VIEWER_UA_ID);
00075 }

Here is the call graph for this function:

void pagebar_set_offset ( int  offset  )

Request from browser to set (scroll)offset of current page

Parameters:
offset - scrolled offset in current page
Returns:
-

Definition at line 64 of file pagebar.cpp.

00065 {
00066         BR_PAGEBARPRINTF("entry %d", offset);
00067         pbSetCurrentPageOffset(erPagebarChannel, ER_XHTML_VIEWER_UA_ID, offset);
00068 }

Here is the call graph for this function:

void pagebar_set_pagecount ( int  count  )

Request from browser to set number of pages

Parameters:
count - number of pages in current view
Returns:
-

Definition at line 56 of file pagebar.cpp.

00057 {
00058     BR_PAGEBARPRINTF("entry %d", count);
00059         pbSetPageCount(erPagebarChannel, ER_XHTML_VIEWER_UA_ID, count);
00060
00061 }

Here is the call graph for this function:

Variable Documentation

erClientChannel_t erPagebarChannel [static]

Definition at line 38 of file pagebar.cpp.
