CScribbleMgr Class Reference

#include <ScribbleMgr.h>

List of all members.

Public Member Functions

 CScribbleMgr (void)
 ~CScribbleMgr (void)
void open (const char *)
void close (GBool bSave=gTrue)
void save ()
void generatePageId (ScbPageIdPtr pid, const int pn)
ScbDocPtr getScbDoc ()
void onScribblePress (const int pn, Controller *ctrl, const int px, const int py, const int x, const int y, const int ox, const int oy)
void onScribbleMove (const int pn, Controller *ctrl, const int px, const int py, const int x, const int y, const int ox, const int oy)
void onScribbleRelease (const int pn, Controller *ctrl, const int px, const int py, const int x, const int y, const int ox, const int oy)
void onErasePress (const int pn, Controller *ctrl, const int x, const int y, const int ox, const int oy)
void onEraseMove (const int pn, Controller *ctrl, const int x, const int y, const int ox, const int oy)
void onEraseRelease (const int pn, Controller *ctrl, const int x, const int y, const int ox, const int oy)
GBool isEraseDirty () const
void setEraseDirty (GBool b=gTrue)
void drawScribblePage (const int pn, Controller *ctrl, const int x, const int y)

Private Member Functions

void beginStroke (const int pn, Controller *ctrl, const int px, const int py, const int x, const int y, const int ox, const int oy)
void addPoint (const int pn, Controller *ctrl, const int px, const int py, const int x, const int y, const int ox, const int oy)
void endStroke (const int pn, Controller *ctrl, const int px, const int py, const int x, const int y, const int ox, const int oy)
void endStroke (Controller *ctrl, const int px, const int py, const int x, const int y)
void drawScribblePagePortrait (ScbPagePtr, Controller *ctrl, const int x, const int y)
void drawScribblePageLandscape (ScbPagePtr, Controller *ctrl, const int x, const int y)
void drawErasedStrokesPortrait (ScbStrokesPtr, Controller *ctrl, const int x, const int y)
void drawErasedStrokesLandscape (ScbStrokesPtr, Controller *ctrl, const int x, const int y)
void drawStroke (ScbStrokePtr stroke, Controller *ctrl, const int px, const int py)
void drawStrokeDirectly (ScbStrokePtr stroke, Controller *ctrl)
int calLineSize (const int penSize, const double strokeZoom, const double dispZoom)
void setScbDirty (const GBool b=gTrue)
GBool isScbDirty () const

Private Attributes

ScbPath path
ScbDocPtr doc
ScbPagePtr page
ScbStrokePtr stroke
int pageNumber
ScbDevPoint pagePoint
ScbDevPoint point
ScbPageId id
ScbPageEraseCtx eraseCtx
GBool bErased
GBool bScbDirty


Detailed Description

Definition at line 49 of file ScribbleMgr.h.


Constructor & Destructor Documentation

CScribbleMgr::CScribbleMgr ( void   )

Definition at line 29 of file ScribbleMgr.cpp.

00030 : doc(NULL)
00031 , page(NULL)
00032 , stroke(NULL)
00033 , pageNumber(-1)
00034 , bErased(gFalse)
00035 , bScbDirty(gFalse)
00036 {
00037     scb_init();
00038 }

CScribbleMgr::~CScribbleMgr ( void   )

Definition at line 40 of file ScribbleMgr.cpp.

00041 {
00042     scb_uninit();
00043 }


Member Function Documentation

void CScribbleMgr::beginStroke ( const int  pn,
Controller ctrl,
const int  px,
const int  py,
const int  x,
const int  y,
const int  ox,
const int  oy
) [private]

Definition at line 98 of file ScribbleMgr.cpp.

00102 {
00103     PV_SCBPRINTF("Create new stroke!");
00104
00105     // record current page number and page position
00106     pageNumber = pn;
00107     pagePoint.x = px;
00108     pagePoint.y = py;
00109
00110     // check page
00111     generatePageId(&id, pn);
00112     page = scb_doc_get_page(doc, &id);
00113     if (NULL == page)
00114     {
00115         // does not exist, needs to create a new one
00116         page = scb_page_new();
00117         scb_page_set_id(page, &id);
00118         page->style.orientation = ctrl->settings.getRotate();
00119     }
00120
00121     // check stroke
00122     if (NULL == stroke)
00123     {
00124         stroke = scb_stroke_new_with_style(scb_doc_get_current_stroke_style(doc));
00125         stroke->style.zoom = ctrl->calZoom(ctrl->settings.getCurrentPage());
00126         ScbStrokesPtr strokes = scb_page_get_strokes(page);
00127         scb_strokes_add_stroke(strokes, stroke);
00128     }
00129
00130     // stroke point data, in offset
00131     point.x = ox;
00132     point.y = oy;
00133     point.pressure = 0;
00134     scb_stroke_add_point(stroke, &point);
00135
00136     // for drawing
00137     point.x = x;
00138     point.y = y;
00139     scb_stroke_fast_draw_point(stroke, &point);
00140
00141     // set dirty flag now
00142     setScbDirty();
00143 }

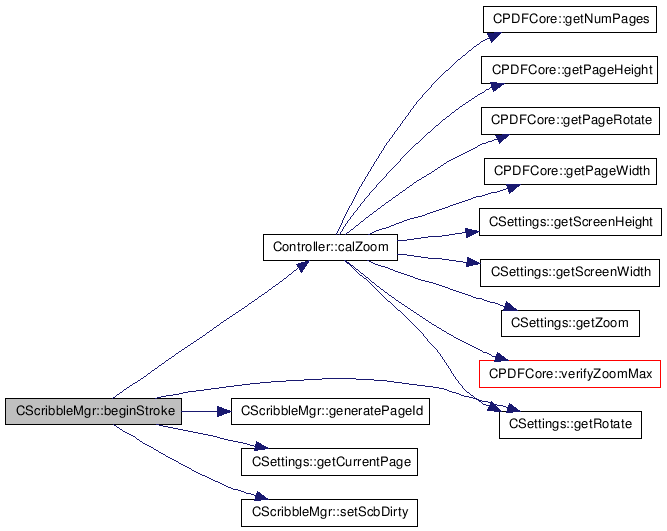

Here is the call graph for this function:

void CScribbleMgr::addPoint ( const int  pn,
Controller ctrl,
const int  px,
const int  py,
const int  x,
const int  y,
const int  ox,
const int  oy
) [private]

Definition at line 145 of file ScribbleMgr.cpp.

00149 {
00150     point.x = ox;
00151     point.y = oy;
00152     scb_stroke_add_point(stroke, &point);
00153
00154     point.x = x;
00155     point.y = y;
00156     scb_stroke_fast_draw_point(stroke, &point);
00157
00158     // set dirty flag now
00159     setScbDirty();
00160 }

Here is the call graph for this function:

void CScribbleMgr::endStroke ( const int  pn,
Controller ctrl,
const int  px,
const int  py,
const int  x,
const int  y,
const int  ox,
const int  oy
) [private]

Definition at line 162 of file ScribbleMgr.cpp.

00166 {
00167     PV_SCBPRINTF("End stroke!");
00168
00169     // stroke data
00170     point.x = ox;
00171     point.y = oy;
00172     scb_stroke_add_point(stroke, &point);
00173
00174     // drawing
00175     point.x = x;
00176     point.y = y;
00177     scb_stroke_fast_draw_point_done(stroke, &point);
00178
00179     // draw in display
00180     drawStroke(stroke, ctrl, px, py);
00181
00182     // add & reset
00183     scb_doc_add_page(doc, page);
00184     page = NULL;
00185     stroke = NULL;
00186     pageNumber = -1;
00187
00188     // set dirty flag now
00189     setScbDirty();
00190 }

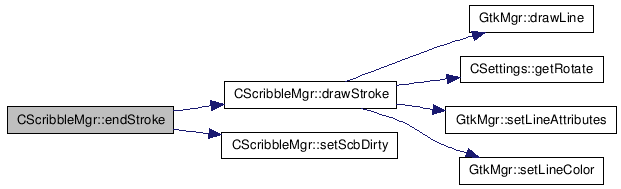

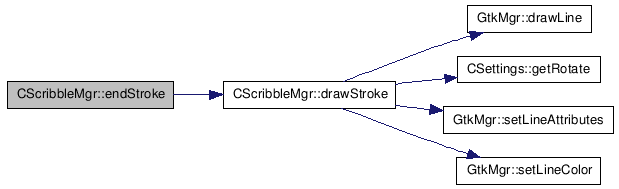

Here is the call graph for this function:

void CScribbleMgr::endStroke ( Controller ctrl,
const int  px,
const int  py,
const int  x,
const int  y
) [private]

Definition at line 193 of file ScribbleMgr.cpp.

00196 {
00197     // drawing
00198     point.x = x;
00199     point.y = y;
00200     scb_stroke_fast_draw_point_done(stroke, &point);
00201
00202     // draw
00203     drawStroke(stroke, ctrl, px, py);
00204
00205     // add & reset
00206     scb_doc_add_page(doc, page);
00207     page = NULL;
00208     stroke = NULL;
00209     pageNumber = -1;
00210 }

Here is the call graph for this function:

void CScribbleMgr::drawScribblePagePortrait ( ScbPagePtr  ptr,
Controller ctrl,
const int  x,
const int  y
) [private]

Definition at line 442 of file ScribbleMgr.cpp.

00444 {
00445     ScbStrokesPtr strokes = scb_page_get_strokes(ptr);
00446     double z = ctrl->calZoom(ctrl->settings.getCurrentPage());
00447     if (strokes)
00448     {
00449         ScbStrokePtr stroke = NULL;
00450         GList *ptr = g_list_first(strokes->strokes);
00451         while (ptr)
00452         {
00453             stroke = (ScbStrokePtr)ptr->data;
00454             if (stroke)
00455             {
00456                 // point data
00457                 int count  = scb_stroke_get_point_count(stroke);
00458                 ScbPoint * pts = (ScbPoint *)scb_stroke_get_point_data(stroke);
00459
00460                 // select color.
00461                 ScbColor color;
00462                 scb_dev_color_to_color(&color, stroke->style.color);
00463                 ctrl->gtkMgr.setLineColor(color.pixel);
00464
00465                 // select pen size
00466                 ctrl->gtkMgr.setLineAttributes(
00467                     calLineSize(stroke->style.penSize,
00468                     z, stroke->style.zoom));
00469
00470                 // draw lines now
00471                 if (fabs(z - stroke->style.zoom) < e)
00472                 {
00473                     int i = 0;
00474                     int x1 = x + pts[i].x, y1 = y + pts[i].y; ++i;
00475                     int x2, y2;
00476                     while (i < count)
00477                     {
00478                         x2 = x + pts[i].x, y2 = y + pts[i].y; ++i;
00479                         ctrl->gtkMgr.drawLine(x1, y1, x2, y2);
00480                         x1 = x2; y1 = y2;
00481                     }
00482
00483                     if (count <= 1)
00484                     {
00485                         ctrl->gtkMgr.drawLine(x1, y1, x1, y1);
00486                     }
00487                 }
00488                 else
00489                 {
00490                     double ratio = z / stroke->style.zoom;
00491                     int i = 0;
00492                     int x1 = x + (int)(ratio * pts[i].x), y1 = y + (int)(ratio * pts[i].y); ++i;
00493                     int x2, y2;
00494                     while (i < count)
00495                     {
00496                         x2 = x + (int)(ratio * pts[i].x); y2 = y + (int)(ratio * pts[i].y); ++i;
00497                         ctrl->gtkMgr.drawLine(x1, y1, x2, y2);
00498                         x1 = x2; y1 = y2;
00499                     }
00500
00501                     if (count <= 1)
00502                     {
00503                         ctrl->gtkMgr.drawLine(x1, y1, x1, y1);
00504                     }
00505                 }
00506             }
00507             ptr = g_list_next(ptr);
00508         }
00509     }
00510 }

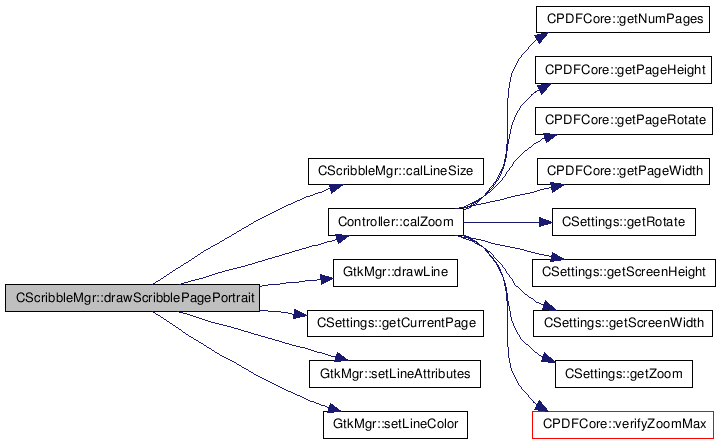

Here is the call graph for this function:

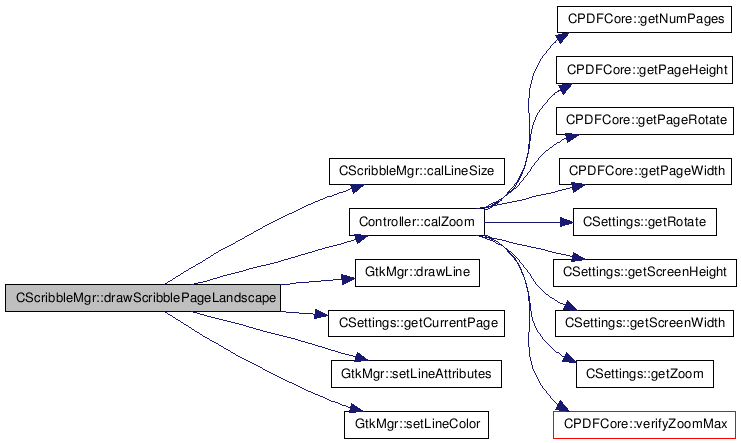

void CScribbleMgr::drawScribblePageLandscape ( ScbPagePtr  ptr,
Controller ctrl,
const int  x,
const int  y
) [private]

Definition at line 512 of file ScribbleMgr.cpp.

00514 {
00515     ScbStrokesPtr strokes = scb_page_get_strokes(ptr);
00516     double z = ctrl->calZoom(ctrl->settings.getCurrentPage());
00517     if (strokes)
00518     {
00519         ScbStrokePtr stroke = NULL;
00520         GList *ptr = g_list_first(strokes->strokes);
00521         while (ptr)
00522         {
00523             stroke = (ScbStrokePtr)ptr->data;
00524             if (stroke)
00525             {
00526                 // point data
00527                 int count  = scb_stroke_get_point_count(stroke);
00528                 ScbPoint * pts = (ScbPoint *)scb_stroke_get_point_data(stroke);
00529
00530                 // select color.
00531                 ScbColor color;
00532                 scb_dev_color_to_color(&color, stroke->style.color);
00533                 ctrl->gtkMgr.setLineColor(color.pixel);
00534
00535                 // select pen size
00536                 ctrl->gtkMgr.setLineAttributes(
00537                     calLineSize(stroke->style.penSize,
00538                     z, stroke->style.zoom));
00539
00540                 // draw lines now
00541                 if (fabs(z - stroke->style.zoom) < e)
00542                 {
00543                     int i = 0;
00544                     int x1 = y - pts[i].x, y1 = x + pts[i].y; ++i;
00545                     int x2, y2;
00546                     while (i < count)
00547                     {
00548                         x2 = y - pts[i].x, y2 = x + pts[i].y; ++i;
00549                         ctrl->gtkMgr.drawLine(y1, x1, y2, x2);  // swap
00550                         x1 = x2; y1 = y2;
00551                     }
00552
00553                     // single point
00554                     if (1 >= count)
00555                     {
00556                         ctrl->gtkMgr.drawLine(y1, x1, y1, x1);
00557                     }
00558                 }
00559                 else
00560                 {
00561                     double ratio = z / stroke->style.zoom;
00562                     int i = 0;
00563                     int x1 = y - (int)(ratio * pts[i].x), y1 = x + (int)(ratio * pts[i].y); ++i;
00564                     int x2, y2;
00565                     while (i < count)
00566                     {
00567                         x2 = y - (int)(ratio * pts[i].x), y2 = x + (int)(ratio * pts[i].y); ++i;
00568                         ctrl->gtkMgr.drawLine(y1, x1, y2, x2);
00569                         x1 = x2; y1 = y2;
00570                     }
00571
00572                     // single point
00573                     if (1 >= count)
00574                     {
00575                         ctrl->gtkMgr.drawLine(y1, x1, y1, x1);
00576                     }
00577                 }
00578             }
00579             ptr = g_list_next(ptr);
00580         }
00581     }
00582 }

Here is the call graph for this function:

void CScribbleMgr::drawErasedStrokesPortrait ( ScbStrokesPtr  strokes,
Controller ctrl,
const int  x,
const int  y
) [private]

Definition at line 586 of file ScribbleMgr.cpp.

00588 {
00589     double z = ctrl->calZoom(ctrl->settings.getCurrentPage());
00590     if (strokes)
00591     {
00592         ScbStrokePtr stroke = NULL;
00593         GList *ptr = g_list_first(strokes->strokes);
00594         while (ptr)
00595         {
00596             stroke = (ScbStrokePtr)ptr->data;
00597             if (stroke)
00598             {
00599                 // adjust position
00600                 int count  = scb_stroke_get_point_count(stroke);
00601                 ScbPoint * pts = (ScbPoint *)scb_stroke_get_point_data(stroke);
00602
00603                 // draw
00604                 if (fabs(z - stroke->style.zoom) < e)
00605                 {
00606                     int i = 0;
00607                     while (i < count)
00608                     {
00609                         pts[i].x += x, pts[i].y += y; ++i;
00610                     }
00611                 }
00612                 else
00613                 {
00614                     double ratio = z / stroke->style.zoom;
00615                     int i = 0;
00616                     while (i < count)
00617                     {
00618                         pts[i].x = x + (int)(pts[i].x * ratio);
00619                         pts[i].y = y + (int)(pts[i].y * ratio);
00620                         ++i;
00621                     }
00622                 }
00623                 stroke->style.color = SCB_DEV_COLOR_WHITE;
00624                 scb_stroke_fast_draw(stroke);
00625                 drawStrokeDirectly(stroke, ctrl);
00626             }
00627             ptr = g_list_next(ptr);
00628         }
00629     }
00630 }

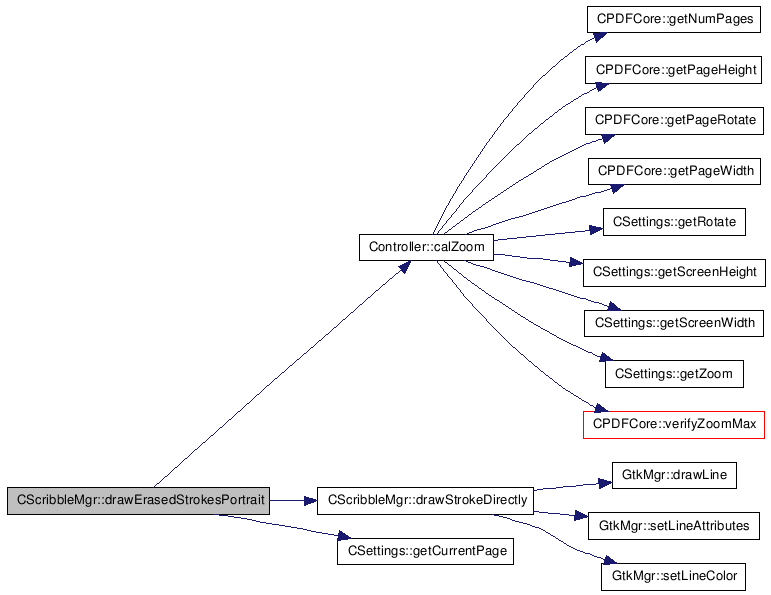

Here is the call graph for this function:

void CScribbleMgr::drawErasedStrokesLandscape ( ScbStrokesPtr  strokes,
Controller ctrl,
const int  x,
const int  y
) [private]

Definition at line 632 of file ScribbleMgr.cpp.

00634 {
00635     double z = ctrl->calZoom(ctrl->settings.getCurrentPage());
00636     if (strokes)
00637     {
00638         ScbStrokePtr stroke = NULL;
00639         GList *ptr = g_list_first(strokes->strokes);
00640         while (ptr)
00641         {
00642             stroke = (ScbStrokePtr)ptr->data;
00643             if (stroke)
00644             {
00645                 // adjust position
00646                 int count  = scb_stroke_get_point_count(stroke);
00647                 ScbPoint * pts = (ScbPoint *)scb_stroke_get_point_data(stroke);
00648
00649                 // draw
00650                 if (fabs(z - stroke->style.zoom) < e)
00651                 {
00652                     int i = 0;
00653                     while (i < count)
00654                     {
00655                         pts[i].x = y - pts[i].x;
00656                         pts[i].y = x + pts[i].y;
00657                         swap(pts[i].x, pts[i].y);
00658                         ++i;
00659                     }
00660                 }
00661                 else
00662                 {
00663                     double ratio = z / stroke->style.zoom;
00664                     int i = 0;
00665                     while (i < count)
00666                     {
00667                         pts[i].x = y - (int)(pts[i].x * ratio);
00668                         pts[i].y = x + (int)(pts[i].y * ratio);
00669                         swap(pts[i].x, pts[i].y);
00670                         ++i;
00671                     }
00672                 }
00673                 stroke->style.color = SCB_DEV_COLOR_WHITE;
00674                 scb_stroke_fast_draw(stroke);
00675                 drawStrokeDirectly(stroke, ctrl);
00676             }
00677             ptr = g_list_next(ptr);
00678         }
00679     }
00680 }

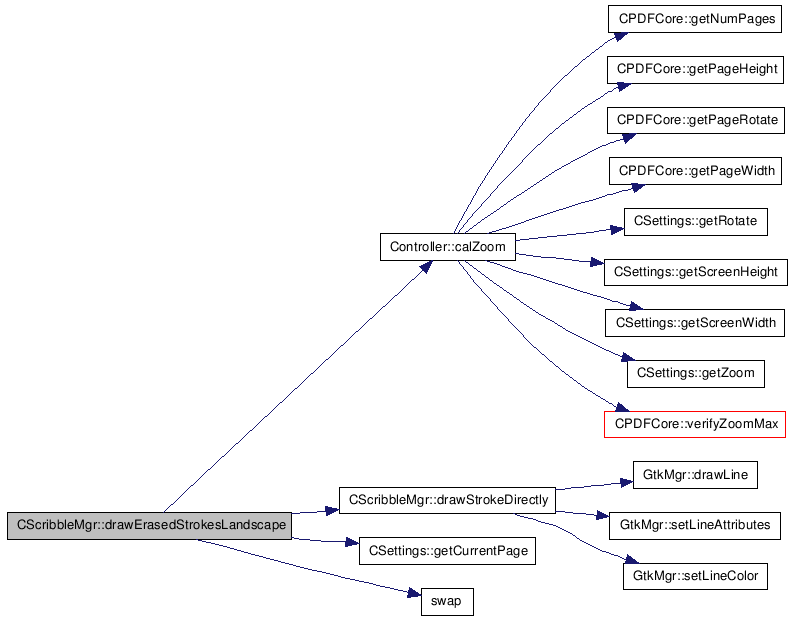

Here is the call graph for this function:

void CScribbleMgr::drawStroke ( ScbStrokePtr  stroke,
Controller ctrl,
const int  px,
const int  py
) [private]

Definition at line 682 of file ScribbleMgr.cpp.

00684 {
00685     if (ctrl->settings.getRotate() == 0)
00686     {
00687         // point data
00688         int count  = scb_stroke_get_point_count(stroke);
00689         ScbPoint * pts = (ScbPoint *)scb_stroke_get_point_data(stroke);
00690
00691         // select color.
00692         ScbColor color;
00693         scb_dev_color_to_color(&color, stroke->style.color);
00694         ctrl->gtkMgr.setLineColor(color.pixel);
00695
00696         // select pen size
00697         ctrl->gtkMgr.setLineAttributes(stroke->style.penSize);
00698
00699         int i = 0;
00700         int x1 = px + pts[i].x, y1 = py + pts[i].y; ++i;
00701         int x2, y2;
00702
00703         while (i < count)
00704         {
00705             x2 = px + pts[i].x, y2 = py + pts[i].y; ++i;
00706             ctrl->gtkMgr.drawLine(x1, y1, x2, y2);
00707             x1 = x2; y1 = y2;
00708         }
00709
00710         if (count <= 1)
00711         {
00712             ctrl->gtkMgr.drawLine(x1, y1, x1, y1);
00713         }
00714     }
00715     else if (ctrl->settings.getRotate() == 270)
00716     {
00717         // point data
00718         int count  = scb_stroke_get_point_count(stroke);
00719         ScbPoint * pts = (ScbPoint *)scb_stroke_get_point_data(stroke);
00720
00721         // select color.
00722         ScbColor color;
00723         scb_dev_color_to_color(&color, stroke->style.color);
00724         ctrl->gtkMgr.setLineColor(color.pixel);
00725
00726         // select pen size
00727         ctrl->gtkMgr.setLineAttributes(stroke->style.penSize);
00728         int i = 0;
00729         int x1 = py - pts[i].x, y1 = px + pts[i].y; ++i;
00730         int x2, y2;
00731         while (i < count)
00732         {
00733             x2 = py - pts[i].x, y2 = px + pts[i].y; ++i;
00734             ctrl->gtkMgr.drawLine(y1, x1, y2, x2);    // swap x & y
00735             x1 = x2; y1 = y2;
00736         }
00737
00738         if (count <= 1)
00739         {
00740             ctrl->gtkMgr.drawLine(y1, x1, y1, x1);
00741         }
00742     }
00743 }

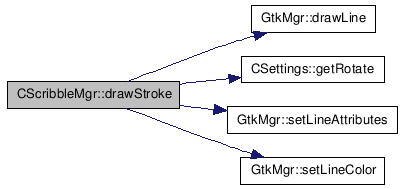

Here is the call graph for this function:

void CScribbleMgr::drawStrokeDirectly ( ScbStrokePtr  stroke,
Controller ctrl
) [private]

Definition at line 745 of file ScribbleMgr.cpp.

00746 {
00747     // point data
00748     int count  = scb_stroke_get_point_count(stroke);
00749     ScbPoint * pts = (ScbPoint *)scb_stroke_get_point_data(stroke);
00750
00751     // select color.
00752     ScbColor color;
00753     scb_dev_color_to_color(&color, stroke->style.color);
00754     ctrl->gtkMgr.setLineColor(color.pixel);
00755
00756     // select pen size
00757     ctrl->gtkMgr.setLineAttributes(stroke->style.penSize);
00758
00759     for(int i = 0; i < count - 1; ++i)
00760     {
00761         ctrl->gtkMgr.drawLine(pts[i].x, pts[i].y, pts[i + 1].x, pts[i + 1].y);
00762     }
00763 }

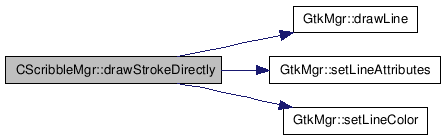

Here is the call graph for this function:

int CScribbleMgr::calLineSize ( const int  penSize,
const double  strokeZoom,
const double  dispZoom
) [private]

Definition at line 430 of file ScribbleMgr.cpp.

00431 {
00432     if (fabs(strokeZoom - dispZoom) < e)
00433     {
00434         return penSize;
00435     }
00436     int ret = (int)(penSize * strokeZoom / dispZoom);
00437     if (ret < 1) return 1;
00438     if (ret > 10) return 10;
00439     return ret;
00440 }

void CScribbleMgr::setScbDirty ( const GBool  b = gTrue  )  [private]

Definition at line 78 of file ScribbleMgr.cpp.

00079 {
00080     bScbDirty = b;
00081 }

GBool CScribbleMgr::isScbDirty (  )  const [inline, private]

Definition at line 97 of file ScribbleMgr.h.

00097 { return bScbDirty; }

void CScribbleMgr::open ( const char *  dirName  )

Definition at line 47 of file ScribbleMgr.cpp.

00048 {
00049     close();
00050
00051     // construct scribble file name
00052     if (NULL == dirName) return;
00053     strncpy(path.scbname, dirName, SCB_MAX_PATH);
00054     char *pos = strrchr(path.scbname, '/');
00055     strcpy(++pos, "scribble.irx");
00056     pos += strlen("scribble.irx");
00057     *pos = 0;
00058
00059     // open file
00060     doc = scb_doc_make_sure_exist(&path);
00061 }

Here is the call graph for this function:

void CScribbleMgr::close ( GBool  bSave = gTrue  )

Definition at line 63 of file ScribbleMgr.cpp.

00064 {
00065     if (doc && bSave && isScbDirty())
00066     {
00067         PV_SCBPRINTF("Save scribble now!");
00068         scb_doc_save(doc);
00069     }
00070     scb_doc_free(doc);
00071     doc = NULL;
00072     memset(&path, 0, sizeof(path));
00073     page = NULL;
00074     stroke = NULL;
00075     setScbDirty(gFalse);
00076 }

Here is the call graph for this function:

void CScribbleMgr::save (  )

Definition at line 83 of file ScribbleMgr.cpp.

00084 {
00085     if (doc && isScbDirty())
00086     {
00087         PV_SCBPRINTF("Save scribble now!");
00088         scb_doc_save(doc);
00089     }
00090     setScbDirty(gFalse);
00091 }

Here is the call graph for this function:

void CScribbleMgr::generatePageId ( ScbPageIdPtr  pid,
const int  pn
)

Definition at line 93 of file ScribbleMgr.cpp.

00094 {
00095     snprintf(pid->id, SCB_MAX_PAGEID_LEN, "%d", pn);
00096 }

ScbDocPtr CScribbleMgr::getScbDoc (  )  [inline]

Definition at line 109 of file ScribbleMgr.h.

00109 { return doc; }

void CScribbleMgr::onScribblePress ( const int  pn,
Controller ctrl,
const int  px,
const int  py,
const int  x,
const int  y,
const int  ox,
const int  oy
)

Definition at line 212 of file ScribbleMgr.cpp.

00216 {
00217     if (pn > 0 && page && stroke)
00218     {
00219         addPoint(pn, ctrl, px, py,  x, y, ox, oy);
00220         return;
00221     }
00222
00223     if (pn > 0 && NULL == page && NULL == stroke)
00224     {
00225         beginStroke(pn, ctrl, px, py, x, y, ox, oy);
00226     }
00227 }

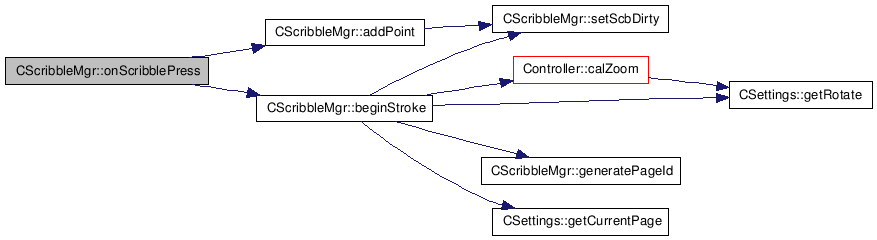

Here is the call graph for this function:

void CScribbleMgr::onScribbleMove ( const int  pn,
Controller ctrl,
const int  px,
const int  py,
const int  x,
const int  y,
const int  ox,
const int  oy
)

Definition at line 233 of file ScribbleMgr.cpp.

00237 {
00238     // out of page, end stroke now.
00239     if (pn < 0 && stroke && page)
00240     {
00241         // end without adding it
00242         endStroke(ctrl, pagePoint.x, pagePoint.y, x, y);
00243         return;
00244     }
00245
00246     // re-enter page bound
00247     if (pn > 0 && stroke == NULL && page == NULL)
00248     {
00249         beginStroke(pn, ctrl, px, py, x, y, ox, oy);
00250         return;
00251     }
00252
00253     // from one page to the other, should use old px and py
00254     if (pn > 0 && pageNumber > 0 && pn != pageNumber && stroke && page)
00255     {
00256         endStroke(ctrl, pagePoint.x, pagePoint.y, x, y);
00257         beginStroke(pn, ctrl, px, py, x, y, ox, oy);
00258         return;
00259     }
00260
00261     // scribble mode
00262     if (stroke)
00263     {
00264         addPoint(pn, ctrl, px, py, x, y, ox, oy);
00265     }
00266 }

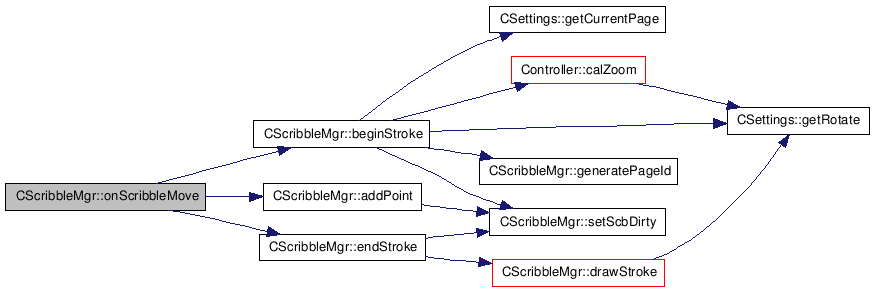

Here is the call graph for this function:

void CScribbleMgr::onScribbleRelease ( const int  pn,
Controller ctrl,
const int  px,
const int  py,
const int  x,
const int  y,
const int  ox,
const int  oy
)

Definition at line 268 of file ScribbleMgr.cpp.

00272 {
00273     if (pn > 0 && stroke && doc && page)
00274     {
00275         endStroke(pn, ctrl, px, py, x, y, ox, oy);
00276     }
00277 }

Here is the call graph for this function:

void CScribbleMgr::onErasePress ( const int  pn,
Controller ctrl,
const int  x,
const int  y,
const int  ox,
const int  oy
)

Definition at line 290 of file ScribbleMgr.cpp.

00293 {
00294     if (pn < 0) return;
00295     scb_page_erase_init(&eraseCtx);
00296     generatePageId(&id, pn);
00297     page = scb_doc_get_page(doc, &id);
00298     if (NULL == page) return;
00299
00300     // record
00301     pageNumber = pn;
00302     point.x = ox; point.y = oy;
00303     eraseCtx.zoom = ctrl->calZoom(ctrl->settings.getCurrentPage());
00304     ScbStrokesPtr strokes = scb_page_erase_hit_test(page, &point, &eraseCtx);
00305     if (strokes)
00306     {
00307         PV_LOGPRINTF("Erase strokes!");
00308
00309         // draw and free
00310         if (ctrl->settings.getRotate() == 270)
00311         {
00312             drawErasedStrokesLandscape(strokes, ctrl, x, y);
00313         }
00314         else
00315         {
00316             drawErasedStrokesPortrait(strokes, ctrl, x, y);
00317         }
00318
00319         // set dirty flag
00320         setEraseDirty();
00321
00322         // free
00323         scb_strokes_free(strokes);
00324     }
00325 }

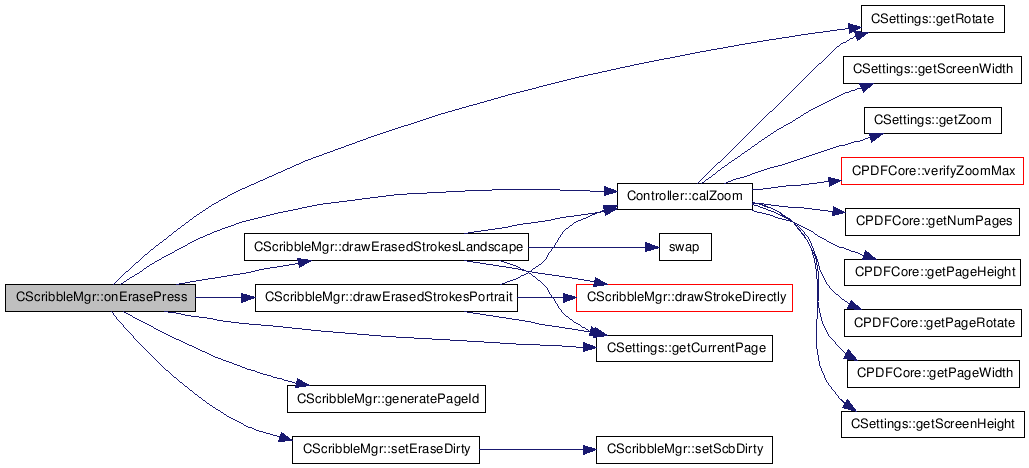

Here is the call graph for this function:

void CScribbleMgr::onEraseMove ( const int  pn,
Controller ctrl,
const int  x,
const int  y,
const int  ox,
const int  oy
)

Definition at line 327 of file ScribbleMgr.cpp.

00330 {
00331     if (pn < 0) return;
00332     if (pageNumber != pn)
00333     {
00334         pageNumber = pn;
00335         scb_page_erase_init(&eraseCtx);
00336         eraseCtx.zoom = ctrl->calZoom(ctrl->settings.getCurrentPage());
00337     }
00338
00339     generatePageId(&id, pn);
00340     page = scb_doc_get_page(doc, &id);
00341     if (NULL == page) return;
00342
00343     point.x = ox; point.y = oy;
00344
00345     ScbStrokesPtr strokes = scb_page_erase_hit_test(page, &point, &eraseCtx);
00346     if (strokes)
00347     {
00348         PV_LOGPRINTF("Erase strokes!");
00349         if (ctrl->settings.getRotate() == 270)
00350         {
00351             drawErasedStrokesLandscape(strokes, ctrl, x, y);
00352         }
00353         else
00354         {
00355             drawErasedStrokesPortrait(strokes, ctrl, x, y);
00356         }
00357
00358         // set dirty flag
00359         setEraseDirty();
00360
00361         // free
00362         scb_strokes_free(strokes);
00363     }
00364 }

Here is the call graph for this function:

void CScribbleMgr::onEraseRelease ( const int  pn,
Controller ctrl,
const int  x,
const int  y,
const int  ox,
const int  oy
)

Definition at line 366 of file ScribbleMgr.cpp.

00369 {
00370     if (pn < 0 || NULL == page) return;
00371     point.x = ox; point.y = oy;
00372     ScbStrokesPtr strokes = scb_page_erase_hit_test(page, &point, &eraseCtx);
00373
00374     // reset
00375     page = NULL;
00376     if (strokes)
00377     {
00378         PV_LOGPRINTF("Erase strokes!");
00379         if (ctrl->settings.getRotate() == 270)
00380         {
00381             drawErasedStrokesLandscape(strokes, ctrl, x, y);
00382         }
00383         else
00384         {
00385             drawErasedStrokesPortrait(strokes, ctrl, x, y);
00386         }
00387
00388         // set dirty flag
00389         setEraseDirty();
00390
00391         // draw and free
00392         scb_strokes_free(strokes);
00393     }
00394 }

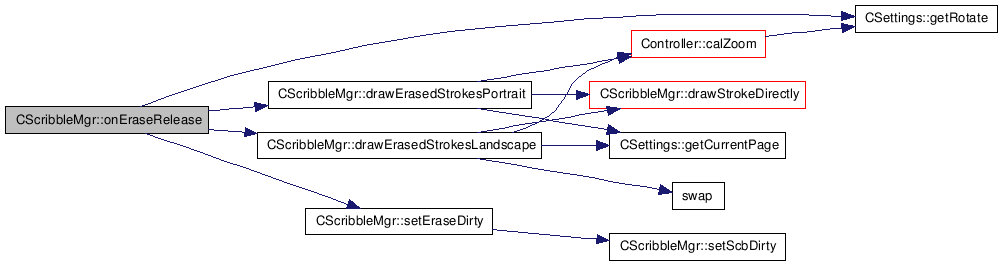

Here is the call graph for this function:

GBool CScribbleMgr::isEraseDirty (  )  const [inline]

Definition at line 136 of file ScribbleMgr.h.

00136 { return bErased; }

void CScribbleMgr::setEraseDirty ( GBool  b = gTrue  )

Definition at line 279 of file ScribbleMgr.cpp.

00280 {
00281     bErased = b;
00282     if (b)
00283     {
00284         setScbDirty();
00285     }
00286 }

Here is the call graph for this function:

void CScribbleMgr::drawScribblePage ( const int  pn,
Controller ctrl,
const int  x,
const int  y
)

Definition at line 398 of file ScribbleMgr.cpp.

00400 {
00401 #if (PV_PROFILE_ON)
00402     int t1 = ctrl->getHighTimeStamp();
00403 #endif
00404
00405     // page from page id
00406     generatePageId(&id, pn);
00407     ScbPagePtr ptr = scb_doc_get_page(doc, &id);
00408     if (NULL == ptr)
00409     {
00410         PV_LOGPRINTF("page %s not found!", id.id);
00411         return;
00412     }
00413
00414     if (ctrl->settings.getRotate() == 270)
00415     {
00416         drawScribblePageLandscape(ptr, ctrl, x, y);
00417     }
00418     else
00419     {
00420         drawScribblePagePortrait(ptr, ctrl, x, y);
00421     }
00422
00423 #if (PV_PROFILE_ON)
00424         int t2 = ctrl->getHighTimeStamp();
00425         PV_DUMP("Scribble Manager drawScribblePage uses %d\n", t2 - t1);
00426 #endif
00427 }

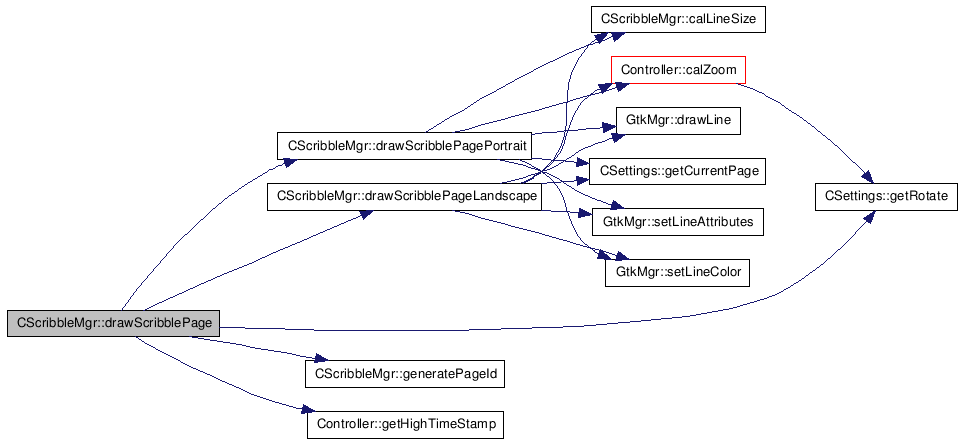

Here is the call graph for this function:


Member Data Documentation

ScbPath CScribbleMgr::path [private]

Definition at line 52 of file ScribbleMgr.h.

ScbDocPtr CScribbleMgr::doc [private]

Definition at line 53 of file ScribbleMgr.h.

ScbPagePtr CScribbleMgr::page [private]

Definition at line 54 of file ScribbleMgr.h.

ScbStrokePtr CScribbleMgr::stroke [private]

Definition at line 55 of file ScribbleMgr.h.

int CScribbleMgr::pageNumber [private]

Definition at line 56 of file ScribbleMgr.h.

ScbDevPoint CScribbleMgr::pagePoint [private]

Definition at line 57 of file ScribbleMgr.h.

ScbDevPoint CScribbleMgr::point [private]

Definition at line 58 of file ScribbleMgr.h.

ScbPageId CScribbleMgr::id [private]

Definition at line 59 of file ScribbleMgr.h.

ScbPageEraseCtx CScribbleMgr::eraseCtx [private]

Definition at line 60 of file ScribbleMgr.h.

GBool CScribbleMgr::bErased [private]

Definition at line 61 of file ScribbleMgr.h.

GBool CScribbleMgr::bScbDirty [private]

Definition at line 62 of file ScribbleMgr.h.


The documentation for this class was generated from the following files:

Generated on Wed Feb 4 18:26:33 2009 by  doxygen 1.5.6
