pageBar/src/gtkPagebar.c File Reference

#include <liberdm/display.h>
#include <liberdm/erdm.h>
#include <liberipc/eripcpagebar.h>
#include <liberipc/eripcviewer.h>
#include <liberipc/eripcbusyd.h>
#include <liberipc/eripccontentlister.h>
#include <liberipc/eripcsetup.h>
#include <liberipc/eripcconnect.h>
#include <liberipc/eripcarinc.h>
#include "gtkPagebar.h"
#include "displayUpdate.h"

Go to the source code of this file.

Defines

#define PRINT_TRACE(X)   ;
#define PRINT_DEBUG(X)   ;
#define PRINT_INFO(X)   ;
#define PRINT_ERROR(X)   printf X
#define ENTER(x)   ;
#define LEAVE(x)   ;
#define RETURN(x)   {ret=x; goto end;}
#define PAGE_BAR_PADDING   2
#define PAGEBAR_BUTTON_PADDING   2
#define PAGEBAR_LISTBLOCKSIZE   128
#define PAGEBAR_ORIENTATION_X   0
#define PAGEBAR_ORIENTATION_Y   1
#define SCROLLBOX_LEFT   0
#define SCROLLBOX_RIGHT   1
#define SCROLLBOX_NONE   -1
#define TIMER_SPAN   1500
#define TRACE()

Enumerations

enum  { PAGE_SELECTED, LAST_SIGNAL }

Functions

static gboolean on_pagebar_exposed (GtkWidget *widget, GdkEventExpose *event, gpointer user_data)
static gboolean on_pagebar_configured (GtkWidget *widget, GdkEventConfigure *event, gpointer user_data)
static gboolean on_pagebar_button_press_event (GtkWidget *widget, GdkEventButton *event, gpointer user_data)
static gboolean on_pagebar_button_release_event (GtkWidget *widget, GdkEventButton *event, gpointer user_data)
static void pagebar_calculate (GtkPagebar *pagebar)
static void pagebar_draw_cpi (GtkPagebar *pagebar)
static void pagebar_draw_left (GtkPagebar *pagebar)
static void pagebar_draw_right (GtkPagebar *pagebar)
static int pagebar_scrollbox_hitTest (GtkPagebar *pagebar, int, int)
static gboolean pagebar_scrollbox_needLeft (GtkPagebar *pagebar)
static gboolean pagebar_scrollbox_needRight (GtkPagebar *pagebar)
static void gtk_pagebar_class_init (GtkPagebarClass *klass)
static void gtk_pagebar_init (GtkPagebar *pagebar)
static int loadBitmap (GdkPixbuf **buf, char *filename)
static int addToList (int **list, int *count, int value)
static int removeFromList (int **list, int *count, int value)
int addBookmark (GtkPagebar *pagebar, int value)
int addNote (GtkPagebar *pagebar, int value)
int removeBookmark (GtkPagebar *pagebar, int value)
int removeNote (GtkPagebar *pagebar, int value)
int pagebar_reset_values (GtkPagebar *pagebar)
int pagebar_load_bitmaps (GtkPagebar *pagebar)
static int currentPageChanged (GtkPagebar *pagebar)
GType gtk_pagebar_get_type (void)
GtkWidget * gtk_pagebar_new ()
static int drawMarkers (GtkPagebar *pagebar, int width, int y, int bitmap, int *markers, int count, int maxValue)
int gtk_pagebar_draw (GtkPagebar *pagebar)
gboolean on_idle (gpointer data)
void pagebar_reportSync (GtkPagebar *pagebar)

Variables

static gint pagebar_signals [LAST_SIGNAL] = { 0 }
static int framebuffer_device
static erClientChannel_t apabiChannel
static erClientChannel_t pdfChannel
static erClientChannel_t xhtmlChannel
static erClientChannel_t contentListerChannel
static erClientChannel_t scribbleChannel
static erClientChannel_t setupChannel
static erClientChannel_t connectChannel
static erClientChannel_t ebaChannel
static erClientChannel_t arincViewerChannel
static erClientChannel_t arincMenuChannel
static erClientChannel_t mobipocketChannel

Define Documentation

#define ENTER ( x   )     ;

Definition at line 66 of file gtkPagebar.c.

#define LEAVE ( x   )     ;

Definition at line 67 of file gtkPagebar.c.

#define PAGE_BAR_PADDING   2

Definition at line 72 of file gtkPagebar.c.

#define PAGEBAR_BUTTON_PADDING   2

Definition at line 73 of file gtkPagebar.c.

#define PAGEBAR_LISTBLOCKSIZE   128

Definition at line 75 of file gtkPagebar.c.

#define PAGEBAR_ORIENTATION_X   0

Definition at line 77 of file gtkPagebar.c.

#define PAGEBAR_ORIENTATION_Y   1

Definition at line 78 of file gtkPagebar.c.

#define PRINT_DEBUG ( X   )     ;

Definition at line 55 of file gtkPagebar.c.

#define PRINT_ERROR ( X   )     printf X

Definition at line 59 of file gtkPagebar.c.

#define PRINT_INFO ( X   )     ;

Definition at line 56 of file gtkPagebar.c.

#define PRINT_TRACE ( X   )     ;

Copyright (C) 2005-2008 iRex Technologies B.V. All rights reserved.

Definition at line 54 of file gtkPagebar.c.

#define RETURN ( x   )     {ret=x; goto end;}

Definition at line 70 of file gtkPagebar.c.

#define SCROLLBOX_LEFT   0

Definition at line 79 of file gtkPagebar.c.

#define SCROLLBOX_NONE   -1

Definition at line 81 of file gtkPagebar.c.

#define SCROLLBOX_RIGHT   1

Definition at line 80 of file gtkPagebar.c.

#define TIMER_SPAN   1500

Definition at line 82 of file gtkPagebar.c.


#define TRACE (  )

Definition at line 84 of file gtkPagebar.c.

Enumeration Type Documentation

anonymous enum

Enumerator:
PAGE_SELECTED
LAST_SIGNAL

Definition at line 91 of file gtkPagebar.c.

00092 {
00093     PAGE_SELECTED,  // signals emitted when the user selects a page, using the page bar
00094     LAST_SIGNAL,
00095 };

Function Documentation

int addBookmark ( GtkPagebar *  pagebar,
int  value
)

Definition at line 204 of file gtkPagebar.c.

00204                                                 {
00205     return addToList(&pagebar->bookmarks, &pagebar->bookmarkCount, value);
00206 }

Here is the call graph for this function:

int addNote ( GtkPagebar *  pagebar,
int  value
)

Definition at line 208 of file gtkPagebar.c.

00208                                             {
00209     return addToList(&pagebar->notes, &pagebar->noteCount, value);
00210 }

Here is the call graph for this function:

static int addToList ( int **  list,
int *  count,
int  value
) [static]

Definition at line 146 of file gtkPagebar.c.

00146                                                         {
00147     int i;
00148     int ret=0;
00149
00150     ENTER(1);
00151
00152     if (value<0)
00153         RETURN(-1);
00154
00155     if (!(*list)) {
00156         (*list)=(int*)malloc(PAGEBAR_LISTBLOCKSIZE*sizeof(int));
00157         for (i=0; i<PAGEBAR_LISTBLOCKSIZE; i++)
00158             (*list)[i]=-1;
00159         *count = PAGEBAR_LISTBLOCKSIZE;
00160     }
00161
00162     i=0;
00163     while (i<*count && (*list)[i]!=-1 && (*list)[i]!=value)
00164         i++;
00165
00166     /* If the value is already present, we exit */
00167     if (i<*count && (*list)[i]==value)
00168         RETURN(0);
00169
00170
00171     /* If we ran out of space, we realloc the list */
00172     if (i==*count) {
00173         (*list)=(int*)realloc(*list, (*count+PAGEBAR_LISTBLOCKSIZE)*sizeof(int));
00174         for (i=0; i<PAGEBAR_LISTBLOCKSIZE; i++)
00175             (*list)[i+*count]=-1;
00176         *count += PAGEBAR_LISTBLOCKSIZE;
00177     }
00178
00179     (*list)[i]=value;
00180
00181 end:
00182     LEAVE(1);
00183     return ret;
00184 }

static int currentPageChanged ( GtkPagebar *  pagebar  )  [static]

Definition at line 362 of file gtkPagebar.c.

00362                                                    {
00363     erClientChannel_t channel;
00364     int ret = 0;
00365
00366     ENTER(1);
00367
00368     if (pagebar->lastPage==pagebar->currentPage)
00369         RETURN (0);
00370
00371     pagebar->lastPage=pagebar->currentPage;
00372     gtk_pagebar_draw(pagebar);
00373
00374     switch (pagebar->currentApp) {
00375         case ER_APABI_VIEWER_UA_ID:
00376             channel = apabiChannel;
00377             break;
00378         case ER_PDF_VIEWER_UA_ID:
00379             channel = pdfChannel;
00380             break;
00381         case ER_XHTML_VIEWER_UA_ID:
00382             channel = xhtmlChannel;
00383             break;
00384         case ER_SCRIBBLE_UA_ID:
00385             channel = scribbleChannel;
00386             break;
00387         case ER_CONTENT_LISTER_UA_ID:
00388             channel = contentListerChannel;
00389             clGotoPage(channel, pagebar->currentPage);
00390             RETURN (0);
00391         case ER_SETUP_UA_ID:
00392             channel = setupChannel;
00393             stGotoPage(channel, pagebar->currentPage);
00394             RETURN (0);
00395         case ER_CONNECT_UA_ID:
00396             channel = connectChannel;
00397             cnGotoPage(channel, pagebar->currentPage);
00398             RETURN (0);
00399         case ER_EBA_VIEWER_UA_ID:
00400             channel = ebaChannel;
00401             break;
00402         case ER_ARINC_VIEWER_UA_ID:
00403             channel = arincViewerChannel;
00404             arincJumpToPage(channel, pagebar->currentApp, pagebar->currentPage);
00405             RETURN (0);
00406         case ER_ARINC_MENU_UA_ID:
00407             channel = arincMenuChannel;
00408             arincJumpToPage(channel, pagebar->currentApp, pagebar->currentPage);
00409             RETURN (0);
00410         case ER_MOBIPOCKET_VIEWER_UA_ID:
00411             channel = mobipocketChannel;
00412             break;
00413         default:
00414             return -1;
00415     }
00416     vwrJumpToPage(channel, pagebar->currentApp, pagebar->currentPage);
00417
00418 end:
00419     LEAVE(1);
00420     return ret;
00421 }

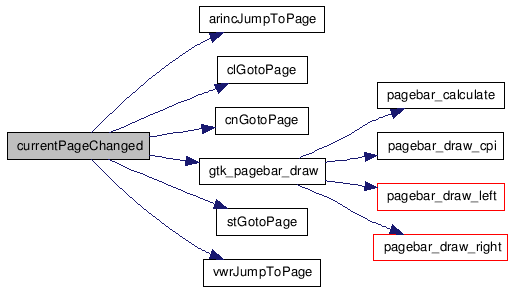

Here is the call graph for this function:

static int drawMarkers ( GtkPagebar *  pagebar,
int  width,
int  y,
int  bitmap,
int *  markers,
int  count,
int  maxValue
) [static]

Definition at line 735 of file gtkPagebar.c.

00735                                                                                                                  {
00736     int i;
00737     int j;
00738     int x;
00739
00740     ENTER(1);
00741
00742     for (i=0; i<count && markers[i]!=-1; i++) {
00743         /* Convert bookmark to pagenumber */
00744         j=markers[i]*pagebar->pagecount/maxValue;
00745         if (j>pagebar->currentPage) {
00746             x = pagebar->barXPos+(pagebar->barWidth+pagebar->cpiWidth)/2;
00747             /* & 0xFFFFFFFC: Align to markers */
00748             if (j>=pagebar->pagecount)
00749                 x += (((pagebar->pagecount-pagebar->currentPage-1)*width/(pagebar->pagecount-2))&0xFFFFFFFC)+pagebar->pageFieldWidth/2;
00750             else
00751                 x += (((pagebar->pagecount-pagebar->currentPage-1)*width/(pagebar->pagecount-2))*(j-pagebar->currentPage-1)/(pagebar->pagecount-1-pagebar->currentPage-1))&0xFFFFFFFC;
00752             /* Bitmaps aren't transparant so we can't draw over the CPI. In that case we move the marker a little bit to the right */
00753             if (x-(pagebar->barXPos+(pagebar->barWidth+pagebar->cpiWidth)/2)<2)
00754                 x+=3;
00755
00756 #ifdef USE_BITMAPS
00757             gdk_draw_pixbuf(pagebar->pixmap, NULL, pagebar->bitmaps[bitmap], 0,0,x-2,y,-1,-1,GDK_RGB_DITHER_NONE,0,0);
00758 #else
00759             gdk_draw_line(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, x, y, x, y+6);
00760 #endif
00761         }
00762         else if (j<pagebar->currentPage) {
00763             x = pagebar->barXPos+(pagebar->barWidth-pagebar->cpiWidth)/2-2;
00764             if (j==1)
00765                 x -= ((width*(pagebar->currentPage-2)/(pagebar->pagecount-2))&0xFFFFFFFC) + pagebar->pageFieldWidth/2;
00766             else
00767                 x -= (width*(pagebar->currentPage-2)/(pagebar->pagecount-2)*(pagebar->currentPage-j-1)/(pagebar->currentPage-3))&0xFFFFFFFC;
00768
00769 #ifdef USE_BITMAPS
00770             gdk_draw_pixbuf(pagebar->pixmap, NULL, pagebar->bitmaps[bitmap], 0,0,x-2,y,-1,-1,GDK_RGB_DITHER_NONE,0,0);
00771 #else
00772             gdk_draw_line(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, x, y, x, y+6);
00773 #endif
00774         }
00775     }
00776
00777     LEAVE(1);
00778
00779     return 0;
00780 }

static void gtk_pagebar_class_init ( GtkPagebarClass *  klass  )  [static]

Definition at line 635 of file gtkPagebar.c.

00636 {
00637     GtkObjectClass *object_class;
00638
00639     ENTER(0);
00640
00641     object_class = (GtkObjectClass *) klass;
00642
00643     // event to notify page update
00644
00645     pagebar_signals[PAGE_SELECTED] =
00646         g_signal_new ("pagebar_page_selected",
00647         G_OBJECT_CLASS_TYPE (object_class),
00648         G_SIGNAL_RUN_LAST,
00649         G_STRUCT_OFFSET (GtkPagebarClass, pagebar_page_selected),
00650         NULL, NULL,
00651         gtk_marshal_VOID__INT,
00652         G_TYPE_NONE,
00653         1,
00654         G_TYPE_INT);
00655     LEAVE(0);
00656 }

int gtk_pagebar_draw ( GtkPagebar *  pagebar  )

Definition at line 791 of file gtkPagebar.c.

00792 {
00793     int ret = 0;
00794
00795     ENTER(1);
00796
00797
00798     if (!IS_GTK_PAGEBAR(pagebar)) {
00799         RETURN(-1);
00800     }
00801
00802
00803     if (!pagebar->pixmap)
00804         RETURN(-1);
00805
00806     /* If the user moved the window, we first have to do that */
00807     if (pagebar->lastDrawAreaXPos!=pagebar->drawAreaXPos || pagebar->lastDrawAreaYPos!=pagebar->drawAreaYPos) {
00808         pagebar->lastDrawAreaXPos=pagebar->drawAreaXPos;
00809         pagebar->lastDrawAreaYPos=pagebar->drawAreaYPos;
00810         gtk_window_move(GTK_WINDOW(gtk_widget_get_toplevel(GTK_WIDGET(pagebar))), pagebar->drawAreaXPos, pagebar->drawAreaYPos);
00811     }
00812
00813     /* If the user resized the window, we first have to do that */
00814     if (pagebar->lastDrawAreaWidth!=pagebar->drawAreaWidth || pagebar->lastDrawAreaHeight!=pagebar->drawAreaHeight) {
00815         pagebar->lastDrawAreaWidth=pagebar->drawAreaWidth;
00816         pagebar->lastDrawAreaHeight=pagebar->drawAreaHeight;
00817         gtk_widget_set_size_request(GTK_WIDGET(gtk_widget_get_toplevel(GTK_WIDGET(pagebar))), pagebar->drawAreaWidth, pagebar->drawAreaHeight);
00818     }
00819
00820     // clear the area
00821     gdk_draw_rectangle (pagebar->pixmap,
00822         GTK_WIDGET(pagebar->drawingArea)->style->white_gc,
00823         TRUE,
00824         pagebar->barXPos,
00825         pagebar->barYPos,
00826         pagebar->barWidth,
00827         pagebar->barHeight);
00828
00829     if (!pagebar->show)
00830         RETURN(-1);
00831
00832     // calculate
00833     pagebar_calculate(pagebar);
00834
00835     // draw cpi
00836     pagebar_draw_cpi(pagebar);
00837
00838     if (pagebar->pagecount==1)
00839         RETURN(0);
00840
00841     // draw the others
00842     pagebar_draw_left(pagebar);
00843     pagebar_draw_right(pagebar);
00844 end:
00845     // make things appear on the screen
00846     gtk_widget_queue_draw(GTK_WIDGET(pagebar->drawingArea));
00847     PRINT_TRACE(("gtk_widget_queue_draw_area called \n"));
00848
00849     LEAVE(1);
00850
00851     return ret;
00852 }

Here is the call graph for this function:

GType gtk_pagebar_get_type ( void   )

Definition at line 610 of file gtkPagebar.c.

00611 {
00612     static GType pagebar_type = 0;
00613
00614     if (!pagebar_type)
00615     {
00616         static const GTypeInfo pagebar_info =
00617         {
00618             sizeof (GtkPagebarClass),
00619             NULL, /* base_init */
00620             NULL, /* base_finalize */
00621             (GClassInitFunc) gtk_pagebar_class_init,
00622             NULL, /* class_finalize */
00623             NULL, /* class_data */
00624             sizeof (GtkPagebar),
00625             0,    /* n_preallocs */
00626             (GInstanceInitFunc) gtk_pagebar_init,
00627         };
00628
00629         pagebar_type = g_type_register_static (GTK_TYPE_EVENT_BOX, "Pagebar", &pagebar_info, 0);
00630     }
00631
00632     return pagebar_type;
00633 }

Here is the call graph for this function:

static void gtk_pagebar_init ( GtkPagebar *  pagebar  )  [static]

Definition at line 658 of file gtkPagebar.c.

00659 {
00660     ENTER(0);
00661
00662     /* create drawingarea */
00663     pagebar->drawingArea = gtk_drawing_area_new();
00664
00665     gtk_widget_set_events (GTK_WIDGET(pagebar->drawingArea), GDK_EXPOSURE_MASK | GDK_LEAVE_NOTIFY_MASK |  GDK_BUTTON_PRESS_MASK | GDK_BUTTON_RELEASE_MASK );
00666
00667     gtk_container_add(GTK_CONTAINER(pagebar),pagebar->drawingArea);
00668
00669     gtk_signal_connect(GTK_OBJECT(pagebar->drawingArea), "expose-event", GTK_SIGNAL_FUNC(on_pagebar_exposed),pagebar);
00670     gtk_signal_connect(GTK_OBJECT(pagebar->drawingArea), "configure-event", GTK_SIGNAL_FUNC(on_pagebar_configured),pagebar);
00671
00672     g_signal_connect (G_OBJECT (pagebar->drawingArea), "button_press_event",  G_CALLBACK (on_pagebar_button_press_event), pagebar);
00673
00674     g_signal_connect (G_OBJECT (pagebar->drawingArea), "button_release_event",  G_CALLBACK (on_pagebar_button_release_event), pagebar);
00675
00676     erIpcStartClient(ER_APABI_VIEWER_CHANNEL,      &apabiChannel        );
00677     erIpcStartClient(ER_PDF_VIEWER_CHANNEL,        &pdfChannel          );
00678     erIpcStartClient(ER_XHTML_VIEWER_CHANNEL,      &xhtmlChannel        );
00679     erIpcStartClient(ER_CONTENTLISTER_CHANNEL,     &contentListerChannel);
00680     erIpcStartClient(ER_SCRIBBLE_CHANNEL,          &scribbleChannel     );
00681     erIpcStartClient(ER_SETUP_CHANNEL,             &setupChannel        );
00682     erIpcStartClient(ER_CONNECT_CHANNEL,           &connectChannel      );
00683     erIpcStartClient(ER_EBA_VIEWER_CHANNEL,        &ebaChannel          );
00684     erIpcStartClient(ER_ARINC_VIEWER_CHANNEL,      &arincViewerChannel  );
00685     erIpcStartClient(ER_ARINC_MENU_CHANNEL,        &arincMenuChannel    );
00686     erIpcStartClient(ER_MOBIPOCKET_VIEWER_CHANNEL, &mobipocketChannel   );
00687
00688     gtk_widget_show(pagebar->drawingArea);
00689
00690     LEAVE(0);
00691 }

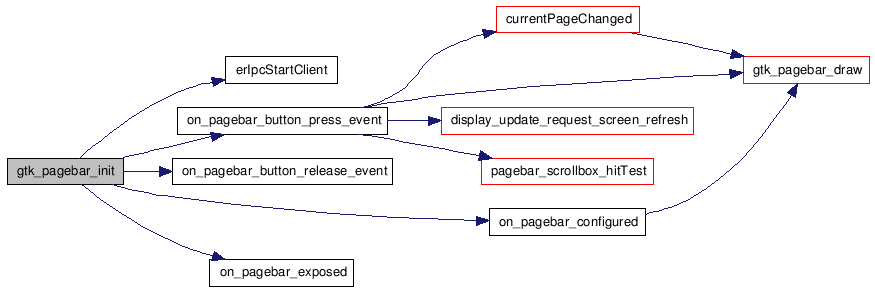

Here is the call graph for this function:

GtkWidget* gtk_pagebar_new (  )

Definition at line 693 of file gtkPagebar.c.

00694 {
00695     GtkPagebar* pagebar;
00696     PangoFontDescription* fontdesc;
00697
00698     ENTER(0);
00699
00700     pagebar = (GtkPagebar*) g_object_new(GTK_PAGEBAR_TYPE,NULL);
00701
00702     memset(pagebar->bitmaps, 0, sizeof(pagebar->bitmaps));
00703     pagebar->bookmarks = NULL;
00704     pagebar->notes = NULL;
00705
00706     // init data fields
00707     pagebar_reset_values(pagebar);
00708     pagebar_load_bitmaps(pagebar);
00709
00710     framebuffer_device = open("/dev/fb0", O_RDWR);
00711
00712     PRINT_DEBUG(("bar format %dx%d\n",pagebar->drawAreaWidth,pagebar->drawAreaHeight));
00713
00714     gtk_drawing_area_size(GTK_DRAWING_AREA(pagebar->drawingArea),pagebar->drawAreaWidth,pagebar->drawAreaHeight);
00715
00716     pagebar->pangolayout=gtk_widget_create_pango_layout(GTK_WIDGET(pagebar->drawingArea),"X");
00717     fontdesc = pango_font_description_from_string("Bitstream Vera 6.5");
00718 //    pango_font_description_set_size(fontdesc, PAGEBAR_DEFAULT_CPIFONTHEIGHT);
00719     pango_layout_set_font_description(pagebar->pangolayout, fontdesc);
00720     pango_font_description_free(fontdesc);
00721     pango_layout_get_pixel_size(pagebar->pangolayout,&pagebar->barFontWidth,&pagebar->barFontHeight);
00722
00723     pagebar->cpiFontWidth = pagebar->barFontWidth;
00724
00725     PRINT_DEBUG(("text format %dx%d\n",pagebar->barFontWidth,pagebar->barFontHeight));
00726
00727     //gtk_widget_show(pagebar->drawingArea);
00728
00729     LEAVE(0);
00730
00731     return GTK_WIDGET(pagebar);
00732 }

Here is the call graph for this function:

static int loadBitmap ( GdkPixbuf **  buf,
char *  filename
) [static]

Definition at line 129 of file gtkPagebar.c.

00129                                                        {
00130     GError *error = NULL;
00131     int ret=0;
00132
00133     ENTER(1);
00134
00135     (*buf) = gdk_pixbuf_new_from_file(filename, &error);
00136     if ((*buf)==NULL) {
00137         PRINT_ERROR(("Error loading bitmap %s (%s)\n", filename, error->message));
00138         RETURN(-1);
00139     }
00140
00141 end:
00142     LEAVE(1);
00143     return ret;
00144 }

gboolean on_idle ( gpointer  data  )

Definition at line 1168 of file gtkPagebar.c.

01169 {
01170     GtkPagebar *pagebar = (GtkPagebar *)data;
01171     gdk_threads_enter();
01172     gdk_flush();
01173     gdk_threads_leave();
01174
01175     erClientChannel_t channel;
01176     switch (pagebar->currentApp)
01177     {
01178     case ER_APABI_VIEWER_UA_ID:
01179         channel = apabiChannel;
01180         break;
01181     case ER_PDF_VIEWER_UA_ID:
01182         channel = pdfChannel;
01183         break;
01184     case ER_XHTML_VIEWER_UA_ID:
01185         channel = xhtmlChannel;
01186         break;
01187     case ER_SCRIBBLE_UA_ID:
01188         channel = scribbleChannel;
01189         break;
01190     case ER_CONTENT_LISTER_UA_ID:
01191         channel = contentListerChannel;
01192         break;
01193     case ER_SETUP_UA_ID:
01194         channel = setupChannel;
01195         break;
01196     case ER_CONNECT_UA_ID:
01197         channel = connectChannel;
01198         break;
01199     case ER_EBA_VIEWER_UA_ID:
01200         channel = ebaChannel;
01201         break;
01202     case ER_ARINC_VIEWER_UA_ID:
01203         channel = arincViewerChannel;
01204         break;
01205     case ER_ARINC_MENU_UA_ID:
01206         channel = arincMenuChannel;
01207         break;
01208     default:
01209         return FALSE;
01210     }
01211     // printf("\nPagebar reports synchronise message to %d\n", pagebar->currentApp);
01212     pbReportSynchronise(channel, pagebar->currentApp);
01213     return FALSE;
01214 }

Here is the call graph for this function:

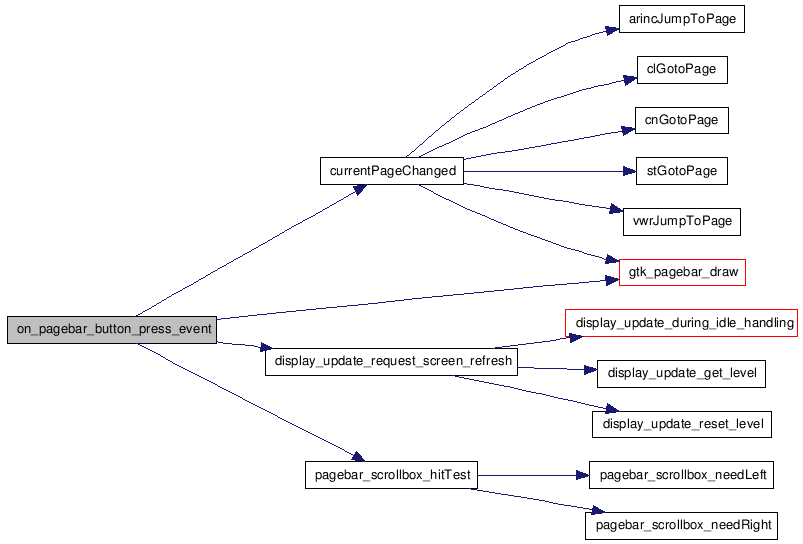

static gboolean on_pagebar_button_press_event ( GtkWidget *  widget,
GdkEventButton *  event,
gpointer  user_data
) [static]

Definition at line 474 of file gtkPagebar.c.

00475 {
00476     GtkPagebar* pagebar = GTK_PAGEBAR(user_data);
00477     int x=event->x;
00478     int y=event->y;
00479     int i;
00480     int j;
00481
00482
00483     ENTER(0);
00484
00485     PRINT_TRACE(("button_press_event -- location %dx%d - %dx%d \n",(int)event->x,(int)event->y,(int)event->x_root,(int)event->y_root));
00486
00487     /* Check if we clicked on the CPI */
00488     if (x>=pagebar->barXPos+(pagebar->barWidth-pagebar->cpiWidth)/2 && x<=pagebar->barXPos+(pagebar->barWidth+pagebar->cpiWidth)/2 &&
00489         y>=pagebar->barYPos+(pagebar->barHeight-pagebar->cpiHeight)/2 && y<=pagebar->barYPos+(pagebar->barHeight+pagebar->cpiHeight)/2)
00490     {
00491         /* Did we press the expand/collapse button?  -- disabled */
00492         /***
00493         if (y<pagebar->barYPos+(pagebar->barHeight-pagebar->cpiHeight)/2+10) {
00494         pagebar->zoomMode=!pagebar->zoomMode;
00495         gtk_pagebar_draw(pagebar);
00496         dmDisplay(dmCmdPriorUrgent, dmQFull);
00497         }
00498         else {
00499         ***/
00500
00501         /***
00502         gtk_widget_show(pagebar->pageEntry);
00503         gtk_widget_grab_focus(pagebar->pageEntry);
00504         gtk_entry_set_text(GTK_ENTRY(pagebar->pageEntry), "");
00505         gtk_entry_set_alignment(GTK_ENTRY(pagebar->pageEntry), 0.5);
00506         gtk_entry_set_activates_default(GTK_ENTRY(pagebar->pageEntry), TRUE);
00507         g_signal_connect(GTK_OBJECT(pagebar->pageEntry), "activate", G_CALLBACK(on_pageentry_activate),pagebar);
00508         gtk_signal_connect(GTK_OBJECT(pagebar->pageEntry), "changed", GTK_SIGNAL_FUNC(on_text_changed),pagebar);
00509         gtk_signal_connect(GTK_OBJECT(pagebar->drawingArea), "expose-event", GTK_SIGNAL_FUNC(on_pagebar_exposed),pagebar);
00510         ***/
00511
00512         // zeng. update . according to new design
00513         pagebar->zoomMode=!pagebar->zoomMode;
00514         gtk_pagebar_draw(pagebar);
00515
00516
00517         // change to DM_QUALITY_FULL if not acceptable
00518         display_update_request_screen_refresh(MAIN_WINDOW_EXPOSE_LEVEL, (void*) DM_QUALITY_TYPING);
00519     }
00520     else
00521     {
00522         if (pagebar->zoomMode==0) {
00523             int smallBarWidth;
00524             smallBarWidth = (pagebar->barWidth-pagebar->cpiWidth)/2-pagebar->pageFieldWidth;
00525             /* Check if we clicked on the left part of the bar */
00526             if (x<pagebar->barXPos+(pagebar->barWidth-pagebar->cpiWidth)/2 && pagebar->currentPage!=1) {
00527                 i=pagebar->barXPos+(pagebar->barWidth-pagebar->cpiWidth)/2-x;
00528                 i=i*(pagebar->pagecount-2)/(smallBarWidth);
00529                 if (i<pagebar->currentPage-1) {
00530                     pagebar->currentPage-=(i+1);
00531                 }
00532                 else {
00533                     pagebar->currentPage=1;
00534                 }
00535                 currentPageChanged(pagebar);
00536             }
00537             /* We clicked on the right part of the bar */
00538             else if (x>pagebar->barXPos+(pagebar->barWidth+pagebar->cpiWidth)/2 && pagebar->currentPage!=pagebar->pagecount) {
00539                 i=x-(pagebar->barXPos+(pagebar->barWidth+pagebar->cpiWidth)/2);
00540                 i=i*(pagebar->pagecount-2)/(smallBarWidth);
00541                 if (i<pagebar->pagecount-pagebar->currentPage) {
00542                     pagebar->currentPage+=(i+1);
00543                 }
00544                 else {
00545                     pagebar->currentPage=pagebar->pagecount;
00546                 }
00547                 currentPageChanged(pagebar);
00548             }
00549         }
00550         else if (pagebar->zoomMode==1) {
00551
00552             /* Calculate the number of pages we can show on each side of the CPI */
00553             j = ((pagebar->barWidth-pagebar->cpiWidth)/2-pagebar->scrollButtonWidth)/pagebar->pageFieldWidth;
00554             /* Check if we clicked on the left part of the bar */
00555             if (x<pagebar->barXPos+(pagebar->barWidth-pagebar->cpiWidth)/2 &&
00556                 x>pagebar->barXPos+(pagebar->barWidth-pagebar->cpiWidth)/2-j*pagebar->pageFieldWidth &&
00557                 pagebar->currentPage!=1)
00558             {
00559                 i=pagebar->barXPos+(pagebar->barWidth-pagebar->cpiWidth)/2-x;
00560                 i/=pagebar->pageFieldWidth;
00561                 if (i<pagebar->currentPage-1 && i<j)
00562                 {
00563                     pagebar->currentPage-=(i+1);
00564                     currentPageChanged(pagebar);
00565                 }
00566             }
00567             /* Check if we clicked on the right part of the bar */
00568             else if (x>pagebar->barXPos+(pagebar->barWidth+pagebar->cpiWidth)/2 &&
00569                 x<pagebar->barXPos+(pagebar->barWidth+pagebar->cpiWidth)/2+j*pagebar->pageFieldWidth &&
00570                 pagebar->currentPage!=pagebar->pagecount)
00571             {
00572                 i=x-(pagebar->barXPos+(pagebar->barWidth+pagebar->cpiWidth)/2);
00573                 i/=pagebar->pageFieldWidth;
00574                 if (i<pagebar->pagecount-pagebar->currentPage && i<j)
00575                 {
00576                     pagebar->currentPage+=(i+1);
00577                     currentPageChanged(pagebar);
00578                 }
00579             }
00580             /* Check if we clicked on the scroll left button */
00581             /* replace j with pagebar->maxItems */
00582             else if (SCROLLBOX_LEFT == pagebar_scrollbox_hitTest(pagebar, x, y))
00583             {
00584                 // MvdW: changed this to be non-confusing ;)
00585                 // the left & right were swapped.
00586                 pagebar->currentPage-=2*pagebar->maxItems+1;
00587                 if (pagebar->currentPage<1)
00588                     pagebar->currentPage=1;
00589
00590                 currentPageChanged(pagebar);
00591
00592             }
00593             else if (SCROLLBOX_RIGHT == pagebar_scrollbox_hitTest(pagebar, x, y))
00594             {
00595                 pagebar->currentPage+=2*pagebar->maxItems+1;
00596                 if (pagebar->currentPage>pagebar->pagecount)
00597                     pagebar->currentPage=pagebar->pagecount;
00598
00599                 currentPageChanged(pagebar);
00600             }
00601         }
00602     }
00603
00604     LEAVE(0);
00605
00606     return TRUE;
00607 }

Here is the call graph for this function:

static gboolean on_pagebar_button_release_event ( GtkWidget *  widget,
GdkEventButton *  event,
gpointer  user_data
) [static]

Definition at line 351 of file gtkPagebar.c.

00352 {
00353     ENTER(1);
00354
00355     PRINT_TRACE(("button_release_event -- location %dx%d - %dx%d \n",(int)event->x,(int)event->y,(int)event->x_root,(int)event->y_root));
00356
00357     LEAVE(1);
00358
00359     return TRUE;
00360 }

static gboolean on_pagebar_configured ( GtkWidget *  widget,
GdkEventConfigure *  event,
gpointer  user_data
) [static]

Definition at line 306 of file gtkPagebar.c.

00307 {
00308     GtkPagebar* pagebar = GTK_PAGEBAR(user_data);
00309
00310     ENTER(0);
00311
00312     if (pagebar->pixmap)
00313         g_object_unref (pagebar->pixmap);
00314
00315     pagebar->pixmap = gdk_pixmap_new (widget->window,
00316         widget->allocation.width,
00317         widget->allocation.height,
00318         -1);
00319     gdk_draw_rectangle (pagebar->pixmap,
00320         widget->style->white_gc,
00321         TRUE,
00322         0, 0,
00323         widget->allocation.width,
00324         widget->allocation.height);
00325
00326     gtk_pagebar_draw(pagebar);
00327     LEAVE(0);
00328     return TRUE;
00329 }

Here is the call graph for this function:

static gboolean on_pagebar_exposed ( GtkWidget *  widget,
GdkEventExpose *  event,
gpointer  user_data
) [static]

Definition at line 332 of file gtkPagebar.c.

00333 {
00334
00335     GtkPagebar* pagebar = GTK_PAGEBAR(user_data);
00336
00337     ENTER(0);
00338
00339     /* Copy image from pixmap to output */
00340     gdk_draw_drawable (widget->window,
00341         widget->style->fg_gc[GTK_WIDGET_STATE (widget)],
00342         pagebar->pixmap,
00343         event->area.x, event->area.y,
00344         event->area.x, event->area.y,
00345         event->area.width, event->area.height);
00346
00347     LEAVE(0);
00348     return FALSE;
00349 }

void pagebar_calculate ( GtkPagebar *  pagebar  )  [static]

Definition at line 900 of file gtkPagebar.c.

00901 {
00902     if (PAGEBAR_ORIENTATION_X == pagebar->orientation)
00903     {
00904         pagebar->cpiXPos  = pagebar->barXPos + (pagebar->barWidth-pagebar->cpiWidth)/2;
00905         pagebar->cpiYPos  = pagebar->barYPos - (pagebar->cpiHeight -pagebar->barHeight)/2;
00906         pagebar->maxItems = ((pagebar->barWidth-pagebar->cpiWidth)/2-pagebar->scrollButtonWidth)/pagebar->pageFieldWidth;
00907     }
00908     else if (PAGEBAR_ORIENTATION_Y == pagebar->orientation)
00909     {
00910         // make sure bar height is larger than cpi height
00911         pagebar->cpiXPos  = (pagebar->barWidth-pagebar->cpiWidth)/2;
00912         pagebar->cpiYPos  = pagebar->barYPos + (pagebar->barHeight - pagebar->cpiHeight)/2;
00913         pagebar->maxItems = ((pagebar->barHeight - pagebar->cpiHeight)/2-pagebar->scrollButtonHeight)/pagebar->pageFieldHeight;
00914     }
00915 }

void pagebar_draw_cpi ( GtkPagebar *  pagebar  )  [static]

Definition at line 920 of file gtkPagebar.c.

00921 {
00922     // If there are less pages than we can show, overview mode is not used
00923     // mode can only be changed when user click cpi
00924     int canZoom  = 1;
00925     int x = 0, y = 0, w = 0, h = 0;
00926     char pageStr[16] = {0};
00927     if (pagebar->pagecount<= pagebar->maxItems *2+1) {
00928         pagebar->zoomMode = 1;
00929         canZoom = 0;
00930     }
00931
00932     /* Once we have to redraw the pagebar, we don't need the pageEntry anymore */
00933     gtk_widget_hide(pagebar->pageEntry);
00934
00935     /* Draw Current Page Indicator, load differnet indicator according orientation*/
00936 #ifdef USE_BITMAPS
00937     gdk_draw_pixbuf(pagebar->pixmap, NULL, pagebar->bitmaps[bitmap_CPI], 0, 0,
00938         pagebar->cpiXPos, pagebar->cpiYPos, -1, -1, GDK_RGB_DITHER_NONE, 0, 0);
00939 #else
00940     gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, FALSE,
00941         pagebar->cpiXPos, pagebar->cpiYPos, pagebar->cpiWidth, h);
00942 #endif
00943
00944     /* Draw pageoffset */
00945     if (pagebar->currentPageOffset <= PAGEBAR_DEFAULT_CURRENTPAGEOFFSET)
00946     {
00947         int i = pagebar->currentPageOffset*pagebar->pageOffsetWidth/PAGEBAR_DEFAULT_CURRENTPAGEOFFSET;
00948         x = pagebar->cpiXPos;
00949         y = pagebar->cpiYPos;
00950         gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, TRUE,
00951             x+pagebar->pageOffsetXOffset,
00952             y+pagebar->pageOffsetYOffset,
00953             i,
00954             pagebar->pageOffsetHeight);
00955         gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->white_gc, TRUE,
00956             x+pagebar->pageOffsetXOffset+i,
00957             y+pagebar->pageOffsetYOffset,
00958             pagebar->pageOffsetWidth-i,
00959             pagebar->pageOffsetHeight);
00960     }
00961
00962     /* Draw pagenumber */
00963     sprintf(pageStr, "%d", pagebar->currentPage);
00964     pango_layout_set_text(pagebar->pangolayout, pageStr, -1);
00965     pango_layout_get_pixel_size(pagebar->pangolayout,&w,&h);
00966     x = pagebar->barXPos + (pagebar->barWidth-w)/2;
00967     y = pagebar->barYPos + (pagebar->barHeight-h)/2;
00968     gdk_draw_layout(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, x, y, pagebar->pangolayout);
00969 }

void pagebar_draw_left ( GtkPagebar *  pagebar  )  [static]

Definition at line 976 of file gtkPagebar.c.

00977 {
00978     int w = 0, x = 0, y = 0;
00979     int i = 0, j = 0;
00980     char pageStr[16] = {0};
00981     int left = 1;
00982
00983     // init
00984     x = pagebar->cpiXPos;
00985     y = pagebar->cpiYPos + (pagebar->cpiHeight - pagebar->pageFieldHeight)/2;
00986
00987     // check can we display all.
00988     if (pagebar->pagecount > 2 * pagebar->maxItems + 1 && 0 == pagebar->zoomMode)
00989     {
00990         // can not display all
00991         w = (pagebar->barWidth-pagebar->cpiWidth)/2-pagebar->pageFieldWidth;
00992         y = pagebar->barYPos+(pagebar->barHeight-pagebar->pageFieldHeight)/2;
00993         x = pagebar->barXPos+(pagebar->barWidth-pagebar->cpiWidth)/2-2;
00994         if (pagebar->currentPage!=1)
00995         {
00996             for (i=0; i<w*(pagebar->currentPage-2)/(pagebar->pagecount-2)/4; i++)
00997             {
00998                 gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, FALSE, x, y, 1, pagebar->pageFieldHeight);
00999                 x-=4;
01000             }
01001             x=x-pagebar->pageFieldWidth+1;
01002 #ifdef USE_BITMAPS
01003             gdk_draw_pixbuf(pagebar->pixmap, NULL, pagebar->bitmaps[bitmap_PageField], 0,0,x,y,-1,-1,GDK_RGB_DITHER_NONE,0,0);
01004 #else
01005             gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, FALSE, x, y, pagebar->pageFieldWidth, pagebar->pageFieldHeight);
01006 #endif
01007             sprintf(pageStr, "1");
01008             pango_layout_set_text(pagebar->pangolayout, pageStr, -1);
01009             pango_layout_get_pixel_size(pagebar->pangolayout,&i,&j);
01010             gdk_draw_layout(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, x+(pagebar->pageFieldWidth-i)/2, y+(pagebar->pageFieldHeight-j)/2, pagebar->pangolayout);
01011         }
01012         /* Draw bookmarks */
01013         if (pagebar->bookmarkMaxValue)
01014             drawMarkers(pagebar, w, y-6, bitmap_Bookmark, pagebar->bookmarks, pagebar->bookmarkCount, pagebar->bookmarkMaxValue);
01015         if (pagebar->notesMaxValue)
01016             drawMarkers(pagebar, w, y+pagebar->pageFieldHeight, bitmap_Note, pagebar->notes, pagebar->noteCount, pagebar->notesMaxValue);
01017     }
01018     else
01019     {
01020         // display in detail
01021         for(left; left < pagebar->currentPage && left <= pagebar->maxItems; ++left)
01022         {
01023             x -= pagebar->pageFieldWidth;
01024             gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->white_gc, FALSE, x, y, 1, pagebar->pageFieldHeight);
01025
01026 #ifdef USE_BITMAPS
01027             gdk_draw_pixbuf(pagebar->pixmap, NULL, pagebar->bitmaps[bitmap_PageField], 0,0,x,y,-1,-1,GDK_RGB_DITHER_NONE,0,0);
01028 #else
01029             gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, FALSE, x, y, pagebar->pageFieldWidth, pagebar->pageFieldHeight);
01030 #endif
01031
01032             sprintf(pageStr, "%d", pagebar->currentPage - left );
01033             pango_layout_set_text(pagebar->pangolayout, pageStr, -1);
01034             pango_layout_get_pixel_size(pagebar->pangolayout,&i,&j);
01035             gdk_draw_layout(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, x+(pagebar->pageFieldWidth-i)/2, y+(pagebar->pageFieldHeight-j)/2, pagebar->pangolayout);
01036         }
01037         /* need scroll bar or not */
01038         /* something confused. left one indicates right, right one indicates left. understand? */
01039         if (pagebar_scrollbox_needLeft(pagebar))
01040         {
01041             x = pagebar->cpiXPos - pagebar->maxItems * pagebar->pageFieldWidth;
01042             x-=pagebar->scrollButtonWidth;
01043 #ifdef USE_BITMAPS
01044             gdk_draw_pixbuf(pagebar->pixmap, NULL, pagebar->bitmaps[bitmap_ScrollLeft], 0,0,x,y,-1,-1,GDK_RGB_DITHER_NONE,0,0);
01045 #else
01046             gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, TRUE, x, y, pagebar->scrollButtonWidth, pagebar->pageFieldHeight);
01047 #endif
01048         }
01049         else
01050         {
01051             // load a gray one.
01052         }
01053         /* draw bookmarkers */
01054         i = pagebar->maxItems;
01055         for (j=0; pagebar->bookmarkMaxValue > 0 && j<pagebar->bookmarkCount && pagebar->bookmarks[j]!=-1; j++)
01056         {
01057             int page;
01058             page=pagebar->bookmarks[j]*pagebar->pagecount/pagebar->bookmarkMaxValue;
01059             if (page<pagebar->currentPage && page>=pagebar->currentPage-i)
01060                 x=pagebar->barXPos+(pagebar->barWidth-pagebar->cpiWidth)/2-(pagebar->currentPage-page)*pagebar->pageFieldWidth+pagebar->pageFieldWidth/2;
01061             else if (page>pagebar->currentPage && page<=pagebar->currentPage+i)
01062                 x=pagebar->barXPos+(pagebar->barWidth+pagebar->cpiWidth)/2+(page-pagebar->currentPage-1)*pagebar->pageFieldWidth+pagebar->pageFieldWidth/2;
01063             else
01064                 continue;
01065
01066 #ifdef USE_BITMAPS
01067             gdk_draw_pixbuf(pagebar->pixmap, NULL, pagebar->bitmaps[bitmap_Bookmark], 0,0,x,y-6,-1,-1,GDK_RGB_DITHER_NONE,0,0);
01068 #else
01069             gdk_draw_line(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, x, y-6, x, y);
01070 #endif
01071         }
01072         for (j=0; pagebar->notesMaxValue > 0 && j<pagebar->noteCount && pagebar->notes[j]!=-1; j++)
01073         {
01074             int page;
01075             page=pagebar->notes[j]*pagebar->pagecount/pagebar->notesMaxValue;
01076             if (page<pagebar->currentPage && page>=pagebar->currentPage-i)
01077                 x=pagebar->barXPos+(pagebar->barWidth-pagebar->cpiWidth)/2-(pagebar->currentPage-page)*pagebar->pageFieldWidth+pagebar->pageFieldWidth/2;
01078             else if (page>pagebar->currentPage && page<=pagebar->currentPage+i)
01079                 x=pagebar->barXPos+(pagebar->barWidth+pagebar->cpiWidth)/2+(page-pagebar->currentPage-1)*pagebar->pageFieldWidth+pagebar->pageFieldWidth/2;
01080             else
01081                 continue;
01082
01083 #ifdef USE_BITMAPS
01084             gdk_draw_pixbuf(pagebar->pixmap, NULL, pagebar->bitmaps[bitmap_Note], 0,0,x,y+pagebar->pageFieldHeight,-1,-1,GDK_RGB_DITHER_NONE,0,0);
01085 #else
01086             gdk_draw_line(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, x, y+pagebar->pageFieldHeight, x, y+pagebar->pageFieldHeight+6);
01087 #endif
01088         }
01089     }
01090 }

Here is the call graph for this function:

void pagebar_draw_right ( GtkPagebar *  pagebar  )  [static]

Definition at line 1092 of file gtkPagebar.c.

01093 {
01094     int w = 0, x = 0, y = 0;
01095     int i = 0, j = 0;
01096     char pageStr[16] = {0};
01097     int right = 1;
01098
01099     // init
01100     x = pagebar->cpiXPos + pagebar->cpiWidth;
01101     y = pagebar->cpiYPos + (pagebar->cpiHeight - pagebar->pageFieldHeight)/2;
01102
01103     // check can we display all
01104     if (pagebar->pagecount > 2 * pagebar->maxItems + 1  && 0 == pagebar->zoomMode)
01105     {
01106         // can not display all
01107         w = (pagebar->barWidth-pagebar->cpiWidth)/2-pagebar->pageFieldWidth;
01108         x = pagebar->barXPos+(pagebar->barWidth+pagebar->cpiWidth)/2;
01109         y = pagebar->barYPos+(pagebar->barHeight-pagebar->pageFieldHeight)/2;
01110         if (pagebar->currentPage!=pagebar->pagecount)
01111         {
01112             for (i=0; i<w*(pagebar->pagecount-pagebar->currentPage-1)/(pagebar->pagecount-2)/4; i++)
01113             {
01114                 gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, FALSE, x, y, 1, pagebar->pageFieldHeight);
01115                 x+=4;
01116             }
01117 #ifdef USE_BITMAPS
01118             gdk_draw_pixbuf(pagebar->pixmap, NULL, pagebar->bitmaps[bitmap_PageField], 0,0,x,y,-1,-1,GDK_RGB_DITHER_NONE,0,0);
01119 #else
01120             gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, FALSE, x, y, pagebar->pageFieldWidth, pagebar->pageFieldHeight);
01121 #endif
01122             sprintf(pageStr, "%d", pagebar->pagecount);
01123             pango_layout_set_text(pagebar->pangolayout, pageStr, -1);
01124             pango_layout_get_pixel_size(pagebar->pangolayout,&i,&j);
01125             gdk_draw_layout(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, x+(pagebar->pageFieldWidth-i)/2, y+(pagebar->pageFieldHeight-j)/2, pagebar->pangolayout);
01126         }
01127     }
01128     else
01129     {
01130         // display in detail
01131         for(right; right <= pagebar->pagecount - pagebar->currentPage && right <= pagebar->maxItems; ++right)
01132         {
01133             gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->white_gc, FALSE, x, y, 1, pagebar->pageFieldHeight);
01134
01135 #ifdef USE_BITMAPS
01136             gdk_draw_pixbuf(pagebar->pixmap, NULL, pagebar->bitmaps[bitmap_PageField], 0,0,x,y,-1,-1,GDK_RGB_DITHER_NONE,0,0);
01137 #else
01138             gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, FALSE, x, y, pagebar->pageFieldWidth, pagebar->pageFieldHeight);
01139 #endif
01140
01141             sprintf(pageStr, "%d", pagebar->currentPage + right );
01142             pango_layout_set_text(pagebar->pangolayout, pageStr, -1);
01143             pango_layout_get_pixel_size(pagebar->pangolayout,&i,&j);
01144             gdk_draw_layout(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, x+(pagebar->pageFieldWidth-i)/2, y+(pagebar->pageFieldHeight-j)/2, pagebar->pangolayout);
01145             x += pagebar->pageFieldWidth;
01146         }
01147
01148         /* draw the right scroll box if needed*/
01149         if (pagebar_scrollbox_needRight(pagebar))
01150         {
01151             x = pagebar->cpiXPos + pagebar->maxItems * pagebar->pageFieldWidth;
01152             x += pagebar->cpiWidth;
01153 #ifdef USE_BITMAPS
01154             gdk_draw_pixbuf(pagebar->pixmap, NULL, pagebar->bitmaps[bitmap_ScrollRight], 0,0,x,y,-1,-1,GDK_RGB_DITHER_NONE,0,0);
01155 #else
01156             gdk_draw_rectangle(pagebar->pixmap, GTK_WIDGET(pagebar->drawingArea)->style->black_gc, TRUE, x, y, pagebar->scrollButtonWidth, pagebar->pageFieldHeight);
01157 #endif
01158
01159         }
01160         else
01161         {
01162             // Load a gray one.
01163         }
01164     }
01165 }

Here is the call graph for this function:

int pagebar_load_bitmaps ( GtkPagebar *  pagebar  )

Definition at line 272 of file gtkPagebar.c.

00273 {
00274     int ret = 0;
00275 #ifdef USE_BITMAPS
00276     /* Load bitmaps */
00277     if (loadBitmap(&(pagebar->bitmaps[bitmap_CPI]), DATA_DIR "/pagebar_cpi.png"))
00278         RETURN(-1);
00279     pagebar->cpiWidth = gdk_pixbuf_get_width(pagebar->bitmaps[bitmap_CPI]);
00280     pagebar->cpiHeight = gdk_pixbuf_get_height(pagebar->bitmaps[bitmap_CPI]);
00281     /* MvdW: removed collapse/expand bitmaps
00282     if (loadBitmap(&(pagebar->bitmaps[bitmap_CPIExpand]), DATA_DIR "/pagebar_cpiexpand.png"))
00283     RETURN(-1);
00284     if (loadBitmap(&(pagebar->bitmaps[bitmap_CPICollapse]), DATA_DIR "/pagebar_cpicollapse.png"))
00285     RETURN(-1); */
00286     if (loadBitmap(&(pagebar->bitmaps[bitmap_PageField]), DATA_DIR "/pagebar_pagefield.png"))
00287         RETURN(-1);
00288     pagebar->pageFieldWidth = gdk_pixbuf_get_width(pagebar->bitmaps[bitmap_PageField]);
00289     pagebar->pageFieldHeight = gdk_pixbuf_get_height(pagebar->bitmaps[bitmap_PageField]);
00290     if (loadBitmap(&(pagebar->bitmaps[bitmap_ScrollLeft]), DATA_DIR "/pagebar_scrollleft.png"))
00291         RETURN(-1);
00292     pagebar->scrollButtonWidth = gdk_pixbuf_get_width(pagebar->bitmaps[bitmap_ScrollLeft]);
00293     if (loadBitmap(&(pagebar->bitmaps[bitmap_ScrollRight]), DATA_DIR "/pagebar_scrollright.png"))
00294         RETURN(-1);
00295     if (loadBitmap(&(pagebar->bitmaps[bitmap_Bookmark]), DATA_DIR "/pagebar_bookmark.png"))
00296         RETURN(-1);
00297     if (loadBitmap(&(pagebar->bitmaps[bitmap_Note]), DATA_DIR "/pagebar_note.png"))
00298         RETURN(-1);
00299 #endif
00300
00301 end:
00302     return ret;
00303 }

Here is the call graph for this function:

void pagebar_reportSync ( GtkPagebar *  pagebar  )

Definition at line 1216 of file gtkPagebar.c.

01217 {
01218     gtk_idle_add(on_idle, (gpointer) pagebar);
01219 }

Here is the call graph for this function:

int pagebar_reset_values ( GtkPagebar *  pagebar  )

Definition at line 220 of file gtkPagebar.c.

00220                                               {
00221     ENTER(0);
00222
00223     pagebar->pagecount = PAGEBAR_DEFAULT_PAGECOUNT;
00224     pagebar->currentPage = PAGEBAR_DEFAULT_CURRENTPAGE;
00225     pagebar->currentPageOffset = PAGEBAR_DEFAULT_CURRENTPAGEOFFSET;
00226     pagebar->zoomMode = PAGEBAR_DEFAULT_ZOOMMODE;
00227     pagebar->orientation = PAGEBAR_DEFAULT_ORIENTATION;
00228     pagebar->drawAreaXPos = PAGEBAR_DEFAULT_DRAWAREAXPOS;
00229     pagebar->drawAreaYPos = PAGEBAR_DEFAULT_DRAWAREAYPOS;
00230     pagebar->drawAreaWidth = PAGEBAR_DEFAULT_DRAWAREAWIDTH;
00231     pagebar->drawAreaHeight = PAGEBAR_DEFAULT_DRAWAREAHEIGHT;
00232     pagebar->barXPos = PAGEBAR_DEFAULT_BARXPOS;
00233     pagebar->barYPos = PAGEBAR_DEFAULT_BARYPOS;
00234     pagebar->barWidth = PAGEBAR_DEFAULT_BARWIDTH;
00235     pagebar->barHeight = PAGEBAR_DEFAULT_BARHEIGHT;
00236     pagebar->cpiHeight = PAGEBAR_DEFAULT_CPIHEIGHT;
00237     pagebar->cpiWidth = PAGEBAR_DEFAULT_CPIWIDTH;
00238     pagebar->barFontType = PAGEBAR_DEFAULT_BARFONTTYPE;
00239     pagebar->barFontHeight = PAGEBAR_DEFAULT_BARFONTHEIGHT;
00240     pagebar->cpiFontType = PAGEBAR_DEFAULT_CPIFONTTYPE;
00241     pagebar->cpiFontHeight = PAGEBAR_DEFAULT_CPIFONTHEIGHT;
00242     pagebar->pageFieldWidth = PAGEBAR_DEFAULT_PAGEFIELDWIDTH;
00243     pagebar->pageFieldHeight = PAGEBAR_DEFAULT_PAGEFIELDHEIGHT;
00244     pagebar->pageOffsetWidth = PAGEBAR_DEFAULT_PAGEOFFSETWIDTH;
00245     pagebar->pageOffsetHeight = PAGEBAR_DEFAULT_PAGEOFFSETHEIGHT;
00246     pagebar->pageOffsetXOffset = PAGEBAR_DEFAULT_PAGEOFFSETXOFFSET;
00247     pagebar->pageOffsetYOffset = PAGEBAR_DEFAULT_PAGEOFFSETYOFFSET;
00248     pagebar->bookmarkCount = PAGEBAR_DEFAULT_BOOKMARKCOUNT;
00249     pagebar->bookmarkMaxValue = PAGEBAR_DEFAULT_BOOKMARKMAXVALUE;
00250     pagebar->noteCount = PAGEBAR_DEFAULT_NOTECOUNT;
00251     pagebar->notesMaxValue = PAGEBAR_DEFAULT_NOTESMAXVALUE;
00252     pagebar->scrollButtonWidth = PAGEBAR_DEFAULT_SCROLLBUTTONWIDTH;
00253     pagebar->show = PAGEBAR_DEFAULT_SHOW;
00254     if (PAGEBAR_TIMER_PROGRESS  != pagebar->currentTimer)
00255         pagebar->currentTimer = PAGEBAR_TIMER_NONE;
00256
00257     pagebar->lastPage = -1;
00258     pagebar->lastDrawAreaXPos = pagebar->lastDrawAreaYPos = -1;
00259
00260     if (pagebar->bookmarks)
00261         free(pagebar->bookmarks);
00262     if (pagebar->notes)
00263         free(pagebar->notes);
00264
00265     pagebar->bookmarks = NULL;
00266     pagebar->notes = NULL;
00267
00268     LEAVE(0);
00269     return 0;
00270 }

int pagebar_scrollbox_hitTest ( GtkPagebar *  pagebar,
int  x,
int  y
) [static]

Definition at line 873 of file gtkPagebar.c.

00874 {
00875     int width = pagebar->maxItems *pagebar->pageFieldWidth;
00876
00877     // position and scroll box enabled
00878     if (x < pagebar->cpiXPos - width &&
00879         x > pagebar->cpiXPos - width - pagebar->scrollButtonWidth &&
00880         pagebar_scrollbox_needLeft(pagebar))
00881     {
00882         return SCROLLBOX_LEFT;
00883     }
00884
00885     if (x > pagebar->cpiXPos + pagebar->cpiWidth + width &&
00886         x < pagebar->cpiXPos + pagebar->cpiWidth + width + pagebar->scrollButtonWidth &&
00887         pagebar_scrollbox_needRight(pagebar))
00888     {
00889         return SCROLLBOX_RIGHT;
00890     }
00891
00892     return SCROLLBOX_NONE;
00893 }

Here is the call graph for this function:

gboolean pagebar_scrollbox_needLeft ( GtkPagebar *  pagebar  )  [static]

Definition at line 859 of file gtkPagebar.c.

00860 {
00861     if (pagebar->currentPage > pagebar->maxItems + 1)
00862         return TRUE;
00863     return FALSE;
00864 }

gboolean pagebar_scrollbox_needRight ( GtkPagebar *  pagebar  )  [static]

Definition at line 866 of file gtkPagebar.c.

00867 {
00868     if (pagebar->pagecount - pagebar->currentPage > pagebar->maxItems)
00869         return TRUE;
00870     return FALSE;
00871 }

int removeBookmark ( GtkPagebar *  pagebar,
int  value
)

Definition at line 212 of file gtkPagebar.c.

00212                                                    {
00213     return removeFromList(&pagebar->bookmarks, &pagebar->bookmarkCount, value);
00214 }

Here is the call graph for this function:

static int removeFromList ( int **  list,
int *  count,
int  value
) [static]

Definition at line 186 of file gtkPagebar.c.

00186                                                              {
00187     int i;
00188
00189     ENTER(1);
00190
00191     i=0;
00192     while (i<*count && (*list)[i]!=value && (*list)[i]!=-1)
00193         i++;
00194     if (i<*count && (*list)[i]==value) {
00195         memmove(*list, (*list)+1, *count-i-1);
00196         (*list)[*count-1]=-1;
00197         *count--;
00198     }
00199
00200     LEAVE(1);
00201     return 0;
00202 }

int removeNote ( GtkPagebar *  pagebar,
int  value
)

Definition at line 216 of file gtkPagebar.c.

00216                                                {
00217     return removeFromList(&pagebar->notes, &pagebar->noteCount, value);
00218 }

Here is the call graph for this function:

Variable Documentation

erClientChannel_t apabiChannel [static]

Definition at line 117 of file gtkPagebar.c.

erClientChannel_t arincMenuChannel [static]

Definition at line 126 of file gtkPagebar.c.

erClientChannel_t arincViewerChannel [static]

Definition at line 125 of file gtkPagebar.c.

erClientChannel_t connectChannel [static]

Definition at line 123 of file gtkPagebar.c.

erClientChannel_t contentListerChannel [static]

Definition at line 120 of file gtkPagebar.c.

erClientChannel_t ebaChannel [static]

Definition at line 124 of file gtkPagebar.c.

int framebuffer_device [static]

Definition at line 112 of file gtkPagebar.c.

erClientChannel_t mobipocketChannel [static]

Definition at line 127 of file gtkPagebar.c.

gint pagebar_signals[LAST_SIGNAL] = { 0 } [static]

Definition at line 97 of file gtkPagebar.c.

erClientChannel_t pdfChannel [static]

Definition at line 118 of file gtkPagebar.c.

erClientChannel_t scribbleChannel [static]

Definition at line 121 of file gtkPagebar.c.

erClientChannel_t setupChannel [static]

Definition at line 122 of file gtkPagebar.c.

erClientChannel_t xhtmlChannel [static]

Definition at line 119 of file gtkPagebar.c.

Generated on Sun Dec 14 17:15:18 2008 by  doxygen 1.5.6
