scribble/src/ink_intersect.c File Reference

#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <gtk/gtk.h>
#include <limits.h>
#include "ink_intersect.h"
#include "ScribbleLog.h"

Go to the source code of this file.

Defines
#define	min(a, b)   (((a)<(b))?(a):(b))
#define	max(a, b)   (((a)>(b))?(a):(b))
#define	TOLERANCE_PIXELS   -3
#define	LONELY_STROKE_POINTS   4
#define	ERASER_SIZE   8
Functions
int	isPointOutOfRange (int x, int y, int x1, int y1, int x2, int y2)
int	isPointOutOfStroke (PtrStroke pStroke, GdkPoint *p)
gboolean	isLineCrossStrokeRange (PtrStroke pStroke, GdkPoint *p0, GdkPoint *p1, int *p_rec_width, int *p_rect_height)
int	lineIntersects (int x1, int y1, int x2, int y2, int x3, int y3, int x4, int y4)
int	isIntersects (PtrStroke pStroke, GdkPoint *srcPt1, GdkPoint *srcPt2)
int	hitTest (PtrStroke pStroke, GdkPoint *point)
PtrStrokeIntersections_t	findIntersections (PtrStroke pStroke, GdkPoint *srcPt1, GdkPoint *srcPt2)
void	delStroke (PtrInk pink, PtrStroke pPrev, PtrStroke *ppCur, PtrInk pDelInk)
void	delStrokesByLine (PtrInk pink, GdkPoint *p0, GdkPoint *p1, PtrInk pDelInk)
void	delInterSectLines (PtrInk pink, GdkPoint *p0, GdkPoint *p1)

---

Define Documentation

#define ERASER_SIZE   8

Definition at line 196 of file ink_intersect.c.

#define LONELY_STROKE_POINTS   4

Definition at line 52 of file ink_intersect.c.

#define max	(	a,
		b		)	(((a)>(b))?(a):(b))

Definition at line 46 of file ink_intersect.c.

#define min	(	a,
		b		)	(((a)<(b))?(a):(b))

Copyright (C) 2005-2008 iRex Technologies B.V. All rights reserved.

Definition at line 45 of file ink_intersect.c.

#define TOLERANCE_PIXELS   -3

Definition at line 51 of file ink_intersect.c.

---

Function Documentation

void delInterSectLines	(	PtrInk	pink,
		GdkPoint *	p0,
		GdkPoint *	p1
	)

Definition at line 385 of file ink_intersect.c.

{
    PtrStrokeIntersections_t intersections;
    int i,j;
    StrokeIntersection_t  *pCurIntersection=NULL;

    PtrStroke pCurStroke = pink->firstStroke;
    int nStrokes=pink->nStrokes;//it may change when running
    for (i=0; i<nStrokes ;i++,pCurStroke = pCurStroke->nextStroke)
    {
        if ( NULL==pCurStroke ) break;

        intersections = findIntersections(pCurStroke,p0,p1);

        if ( NULL==intersections ) continue;

        pCurIntersection = intersections->interSection;

        for (j=0; j<intersections->nSections;i++)
        {
            if ( NULL==pCurIntersection ) break;
        //Erase the intersection,and if possible,split it
/*
            ink_draw_line(pCurIntersection->beginPt->x,
            pCurIntersection->beginPt->y,
            pCurIntersection->endPt->x,
            pCurIntersection->endPt->y);
*/

            pCurIntersection = pCurIntersection->pNextSection;
        }
    }//end for stroke iteration
}

Here is the call graph for this function:

void delStroke	(	PtrInk	pink,
		PtrStroke	pPrev,
		PtrStroke *	ppCur,
		PtrInk	pDelInk
	)

Definition at line 284 of file ink_intersect.c.

{
    if( NULL==pink || NULL==*ppCur) return ;
    //validate accurracy
    if( pPrev!=NULL && pPrev->nextStroke!=*ppCur) return ;

    PtrStroke pNext=(*ppCur)->nextStroke;
    //remove the Strok to deleted ink
    if( NULL==pDelInk->firstStroke)
    {
        pDelInk->firstStroke=pDelInk->lastStroke=*ppCur;
    }
    else
    {
        pDelInk->lastStroke->nextStroke=*ppCur;
        pDelInk->lastStroke=*ppCur;
    }
    pDelInk->nStrokes++;
    (*ppCur)->nextStroke=NULL;

    pink->nStrokes--;
    *ppCur=pNext;
    if( NULL==pPrev )
    {//head pointer
        pink->firstStroke=pNext;
    }
    else
    {
        pPrev->nextStroke=pNext;
    }
    if( NULL==pNext)
    {//tail pointer
        pink->lastStroke=pPrev;
    }
    SB_INKPRINTF("removed!\n");
}

void delStrokesByLine	(	PtrInk	pink,
		GdkPoint *	p0,
		GdkPoint *	p1,
		PtrInk	pDelInk
	)

Definition at line 323 of file ink_intersect.c.

{
    int i;

    if( NULL==pink || NULL==pDelInk) return;

    PtrStroke pCurStroke = pink->firstStroke;
    PtrStroke pPrevStroke = NULL;

    gboolean bRealIntersect,bCrossStrokeRange;
    int rect_w,rect_h;

    int nStrokes=pink->nStrokes;//it may change when running
    for (i=0; i< nStrokes ;i++)
    {
        if ( NULL==pCurStroke ) break;
        //a little inaccuracy,but accelerate more,
        //if( isPointOutOfStroke(pCurStroke,p0) &&  /
        //    isPointOutOfStroke(pCurStroke,p1) )
        bCrossStrokeRange=isLineCrossStrokeRange(pCurStroke,p0,p1,&rect_w,&rect_h);
        bRealIntersect=FALSE;
        if( pCurStroke->nPoints <= LONELY_STROKE_POINTS )
        {
            if( rect_w>=TOLERANCE_PIXELS && rect_h>=TOLERANCE_PIXELS )
            {
                SB_INKPRINTF("\n__special:p0=[%d,%d],p1=[%d,%d],[rect_w=%d,rect_h=%d]\n",
                              p0->x,p0->y,p1->x,p1->y,rect_w,rect_h);

                //for LONELEY point ,do hittest
                if( hitTest(pCurStroke, p0) || hitTest(pCurStroke, p1))
                {
                    bRealIntersect=TRUE;
                }
                SB_INKPRINTF("hitTest: bRealIntersect=%d\n",bRealIntersect);
            }
        }
        if( !bRealIntersect && bCrossStrokeRange)
        {
            if( isIntersects(pCurStroke,p0,p1) )
            {
                bRealIntersect=TRUE;
            }
            SB_INKPRINTF("isIntersects: bRealIntersect=%d\n",bRealIntersect);
        }
        if(bRealIntersect)
        {
            SB_INKPRINTF("\n(%d,%d),(%d,%d)intersect,range[(%d,%d),(%d,%d)]\n",
                         p0->x,p0->y,p1->x,p1->y,
                         pCurStroke->min_x,pCurStroke->min_y,
                         pCurStroke->max_x,pCurStroke->max_y );
            //remove current stroke,current move to next
            delStroke(pink,pPrevStroke,&pCurStroke,pDelInk);
            continue;//need not change prev,and current is changed.
        }
        //not intersect and not in range.
        pPrevStroke=pCurStroke;
        pCurStroke = pCurStroke->nextStroke;
    }//end for stroke iteration
}

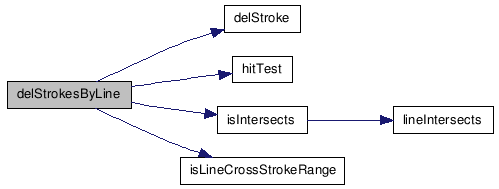

Here is the call graph for this function:

PtrStrokeIntersections_t findIntersections	(	PtrStroke	pStroke,
		GdkPoint *	srcPt1,
		GdkPoint *	srcPt2
	)

Definition at line 220 of file ink_intersect.c.

{
    InkPoint *targetPt1, *targetPt2;
    int    i;
    PtrStrokeIntersections_t intersections = NULL;
    StrokeIntersection_t  *pSection;
    StrokeIntersection_t  *pCurSection = NULL;;

    if ( (srcPt1->x == srcPt2->x) && (srcPt1->y == srcPt2->y) )
    {
        return NULL;
    }

    //allocate memory
    intersections = (PtrStrokeIntersections_t)
            malloc(sizeof(StrokeIntersections_t));
    //assert(intersections != NULL);
    memset(intersections, 0, sizeof(StrokeIntersections_t));

    targetPt1 = pStroke->firstPoint;
    for (i=1; i < pStroke->nPoints; i++)
    {
        targetPt2 = targetPt1->nextPoint;
        if (  (targetPt1->x != targetPt2->x)
               ||(targetPt1->y != targetPt2->y) )
        {
            if (lineIntersects(srcPt1->x - pStroke->iPenSize/2,
                srcPt1->y - pStroke->iPenSize/2,
                srcPt2->x + pStroke->iPenSize/2,
                srcPt2->y + pStroke->iPenSize/2,
                targetPt1->x,
                targetPt1->y,
                targetPt2->x,
                targetPt2->y) > 0)
            {
                pSection = (StrokeIntersection_t  *)
                        malloc(sizeof(StrokeIntersection_t));
                //assert(pSection != NULL);
                pSection->beginPt = targetPt1;
                pSection->endPt = targetPt2;
                pSection->pNextSection = NULL;
                //add the section into the section list
                if (intersections->interSection == NULL)
                {
                    pCurSection = intersections->interSection = pSection;
                }
                else if (pCurSection != NULL)
                {
                    pCurSection->pNextSection = pSection;
                }
                else
                {
                    SB_INKERRPRINTF("ERROR in Scribble\n");
                }
                intersections->nSections++;
            }
        }
        //update point ptr
        targetPt1 = targetPt2;
    }
    return intersections;
}

Here is the call graph for this function:

int hitTest	(	PtrStroke	pStroke,
		GdkPoint *	point
	)

Definition at line 197 of file ink_intersect.c.

{
    PtrInkPoint pt;
    int i;

    pt = pStroke->firstPoint;
    //int iEraserSize=pStroke->iPenSize;
    int iEraserSize=ERASER_SIZE;
    for (i=0; i < pStroke->nPoints; i++)
    {
        if ( ( pt->x >= (point->x - iEraserSize/2))
               && ( pt->x <= (point->x + iEraserSize/2))
               && ( pt->y >= (point->y - iEraserSize/2))
               && ( pt->y <= (point->y + iEraserSize/2)) )
        {
            return 1;
        }
        pt = pt->nextPoint;
    }
    return 0;
}

int isIntersects	(	PtrStroke	pStroke,
		GdkPoint *	srcPt1,
		GdkPoint *	srcPt2
	)

Definition at line 158 of file ink_intersect.c.

{
    InkPoint *targetPt1, *targetPt2;
    int i;

    if ((srcPt1->x == srcPt2->x) && (srcPt1->y == srcPt2->y))
    {
        return 0;//??
    }

    targetPt1 = pStroke->firstPoint;

    for (i=1; i < pStroke->nPoints; i++)
    {
        targetPt2 = targetPt1->nextPoint;
        if (  (targetPt1->x != targetPt2->x)
            ||(targetPt1->y != targetPt2->y) )
        {
            if (lineIntersects(srcPt1->x - pStroke->iPenSize/2,
                srcPt1->y - pStroke->iPenSize/2,
                srcPt2->x + pStroke->iPenSize/2,
                srcPt2->y + pStroke->iPenSize/2,
                targetPt1->x,
                targetPt1->y,
                targetPt2->x,
                targetPt2->y) > 0)
            {
                return 1;
                break;
            }
        }
        //update point ptr
        targetPt1 = targetPt2;
    }
    return 0;
}

Here is the call graph for this function:

gboolean isLineCrossStrokeRange	(	PtrStroke	pStroke,
		GdkPoint *	p0,
		GdkPoint *	p1,
		int *	p_rec_width,
		int *	p_rect_height
	)

Definition at line 70 of file ink_intersect.c.

{
    if( NULL==p_rec_width || NULL==p_rect_height) return FALSE;

    int dest_x,dest_y;
    dest_x = max (min(p0->x,p1->x), pStroke->min_x);
    dest_y = max (min(p0->y,p1->y), pStroke->min_y);
    *p_rec_width = min (max(p0->x,p1->x), pStroke->max_x)- dest_x;
    *p_rect_height = min (max(p0->y,p1->y), pStroke->max_y) - dest_y;

    return ( *p_rec_width>=0 && *p_rect_height>=0);
}

int isPointOutOfRange	(	int	x,
		int	y,
		int	x1,
		int	y1,
		int	x2,
		int	y2
	)

Definition at line 56 of file ink_intersect.c.

{
    return ( x < x1 || x>x2 || y<y1 || y>y2);
}

int isPointOutOfStroke	(	PtrStroke	pStroke,
		GdkPoint *	p
	)

Definition at line 61 of file ink_intersect.c.

{
    return isPointOutOfRange(p->x,p->y,
                             pStroke->min_x,pStroke->min_y,
                             pStroke->max_x,pStroke->max_y );
}

Here is the call graph for this function:

int lineIntersects	(	int	x1,
		int	y1,
		int	x2,
		int	y2,
		int	x3,
		int	y3,
		int	x4,
		int	y4
	)

Definition at line 86 of file ink_intersect.c.

{
    long ry1, ry2, ry3, ry4;
    long rx1, rx2, rx4;

    if ( (min(x1,x2) > max(x3,x4)) || (min(x3,x4) > max(x1,x2)) )
    {
        return 0;
    }

    if ( (min(y1,y2) > max(y3,y4)) || (min(y3,y4) > max(y1,y2)) )
    {
        return 0;
    }

    x2 -= x1;  y2 -= y1;
    x3 -= x1;  y3 -= y1;
    x4 -= x1;  y4 -= y1;

    ry3 = (long) y3 * x2 - (long) x3 * y2;
    ry4 = (long) y4 * x2 - (long) x4 * y2;

    if((ry3 > 0 && ry4 > 0) || (ry3 < 0 && ry4 < 0))
        return (0);

    x1 = -x3;  y1 = -y3;
    x2 -= x3;  y2 -= y3;
    x4 -= x3;  y4 -= y3;

    ry1 = (long) y1 * x4 - (long) x1 * y4;
    ry2 = (long) y2 * x4 - (long) x2 * y4;

    if((ry1 > 0 && ry2 > 0) || (ry1 < 0 && ry2 < 0))
        return 0;

    if(ry1 || ry2 || ry3 || ry4)
        return 1;

    /* special cases: */
    if(x4 == 0 && y4 == 0)
    {
        if((x1 > 0 && x2 > 0) || (x1 < 0 && x2 < 0)) return 0;
        if(x1 == 0 && x2 == 0)
        {
            if ((y1 > 0 && y2) > 0 || (y1 < 0 && y2 < 0)) return 0;
        }
        return 1;
    }

    rx1 = (long) x1 * x4 + (long) y1 * y4;
    rx2 = (long) x2 * x4 + (long) y2 * y4;
    rx4 = (long) x4 * x4 + (long) y4 * y4;

    if(rx1 >= 0 && rx1 <= rx4) return 1;

    if(rx2 >= 0 && rx2 <= rx4) return 1;

    if(rx1 <= rx2)
    {
        if(0 >= rx1 && 0 <= rx2) return 1;
        if(rx4 >= rx1 && rx4 <= rx2) return 1;
    }
    else
    {
        if(0 >= rx2 && 0 <= rx1) return 1;
        if(rx4 >= rx2 && rx4 <= rx1) return 1;
    }
    return 0;
}
