scribble/src/ink_rw_file.c File Reference

#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <gtk/gtk.h>
#include "ink_rw.h"
#include "ScribbleLog.h"
#include "ScribbleUtils.h"

Go to the source code of this file.

Defines
#define	MAX_INT_CHAR_LEN   16
Enumerations
enum	WRITEINT_MODE { WRITEINT_NULL = 0, WRITEINT_2SPACES, WRITEINT_LINEEND }
Functions
static unsigned char	read_ink (FILE *file, PtrInk ink)
static unsigned char	write_ink (PtrInk ink, FILE *file)
static long	read_stroke (FILE *file, PtrStroke stroke)
static unsigned char	write_stroke (FILE *file, PtrStroke stroke)
static unsigned char	read_integer (int *integer, FILE *file)
static unsigned char	write_integer (int integer, FILE *file, WRITEINT_MODE iMode)
static unsigned char	write_rgb (GdkColor *pGdkColor, FILE *file)
static unsigned char	read_rgb (GdkColor *pGdkColor, FILE *file)
PtrInk	file_read_ink (const char *inkfile)
unsigned char	file_write_ink (PtrInk ink, const char *inkfile)
unsigned char	write_uchars (FILE *file, const unsigned char *ustr, unsigned int iLen)
unsigned char	write_pure_integer (int integer, FILE *file)
unsigned char	write_line (FILE *file)
unsigned char	write_2spaces (FILE *file)

---

Define Documentation

#define MAX_INT_CHAR_LEN   16

Copyright (C) 2005-2008 iRex Technologies B.V. All rights reserved.

Definition at line 45 of file ink_rw_file.c.

---

Enumeration Type Documentation

enum WRITEINT_MODE

Enumerator:

WRITEINT_NULL
WRITEINT_2SPACES
WRITEINT_LINEEND

Definition at line 47 of file ink_rw_file.c.

            {
        WRITEINT_NULL=0,//only write int
        WRITEINT_2SPACES,//end with 2 spaces char
        WRITEINT_LINEEND,//end with line end
} WRITEINT_MODE;

---

Function Documentation

PtrInk file_read_ink

(

const char *

inkfile

)

Copyright (C) 2005-2008 iRex Technologies B.V. All rights reserved.

Definition at line 72 of file ink_rw_file.c.

{
    FILE *file = NULL;
    PtrInk ink = NULL;
    unsigned char ret;
    if (inkfile == NULL || strlen (inkfile) == 0)
    {
        SB_INKERRPRINTF("failed:incorrect arguments\n");
        return NULL;
    }
    file = fopen (inkfile, "rb");
    if (file == NULL)
    {
        SB_INKERRPRINTF("fopen failed \n");
        return NULL;
    }

    ink = construct_ink ();
    if (ink == NULL)
    {
        fclose (file);
        return NULL;
    }
    ret = read_ink (file, ink);
    if (ret == 0)
    {
        destroy_ink (ink);
        fclose (file);
        return NULL;
    }

    SB_INKPRINTF("succeeded,return ink=%p\n", ink);
    fclose (file);
    return ink;
}

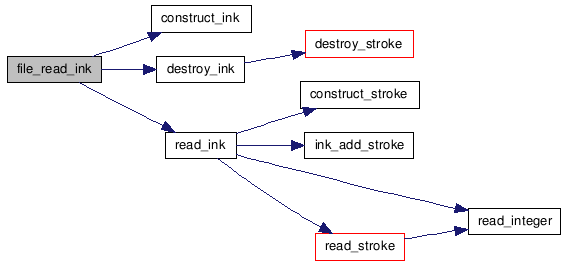

Here is the call graph for this function:

unsigned char file_write_ink	(	PtrInk	ink,
		const char *	inkfile
	)

Definition at line 237 of file ink_rw_file.c.

{
    FILE *file = NULL;
    unsigned char ret;

    if (ink == NULL || ink->nStrokes == 0 || inkfile == NULL
        || strlen (inkfile) == 0)
    {
        return 0;
    }
    file = fopen (inkfile, "wb+");
    if (file == NULL)
    {
        SB_INKERRPRINTF("fopen failed \n");
        return 0;
    }
    ret = write_ink (ink, file);
    fclose (file);
    return ret;
}

Here is the call graph for this function:

unsigned char read_ink	(	FILE *	file,
		PtrInk	ink
	)			[static]

Definition at line 111 of file ink_rw_file.c.

{
    long lPos, fileLen;
    PtrStroke stroke = NULL;
    unsigned char integer_str[MAX_INT_CHAR_LEN];

    if (file == NULL || ink == NULL)
    {
        SB_INKERRPRINTF("failed:incorrect arguments\n");
        return 0;
    }

  //to get the file length
    if ( 0!= fseek (file, 0, SEEK_END))
    {
        SB_INKERRPRINTF("fseek failed \n");
        return 0;
    }
    fileLen = ftell (file);
    if ( 0!=fseek (file, 0, SEEK_SET))
    {
        SB_INKPRINTF("fseek failed \n");
        return 0;
    }

    if ( !read_integer (&(ink->nStrokes), file) )
    {
        SB_INKERRPRINTF("failed getting ink->nStrokes\n");
        return 0;
    }
    if (ink->nStrokes == 0)
    {
        SB_INKERRPRINTF("return:ink->nStrokes=0 \n");
        return 0;
    }
    SB_INKPRINTF("nStrokes=%d\n",ink->nStrokes);
    sprintf (integer_str, "%d", ink->nStrokes);
    lPos = sizeof (char) * (strlen (integer_str) + 2);
    while (lPos != -1 && lPos != fileLen)
    {
      //SB_INKPRINTF("lPos=%d\n", lPos);
        stroke = construct_stroke ();
        if (stroke == NULL)
        {
            SB_INKERRPRINTF("return: construct_stroke failed \n");
            return 0;
        }
        lPos = read_stroke (file, stroke);
        ink_add_stroke (ink, stroke);
    }
    return 1;
}

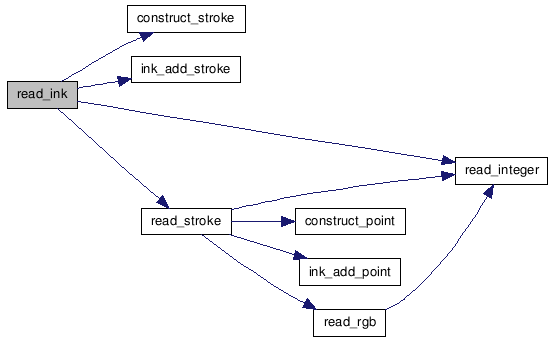

Here is the call graph for this function:

unsigned char read_integer	(	int *	integer,
		FILE *	file
	)			[static]

Definition at line 348 of file ink_rw_file.c.

{
    unsigned long lRead = 0;
    unsigned char integer_str[MAX_INT_CHAR_LEN];// 0xFFFFFFFF=4294967295
    int i = 0;
    int bPrev0Dor20=0;//previous char is 0x0D or 0x20?,special

    if (integer == NULL || file == NULL)
        return 0;
  //two legal mode:[0x20 0x20],[0x0D 0x0A]
    while (1)
    {
        if (i >= MAX_INT_CHAR_LEN) return 0;

        lRead = fread (&(integer_str[i]), sizeof (char), 1, file);
        if(!lRead) return 0;

        if (bPrev0Dor20)
        {
            if(  (integer_str[i-1] == 0x20 && integer_str[i] == 0x20)
                  ||(integer_str[i-1] == 0x0D && integer_str[i] == 0x0A) )
            {
                integer_str[i-1] = '\0';
                *integer = atoi (integer_str);
                return 1;
            }
            return 0;
        }
        if(integer_str[i] == 0x0D || integer_str[i] == 0x20)
        {
            bPrev0Dor20=1;
        }
        i++;
    }
    return 0;
}

unsigned char read_rgb	(	GdkColor *	pGdkColor,
		FILE *	file
	)			[static]

Definition at line 462 of file ink_rw_file.c.

{
    int iColor;
    if ( !read_integer(&iColor, file) )
    {
        SB_INKERRPRINTF("failed\n");
        return 0;
    }
    pGdkColor->red=(guint16)iColor;
    if ( !read_integer(&iColor, file) )
    {
        SB_INKERRPRINTF("failed\n");
        return 0;
    }
    pGdkColor->green=(guint16)iColor;
    if ( !read_integer(&iColor, file) )
    {
        SB_INKERRPRINTF("failed\n");
        return 0;
    }
    pGdkColor->blue=(guint16)iColor;
    SB_INKPRINTF("rgb(%d,%d,%d) \n",
                    pGdkColor->red, pGdkColor->green,pGdkColor->blue);
    return 1;
}

Here is the call graph for this function:

long read_stroke	(	FILE *	file,
		PtrStroke	stroke
	)			[static]

Definition at line 169 of file ink_rw_file.c.

{
    int i;
    PtrInkPoint point;

    if (file == NULL || stroke == NULL)
    {
        SB_INKERRPRINTF("failed:incorrect arguments\n");
        return -1;
    }

    if ( !read_integer(&(stroke->iPenSize), file) )
    {
        SB_INKPRINTF("failed getting stroke->iPenSize\n");
        return -1;
    }
  //read rgb
    if ( !read_rgb(&stroke->gdkColor,file) )
    {
        SB_INKERRPRINTF("failed write rgb\n");
        return 0;
    }

    if ( !read_integer(&(stroke->nPoints), file) )
    {
        SB_INKERRPRINTF("failed getting stroke->nPoints\n");
        return -1;
    }

    SB_INKPRINTF("npoints=%d,ipensize=%d\n",
            stroke->nPoints,stroke->iPenSize);

    if ( stroke->nPoints == 0)
    {
        SB_INKPRINTF("returned because of stroke->nPoints=0\n");
        return ftell (file);//lPos
    }

    //stroke->nPoints will be changed in iteration,so we should keep it.
    int nTotalPoints=stroke->nPoints;
    for (i = 0; i < nTotalPoints; i++)
    {
        point = construct_point ();
        if ( NULL==point )
        {
            SB_INKERRPRINTF("construct point error\n");
            return -1;
        }
        if ( !read_integer (&(point->x), file) )
        {
            SB_INKERRPRINTF("failed getting (point%d->x)\n",i);
            return -1;
        }
        if ( !read_integer (&(point->y), file) )
        {
            SB_INKERRPRINTF("failed getting (point%d->y)\n",i);
            return -1;
        }
            //SB_INKPRINTF("point(%d,%d) \n", point->x, point->y);
        ink_add_point(stroke, point);
    }
    return ftell (file);//current file pointer position
}

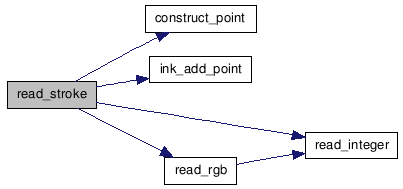

Here is the call graph for this function:

unsigned char write_2spaces

(

FILE *

file

)

Definition at line 413 of file ink_rw_file.c.

{
    unsigned char sep[2];
    sep[0] = 0x20;
    sep[1] = 0x20;
    return write_uchars(file, sep, sizeof(sep)/sizeof(sep[0]) );
}

Here is the call graph for this function:

unsigned char write_ink	(	PtrInk	ink,
		FILE *	file
	)			[static]

Definition at line 259 of file ink_rw_file.c.

{
    PtrStroke stroke;

    if (ink == NULL || file == NULL )
    {
        SB_INKPRINTF("failed:incorrect arguments\n");
        return 0;
    }
    if (ink->nStrokes == 0)
    {
        SB_INKPRINTF("return:ink->nStrokes=0 \n");
        return 0;
    }
    if ( 0!= fseek (file, 0, SEEK_SET) )
    {
        SB_INKERRPRINTF("fseek failed \n");
        return 0;
    }
    if ( !write_integer (ink->nStrokes, file,WRITEINT_LINEEND) )
    {
        SB_INKERRPRINTF("failed writing ink->nStrokes=%d \n",
                        ink->nStrokes);
        return 0;
    }

    SB_INKPRINTF("ink=%p, ink->nStrokes=%d \n", ink, ink->nStrokes);
    stroke = ink->firstStroke;
    while (stroke)
    {
        if (0 ==write_stroke (file, stroke) )
        {
            SB_INKERRPRINTF("write_stroke failed \n");
            return 0;
        }
        stroke = stroke->nextStroke;
    }
    SB_INKPRINTF("succeeded \n");
    return 1;
}

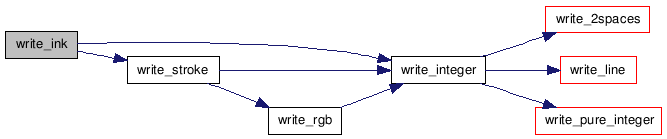

Here is the call graph for this function:

unsigned char write_integer	(	int	integer,
		FILE *	file,
		WRITEINT_MODE	iMode
	)			[static]

Definition at line 423 of file ink_rw_file.c.

{
    unsigned char bRet= write_pure_integer(integer,file);

    if( WRITEINT_NULL==iMode ) return bRet;

    if( WRITEINT_2SPACES==iMode )
    {
        return write_2spaces(file);
    }
  //WRITEINT_LINEEND
    return write_line(file);
}

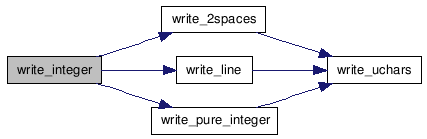

Here is the call graph for this function:

unsigned char write_line

(

FILE *

file

)

Definition at line 404 of file ink_rw_file.c.

{
    unsigned char sep[2];
    sep[0] = 0x0D;
    sep[1] = 0x0A;
    return write_uchars(file, sep, sizeof(sep)/sizeof(sep[0]) );
}

Here is the call graph for this function:

unsigned char write_pure_integer	(	int	integer,
		FILE *	file
	)

Definition at line 396 of file ink_rw_file.c.

{
    unsigned char integer_str[MAX_INT_CHAR_LEN];// 0xFFFFFFFF=4294967295
    sprintf (integer_str, "%d", integer);
    return write_uchars(file, integer_str, strlen(integer_str) );
}

Here is the call graph for this function:

unsigned char write_rgb	(	GdkColor *	pGdkColor,
		FILE *	file
	)			[static]

Definition at line 438 of file ink_rw_file.c.

{
    if ( !write_integer(pGdkColor->red, file, WRITEINT_2SPACES) )
    {
        SB_INKERRPRINTF("failed, pGdkColor->red= %d \n", pGdkColor->red);
        return 0;
    }
    if ( !write_integer(pGdkColor->green, file, WRITEINT_2SPACES) )
    {
        SB_INKERRPRINTF("failed, pGdkColor->green= %d \n",
                        pGdkColor->green);
        return 0;
    }
    if ( !write_integer(pGdkColor->blue, file, WRITEINT_LINEEND) )
    {
        SB_INKERRPRINTF("failed, pGdkColor->blue= %d \n", pGdkColor->blue);
        return 0;
    }
    SB_INKPRINTF("rgb(%d,%d,%d) \n", pGdkColor->red,
                    pGdkColor->green,pGdkColor->blue);
    return 1;
}

Here is the call graph for this function:

unsigned char write_stroke	(	FILE *	file,
		PtrStroke	stroke
	)			[static]

Definition at line 301 of file ink_rw_file.c.

{
    if (file == NULL || stroke == NULL || stroke->nPoints == 0)
    {
        return 0;
    }
  //write pen size
    if ( !write_integer(stroke->iPenSize,file,WRITEINT_LINEEND) )
    {
        SB_INKERRPRINTF("write failed, iPenSize= %d \n",stroke->iPenSize);
        return 0;
    }
  //write rgb
    if ( !write_rgb(&stroke->gdkColor,file) )
    {
        SB_INKERRPRINTF("failed write rgb\n");
        return 0;
    }

    if ( !write_integer(stroke->nPoints,file,WRITEINT_LINEEND) )
    {
        SB_INKERRPRINTF("write failed, nPoints= %d \n",stroke->nPoints);
        return 0;
    }

    SB_INKPRINTF("stroke->nPoints=%d \n", stroke->nPoints);
    PtrInkPoint point = stroke->firstPoint;
    while (point)
    {
        if ( !write_integer(point->x, file, WRITEINT_2SPACES) )
        {
            SB_INKERRPRINTF("fwrite failed, point->x= %d \n", point->x);
            return 0;
        }
        if ( !write_integer(point->y, file, WRITEINT_LINEEND) )
        {
            SB_INKERRPRINTF("fwrite failed, point->y= %d \n", point->y);
            return 0;
        }
        SB_INKPRINTF("point(%d,%d) \n", point->x, point->y);
        point = point->nextPoint;
    }
    return 1;
}

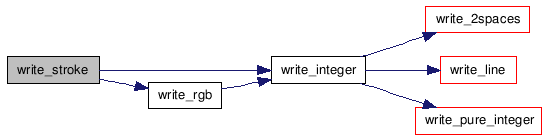

Here is the call graph for this function:

unsigned char write_uchars	(	FILE *	file,
		const unsigned char *	ustr,
		unsigned int	iLen
	)

Definition at line 386 of file ink_rw_file.c.

{
    unsigned long lWrite ;
    if (file == NULL) return 0;

    lWrite = fwrite (ustr, sizeof (unsigned char), iLen, file);

    return (lWrite == iLen ?1:0);
}
