settings/src/background.h File Reference

setup application - E-reader settings application background creation/update More...

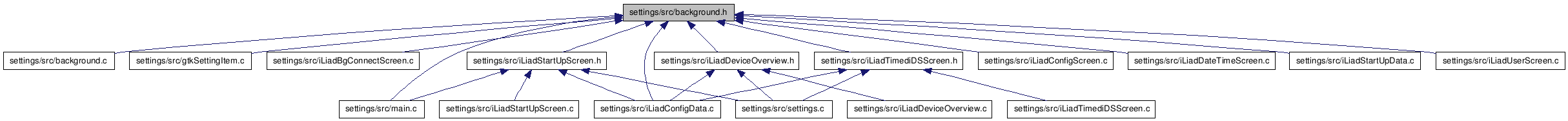

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	VERSION_FILE   "/etc/er_version_commercial"
#define	SETTINGS_BOX_BORDER   51
#define	TITLE_MIN_HEIGHT   54
#define	TITLE_MIN_WIDTH   666
#define	TITLE_BORDER_LEFT   10
#define	TITLE_BORDER_RIGHT   10
#define	SETTINGS_ITEM_PADDING   10
Functions
GtkWidget *	bg_create (GtkWidget *window)
void	bg_set_text (void)

---

Detailed Description

setup application - E-reader settings application background creation/update

Copyright (C) 2005-2008 iRex Technologies B.V. All rights reserved.

<File description>="">

Definition in file background.h.

---

Define Documentation

#define SETTINGS_BOX_BORDER   51

Definition at line 36 of file background.h.

#define SETTINGS_ITEM_PADDING   10

Definition at line 43 of file background.h.

#define TITLE_BORDER_LEFT   10

Definition at line 40 of file background.h.

#define TITLE_BORDER_RIGHT   10

Definition at line 41 of file background.h.

#define TITLE_MIN_HEIGHT   54

Definition at line 38 of file background.h.

#define TITLE_MIN_WIDTH   666

Definition at line 39 of file background.h.

#define VERSION_FILE   "/etc/er_version_commercial"

Definition at line 34 of file background.h.

---

Function Documentation

GtkWidget* bg_create

(

GtkWidget *

window

)

Definition at line 56 of file background.c.

{
    GtkWidget *background;
    GtkWidget *topLevelVBox;
    GtkWidget *title_background;
    GtkWidget *alignment;

    // background: allows to set a background color or pixmap
    background = gtk_event_box_new();
    gtk_widget_set_name(GTK_WIDGET(background), "screen_background");
    gtk_container_add(GTK_CONTAINER(parentWindow), background);

    // alignement: defines screen area available for objects,
    //             also allows user to resize window, just in case
    alignment = gtk_alignment_new(0.0, 0, 1, 1);
    gtk_alignment_set_padding(GTK_ALIGNMENT(alignment), SETTINGS_BOX_BORDER, 1, SETTINGS_BOX_BORDER, SETTINGS_BOX_BORDER);
    gtk_container_add(GTK_CONTAINER(background), alignment);

    // topLevelVBox: orders objects top to bottom, not homogeneous, zero spacing
    topLevelVBox = gtk_vbox_new(FALSE, 0);
    gtk_container_add(GTK_CONTAINER(alignment), topLevelVBox);

    // title_background
    title_background = gtk_event_box_new();
    gtk_widget_set_size_request(GTK_WIDGET(title_background), TITLE_MIN_WIDTH, TITLE_MIN_HEIGHT);
    gtk_widget_set_name(GTK_WIDGET(title_background), "title_background");
    gtk_box_pack_start(GTK_BOX(topLevelVBox), title_background, FALSE, FALSE, 0);

    // alignment
    alignment = gtk_alignment_new(0.0, 0.5, 1, 1);
    gtk_alignment_set_padding(GTK_ALIGNMENT(alignment), 0, 0, TITLE_BORDER_LEFT, TITLE_BORDER_RIGHT);
    gtk_container_add(GTK_CONTAINER(title_background), alignment);

    // g_titleItem: screen title text
    g_titleItem = gtk_label_new("");
    gtk_misc_set_alignment(GTK_MISC(g_titleItem), 0, 0.5);
    gtk_widget_set_name(GTK_WIDGET(g_titleItem), "title_item");
    gtk_container_add(GTK_CONTAINER(alignment), g_titleItem);

    // g_settingsArea: area to place remaining objects
    g_settingsArea = gtk_event_box_new();
    gtk_widget_set_name(GTK_WIDGET(g_settingsArea), "settings_area");
    gtk_box_pack_end(GTK_BOX(topLevelVBox), g_settingsArea, TRUE, TRUE, SETTINGS_ITEM_PADDING);

    gtk_widget_show_all(background);

    return g_settingsArea;
}

void bg_set_text

(

void

)

Definition at line 105 of file background.c.

{
    gtk_label_set_text(GTK_LABEL(g_titleItem), _("iLiad Settings"));
}
