connectionMgr/src/connectPing.c File Reference

connectionMgr -According to the results of scanning networks, use the profile one by one to ping until it succeeds. More...

#include <string.h>
#include <gtk/gtk.h>
#include <glib.h>
#include <liberdm/connectionMgrConstants.h>
#include "connectionMgrLog.h"
#include "connectScreenData.h"
#include "connectScreenProfiles.h"
#include "pingThread.h"
#include "connectPing.h"
#include "connectionMgr.h"

Detailed Description

connectionMgr -According to the results of scanning networks, use the profile one by one to ping until it succeeds.

Definition in file connectPing.c.

Function Documentation

void connect_ping	(	pingContext_t *	ctxt,
		gboolean	delay
	)

Definition at line 429 of file connectPing.c.

00430 {
00431     CN_LOGPRINTF ("entry delay[%d]", delay);
00432
00433     g_return_if_fail(ctxt != NULL);
00434
00435     if (ctxt->pingServer)
00436     {
00437         CN_WARNPRINTF("Please wait while pinging...");
00438         return;
00439     }
00440
00441     if (delay)
00442     {
00443         if (ctxt->pingTimeoutId > 0)
00444         {
00445             CN_LOGPRINTF("remove the old timeout function for pinging");
00446             g_source_remove(ctxt->pingTimeoutId);
00447             ctxt->pingTimeoutId = 0;
00448         }
00449
00450         // begin to ping after 'delay' timeout
00451         ctxt->pingTimeoutId = g_timeout_add(delay,
00452                                             connect_ping_start,
00453                                             (gpointer)ctxt);
00454     }
00455     else
00456     {
00457         connect_ping_start(ctxt);
00458     }
00459 }

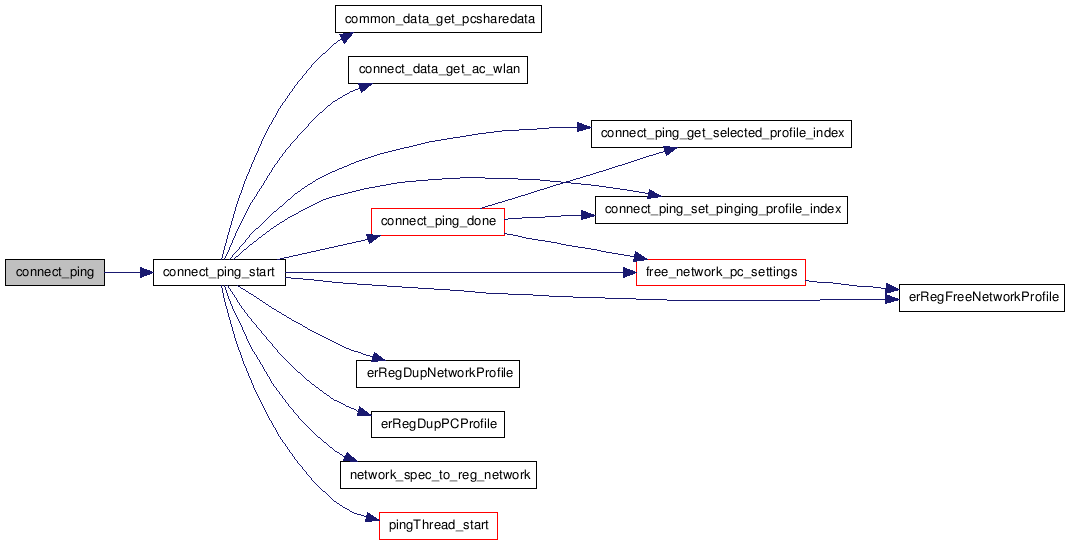

Here is the call graph for this function:

void connect_ping_abort ( pingContext_t * ctxt )

Definition at line 627 of file connectPing.c.

00628 {
00629     CN_LOGPRINTF ("entry");
00630
00631     g_return_if_fail(ctxt != NULL);
00632
00633     if (ctxt->pingServer)
00634     {
00635         CN_WARNPRINTF("Abort pinging...");
00636
00637         gint profileIndex = connect_ping_get_pinging_profile_index(ctxt);
00638
00639         if (ctxt->mode != backgroundPing_e && ctxt->ui_update_status)
00640         {
00641             // update the ui
00642             ctxt->ui_update_status(profileIndex, pingAborting_e);
00643         }
00644
00645         // stop the pingThread
00646         pingThread_stop();
00647
00648         // wait for pingThread done
00649         ctxt->pingAborting = TRUE;
00650         g_timeout_add(200, delay_connect_ping_abort, (gpointer)ctxt);
00651     }
00652 }

Here is the call graph for this function:

void connect_ping_ctxt_destory ( pingContext_t * ctxt )

Definition at line 167 of file connectPing.c.

00168 {
00169     ping_thread_parms *pingParms;
00170
00171    if (ctxt)
00172    {
00173        if (ctxt->pingParms)
00174        {
00175            pingParms = ctxt->pingParms;
00176            free_network_pc_settings(pingParms);
00177            /*
00178            if (pingParms->pingStatus)
00179            {
00180                gtk_widget_destroy(pingParms->pingStatus);
00181            }
00182            */
00183
00184            g_free(pingParms);
00185        }
00186        g_free(ctxt);
00187    }
00188 }

Here is the call graph for this function:

pingContext_t* connect_ping_ctxt_new ( void )

Definition at line 51 of file connectPing.c.

00052 {
00053     pingContext_t *ctxt;
00054     GtkWidget *pingStatus;
00055
00056     CN_LOGPRINTF("entry");
00057
00058     ctxt = g_new0(pingContext_t, 1);
00059     g_assert(ctxt != NULL);
00060
00061     // set the default values
00062     connect_ping_ctxt_set_mode(ctxt, undefPingMode_e);
00063     connect_ping_ctxt_set_connect_type(ctxt, cmgrConnectUnknown_e);
00064     connect_ping_ctxt_set_done_callbacks(ctxt, NULL, NULL);
00065
00066     ctxt->selectedProfileIndex = -1;
00067     ctxt->pingingProfileIndexStart = -1;
00068     ctxt->pingingProfileIndex = -1;
00069
00070     // initilize the pingParms
00071     ctxt->pingParms = g_new0(ping_thread_parms, 1);
00072     g_assert(ctxt->pingParms != NULL);
00073
00074     // ctxt->pingParms->pingStatus
00075     pingStatus = gtk_label_new ("ping-idle");
00076     g_signal_connect(pingStatus, "notify",
00077                      G_CALLBACK (on_ping_status_changed), ctxt);
00078     ctxt->pingParms->pingStatus = pingStatus;
00079
00080     // the other values are set to be NULL or zero implicitly by g_new0
00081
00082     return ctxt;
00083 }

Here is the call graph for this function:

void connect_ping_ctxt_set_access_network_profiles_callbacks	(	pingContext_t *	ctxt,
		get_n_network_profiles_t *	get_n_network_profiles,
		get_network_profile_t *	get_network_profile,
		select_next_regprofile_t *	select_next_regprofile
	)

Definition at line 111 of file connectPing.c.

00115 {
00116     if (ctxt)
00117     {
00118         ctxt->get_n_network_profiles = get_n_network_profiles;
00119         ctxt->get_network_profile = get_network_profile;
00120         ctxt->select_next_regprofile = select_next_regprofile;
00121     }
00122 }

void connect_ping_ctxt_set_connect_type	(	pingContext_t *	ctxt,
		cmgrConnectType_t	connectType
	)

Definition at line 93 of file connectPing.c.

00095 {
00096     if (ctxt && (connectType >= 0) && (connectType < cmgrConnectUndef_e))
00097     {
00098         ctxt->connectType = connectType;
00099     }
00100 }

void connect_ping_ctxt_set_done_callbacks	(	pingContext_t *	ctxt,
		on_connected_t *	on_connected,
		on_failed_all_t *	on_failed_all
	)

Definition at line 139 of file connectPing.c.

00142 {
00143     if (ctxt)
00144     {
00145        ctxt->on_connected = on_connected;
00146        ctxt->on_failed_all = on_failed_all;
00147     }
00148 }

void connect_ping_ctxt_set_get_initial_profile	(	pingContext_t *	ctxt,
		get_initial_profile_t *	get_initial_profile
	)

Definition at line 102 of file connectPing.c.

00104 {
00105     if (ctxt)
00106     {
00107         ctxt->get_initial_profile = get_initial_profile;
00108     }
00109 }

void connect_ping_ctxt_set_mode	(	pingContext_t *	ctxt,
		pingMode_t	mode
	)

Definition at line 85 of file connectPing.c.

00086 {
00087     if (ctxt && (mode >= 0) && (mode < undefPingMode_e))
00088     {
00089         ctxt->mode = mode;
00090     }
00091 }

void connect_ping_ctxt_set_ui_callbacks	(	pingContext_t *	ctxt,
		ui_update_status_t *	ui_update_status,
		ui_display_settings_t *	ui_display_settings,
		ui_select_profile_t *	ui_select_profile,
		ui_unselect_all_profile_t *	ui_unselect_all_profile
	)

Definition at line 124 of file connectPing.c.

00129 {
00130     if (ctxt)
00131     {
00132         ctxt->ui_update_status = ui_update_status;
00133         ctxt->ui_display_settings = ui_display_settings;
00134         ctxt->ui_select_profile = ui_select_profile;
00135         ctxt->ui_unselect_all_profile = ui_unselect_all_profile;
00136     }
00137 }

static void connect_ping_done	(	pingContext_t *	ctxt,
		pingStatus_t	result
	)			`[static]`

Definition at line 655 of file connectPing.c.

00656 {
00657     GtkWidget *pingStatus;
00658     int profileIndex, startIdx;
00659     gboolean same = TRUE;
00660     gboolean selected;
00661
00662     CN_LOGPRINTF ("entry");
00663
00664     g_return_if_fail(ctxt != NULL);
00665
00666     if (ctxt->pingServer)
00667     {
00668         // set the ctxt->pingParms parameters
00669         pingStatus = ctxt->pingParms->pingStatus;
00670         gtk_label_set_text(GTK_LABEL(pingStatus), "ping-idle");
00671
00672         // free the ctxt->pingParms parameters
00673         free_network_pc_settings(ctxt->pingParms);
00674
00675         // update the ui
00676         profileIndex = connect_ping_get_pinging_profile_index(ctxt);
00677         g_return_if_fail(profileIndex != -1);
00678
00679         if (ctxt->mode != backgroundPing_e && ctxt->ui_update_status)
00680         {
00681             ctxt->ui_update_status(profileIndex, result);
00682         }
00683
00684         if (result == pingSucceeded_e)
00685         {
00686             ctxt->pingServer = FALSE;
00687             connect_ping_set_pinging_profile_index(ctxt, -1);
00688
00689             if (ctxt->mode != backgroundPing_e
00690                 && ctxt->ui_unselect_all_profile)
00691             {
00692                 ctxt->ui_unselect_all_profile();
00693             }
00694
00695             if (ctxt->on_connected)
00696             {
00697                 ctxt->on_connected(profileIndex);
00698             }
00699         }
00700         else
00701         {
00702             if (ctxt->select_next_regprofile
00703                 && !ctxt->select_next_regprofile(profileIndex))
00704             {
00705                 // connect using next profile
00706                  selected = connect_ping_select_next_profile(ctxt);
00707                  if (!selected)
00708                  {
00709                      connect_ping_select_first_profile(ctxt);
00710                  }
00711                  same = FALSE;
00712             }
00713
00714              // update the ui
00715              profileIndex = connect_ping_get_selected_profile_index(ctxt);
00716              CN_LOGPRINTF ("entry: selected profile [%d]", profileIndex);
00717
00718              if (ctxt->mode != backgroundPing_e)
00719              {
00720                  if (same && ctxt->ui_display_settings)
00721                  {
00722                      ctxt->ui_display_settings(profileIndex, TRUE);
00723                  }
00724
00725                  if (ctxt->ui_select_profile)
00726                  {
00727                      ctxt->ui_select_profile(profileIndex);
00728                  }
00729              }
00730
00731             // set the flag to be FALSE
00732             // in order to setup the context for another round pinging
00733             ctxt->pingServer = FALSE;
00734             connect_ping_set_pinging_profile_index(ctxt, -1);
00735
00736             startIdx = connect_ping_get_pinging_profile_index_start(ctxt);
00737             if (same || (profileIndex != startIdx))
00738             {
00739                 if (ctxt->mode == backgroundPing_e)
00740                 {
00741                     connect_ping(ctxt, FALSE);
00742                 }
00743                 else
00744                 {
00745                     connect_ping(ctxt, TRUE);
00746                 }
00747             }
00748             else
00749             {
00750                 CN_WARNPRINTF ("All profiles done, stop connecting");
00751                 connect_ping_unselect_profile (ctxt);
00752
00753                 if (ctxt->mode != backgroundPing_e
00754                     && ctxt->ui_unselect_all_profile)
00755                 {
00756                     ctxt->ui_unselect_all_profile();
00757                 }
00758
00759                 if (ctxt->on_failed_all)
00760                 {
00761                     ctxt->on_failed_all();
00762                 }
00763             }
00764         }
00765     }
00766 }

Here is the call graph for this function:

gboolean connect_ping_freeze_ui ( pingContext_t * ctxt )

Definition at line 585 of file connectPing.c.

00586 {
00587     g_return_val_if_fail(ctxt != NULL, FALSE);
00588
00589     CN_LOGPRINTF("return freeze = %d", ctxt->pingAborting);
00590     return ctxt->pingAborting;
00591 }

int connect_ping_get_pinging_profile_index ( pingContext_t * ctxt )

Definition at line 212 of file connectPing.c.

00213 {
00214     g_return_val_if_fail(ctxt != NULL, -1);
00215
00216     CN_LOGPRINTF("entry profileIndex=%d", ctxt->pingingProfileIndex);
00217
00218     return ctxt->pingingProfileIndex;
00219 }

int connect_ping_get_pinging_profile_index_start ( pingContext_t * ctxt )

Definition at line 193 of file connectPing.c.

00194 {
00195     g_return_val_if_fail(ctxt != NULL, -1);
00196
00197     CN_LOGPRINTF("entry profileIndex=%d", ctxt->pingingProfileIndexStart);
00198
00199     return ctxt->pingingProfileIndexStart;
00200 }

int connect_ping_get_selected_profile_index ( pingContext_t * ctxt )

Definition at line 231 of file connectPing.c.

00232 {
00233     g_return_val_if_fail(ctxt != NULL, -1);
00234
00235     CN_LOGPRINTF("entry profileIndex=%d", ctxt->selectedProfileIndex);
00236
00237     return ctxt->selectedProfileIndex;
00238 }

gboolean connect_ping_in_pinging ( pingContext_t * ctxt )

Definition at line 461 of file connectPing.c.

00462 {
00463     g_return_val_if_fail(ctxt, FALSE);
00464
00465     CN_LOGPRINTF("return [%d]", ctxt->pingServer);
00466     return ctxt->pingServer;
00467 }

static void connect_ping_select_first_profile ( pingContext_t * ctxt ) [static]

Definition at line 250 of file connectPing.c.

00251 {
00252     int nProfiles = 0;
00253
00254     CN_LOGPRINTF("entry");
00255
00256     g_return_if_fail(ctxt != NULL);
00257
00258     if (ctxt->get_n_network_profiles)
00259     {
00260         nProfiles = ctxt->get_n_network_profiles();
00261     }
00262
00263     if (nProfiles > 0)
00264     {
00265         connect_ping_select_profile(ctxt, 0);
00266     }
00267 }

Here is the call graph for this function:

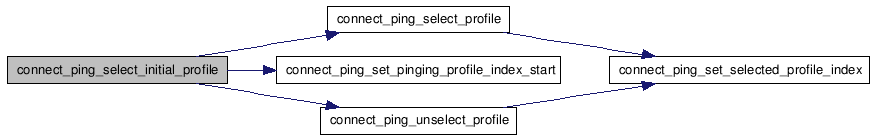

void connect_ping_select_initial_profile ( pingContext_t * ctxt )

Definition at line 381 of file connectPing.c.

00382 {
00383     CN_LOGPRINTF ("entry");
00384
00385     int profileIndex = 0;
00386     cmgrConnectType_t connectType;
00387
00388     g_return_if_fail(ctxt != NULL);
00389
00390     // select initial profile to use when connecting
00391     connectType = ctxt->connectType;
00392     if (connectType == cmgrConnectUnknown_e)
00393     {
00394         CN_WARNPRINTF("Unknown connect type[%d].", connectType);
00395
00396         // edit mode of iDS/PC unknown: no profile selected
00397         connect_ping_unselect_profile (ctxt);
00398     }
00399     else
00400     {
00401         if (ctxt->get_initial_profile)
00402         {
00403             profileIndex = ctxt->get_initial_profile();
00404         }
00405
00406         connect_ping_select_profile(ctxt, profileIndex);
00407         connect_ping_set_pinging_profile_index_start(ctxt, profileIndex);
00408
00409         if (ctxt->mode != backgroundPing_e && ctxt->ui_select_profile)
00410         {
00411             ctxt->ui_select_profile(profileIndex);
00412         }
00413     }
00414 }

Here is the call graph for this function:

static gboolean connect_ping_select_next_profile ( pingContext_t * ctxt ) [static]

Definition at line 286 of file connectPing.c.

00287 {
00288     CN_LOGPRINTF("entry");
00289
00290     gint  profileIndex;
00291     guint nProfiles;
00292     gboolean selected;
00293
00294     g_return_val_if_fail(ctxt != NULL, FALSE);
00295
00296     selected = FALSE;
00297     profileIndex = connect_ping_get_selected_profile_index(ctxt);
00298     if (ctxt->get_n_network_profiles)
00299     {
00300         nProfiles = ctxt->get_n_network_profiles();
00301     }
00302     else
00303     {
00304         nProfiles = 0;
00305     }
00306     if ((profileIndex >= 0) && (profileIndex < nProfiles))
00307     {
00308         if ((profileIndex + 1) < nProfiles)
00309         {
00310             connect_ping_select_profile(ctxt, profileIndex+1);
00311             selected = TRUE;
00312         }
00313     }
00314
00315     return selected;
00316 }

Here is the call graph for this function:

static gboolean connect_ping_select_profile	(	pingContext_t *	ctxt,
		int	profileIndex
	)			`[static]`

Definition at line 353 of file connectPing.c.

00355 {
00356     CN_LOGPRINTF("entry");
00357
00358     guint nProfiles;
00359     gboolean selected;
00360
00361     g_return_val_if_fail(ctxt != NULL, FALSE);
00362
00363     selected = FALSE;
00364     if (ctxt->get_n_network_profiles)
00365     {
00366         nProfiles = ctxt->get_n_network_profiles();
00367     }
00368     else
00369     {
00370         nProfiles = 0;
00371     }
00372     if ((profileIndex >= 0) && (profileIndex < nProfiles))
00373     {
00374         connect_ping_set_selected_profile_index(ctxt, profileIndex);
00375         selected = TRUE;
00376     }
00377     return selected;
00378 }

Here is the call graph for this function:

void connect_ping_set_pinging_profile_index	(	pingContext_t *	ctxt,
		int	profileIndex
	)

Definition at line 221 of file connectPing.c.

00223 {
00224     g_return_if_fail(ctxt != NULL);
00225
00226     CN_LOGPRINTF("entry profileIndex[%d]", profileIndex);
00227
00228     ctxt->pingingProfileIndex = profileIndex;
00229 }

void connect_ping_set_pinging_profile_index_start	(	pingContext_t *	ctxt,
		int	profileIndex
	)

Definition at line 202 of file connectPing.c.

00204 {
00205     g_return_if_fail(ctxt != NULL);
00206
00207     CN_LOGPRINTF("entry[%d]", profileIndex);
00208
00209     ctxt->pingingProfileIndexStart = profileIndex;
00210 }

void connect_ping_set_selected_profile_index	(	pingContext_t *	ctxt,
		int	profileIndex
	)

Definition at line 240 of file connectPing.c.

00242 {
00243     g_return_if_fail(ctxt != NULL);
00244
00245     CN_LOGPRINTF("entry profileIndex[%d]", profileIndex);
00246
00247     ctxt->selectedProfileIndex = profileIndex;
00248 }

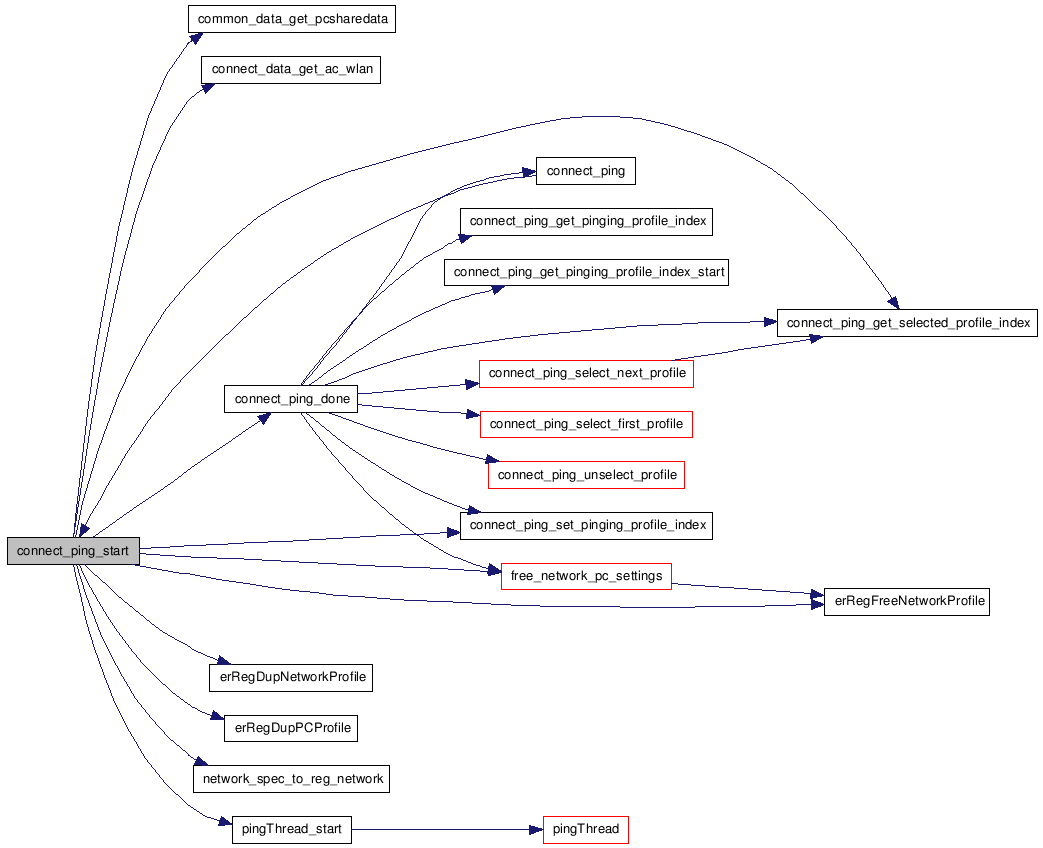

static gboolean connect_ping_start ( gpointer data ) [static]

Definition at line 470 of file connectPing.c.

00471 {
00472     pingContext_t*          ctxt;
00473     int                     profileIndex;
00474     gboolean                ok;
00475     const networkProfile_t* settings = NULL;
00476     regNetworkProfile_t*    regSettings = NULL;
00477     const regPCProfile_t *pcshare = NULL;
00478
00479     ctxt = (pingContext_t*)data;
00480     g_return_val_if_fail(ctxt != NULL, FALSE);
00481
00482     // set the ctxt->pingParms parameters
00483     profileIndex = connect_ping_get_selected_profile_index(ctxt);
00484     CN_LOGPRINTF ("entry: selected profile [%d]", profileIndex);
00485     g_return_val_if_fail (profileIndex != -1, FALSE);
00486
00487     if (ctxt->get_network_profile)
00488     {
00489         settings = ctxt->get_network_profile(profileIndex);
00490     }
00491     g_return_val_if_fail(settings != NULL, FALSE);
00492
00493     // free the old network settings and pcshare settings
00494     free_network_pc_settings(ctxt->pingParms);
00495
00496     // get the network settings and pcshare settings if needed
00497     if (settings->nRegProfiles > 0
00498         && settings->regSettingsList
00499         && settings->regIndexList
00500         && ((settings->nActiveIndex >= 0)
00501         && (settings->nActiveIndex < settings->nRegProfiles)))
00502     {
00503         regSettings = settings->regSettingsList[settings->nActiveIndex];
00504         ctxt->pingParms->settings = erRegDupNetworkProfile (regSettings);
00505         CN_LOGPRINTF("settings->regIndexList[%d]=%d",
00506                       settings->nActiveIndex,
00507                       settings->regIndexList[settings->nActiveIndex]);
00508     }
00509     else
00510     {
00511         CN_LOGPRINTF("settings->scanSettings->encryption=%d",
00512                      settings->scanSettings->encryption);
00513         if (connect_data_get_ac_wlan()
00514             && settings->scanSettings
00515             && settings->scanSettings->encryption == encr_none_t)
00516         {
00517             CN_LOGPRINTF("here");
00518
00519             regSettings = network_spec_to_reg_network(settings->scanSettings);
00520             ctxt->pingParms->settings = erRegDupNetworkProfile(regSettings);
00521             erRegFreeNetworkProfile(regSettings);
00522             regSettings = NULL;
00523         }
00524     }
00525
00526     // set the flag to be TRUE
00527     ctxt->pingServer = TRUE;
00528     connect_ping_set_pinging_profile_index(ctxt, profileIndex);
00529
00530     if (ctxt->pingParms->settings)
00531     {
00532         if (ctxt->mode != backgroundPing_e && ctxt->ui_update_status)
00533         {
00534             ctxt->ui_update_status(profileIndex, pingConnecting_e);
00535         }
00536
00537         pcshare = common_data_get_pcsharedata(0);
00538         if (pcshare && ctxt->connectType == cmgrConnectPCShare_e)
00539         {
00540             ctxt->pingParms->pcshare = erRegDupPCProfile (pcshare);
00541         }
00542         else
00543         {
00544             ctxt->pingParms->pcshare = NULL;
00545         }
00546
00547         // start Ping thread
00548         pcshare = ctxt->pingParms->pcshare;
00549         CN_WARNPRINTF ("profile [%s] pcshare [%s] [%s]",
00550                         ctxt->pingParms->settings->name,
00551                         pcshare ? pcshare->pcname : "",
00552                         pcshare ? pcshare->sharename : "");
00553         ok = pingThread_start(ctxt->pingParms);
00554         if (ok)
00555         {
00556             CN_LOGPRINTF("Succeeded to start ping thread");
00557         }
00558         else
00559         {
00560             CN_ERRORPRINTF ("Failed to start ping thread");
00561         }
00562     }
00563     else
00564     {
00565         CN_LOGPRINTF("The %dth profile is the one by scanning,"
00566                      " but it has no corresponding profile in registry. "
00567                      "Skipped it. It can be used by changing the settings "
00568                      "or filling in the encryption key. ",
00569                      profileIndex);
00570         if (settings->scanSettings
00571             && settings->scanSettings->encryption == encr_none_t)
00572         {
00573             connect_ping_done(ctxt, pingSkipped_e);
00574         }
00575         else
00576         {
00577             connect_ping_done(ctxt, pingNeedKey_e);
00578         }
00579     }
00580
00581     ctxt->pingTimeoutId = 0;
00582     return FALSE;
00583 }

Here is the call graph for this function:

static void connect_ping_unselect_profile ( pingContext_t * ctxt ) [static]

Definition at line 416 of file connectPing.c.

00417 {
00418     CN_LOGPRINTF ("entry");
00419
00420     g_return_if_fail(ctxt != NULL);
00421
00422     connect_ping_set_selected_profile_index(ctxt, -1);
00423 }

Here is the call graph for this function:

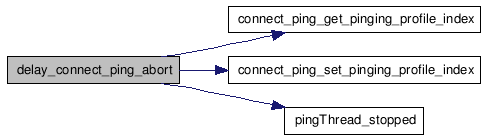

static gboolean delay_connect_ping_abort ( gpointer data ) [static]

Definition at line 593 of file connectPing.c.

00594 {
00595     pingContext_t* ctxt = (pingContext_t*)data;
00596     g_return_val_if_fail(ctxt != NULL, FALSE);
00597
00598     gboolean ret = TRUE;  // TRUE = please call again
00599     gint profileIndex = connect_ping_get_pinging_profile_index(ctxt);
00600
00601     // wait the pingThread aborting
00602     if (!pingThread_stopped())
00603     {
00604         CN_LOGPRINTF("call me later...");
00605     }
00606     else
00607     {
00608         ctxt->pingAborting = FALSE;
00609
00610         if (ctxt->mode != backgroundPing_e && ctxt->ui_update_status)
00611         {
00612             // update the ui
00613             ctxt->ui_update_status(profileIndex, pingAborted_e);
00614         }
00615
00616         // no more ping ongoing
00617         ctxt->pingServer = FALSE;
00618         connect_ping_set_pinging_profile_index(ctxt, -1);
00619
00620         ret = FALSE;  // FALSE = don't call me again
00621     }
00622
00623     return ret;
00624 }

Here is the call graph for this function:

static void free_network_pc_settings ( ping_thread_parms * pingParms ) [static]

Definition at line 150 of file connectPing.c.

00151 {
00152     regNetworkProfile_t *settings;
00153     regPCProfile_t *pcshare;
00154
00155     if (pingParms)
00156     {
00157        settings = (regNetworkProfile_t*)pingParms->settings;
00158        erRegFreeNetworkProfile(settings);
00159        pingParms->settings = NULL;
00160
00161        pcshare = (regPCProfile_t*)pingParms->pcshare;
00162        erRegFreePCProfile(pcshare);
00163        pingParms->pcshare = NULL;
00164     }
00165 }

Here is the call graph for this function:

static void on_ping_status_changed	(	GObject *	object,
		GParamSpec *	arg1,
		gpointer	data
	)			`[static]`

Definition at line 769 of file connectPing.c.

00772 {
00773     CN_LOGPRINTF ("entry");
00774
00775     pingContext_t* ctxt = (pingContext_t*)data;
00776     g_return_if_fail(ctxt != NULL);
00777
00778     const char *name = arg1->name;
00779     g_return_if_fail (strcmp (name, "label") == 0);
00780
00781     const char *pingStatus;
00782     pingStatus = gtk_label_get_text (GTK_LABEL (object));
00783     CN_LOGPRINTF ("pingStatus [%s]\n", pingStatus);
00784
00785     if (strcmp(pingStatus, "ping-done-ok") == 0)
00786     {
00787         connect_ping_done(ctxt, pingSucceeded_e);
00788     }
00789     else if (strcmp(pingStatus, "ping-done-error") == 0)
00790     {
00791         connect_ping_done(ctxt, pingFailed_e);
00792     }
00793     else if (strcmp(pingStatus, "ping-pcshare-error") == 0)
00794     {
00795         connect_ping_done (ctxt, pingFailedPCShare_e);
00796     }
00797     else if (strcmp(pingStatus, "ping-network-error") == 0)
00798     {
00799         connect_ping_done(ctxt, pingFailedNetwork_e);
00800     }
00801     else if(strcmp (pingStatus, "ping-done-abort") == 0)
00802     {
00803         CN_LOGPRINTF("ping-done-abort");
00804     }
00805     else
00806     {
00807         // ping-idle
00808         /* ignore */ ;
00809     }
00810 }

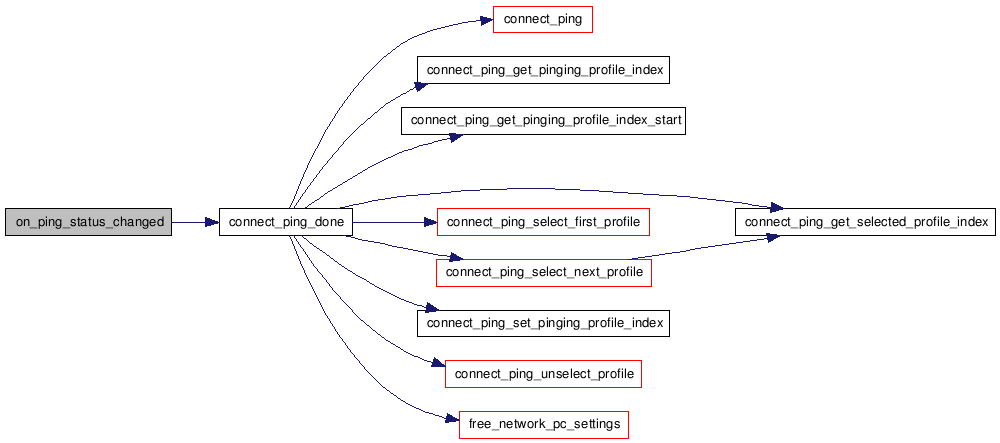

Here is the call graph for this function:


Functions
static gboolean	connect_ping_start (gpointer data)
static void	connect_ping_done (pingContext_t *ctxt, pingStatus_t result)
static void	on_ping_status_changed (GObject object, GParamSpec arg1, gpointer data)
static gboolean	connect_ping_select_profile (pingContext_t *ctxt, int profileIndex)
static void	connect_ping_unselect_profile (pingContext_t *ctxt)
pingContext_t *	connect_ping_ctxt_new (void)
void	connect_ping_ctxt_set_mode (pingContext_t *ctxt, pingMode_t mode)
void	connect_ping_ctxt_set_connect_type (pingContext_t *ctxt, cmgrConnectType_t connectType)
void	connect_ping_ctxt_set_get_initial_profile (pingContext_t ctxt, get_initial_profile_t get_initial_profile)
void	connect_ping_ctxt_set_access_network_profiles_callbacks (pingContext_t ctxt, get_n_network_profiles_t get_n_network_profiles, get_network_profile_t get_network_profile, select_next_regprofile_t select_next_regprofile)
void	connect_ping_ctxt_set_ui_callbacks (pingContext_t ctxt, ui_update_status_t ui_update_status, ui_display_settings_t ui_display_settings, ui_select_profile_t ui_select_profile, ui_unselect_all_profile_t *ui_unselect_all_profile)
void	connect_ping_ctxt_set_done_callbacks (pingContext_t ctxt, on_connected_t on_connected, on_failed_all_t *on_failed_all)
static void	free_network_pc_settings (ping_thread_parms *pingParms)
void	connect_ping_ctxt_destory (pingContext_t *ctxt)
int	connect_ping_get_pinging_profile_index_start (pingContext_t *ctxt)
void	connect_ping_set_pinging_profile_index_start (pingContext_t *ctxt, int profileIndex)
int	connect_ping_get_pinging_profile_index (pingContext_t *ctxt)
void	connect_ping_set_pinging_profile_index (pingContext_t *ctxt, int profileIndex)
int	connect_ping_get_selected_profile_index (pingContext_t *ctxt)
void	connect_ping_set_selected_profile_index (pingContext_t *ctxt, int profileIndex)
static void	connect_ping_select_first_profile (pingContext_t *ctxt)
static gboolean	connect_ping_select_next_profile (pingContext_t *ctxt)
void	connect_ping_select_initial_profile (pingContext_t *ctxt)
void	connect_ping (pingContext_t *ctxt, gboolean delay)
gboolean	connect_ping_in_pinging (pingContext_t *ctxt)
gboolean	connect_ping_freeze_ui (pingContext_t *ctxt)
static gboolean	delay_connect_ping_abort (gpointer data)
void	connect_ping_abort (pingContext_t *ctxt)

connectionMgr/src/connectPing.c File Reference

Functions

Detailed Description

Function Documentation
