connectionMgr/inc/connectPing.h File Reference

connectionMgr -According to the results of scanning networks, use the profile one by one to ping until it succeeds. More...

#include <glib.h>
#include "commonData.h"
#include "pingThread.h"

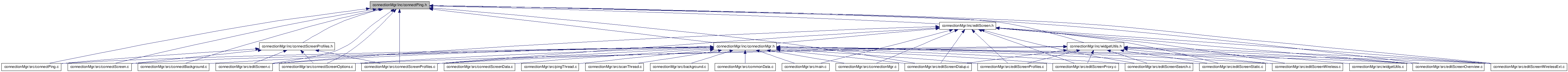

This graph shows which files directly or indirectly include this file:

Detailed Description

connectionMgr -According to the results of scanning networks, use the profile one by one to ping until it succeeds.

Definition in file connectPing.h.

Typedef Documentation

typedef int get_initial_profile_t(void)

Definition at line 56 of file connectPing.h.

typedef int get_n_network_profiles_t(void)

Definition at line 59 of file connectPing.h.

typedef const networkProfile_t* get_network_profile_t(int profileIndex)

Definition at line 60 of file connectPing.h.

typedef void on_connected_t(int profileIndex)

Definition at line 70 of file connectPing.h.

typedef void on_failed_all_t(void)

Definition at line 71 of file connectPing.h.

typedef gboolean select_next_regprofile_t(int profileIndex)

Definition at line 61 of file connectPing.h.

typedef void ui_display_settings_t(int profileIndex, gboolean resetStatus)

Definition at line 65 of file connectPing.h.

typedef void ui_select_profile_t(int profileIndex)

Definition at line 66 of file connectPing.h.

typedef void ui_unselect_all_profile_t(void)

Definition at line 67 of file connectPing.h.

typedef void ui_update_status_t(int profileIndex, pingStatus_t status)

Definition at line 64 of file connectPing.h.

Enumeration Type Documentation

enum pingMode_t

Enumerator:

backgroundPing_e
connectPing_e
editPing_e
undefPingMode_e

Definition at line 33 of file connectPing.h.

00034 {
00035     backgroundPing_e = 0,
00036     connectPing_e,
00037     editPing_e,
00038     undefPingMode_e
00039 }pingMode_t;

enum pingStatus_t

Enumerator:

pingSucceeded_e
pingFailed_e
pingFailedPCShare_e
pingFailedNetwork_e
pingSkipped_e
pingNeedKey_e
pingAborting_e
pingAborted_e
pingConnecting_e
undefPingStatus_e

Definition at line 41 of file connectPing.h.

00042 {
00043     pingSucceeded_e=0,
00044     pingFailed_e,
00045     pingFailedPCShare_e,
00046     pingFailedNetwork_e,
00047     pingSkipped_e,
00048     pingNeedKey_e,
00049     pingAborting_e,
00050     pingAborted_e,
00051     pingConnecting_e,
00052     undefPingStatus_e
00053 }pingStatus_t;

Function Documentation

void connect_ping	(	pingContext_t *	ctxt,
		gboolean	delay
	)

Definition at line 429 of file connectPing.c.

00430 {
00431     CN_LOGPRINTF ("entry delay[%d]", delay);
00432
00433     g_return_if_fail(ctxt != NULL);
00434
00435     if (ctxt->pingServer)
00436     {
00437         CN_WARNPRINTF("Please wait while pinging...");
00438         return;
00439     }
00440
00441     if (delay)
00442     {
00443         if (ctxt->pingTimeoutId > 0)
00444         {
00445             CN_LOGPRINTF("remove the old timeout function for pinging");
00446             g_source_remove(ctxt->pingTimeoutId);
00447             ctxt->pingTimeoutId = 0;
00448         }
00449
00450         // begin to ping after 'delay' timeout
00451         ctxt->pingTimeoutId = g_timeout_add(delay,
00452                                             connect_ping_start,
00453                                             (gpointer)ctxt);
00454     }
00455     else
00456     {
00457         connect_ping_start(ctxt);
00458     }
00459 }

Here is the call graph for this function:

void connect_ping_abort ( pingContext_t * ctxt )

Definition at line 627 of file connectPing.c.

00628 {
00629     CN_LOGPRINTF ("entry");
00630
00631     g_return_if_fail(ctxt != NULL);
00632
00633     if (ctxt->pingServer)
00634     {
00635         CN_WARNPRINTF("Abort pinging...");
00636
00637         gint profileIndex = connect_ping_get_pinging_profile_index(ctxt);
00638
00639         if (ctxt->mode != backgroundPing_e && ctxt->ui_update_status)
00640         {
00641             // update the ui
00642             ctxt->ui_update_status(profileIndex, pingAborting_e);
00643         }
00644
00645         // stop the pingThread
00646         pingThread_stop();
00647
00648         // wait for pingThread done
00649         ctxt->pingAborting = TRUE;
00650         g_timeout_add(200, delay_connect_ping_abort, (gpointer)ctxt);
00651     }
00652 }

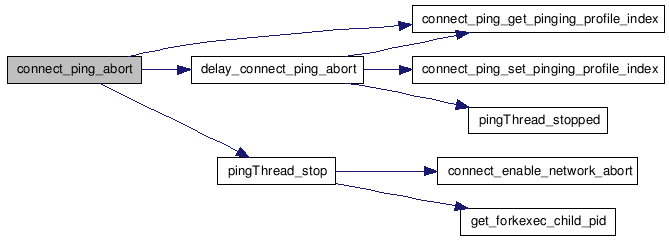

Here is the call graph for this function:

void connect_ping_ctxt_destory ( pingContext_t * ctxt )

Definition at line 167 of file connectPing.c.

00168 {
00169     ping_thread_parms *pingParms;
00170
00171    if (ctxt)
00172    {
00173        if (ctxt->pingParms)
00174        {
00175            pingParms = ctxt->pingParms;
00176            free_network_pc_settings(pingParms);
00177            /*
00178            if (pingParms->pingStatus)
00179            {
00180                gtk_widget_destroy(pingParms->pingStatus);
00181            }
00182            */
00183
00184            g_free(pingParms);
00185        }
00186        g_free(ctxt);
00187    }
00188 }

Here is the call graph for this function:

pingContext_t* connect_ping_ctxt_new ( void )

Definition at line 51 of file connectPing.c.

00052 {
00053     pingContext_t *ctxt;
00054     GtkWidget *pingStatus;
00055
00056     CN_LOGPRINTF("entry");
00057
00058     ctxt = g_new0(pingContext_t, 1);
00059     g_assert(ctxt != NULL);
00060
00061     // set the default values
00062     connect_ping_ctxt_set_mode(ctxt, undefPingMode_e);
00063     connect_ping_ctxt_set_connect_type(ctxt, cmgrConnectUnknown_e);
00064     connect_ping_ctxt_set_done_callbacks(ctxt, NULL, NULL);
00065
00066     ctxt->selectedProfileIndex = -1;
00067     ctxt->pingingProfileIndexStart = -1;
00068     ctxt->pingingProfileIndex = -1;
00069
00070     // initilize the pingParms
00071     ctxt->pingParms = g_new0(ping_thread_parms, 1);
00072     g_assert(ctxt->pingParms != NULL);
00073
00074     // ctxt->pingParms->pingStatus
00075     pingStatus = gtk_label_new ("ping-idle");
00076     g_signal_connect(pingStatus, "notify",
00077                      G_CALLBACK (on_ping_status_changed), ctxt);
00078     ctxt->pingParms->pingStatus = pingStatus;
00079
00080     // the other values are set to be NULL or zero implicitly by g_new0
00081
00082     return ctxt;
00083 }

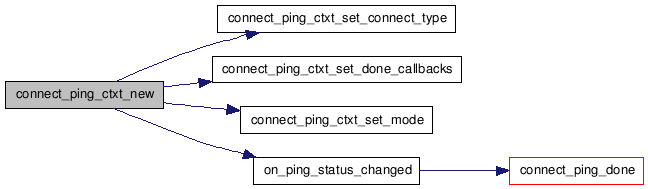

Here is the call graph for this function:

void connect_ping_ctxt_set_access_network_profiles_callbacks	(	pingContext_t *	ctxt,
		get_n_network_profiles_t *	get_n_network_profiles,
		get_network_profile_t *	get_network_profile,
		select_next_regprofile_t *	select_next_regprofile
	)

Definition at line 111 of file connectPing.c.

00115 {
00116     if (ctxt)
00117     {
00118         ctxt->get_n_network_profiles = get_n_network_profiles;
00119         ctxt->get_network_profile = get_network_profile;
00120         ctxt->select_next_regprofile = select_next_regprofile;
00121     }
00122 }

void connect_ping_ctxt_set_connect_type	(	pingContext_t *	ctxt,
		cmgrConnectType_t	connectType
	)

Definition at line 93 of file connectPing.c.

00095 {
00096     if (ctxt && (connectType >= 0) && (connectType < cmgrConnectUndef_e))
00097     {
00098         ctxt->connectType = connectType;
00099     }
00100 }

void connect_ping_ctxt_set_done_callbacks	(	pingContext_t *	ctxt,
		on_connected_t *	on_connected,
		on_failed_all_t *	on_failed_all
	)

Definition at line 139 of file connectPing.c.

00142 {
00143     if (ctxt)
00144     {
00145        ctxt->on_connected = on_connected;
00146        ctxt->on_failed_all = on_failed_all;
00147     }
00148 }

void connect_ping_ctxt_set_get_initial_profile	(	pingContext_t *	ctxt,
		get_initial_profile_t *	get_initial_profile
	)

Definition at line 102 of file connectPing.c.

00104 {
00105     if (ctxt)
00106     {
00107         ctxt->get_initial_profile = get_initial_profile;
00108     }
00109 }

void connect_ping_ctxt_set_mode	(	pingContext_t *	ctxt,
		pingMode_t	mode
	)

Definition at line 85 of file connectPing.c.

00086 {
00087     if (ctxt && (mode >= 0) && (mode < undefPingMode_e))
00088     {
00089         ctxt->mode = mode;
00090     }
00091 }

void connect_ping_ctxt_set_ui_callbacks	(	pingContext_t *	ctxt,
		ui_update_status_t *	ui_update_status,
		ui_display_settings_t *	ui_display_settings,
		ui_select_profile_t *	ui_select_profile,
		ui_unselect_all_profile_t *	ui_unselect_all_profile
	)

Definition at line 124 of file connectPing.c.

00129 {
00130     if (ctxt)
00131     {
00132         ctxt->ui_update_status = ui_update_status;
00133         ctxt->ui_display_settings = ui_display_settings;
00134         ctxt->ui_select_profile = ui_select_profile;
00135         ctxt->ui_unselect_all_profile = ui_unselect_all_profile;
00136     }
00137 }

gboolean connect_ping_freeze_ui ( pingContext_t * ctxt )

Definition at line 585 of file connectPing.c.

00586 {
00587     g_return_val_if_fail(ctxt != NULL, FALSE);
00588
00589     CN_LOGPRINTF("return freeze = %d", ctxt->pingAborting);
00590     return ctxt->pingAborting;
00591 }

int connect_ping_get_pinging_profile_index ( pingContext_t * ctxt )

Definition at line 212 of file connectPing.c.

00213 {
00214     g_return_val_if_fail(ctxt != NULL, -1);
00215
00216     CN_LOGPRINTF("entry profileIndex=%d", ctxt->pingingProfileIndex);
00217
00218     return ctxt->pingingProfileIndex;
00219 }

int connect_ping_get_pinging_profile_index_start ( pingContext_t * ctxt )

Definition at line 193 of file connectPing.c.

00194 {
00195     g_return_val_if_fail(ctxt != NULL, -1);
00196
00197     CN_LOGPRINTF("entry profileIndex=%d", ctxt->pingingProfileIndexStart);
00198
00199     return ctxt->pingingProfileIndexStart;
00200 }

int connect_ping_get_selected_profile_index ( pingContext_t * ctxt )

Definition at line 231 of file connectPing.c.

00232 {
00233     g_return_val_if_fail(ctxt != NULL, -1);
00234
00235     CN_LOGPRINTF("entry profileIndex=%d", ctxt->selectedProfileIndex);
00236
00237     return ctxt->selectedProfileIndex;
00238 }

gboolean connect_ping_in_pinging ( pingContext_t * ctxt )

Definition at line 461 of file connectPing.c.

00462 {
00463     g_return_val_if_fail(ctxt, FALSE);
00464
00465     CN_LOGPRINTF("return [%d]", ctxt->pingServer);
00466     return ctxt->pingServer;
00467 }

void connect_ping_select_initial_profile ( pingContext_t * ctxt )

Definition at line 381 of file connectPing.c.

00382 {
00383     CN_LOGPRINTF ("entry");
00384
00385     int profileIndex = 0;
00386     cmgrConnectType_t connectType;
00387
00388     g_return_if_fail(ctxt != NULL);
00389
00390     // select initial profile to use when connecting
00391     connectType = ctxt->connectType;
00392     if (connectType == cmgrConnectUnknown_e)
00393     {
00394         CN_WARNPRINTF("Unknown connect type[%d].", connectType);
00395
00396         // edit mode of iDS/PC unknown: no profile selected
00397         connect_ping_unselect_profile (ctxt);
00398     }
00399     else
00400     {
00401         if (ctxt->get_initial_profile)
00402         {
00403             profileIndex = ctxt->get_initial_profile();
00404         }
00405
00406         connect_ping_select_profile(ctxt, profileIndex);
00407         connect_ping_set_pinging_profile_index_start(ctxt, profileIndex);
00408
00409         if (ctxt->mode != backgroundPing_e && ctxt->ui_select_profile)
00410         {
00411             ctxt->ui_select_profile(profileIndex);
00412         }
00413     }
00414 }

Here is the call graph for this function:

void connect_ping_set_pinging_profile_index	(	pingContext_t *	ctxt,
		int	profileIndex
	)

Definition at line 221 of file connectPing.c.

00223 {
00224     g_return_if_fail(ctxt != NULL);
00225
00226     CN_LOGPRINTF("entry profileIndex[%d]", profileIndex);
00227
00228     ctxt->pingingProfileIndex = profileIndex;
00229 }

void connect_ping_set_pinging_profile_index_start	(	pingContext_t *	ctxt,
		int	profileIndex
	)

Definition at line 202 of file connectPing.c.

00204 {
00205     g_return_if_fail(ctxt != NULL);
00206
00207     CN_LOGPRINTF("entry[%d]", profileIndex);
00208
00209     ctxt->pingingProfileIndexStart = profileIndex;
00210 }

void connect_ping_set_selected_profile_index	(	pingContext_t *	ctxt,
		int	profileIndex
	)

Definition at line 240 of file connectPing.c.

00242 {
00243     g_return_if_fail(ctxt != NULL);
00244
00245     CN_LOGPRINTF("entry profileIndex[%d]", profileIndex);
00246
00247     ctxt->selectedProfileIndex = profileIndex;
00248 }


Classes
struct	pingContext_t
Typedefs
typedef int	get_initial_profile_t (void)
typedef int	get_n_network_profiles_t (void)
typedef const networkProfile_t *	get_network_profile_t (int profileIndex)
typedef gboolean	select_next_regprofile_t (int profileIndex)
typedef void	ui_update_status_t (int profileIndex, pingStatus_t status)
typedef void	ui_display_settings_t (int profileIndex, gboolean resetStatus)
typedef void	ui_select_profile_t (int profileIndex)
typedef void	ui_unselect_all_profile_t (void)
typedef void	on_connected_t (int profileIndex)
typedef void	on_failed_all_t (void)
Enumerations
enum	pingMode_t { backgroundPing_e = 0, connectPing_e, editPing_e, undefPingMode_e }
enum	pingStatus_t { pingSucceeded_e = 0, pingFailed_e, pingFailedPCShare_e, pingFailedNetwork_e, pingSkipped_e, pingNeedKey_e, pingAborting_e, pingAborted_e, pingConnecting_e, undefPingStatus_e }
Functions
pingContext_t *	connect_ping_ctxt_new (void)
void	connect_ping_ctxt_set_mode (pingContext_t *ctxt, pingMode_t mode)
void	connect_ping_ctxt_set_connect_type (pingContext_t *ctxt, cmgrConnectType_t connectType)
void	connect_ping_ctxt_set_get_initial_profile (pingContext_t ctxt, get_initial_profile_t get_initial_profile)
void	connect_ping_ctxt_set_access_network_profiles_callbacks (pingContext_t ctxt, get_n_network_profiles_t get_n_network_profiles, get_network_profile_t get_network_profile, select_next_regprofile_t select_next_regprofile)
void	connect_ping_ctxt_set_ui_callbacks (pingContext_t ctxt, ui_update_status_t ui_update_status, ui_display_settings_t ui_display_settings, ui_select_profile_t ui_select_profile, ui_unselect_all_profile_t *ui_unselect_all_profile)
void	connect_ping_ctxt_set_done_callbacks (pingContext_t ctxt, on_connected_t on_connected, on_failed_all_t *on_failed_all)
void	connect_ping_ctxt_destory (pingContext_t *ctxt)
void	connect_ping (pingContext_t *ctxt, gboolean delay)
void	connect_ping_abort (pingContext_t *ctxt)
int	connect_ping_get_pinging_profile_index_start (pingContext_t *ctxt)
void	connect_ping_set_pinging_profile_index_start (pingContext_t *ctxt, int profileIndex)
int	connect_ping_get_pinging_profile_index (pingContext_t *ctxt)
void	connect_ping_set_pinging_profile_index (pingContext_t *ctxt, int profileIndex)
int	connect_ping_get_selected_profile_index (pingContext_t *ctxt)
void	connect_ping_set_selected_profile_index (pingContext_t *ctxt, int profileIndex)
void	connect_ping_select_initial_profile (pingContext_t *ctxt)
gboolean	connect_ping_in_pinging (pingContext_t *ctxt)
gboolean	connect_ping_freeze_ui (pingContext_t *ctxt)

connectionMgr/inc/connectPing.h File Reference

Classes

Typedefs

Enumerations

Functions

Detailed Description

Typedef Documentation

Enumeration Type Documentation

Function Documentation
