connectionMgr/inc/editScreenSearch.h File Reference

connectionMgr - edit "search and select" wireless screen More...

#include <gtk/gtk.h>
#include <gdk/gdkkeysyms.h>
#include <glib.h>

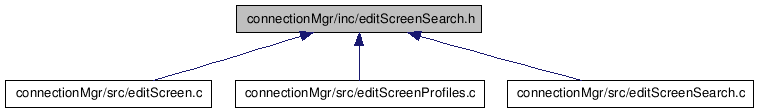

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
GtkWidget *	edit_search_create (void)
void	edit_search_set_text (void)
void	edit_search_restore_screen (void)
gboolean	on_edit_search_keypress (GdkEventKey *event)

---

Detailed Description

connectionMgr - edit "search and select" wireless screen

Copyright (C) 2007 iRex Technologies BV.

Definition in file editScreenSearch.h.

---

Function Documentation

GtkWidget* edit_search_create

(

void

)

Definition at line 83 of file editScreenSearch.c.

{
    GtkWidget *item;
    GtkWidget *vbox;
    bkWdtLabelButton *options;
    GtkWidget *profilelist;
    GtkWidget *info;
    GtkWidget *widget;

    CN_LOGPRINTF("entry");

    // item
    item = gtk_settingitem_new("");

    // vbox
    vbox = gtk_vbox_new(FALSE, VBOX_SPACING);
    gtk_settingitem_add_details(GTK_SETTINGITEM(item), vbox);

    // options
    options = bk_wdt_label_button_new(2, FALSE, 0, 1);
    gtk_box_pack_start(GTK_BOX(vbox), options->background, FALSE, FALSE, 0);

    // profilelist
    profilelist = create_known_profiles();
    gtk_box_pack_start(GTK_BOX(vbox), profilelist, FALSE, FALSE, 0);

    // info
    info = gtk_infoitem_new(FALSE);
    gtk_box_pack_start(GTK_BOX(vbox), info, FALSE, FALSE, 0);

    // signal handlers
    widget = options->details->selection;
    g_signal_connect (G_OBJECT (widget), "selection-update",
                      G_CALLBACK (on_options_update), NULL);

    // show widgets
    gtk_widget_show(item);
    gtk_widget_show(vbox);
    gtk_widget_show(options->background);
    gtk_widget_show(profilelist);
    gtk_widget_show(info);

    // global variables
    g_search = item;
    g_options = options;
    g_info = info;

    CN_LOGPRINTF("done");

    // return
    return item;
}

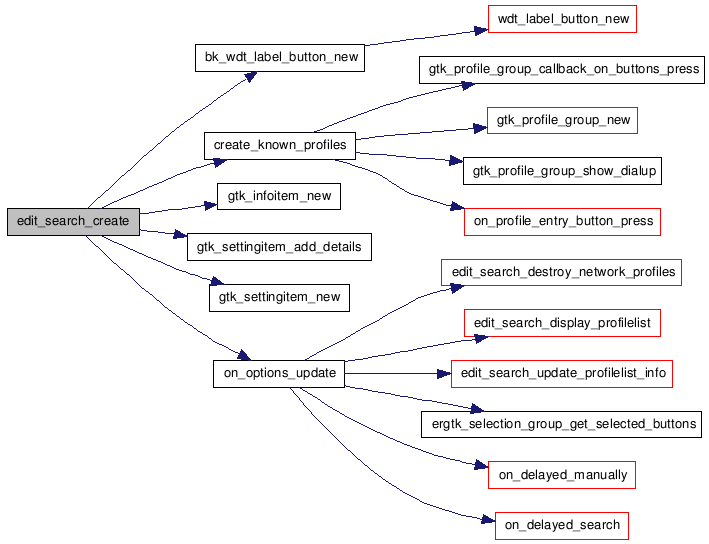

Here is the call graph for this function:

void edit_search_restore_screen

(

void

)

Definition at line 257 of file editScreenSearch.c.

{
    GtkToggleButton *button;

    // Search and Manually buttons
    button = g_options->details->buttonList[0];
    gtk_toggle_button_set_active(button, FALSE);

    button = g_options->details->buttonList[0];
    gtk_toggle_button_set_active(button, FALSE);

    // the profilelist
    edit_search_destroy_network_profiles();
    edit_search_display_profilelist();
    edit_search_update_profilelist_info(undefScanStatus_e);
}

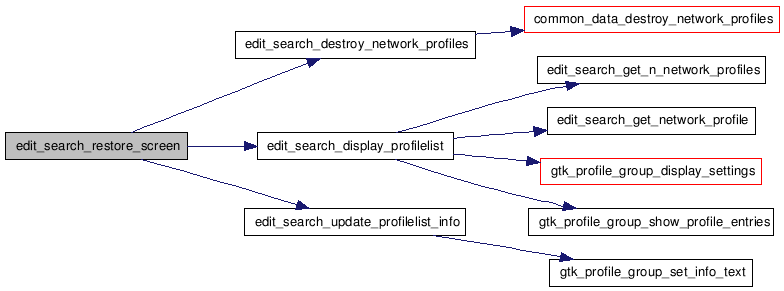

Here is the call graph for this function:

void edit_search_set_text

(

void

)

Definition at line 155 of file editScreenSearch.c.

{
    GtkProfileGroup *profileGroup;
    GtkWidget *widget = NULL;

    CN_LOGPRINTF("entry");

    if (g_search)
    {
        gtk_settingitem_set_header_text(GTK_SETTINGITEM(g_search),
                                        _("Create new wireless network"));
    }

    if (g_options)
    {
        widget = g_options->details->label;
        gtk_label_set_text(GTK_LABEL(widget),
                _("Select a way to create the network."));

        widget = GTK_WIDGET(g_options->details->buttonList[0]);
        gtk_button_set_label(GTK_BUTTON(widget), _("Search"));

        widget = GTK_WIDGET(g_options->details->buttonList[1]);
        gtk_button_set_label(GTK_BUTTON(widget), _("Manually"));
    }

    if (g_known_profiles)
    {
        profileGroup = GTK_PROFILE_GROUP(g_known_profiles);
        gtk_profile_group_set_header_text(profileGroup,
                                          _("Network profiles"));
    }

    if (g_info)
    {
        gtk_infoitem_set_text(GTK_INFOITEM(g_info),
        _("When you click on 'Search' the device will scan for networks.\n"
          "Clicking 'Manually' requires all the settings."));
    }
}

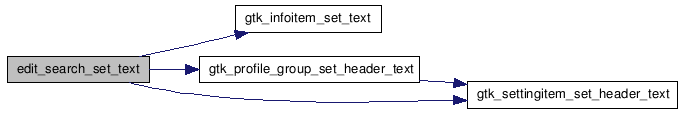

Here is the call graph for this function:

gboolean on_edit_search_keypress

(

GdkEventKey *

event

)

Definition at line 517 of file editScreenSearch.c.

{
    GtkToggleButton *button;
    gboolean ret = FALSE;

    CN_LOGPRINTF("entry");

    switch (event->keyval)
    {
        case GDK_Return:
            // 'Enter' key is pressed
            // simulate clicking the 'Manually' button
            if (g_options)
            {
                button = g_options->details->buttonList[1];
                gtk_toggle_button_set_active(button, TRUE);
            }
            ret = TRUE;
            break;

        case GDK_F5:
            // 'UP' key is pressed
            // goto the one top level page
            cmgr_up_page();
            ret = TRUE;
            break;

        case GDK_Down:
        case GDK_Up:
        case GDK_Page_Down:
        case GDK_Page_Up:
        default:
            erbusy_off();
            break;
    }

    return ret;
}

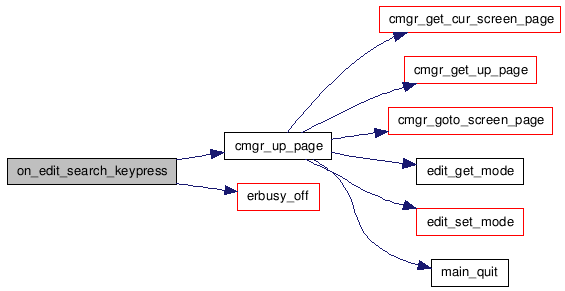

Here is the call graph for this function:
