connectionMgr/inc/widgetUtils.h File Reference

connectionMgr - Some utilities of creating widgets. More...

#include <glib.h>
#include <gtk/gtk.h>
#include <liberregxml/erregapi.h>
#include <libergtk/ergtk.h>
#include "connectPing.h"

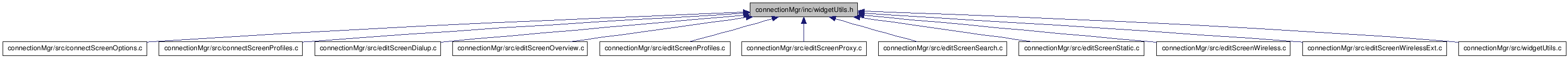

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_wdtLabelEntry
struct	_wdtLabelButton
struct	_bkWdtLabelEntry
struct	_bkWdtLabelButton
struct	_bkProfileEntry
Typedefs
typedef struct _wdtLabelEntry	wdtLabelEntry
typedef struct _wdtLabelButton	wdtLabelButton
typedef struct _bkWdtLabelEntry	bkWdtLabelEntry
typedef struct _bkWdtLabelButton	bkWdtLabelButton
typedef struct _bkProfileEntry	bkProfileEntry
Functions
wdtLabelEntry *	wdt_label_entry_new (entryFilter_e filter)
wdtLabelButton *	wdt_label_button_new (int nbutton, gboolean smallButton, int minsel, int maxsel)
bkWdtLabelEntry *	bk_wdt_label_entry_new (entryFilter_e filter)
bkWdtLabelButton *	bk_wdt_label_button_new (int nbutton, gboolean smallButton, int minsel, int maxsel)
bkProfileEntry *	bk_profile_entry_new (void)
void	bk_profile_entry_display (const bkProfileEntry *item, const regNetworkProfile_t *settings)
void	bk_profile_entry_update_status (const bkProfileEntry *item, pingStatus_t status)

---

Detailed Description

connectionMgr - Some utilities of creating widgets.

These widgets include: (1) The wdtLabelEntry contains one label at first line, and one text entry and one button at second line. (2) The wdtLabelButton contains one label at first line, and some small or normal buttons at second line, and these buttons only can be selected exclusively. (3) The bkWdtLabelEntry contains one wdtLabelEntry in background. (4) The bkWdtLabelButton contains one wdtLabelButton in background. (5) The bkProfileEntry contains one gtkProfileEntry in background.

Annotation: wdt is the abbrev of widget, bk is the abbrev of background.

Copyright (C) 2007 iRex Technologies BV.

Definition in file widgetUtils.h.

---

Typedef Documentation

typedef struct _bkProfileEntry bkProfileEntry

typedef struct _bkWdtLabelButton bkWdtLabelButton

typedef struct _bkWdtLabelEntry bkWdtLabelEntry

typedef struct _wdtLabelButton wdtLabelButton

typedef struct _wdtLabelEntry wdtLabelEntry

---

Function Documentation

void bk_profile_entry_display	(	const bkProfileEntry *	item,
		const regNetworkProfile_t *	settings
	)

Definition at line 372 of file widgetUtils.c.

{
    GtkWidget        *widget;
    networkProfile_t nwSettings;

    g_return_if_fail(item != NULL);
    g_return_if_fail(settings != NULL);

    // display the profile entry
    nwSettings.scanSettings = NULL;

    nwSettings.regSettingsList = g_new0(regNetworkProfile_t*, 1);
    g_return_if_fail(nwSettings.regSettingsList != NULL);

    nwSettings.regSettingsList[0] = (regNetworkProfile_t*)settings;
    nwSettings.regIndexList = NULL;
    nwSettings.nRegProfiles = 1;
    nwSettings.nActiveIndex = 0;

    widget = item->details;
    gtk_profile_entry_display_settings(GTK_PROFILE_ENTRY(widget),
                                       &nwSettings, "");

    g_free(nwSettings.regSettingsList);
    nwSettings.regSettingsList = NULL;
}

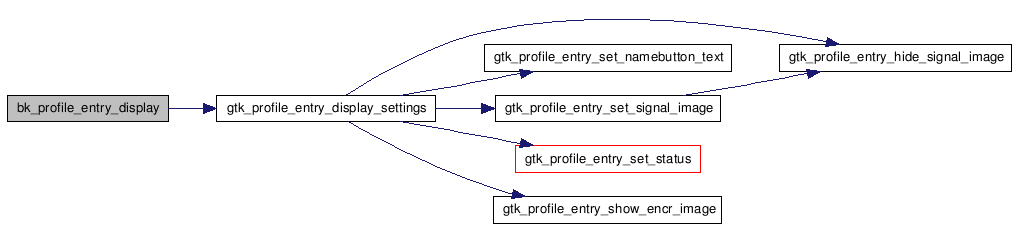

Here is the call graph for this function:

bkProfileEntry* bk_profile_entry_new

(

void

)

Definition at line 332 of file widgetUtils.c.

{
    GtkWidget *background = NULL;
    GtkWidget *alignment = NULL;
    GtkWidget *details = NULL;
    bkProfileEntry *item = NULL;

    CN_LOGPRINTF("entry");

    // background
    background = gtk_event_box_new();
    gtk_widget_set_name(background, "bk_grey_666_75");
    gtk_widget_set_size_request(background,
            SITEM_BK_WIDTH, SITEM_BK_HEIGHT);

    // alignment
    alignment = gtk_alignment_new(0.0, 0.5, 0.0, 0.0);
    gtk_alignment_set_padding(GTK_ALIGNMENT(alignment),
            PADDING_TOP, PADDING_BOTTOM, PADDING_LEFT, PADDING_RIGHT);
    gtk_container_add(GTK_CONTAINER(background), alignment);

    // details
    details = gtk_profile_entry_new();
    g_assert(details != NULL);
    gtk_container_add(GTK_CONTAINER(alignment), details);

    // show widgets
    gtk_widget_show(alignment);
    gtk_widget_show(details);

    // item
    item = g_new0(bkProfileEntry, 1);
    g_assert(item != NULL);
    item->background = background;
    item->details = details;

    // return value
    return item;
}

Here is the call graph for this function:

void bk_profile_entry_update_status	(	const bkProfileEntry *	item,
		pingStatus_t	status
	)

Definition at line 400 of file widgetUtils.c.

{
    gchar     *text;
    gboolean  flashing = FALSE;
    GtkWidget *widget;

    g_return_if_fail(item != NULL);

    switch (status)
    {
        case pingSucceeded_e:
            text = _("Connected");
            break;
        case pingFailed_e:
        case pingFailedPCShare_e:
        case pingFailedNetwork_e:
            text = _("Unsuccessful");
            break;
        case pingSkipped_e:
            text = ("Skipped");
            break;
        case pingNeedKey_e:
            text = _("Security key required");
            break;
        case pingAborted_e:
            text = _("Aborted");
            break;
        case pingAborting_e:
            text = _("Aborting...");
            flashing = TRUE;
            break;
        case pingConnecting_e:
            text = _("Connecting...");
            flashing = TRUE;
            break;
        default:
            text = "";
            break;
    }

    // display the profile entry
    widget = item->details;
    gtk_profile_entry_set_status(GTK_PROFILE_ENTRY(widget), text);
    gtk_profile_entry_set_status_flashing(GTK_PROFILE_ENTRY(widget),
                                          flashing);
}

Here is the call graph for this function:

bkWdtLabelButton* bk_wdt_label_button_new	(	int	nbutton,
		gboolean	smallButton,
		int	minsel,
		int	maxsel
	)

Definition at line 282 of file widgetUtils.c.

{
    GtkWidget *background = NULL;
    GtkWidget *alignment = NULL;
    wdtLabelButton *details = NULL;
    bkWdtLabelButton *item = NULL;

    CN_LOGPRINTF("entry nbutton[%d] smallButton[%d] minsel[%d] maxsel[%d]",
                  nbutton, smallButton, minsel, maxsel);

    // background
    background = gtk_event_box_new();
    gtk_widget_set_name(background, "bk_grey_666_75");
    gtk_widget_set_size_request(background,
            SITEM_BK_WIDTH, SITEM_BK_HEIGHT);

    // alignment
    alignment = gtk_alignment_new(0.0, 0.0, 0.0, 0.0);
    gtk_alignment_set_padding(GTK_ALIGNMENT(alignment),
            PADDING_TOP, PADDING_BOTTOM, PADDING_LEFT, PADDING_RIGHT);
    gtk_container_add(GTK_CONTAINER(background), alignment);

    // details
    details = wdt_label_button_new(nbutton, smallButton, minsel, maxsel);
    g_assert(details != NULL);
    gtk_container_add(GTK_CONTAINER(alignment), details->parent);

    // show widgets
    gtk_widget_show(alignment);
    gtk_widget_show(details->parent);

    // item
    item = g_new0(bkWdtLabelButton, 1);
    g_assert(item != NULL);
    item->background = background;
    item->details = details;

    // return value
    return item;
}

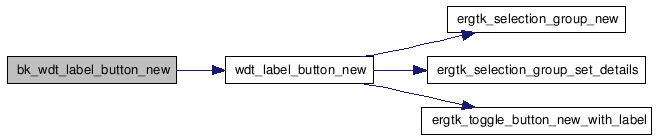

Here is the call graph for this function:

bkWdtLabelEntry* bk_wdt_label_entry_new

(

entryFilter_e

filter

)

Definition at line 234 of file widgetUtils.c.

{
    GtkWidget *background = NULL;
    GtkWidget *alignment = NULL;
    wdtLabelEntry *details = NULL;
    bkWdtLabelEntry *item = NULL;

    CN_LOGPRINTF("entry filter[%d]", filter);

    // background
    background = gtk_event_box_new();
    gtk_widget_set_name(background, "bk_grey_666_75");
    gtk_widget_set_size_request(background,
            SITEM_BK_WIDTH, SITEM_BK_HEIGHT);

    // alignment
    alignment = gtk_alignment_new(0.0, 0.0, 0.0, 0.0);
    gtk_alignment_set_padding(GTK_ALIGNMENT(alignment),
            PADDING_TOP, PADDING_BOTTOM, PADDING_LEFT, PADDING_RIGHT);
    gtk_container_add(GTK_CONTAINER(background), alignment);

    // details
    details = wdt_label_entry_new(filter);
    g_assert(details != NULL);
    gtk_container_add(GTK_CONTAINER(alignment), details->parent);

    // show widgets
    gtk_widget_show(alignment);
    gtk_widget_show(details->parent);

    // item
    item = g_new0(bkWdtLabelEntry, 1);
    g_assert(item != NULL);
    item->background = background;
    item->details = details;

    // return value
    return item;
}

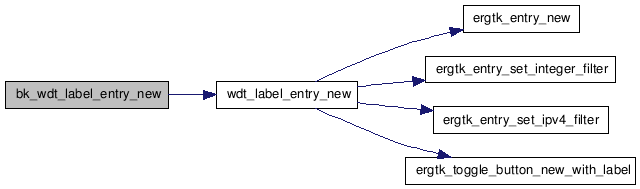

Here is the call graph for this function:

wdtLabelButton* wdt_label_button_new	(	int	nbutton,
		gboolean	smallButton,
		int	minsel,
		int	maxsel
	)

Definition at line 132 of file widgetUtils.c.

{
    GtkWidget *vbox = NULL;
    GtkWidget *label = NULL;
    GtkWidget *hbox = NULL;
    GtkWidget *button = NULL;
    GtkToggleButton **buttonList = NULL;
    GtkWidget *selection = NULL;
    wdtLabelButton *item = NULL;
    int i;
    int spacing = 0, maxSpacing;
    int buttonWidth, buttonHeight;

    CN_LOGPRINTF("entry nbutton[%d] smallButton[%d] minsel[%d] maxsel[%d]",
                  nbutton, smallButton, minsel, maxsel);

    // vbox
    vbox = gtk_vbox_new(FALSE, VBOX_SPACING);

    // label
    label = gtk_label_new("");
    gtk_widget_set_name(label, "info_label");
    gtk_widget_set_size_request(label, LABEL_WIDTH, LABEL_HEIGHT);
    gtk_misc_set_alignment(GTK_MISC(label), 0.0, 0.0);
    gtk_box_pack_start(GTK_BOX(vbox), label, FALSE, FALSE, 0);

    // button size
    if (smallButton)
    {
        buttonWidth = SBUTTON_WIDTH;
        buttonHeight = SBUTTON_HEIGHT;
    }
    else
    {
        buttonWidth = BUTTON_WIDTH;
        buttonHeight = BUTTON_HEIGHT;
    }

    // the spacing among buttons
    if (nbutton > 1)
    {
        spacing = (SITEM_BK_WIDTH - PADDING_LEFT - PADDING_RIGHT
                   - buttonWidth * nbutton)
                  / (nbutton -1);
    }
    maxSpacing = (SITEM_BK_WIDTH - PADDING_LEFT - PADDING_RIGHT
                  - BUTTON_WIDTH * 3) / 2;
    if (spacing > maxSpacing)
    {
        spacing = maxSpacing;
    }

    // hbox
    hbox = gtk_hbox_new(FALSE, spacing);
    gtk_box_pack_start(GTK_BOX(vbox), hbox, FALSE, FALSE, 0);

    // buttonList
    buttonList = g_new0(GtkToggleButton*, nbutton+1);
    g_assert(buttonList != NULL);

    // button
    for (i = 0; i < nbutton; i++)
    {
        button = ergtk_toggle_button_new_with_label("");
        gtk_widget_set_size_request(button, buttonWidth, buttonHeight);
        gtk_box_pack_start(GTK_BOX(hbox), button, FALSE, FALSE, 0);
        buttonList[i] = GTK_TOGGLE_BUTTON(button);
    }
    buttonList[i] = NULL;

    // selection
    selection = ergtk_selection_group_new(buttonList);
    ergtk_selection_group_set_details(ERGTK_SELECTION_GROUP(selection),
                                      minsel, maxsel);

    // show widgets
    gtk_widget_show(label);
    gtk_widget_show_all(hbox);

    // item
    item = g_new0(wdtLabelButton, 1);
    g_assert(item != NULL);

    item->parent = vbox;
    item->label = label;
    item->selection = selection;
    item->buttonList = buttonList;
    item->nbutton = nbutton;

    // return value
    return item;
}

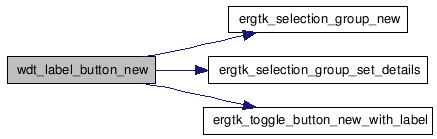

Here is the call graph for this function:

wdtLabelEntry* wdt_label_entry_new

(

entryFilter_e

filter

)

Definition at line 60 of file widgetUtils.c.

{
    GtkWidget *vbox = NULL;
    GtkWidget *label = NULL;
    GtkWidget *hbox = NULL;
    GtkWidget *entry = NULL;
    GtkWidget *button = NULL;
    wdtLabelEntry *item = NULL;
    int spacing = 0;

    CN_LOGPRINTF("entry filter[%d]", filter);

    // vbox
    vbox = gtk_vbox_new(FALSE, VBOX_SPACING);

    // label
    label = gtk_label_new("");
    gtk_widget_set_name(label, "info_label");
    gtk_widget_set_size_request(label, LABEL_WIDTH, LABEL_HEIGHT);
    gtk_misc_set_alignment(GTK_MISC(label), 0.0, 0.0);
    gtk_box_pack_start(GTK_BOX(vbox), label, FALSE, FALSE, 0);

    // hbox
    spacing = SITEM_BK_WIDTH - PADDING_LEFT - PADDING_RIGHT
              - ENTRY_WIDTH - SBUTTON_WIDTH;
    hbox = gtk_hbox_new(FALSE, spacing);
    gtk_box_pack_start(GTK_BOX(vbox), hbox, FALSE, FALSE, 0);

    // entry
    entry = ergtk_entry_new();
    if (filter == ipAddress_e)
    {
        ergtk_entry_set_ipv4_filter(ERGTK_ENTRY(entry));
    }
    else if (filter == integer_e)
    {
        ergtk_entry_set_integer_filter(ERGTK_ENTRY(entry));
    }

    gtk_widget_set_size_request(entry, ENTRY_WIDTH, ENTRY_HEIGHT);
    gtk_box_pack_start(GTK_BOX(hbox), entry, FALSE, FALSE, 0);

    // button
    button = ergtk_toggle_button_new_with_label("");
    gtk_widget_set_size_request(button, SBUTTON_WIDTH, SBUTTON_HEIGHT);
    gtk_box_pack_start(GTK_BOX(hbox), button, FALSE, FALSE, 0);

    // show widgets
    gtk_widget_show(label);
    gtk_widget_show_all(hbox);

    // item
    item = g_new0(wdtLabelEntry, 1);
    g_assert(item != NULL);
    item->parent = vbox;
    item->label = label;
    item->entry = entry;
    item->button = button;

    // return value
    return item;
}

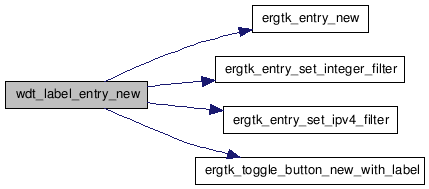

Here is the call graph for this function:
