CPDFLandscapeView Class Reference

#include <PDFLandscapeView.h>

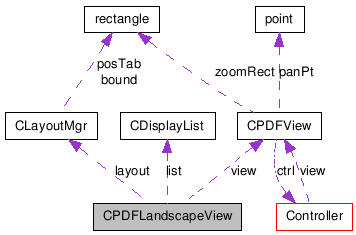

Collaboration diagram for CPDFLandscapeView:

[legend]

List of all members.

Public Member Functions
	CPDFLandscapeView (void)
	~CPDFLandscapeView (void)
void	setView (CPDFView *p)
void	init ()
void	clear ()
void	displayPage (const int pageNumber, const ContinousModeScroll mode=ScrollToPage)
void	ipcCbk (gint *fd, GdkInputCondition id)

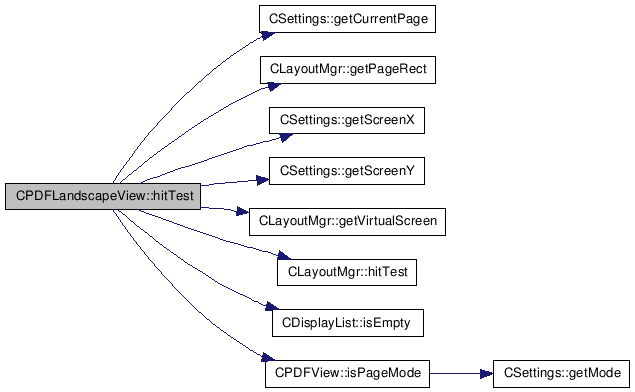

int	hitTest (const int x, const int y, int &ox, int &oy)
GBool	isReady () const
gboolean	buttonPressCbk (GdkEventButton *)

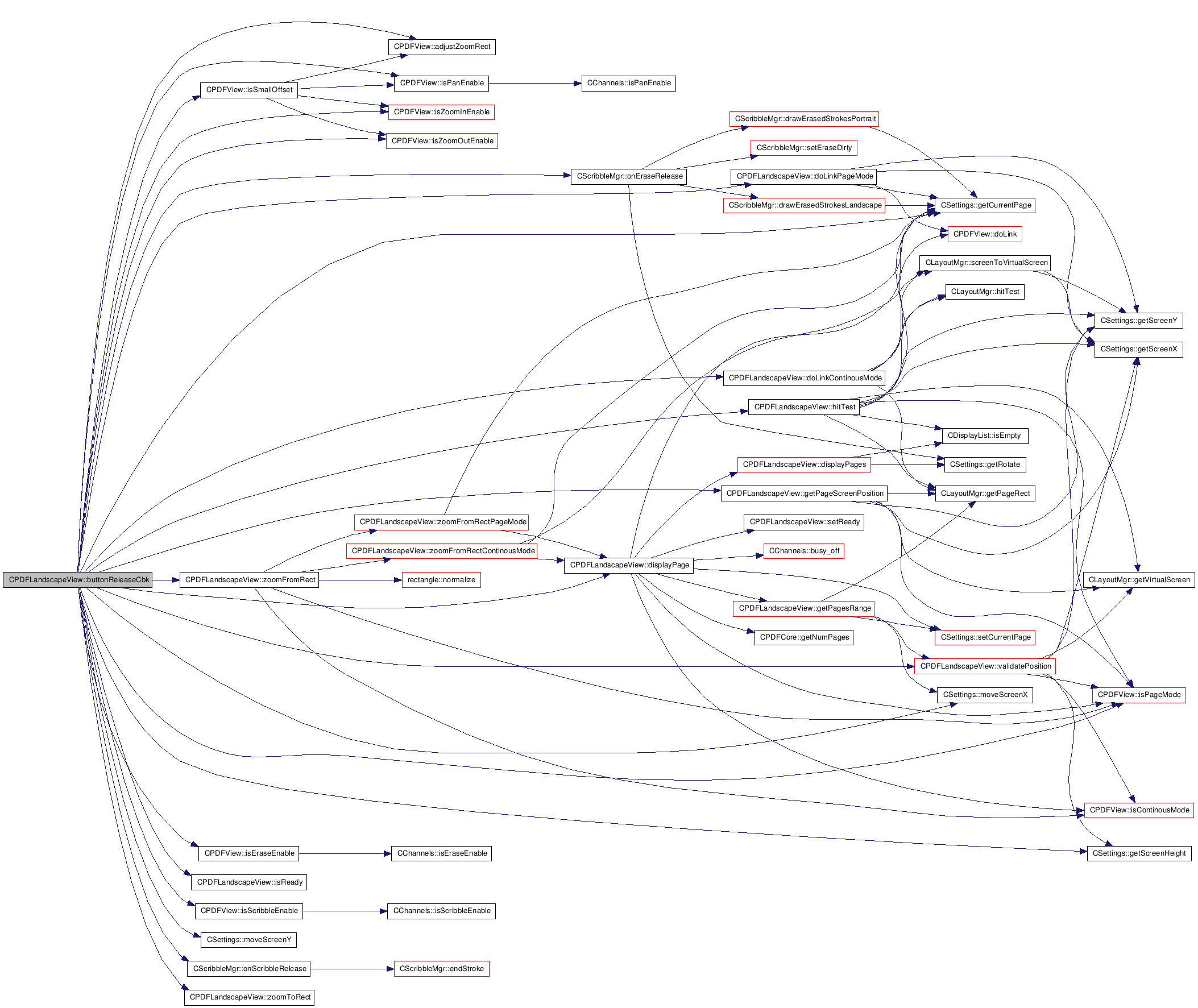

gboolean	buttonReleaseCbk (GdkEventButton *)
gboolean	motionNotifyCbk (GdkEventMotion *)
gboolean	keyPressCbk (GdkEventKey *)
gboolean	deleteCbk (GdkEvent *)
Private Member Functions
void	onPageRendered (const int pageNumber)
void	updateToolbar (CPageInfo *page)
void	updatePagebar ()
void	zoomFromRect (int left, int top, int right, int bottom)
void	zoomToRect (int left, int top, int right, int bottom)
void	switchMode ()
void	drawScribble (const int x, const int y, CPageInfo *page)
void	getPagesRange (int &start, int &end, const int pageNumber, const ContinousModeScroll scroll)

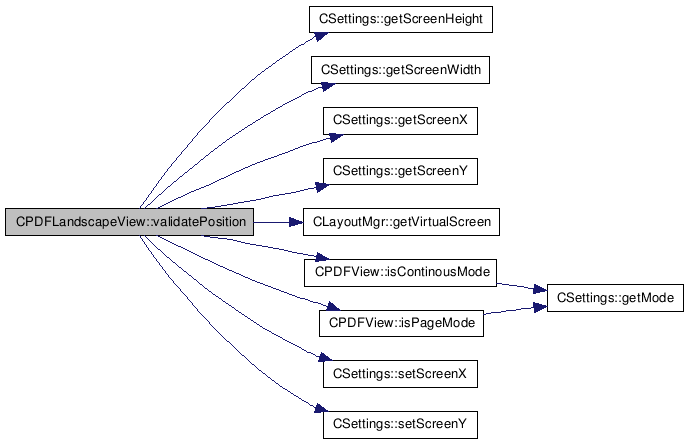

void	validatePosition ()
void	setReady (const GBool b=gTrue)

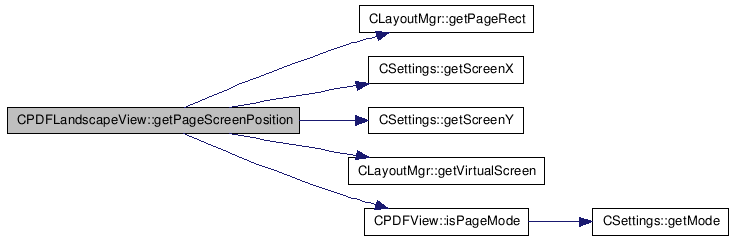

void	getPageScreenPosition (const int pn, int &x, int &y)

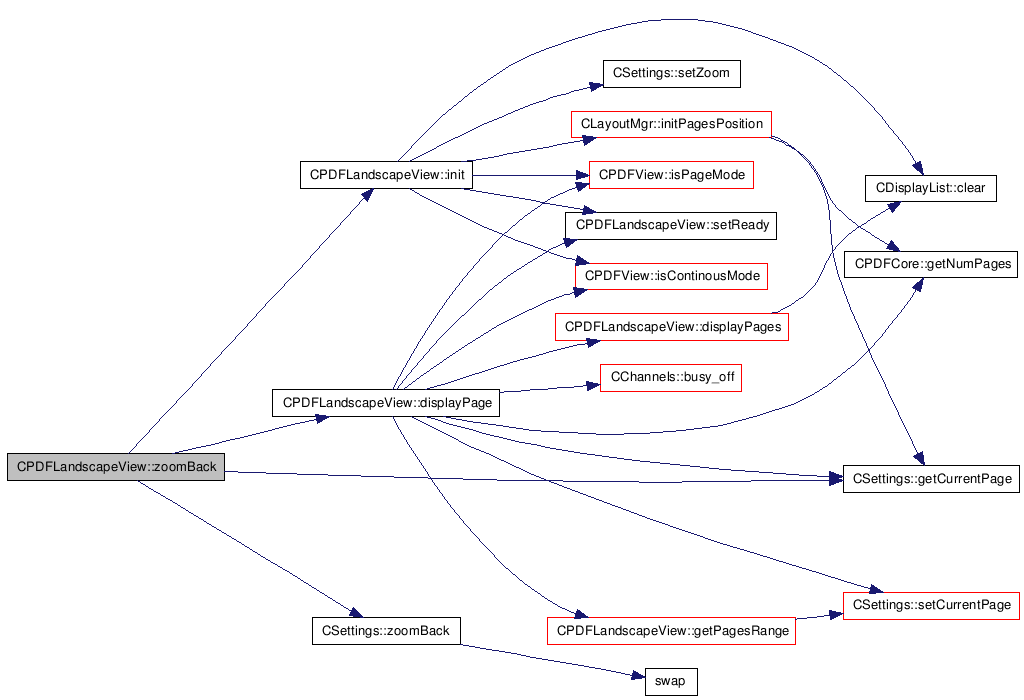

void	zoomBack ()

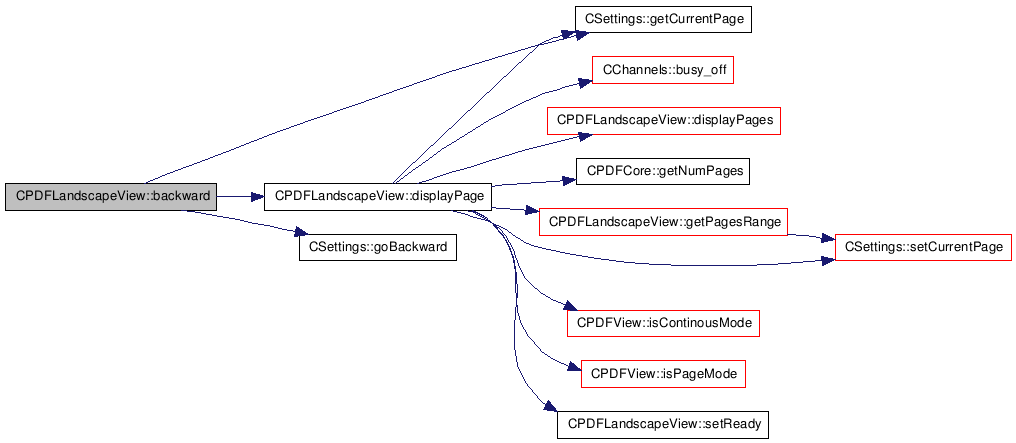

void	backward ()
void	forward ()

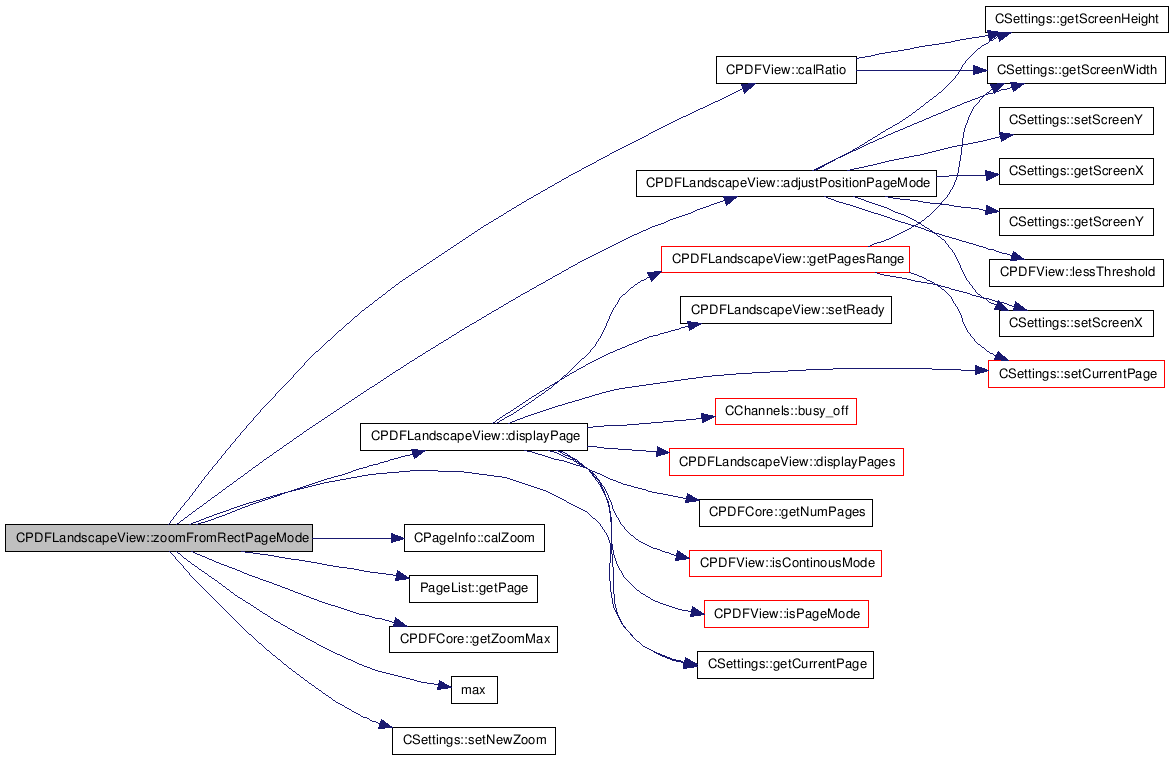

void	zoomFromRectPageMode (rectangle &rect)

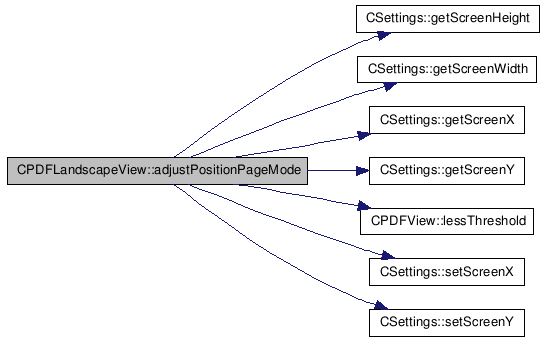

void	adjustPositionPageMode (const rectangle &oldRect, double ratio)

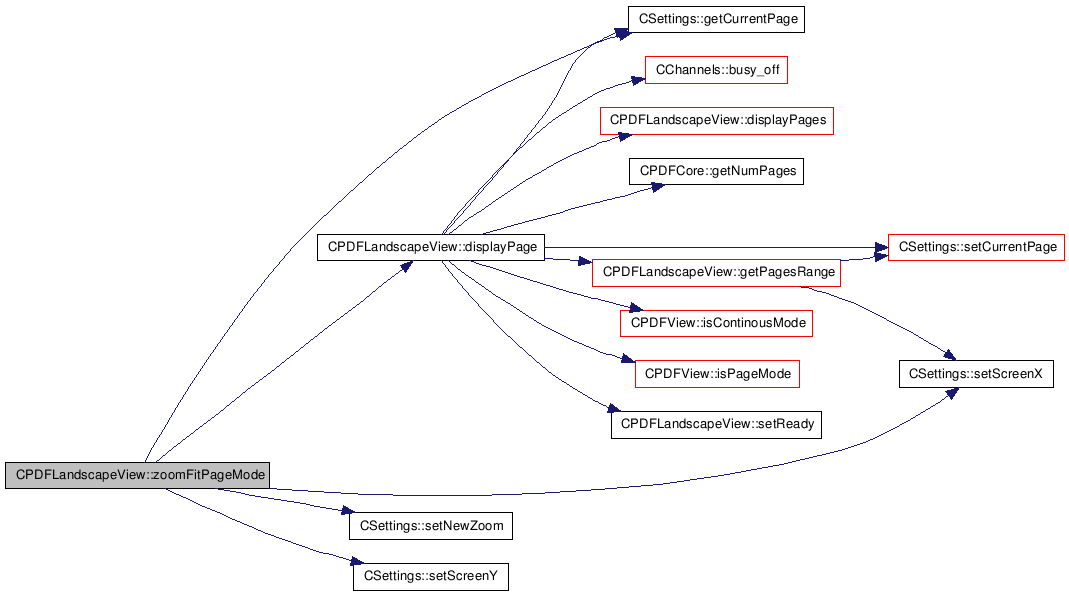

void	zoomFitPageMode ()
GBool	doLinkPageMode (const int x, const int y)

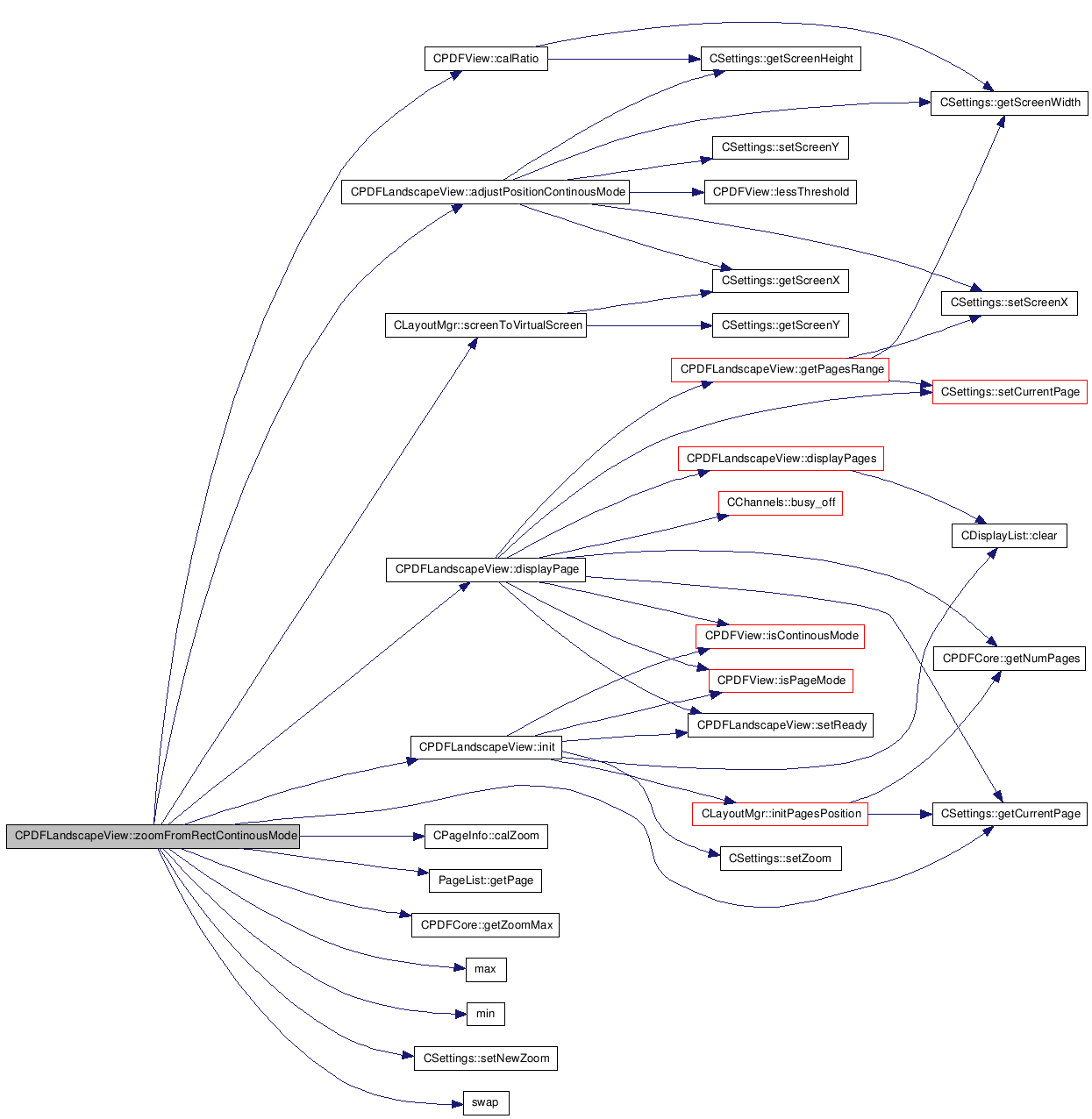

void	zoomFromRectContinousMode (rectangle &rect)

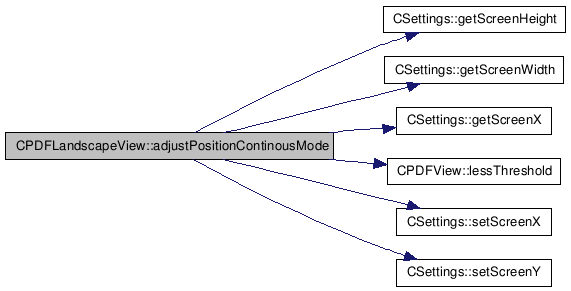

void	adjustPositionContinousMode (const rectangle &oldRect, double ratio)

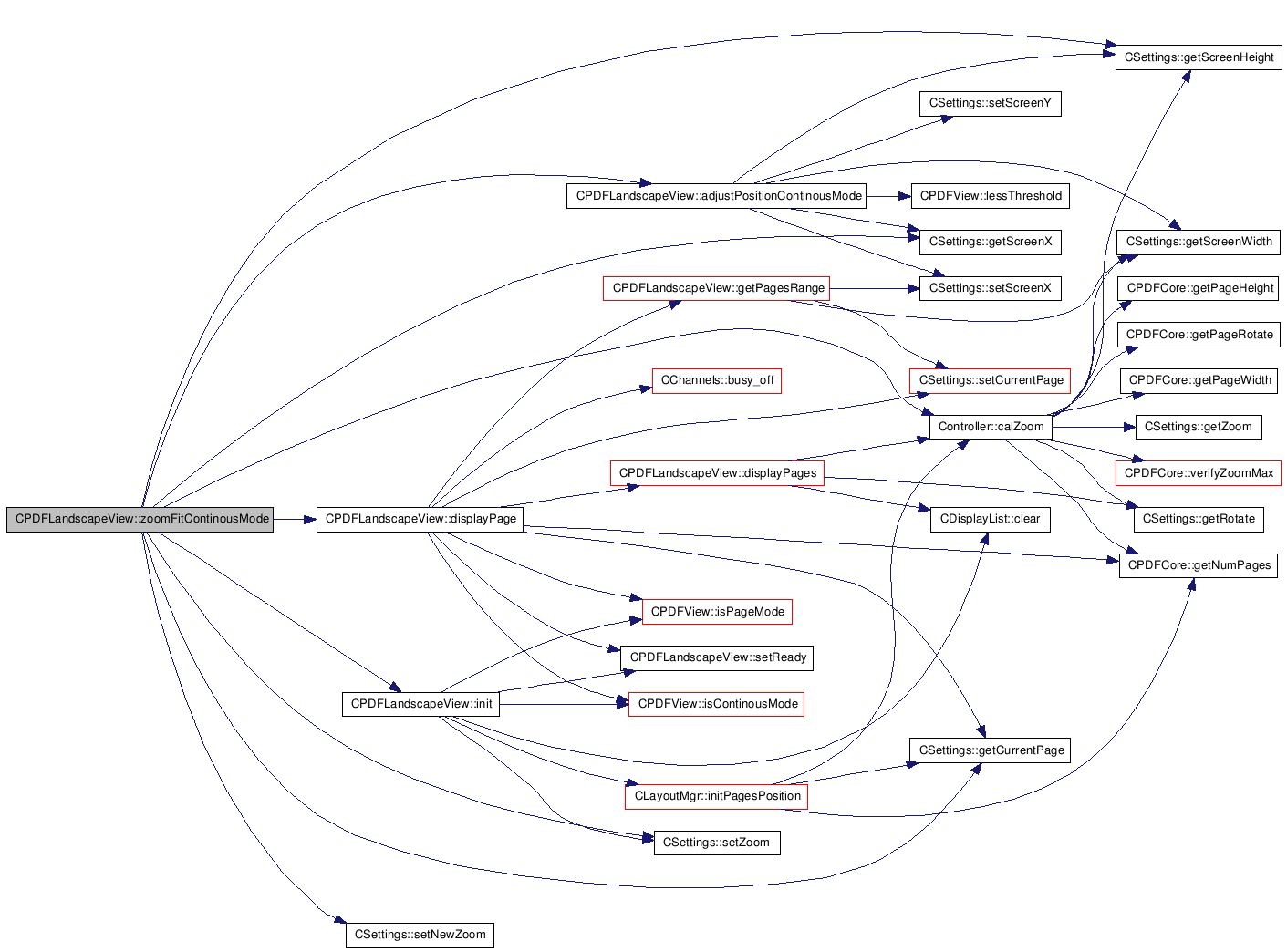

void	zoomFitContinousMode ()
GBool	doLinkContinousMode (const int x, const int y)
void	displayPages (const int start, const int end)
void	drawPages (const int start, const int end)

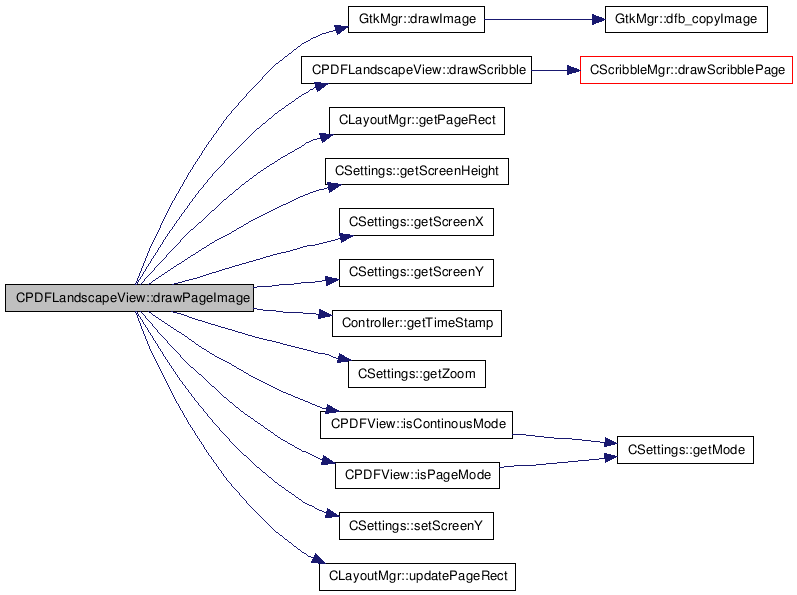

void	drawPageImage (CPageInfo *page)
Private Attributes
CPDFView *	view
CLayoutMgr	layout
CDisplayList	list
int	nStart
int	nEnd
int	nOffset
GBool	bReady

---

Detailed Description

Definition at line 35 of file PDFLandscapeView.h.

---

Constructor & Destructor Documentation

CPDFLandscapeView::CPDFLandscapeView

(

void

)

Definition at line 33 of file PDFLandscapeView.cpp.

: view(NULL)
, nStart(-1)
, nEnd(-1)
, nOffset(100)
, bReady(gFalse)
{
}

CPDFLandscapeView::~CPDFLandscapeView

(

void

)

Definition at line 42 of file PDFLandscapeView.cpp.

{
}

---

Member Function Documentation

void CPDFLandscapeView::onPageRendered

(

const int

pageNumber

)

[private]

Definition at line 342 of file PDFLandscapeView.cpp.

{
    // compare and draw, checkpoint
    if (list.remove(pageNumber))
    {
        if (list.isEmpty())
        {
            drawPages(nStart, nEnd);
        }
    }
}

Here is the call graph for this function:

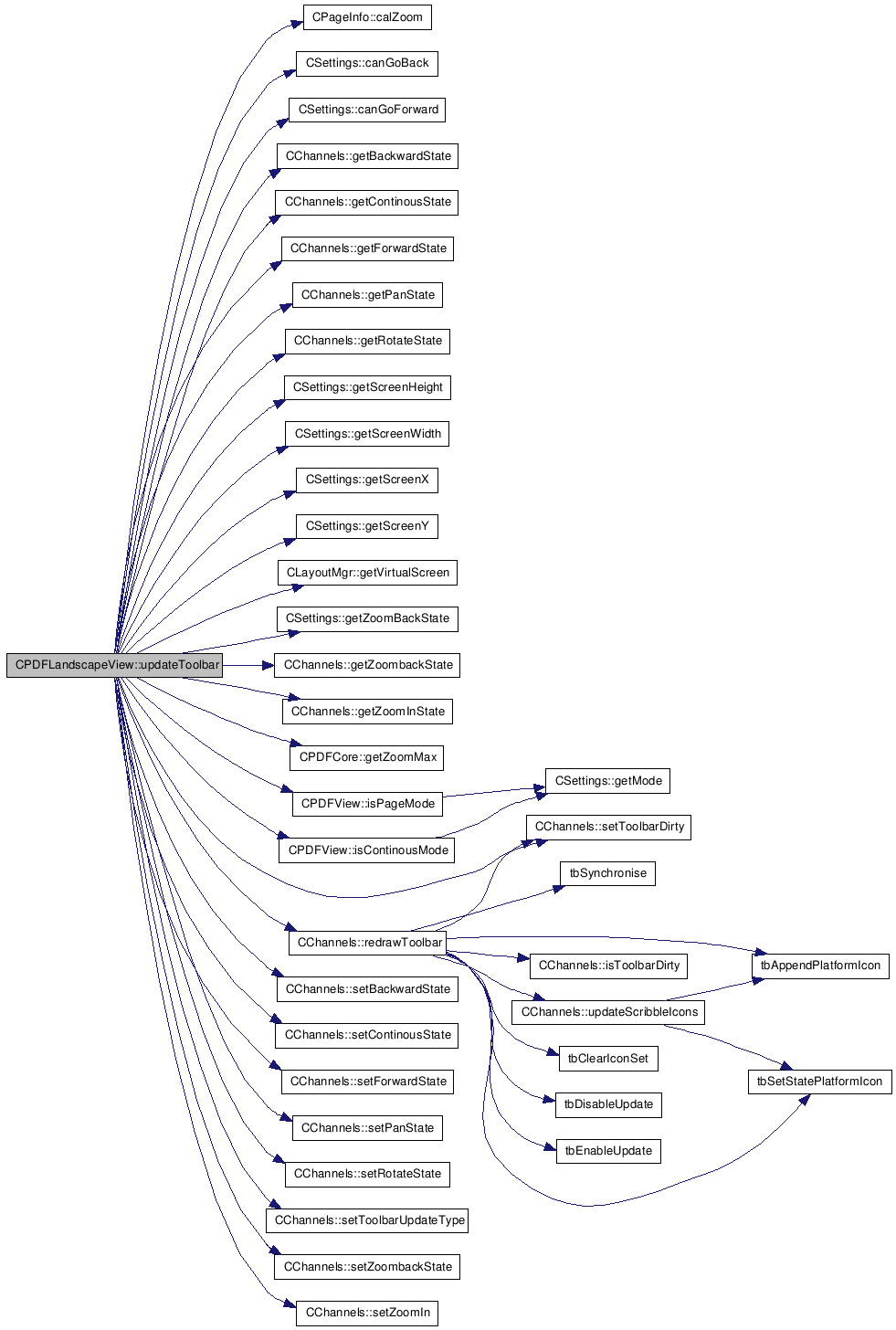

void CPDFLandscapeView::updateToolbar

(

CPageInfo *

page

)

[private]

Definition at line 817 of file PDFLandscapeView.cpp.

{
    GBool bDirty = gFalse;

    // pan
    int w = page->bitmap->getWidth();
    int h = page->bitmap->getHeight();
    rectangle rect;
    layout.getVirtualScreen(rect);
    if ((view->isPageMode() &&
        w <= view->ctrl->settings.getScreenWidth() &&
        h <= view->ctrl->settings.getScreenHeight() &&
        view->ctrl->settings.getScreenX() >= 0 &&
        view->ctrl->settings.getScreenY() >= 0 &&
        view->ctrl->settings.getScreenY() + h <= view->ctrl->settings.getScreenHeight() &&
        view->ctrl->settings.getScreenX() + w <= view->ctrl->settings.getScreenWidth()))
    {
        if (view->ctrl->channels.getPanState() != iconState_grey)
        {
            bDirty = gTrue;
            view->ctrl->channels.setPanState(iconState_grey);
        }
    }
    else if (view->isContinousMode() &&
            rect.right - rect.left <= view->ctrl->settings.getScreenHeight() &&
            rect.bottom - rect.top <= view->ctrl->settings.getScreenWidth() &&
            view->ctrl->channels.getPanState() != iconState_grey)
    {
        bDirty = gTrue;
        view->ctrl->channels.setPanState(iconState_grey);
    }
    else
    {
        if (view->ctrl->channels.getPanState() == iconState_grey)
        {
            bDirty = gTrue;
            view->ctrl->channels.setPanState(iconState_normal);
        }
    }

    // zoom
    double z  = page->calZoom();
    if (z >= view->ctrl->core->getZoomMax(page->pageNumber))
    {
        if (view->ctrl->channels.getZoomInState() != iconState_grey)
        {
            bDirty = gTrue;
            view->ctrl->channels.setZoomIn(iconState_grey);
        }
    }
    else
    {
        if (view->ctrl->channels.getZoomInState() == iconState_grey ||
            view->ctrl->channels.getZoomInState() == iconState_selected)
        {
            bDirty = gTrue;
            view->ctrl->channels.setZoomIn(iconState_normal);
        }
        else if (view->ctrl->channels.getZoomInState() == 3)
        {
            view->ctrl->channels.setZoomIn(iconState_selected);
        }
    }

    // zoom back
    if (view->ctrl->channels.getZoombackState() != view->ctrl->settings.getZoomBackState())
    {
        bDirty = gTrue;
        view->ctrl->channels.setZoombackState(view->ctrl->settings.getZoomBackState());
    }

    /*
    if (z <= ZoomMin)
    {
        if (view->ctrl->channels.getZoomOutState() != iconState_grey)
        {
            bDirty = gTrue;
            view->ctrl->channels.setZoomOut(iconState_grey);
        }
    }
    else
    {
        if (view->ctrl->channels.getZoomOutState() == iconState_grey ||
            view->ctrl->channels.getZoomOutState() == iconState_selected)
        {
            bDirty = gTrue;
            view->ctrl->channels.setZoomOut(iconState_normal);
        }
    }
    */

    // rotate
    if (view->ctrl->channels.getRotateState() != LandscapeToPortrait)
    {
        bDirty = gTrue;
        view->ctrl->channels.setRotateState(LandscapeToPortrait);
    }

    // mode
    if (view->ctrl->channels.getContinousState() == iconState_normal &&
        view->isContinousMode())
    {
        bDirty = gTrue;
        view->ctrl->channels.setContinousState(3);
    }
    else if (view->ctrl->channels.getContinousState() == 3 &&
             view->isPageMode())
    {
        bDirty = gTrue;
        view->ctrl->channels.setContinousState(iconState_normal);
    }

    // backward
    if (view->ctrl->channels.getBackwardState() == iconState_grey &&
        view->ctrl->settings.canGoBack())
    {
        bDirty = gTrue;
        view->ctrl->channels.setBackwardState(iconState_normal);
    }
    else if (view->ctrl->channels.getBackwardState() == iconState_normal &&
        !view->ctrl->settings.canGoBack())
    {
        bDirty = gTrue;
        view->ctrl->channels.setBackwardState(iconState_grey);
    }

    // forward
    if (view->ctrl->channels.getForwardState() == iconState_grey &&
        view->ctrl->settings.canGoForward())
    {
        bDirty = gTrue;
        view->ctrl->channels.setForwardState(iconState_normal);
    }
    else if (view->ctrl->channels.getForwardState() == iconState_normal &&
        !view->ctrl->settings.canGoForward())
    {
        bDirty = gTrue;
        view->ctrl->channels.setForwardState(iconState_grey);
    }

    // update
    if (bDirty)
    {
        view->ctrl->channels.setToolbarDirty();
        view->ctrl->channels.setToolbarUpdateType(dmQFull);
        view->ctrl->updateReq++;
        PV_LOGPRINTF("updateReq %d", view->ctrl->updateReq);
        view->ctrl->channels.redrawToolbar();
    }
    else
    {
        view->ctrl->channels.setToolbarDirty(gFalse);
        view->ctrl->channels.setToolbarUpdateType(dmQUndefined);
    }
}

Here is the call graph for this function:

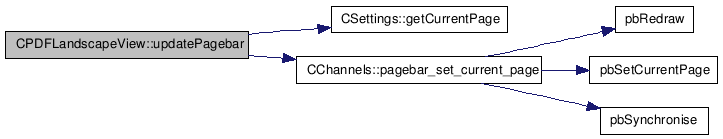

void CPDFLandscapeView::updatePagebar

(

)

[private]

Definition at line 973 of file PDFLandscapeView.cpp.

{
    // increase reference count
    view->ctrl->updateReq++;
    PV_LOGPRINTF("updateReq %d", view->ctrl->updateReq);
    view->ctrl->channels.pagebar_set_current_page(view->ctrl->settings.getCurrentPage());
    // offset. todo
}

Here is the call graph for this function:

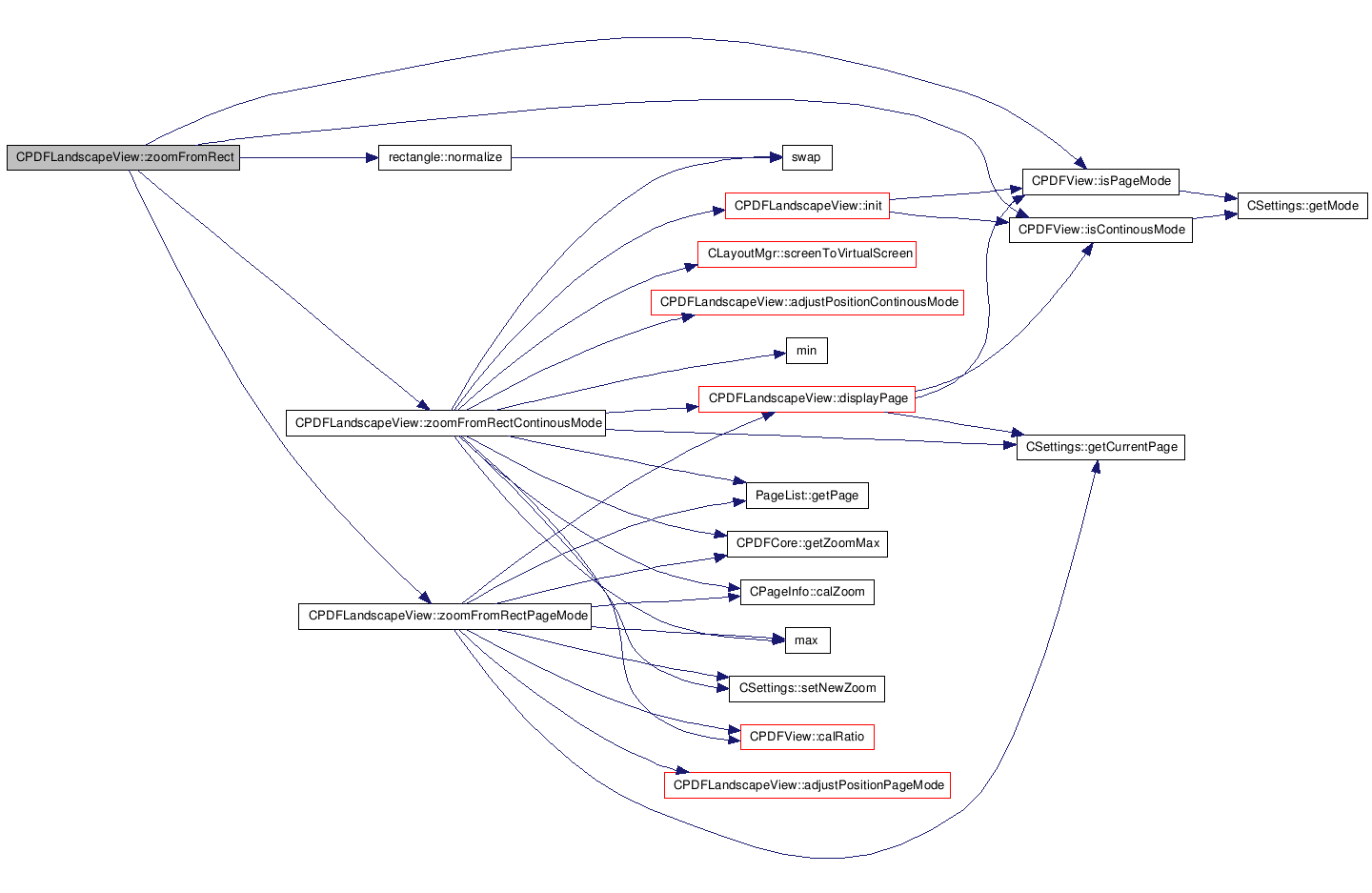

void CPDFLandscapeView::zoomFromRect	(	int	left,
		int	top,
		int	right,
		int	bottom
	)			[private]

Definition at line 989 of file PDFLandscapeView.cpp.

{
    rectangle rect;
    rect.left = left; rect.top = top; rect.right = right; rect.bottom = bottom;
    rect.normalize();
    if (view->isPageMode())
    {
        zoomFromRectPageMode(rect);
    }
    else if (view->isContinousMode())
    {
        zoomFromRectContinousMode(rect);
    }
}

Here is the call graph for this function:

void CPDFLandscapeView::zoomToRect	(	int	left,
		int	top,
		int	right,
		int	bottom
	)			[private]

Definition at line 1099 of file PDFLandscapeView.cpp.

{
    /*
    // check rectangle and normalize rectangle
    if (left > right) { int tmp = left; left = right; right = tmp; }
    if (top > bottom) { int tmp = top; top = bottom; bottom = tmp; }
    PV_LOGPRINTF("Zoom To rectangle (%d %d)-(%d %d)", left, top, right, bottom);

    double ratio = 1.0;
    CPageInfo * page = view->ctrl->pageList.getPage(view->ctrl->settings.getCurrentPage());
    rectangle rect;
    rect.left = left; rect.top = top; rect.right = right; rect.bottom = bottom;

    if (left == right || top == bottom)
    {
        PV_LOGPRINTF("Rectangle is empty!");
        ratio = ZoomMin / page->calZoom();
        view->ctrl->settings.setNewZoom(ZoomMin);
        adjustPosition(rect, ratio);
    }
    else
    {
        // calcuate zoom factor from dpi: dpi = 0.01 * zoomA * 72
        // zoom and then calcuate the new position
        ratio = view->calRatio(rect, gFalse);
        view->ctrl->settings.setZoom(page->calZoom() * ratio);
        if (view->ctrl->settings.getZoom() >= view->ctrl->core->getZoomMax(page->pageNumber))
        {
            view->ctrl->settings.setNewZoom(view->ctrl->core->getZoomMax(page->pageNumber));
            ratio = view->ctrl->core->getZoomMax(page->pageNumber) / page->calZoom();
        }
        else if (view->ctrl->settings.getZoom() <= ZoomMin)
        {
            view->ctrl->settings.setNewZoom(ZoomMin);
            ratio = ZoomMin / page->calZoom();
        }
        else
        {
            view->ctrl->settings.setNewZoom(view->ctrl->settings.getZoom());
        }
        adjustPosition( rect, ratio);
    }
    displayPage(view->ctrl->settings.getCurrentPage());
    */
}

void CPDFLandscapeView::switchMode

(

)

[private]

Definition at line 1288 of file PDFLandscapeView.cpp.

{
    // we should redraw when mode is changed
    if (view->isPageMode())
    {
        // from page mode to continous mode
        view->setContinousMode();

        // reset page position
        init();
        // adjust position
        rectangle rect;
        layout.getPageRect(view->ctrl->settings.getCurrentPage(), rect);
        int y = view->ctrl->settings.getScreenY();
        view->ctrl->settings.setScreenY(rect.left - y);
    }
    else if (view->isContinousMode())
    {
        // from continous mode to page mode
        view->setPageMode();

        // adjust position, in page mode, display page from top or from offset?
        rectangle rect;
        layout.getPageRect(view->ctrl->settings.getCurrentPage(), rect);
        view->ctrl->settings.setScreenX(0);
        int y = view->ctrl->settings.getScreenY();
        view->ctrl->settings.setScreenY(rect.left - y);
    }

    // disable zoomback
    view->ctrl->settings.disableZoomBack();

    displayPage(view->ctrl->settings.getCurrentPage());
}

Here is the call graph for this function:

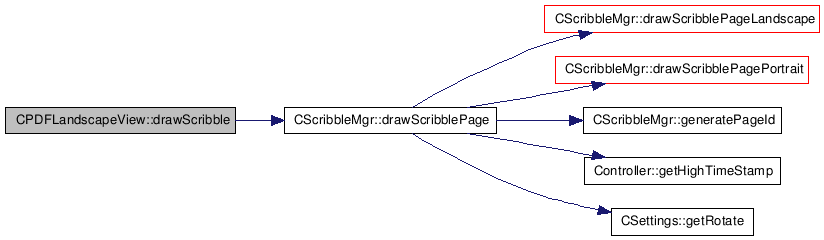

void CPDFLandscapeView::drawScribble	(	const int	x,
		const int	y,
		CPageInfo *	page
	)			[private]

Definition at line 1426 of file PDFLandscapeView.cpp.

{
    view->ctrl->scbMgr.drawScribblePage(page->pageNumber,
        view->ctrl, x, y);
}

Here is the call graph for this function:

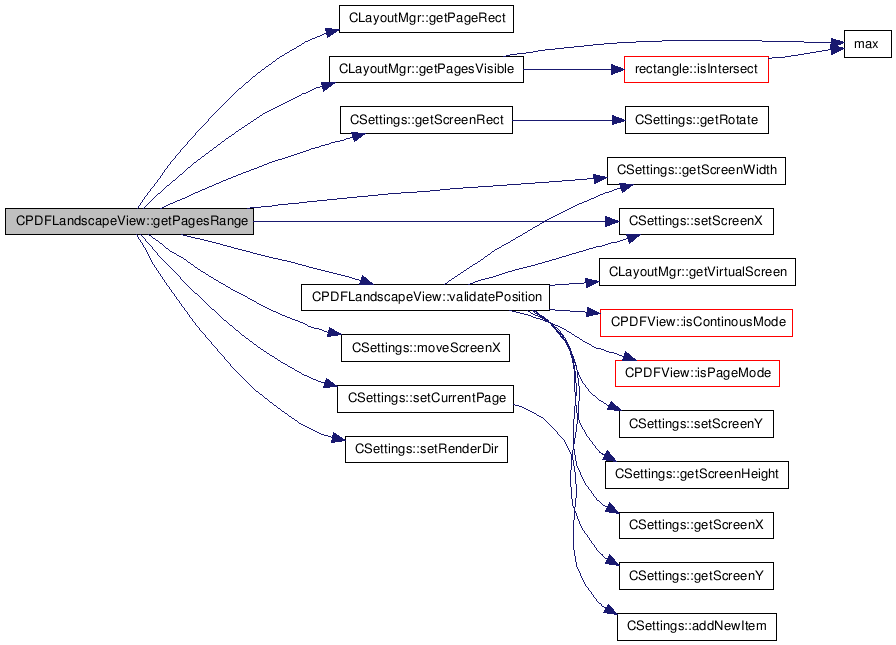

void CPDFLandscapeView::getPagesRange	(	int &	start,
		int &	end,
		const int	pageNumber,
		const ContinousModeScroll	scroll
	)			[private]

Definition at line 702 of file PDFLandscapeView.cpp.

{
    rectangle rect;
    if (scroll == ScrollToPage)
    {
        layout.getPageRect(pageNumber,rect);
        rect.bottom = rect.top + view->ctrl->settings.getScreenWidth();
        view->ctrl->settings.setScreenX(rect.top);
        view->ctrl->settings.setCurrentPage(layout.getPagesVisible(start, end, rect));
        return;
    }

    if (scroll == ScrollToNextPage)
    {
        view->ctrl->settings.moveScreenX(view->ctrl->settings.getScreenWidth() - PageRepeat);
        validatePosition();
        view->ctrl->settings.getScreenRect(rect);
        view->ctrl->settings.setCurrentPage(layout.getPagesVisible(start, end, rect));
        return;
    }

    if (scroll == ScrollToPrevPage)
    {
        view->ctrl->settings.moveScreenX(PageRepeat - view->ctrl->settings.getScreenWidth());
        validatePosition();
        view->ctrl->settings.getScreenRect(rect);
        view->ctrl->settings.setCurrentPage(layout.getPagesVisible(start, end, rect));
        return;
    }

    if (scroll == ScrollToPosition)
    {
        // position is ready, need check
        validatePosition();
        view->ctrl->settings.getScreenRect(rect);

        // when scroll, should pay attention to render direction
        int n = layout.getPagesVisible(start, end, rect);
        if (n < view->ctrl->settings.getCurrentPage())
        {
            view->ctrl->settings.setRenderDir(RenderPrev);
        }
        else
        {
            view->ctrl->settings.setRenderDir(RenderNext);
        }
        view->ctrl->settings.setCurrentPage(n);
        return;
    }

    if (scroll == ScrollToNextPages)
    {
        view->ctrl->settings.moveScreenX(view->ctrl->settings.getScreenWidth() * JumpWidth);
        validatePosition();
        view->ctrl->settings.getScreenRect(rect);
        view->ctrl->settings.setCurrentPage(layout.getPagesVisible(start, end, rect));
        return;
    }

    if (scroll == ScrollToPrevPages)
    {
        view->ctrl->settings.moveScreenX(- JumpWidth * view->ctrl->settings.getScreenWidth());
        validatePosition();
        view->ctrl->settings.getScreenRect(rect);
        view->ctrl->settings.setCurrentPage(layout.getPagesVisible(start, end, rect));
        return;
    }


    if (scroll == ScrollRedraw)
    {
        start = nStart; end = nEnd;
    }
}

Here is the call graph for this function:

void CPDFLandscapeView::validatePosition

(

)

[private]

Definition at line 1214 of file PDFLandscapeView.cpp.

{
    rectangle rect;
    int w = 0;
    layout.getVirtualScreen(rect);
    if (view->isContinousMode())
    {
        w = rect.right - rect.left;
        if (w > view->ctrl->settings.getScreenHeight())
        {
            if (view->ctrl->settings.getScreenY() < rect.left + Margin)
            {
                view->ctrl->settings.setScreenY(rect.left + Margin);
            }
            else if (view->ctrl->settings.getScreenY() >
            rect.right - view->ctrl->settings.getScreenHeight() - Margin)
            {
                view->ctrl->settings.setScreenY(rect.right - view->ctrl->settings.getScreenHeight() - Margin);
            }
        }
        else
        {
            view->ctrl->settings.setScreenY((w - view->ctrl->settings.getScreenHeight()) / 2);
        }

        if (view->ctrl->settings.getScreenX() < rect.top + Margin)
        {
            view->ctrl->settings.setScreenX(rect.top + Margin);
        }
        else if (view->ctrl->settings.getScreenX() + view->ctrl->settings.getScreenWidth() > rect.bottom - Margin)
        {
            view->ctrl->settings.setScreenX(rect.bottom - view->ctrl->settings.getScreenWidth() - Margin);
        }
    }
    else if (view->isPageMode())
    {
        // here, rect is the page image rect
        w = rect.right - rect.left;
        int h = rect.bottom - rect.top;
        if ( h > view->ctrl->settings.getScreenHeight())
        {
            if (view->ctrl->settings.getScreenY() > -Margin)
            {
                view->ctrl->settings.setScreenY(-Margin);
            }
            else if (view->ctrl->settings.getScreenY() <
                view->ctrl->settings.getScreenHeight() - h + Margin)
            {
                view->ctrl->settings.setScreenY(view->ctrl->settings.getScreenHeight() - h + Margin);
            }
        }
        else
        {
            view->ctrl->settings.setScreenY((view->ctrl->settings.getScreenHeight() - h) /2 );
        }

        if (w > view->ctrl->settings.getScreenWidth())
        {
            if (view->ctrl->settings.getScreenX() > -Margin)
            {
                view->ctrl->settings.setScreenX(-Margin);
            }
            else if (view->ctrl->settings.getScreenX() < view->ctrl->settings.getScreenWidth() - w + Margin)
            {
                view->ctrl->settings.setScreenX(view->ctrl->settings.getScreenWidth() - w + Margin);
            }
        }
        else
        {
            view->ctrl->settings.setScreenX((view->ctrl->settings.getScreenWidth() - w) / 2);
        }
    }
}

Here is the call graph for this function:

void CPDFLandscapeView::setReady

(

const GBool

b = gTrue

)

[inline, private]

Definition at line 59 of file PDFLandscapeView.h.

{ bReady = b; }

void CPDFLandscapeView::getPageScreenPosition	(	const int	pn,
		int &	x,
		int &	y
	)			[private]

Definition at line 324 of file PDFLandscapeView.cpp.

{
    if (view->isPageMode())
    {
        x = layout.getVirtualScreen().left;
        y = layout.getVirtualScreen().bottom;
    }
    else
    {
        rectangle rect;
        layout.getPageRect(pn, rect);
        x = rect.top - view->ctrl->settings.getScreenX();
        y = rect.left - view->ctrl->settings.getScreenY();
        y += (rect.right - rect.left);
    }

}

Here is the call graph for this function:

void CPDFLandscapeView::zoomBack

(

)

[private]

Definition at line 619 of file PDFLandscapeView.cpp.

{
    if (!view->ctrl->settings.zoomBack())
    {
        return;
    }

    init();

    displayPage(view->ctrl->settings.getCurrentPage(), ScrollToPosition);
}

Here is the call graph for this function:

void CPDFLandscapeView::backward

(

)

[private]

Definition at line 631 of file PDFLandscapeView.cpp.

{
    HistoryItemPtr ptr = view->ctrl->settings.goBackward();
    if (ptr)
    {
        displayPage(view->ctrl->settings.getCurrentPage(), ScrollToPage);
    }
}

Here is the call graph for this function:

void CPDFLandscapeView::forward

(

)

[private]

Definition at line 640 of file PDFLandscapeView.cpp.

{
    HistoryItemPtr ptr = view->ctrl->settings.goForward();
    if (ptr)
    {
        displayPage(view->ctrl->settings.getCurrentPage(), ScrollToPage);
    }
}

Here is the call graph for this function:

void CPDFLandscapeView::zoomFromRectPageMode

(

rectangle &

rect

)

[private]

Definition at line 1004 of file PDFLandscapeView.cpp.

{
    // tmp var
    double ratio = 1.0, max = 1.0, z = 1.0, tmp = 1.0;

    // get page info
    CPageInfo * page = view->ctrl->pageList.getPage(view->ctrl->settings.getCurrentPage());
    max = view->ctrl->core->getZoomMax(page->pageNumber);
    z   = page->calZoom();
    ratio = view->calRatio(rect);

    // calcuate zoom factor from dpi: dpi = 0.01 * zoomA * 72
    // zoom and then calcuate the new position
    tmp = z * ratio;
    if (tmp >= max)
    {
        view->ctrl->settings.setNewZoom(max);
        ratio = max / z;
    }
    else if (tmp <= ZoomMin)
    {
        view->ctrl->settings.setNewZoom(ZoomMin);
        ratio = ZoomMin / z;
    }
    else
    {
        view->ctrl->settings.setNewZoom(tmp);
    }

    // center the rectangle
    adjustPositionPageMode(rect, ratio);

    // display it with new zoom factor
    displayPage(view->ctrl->settings.getCurrentPage());
}

Here is the call graph for this function:

void CPDFLandscapeView::adjustPositionPageMode	(	const rectangle &	oldRect,
		double	ratio
	)			[private]

Definition at line 1147 of file PDFLandscapeView.cpp.

{
    // old offset
    int offsetX = 0, offsetY = 0;
    point oldCenter, newCenter;
    oldCenter.x = (oldRect.left + oldRect.right) / 2;
    oldCenter.y = (oldRect.top + oldRect.bottom) / 2;
    offsetX = oldCenter.x - view->ctrl->settings.getScreenX();
    offsetY = oldCenter.y - view->ctrl->settings.getScreenY();

    // calculate new rect
    rectangle newRect;
    int width  = (int)((double)(oldRect.right - oldRect.left) * ratio);
    int height = (int)((double)(oldRect.bottom - oldRect.top) * ratio);
    newRect.top = (view->ctrl->settings.getScreenHeight() - height) / 2;
    newRect.bottom = newRect.top + height;
    newRect.left = (view->ctrl->settings.getScreenWidth() - width) /2;
    newRect.right = newRect.left + width;

    // offset
    newCenter.y = (newRect.top + newRect.bottom) / 2;
    if (SmallNone != view->lessThreshold(oldRect))
    {
        newCenter.x =  oldCenter.x - (int)((double)offsetX * ratio);
    }
    else
    {
        newCenter.x = (newRect.left + newRect.right) / 2;
        newCenter.x -= (int)((double)offsetX * ratio);
    }

    view->ctrl->settings.setScreenX(newCenter.x );
    view->ctrl->settings.setScreenY(newCenter.y - (int)((double)offsetY * ratio));
}

Here is the call graph for this function:

void CPDFLandscapeView::zoomFitPageMode

(

)

[private]

Definition at line 1325 of file PDFLandscapeView.cpp.

{
    // update settings, reset the screen position
    view->ctrl->settings.setNewZoom(ZoomPage);
    view->ctrl->settings.setScreenX(0);
    view->ctrl->settings.setScreenY(0);
    displayPage(view->ctrl->settings.getCurrentPage());
}

Here is the call graph for this function:

GBool CPDFLandscapeView::doLinkPageMode	(	const int	x,
		const int	y
	)			[private]

Definition at line 1399 of file PDFLandscapeView.cpp.

{
    return view->doLink(view->ctrl->settings.getCurrentPage(),
        x - view->ctrl->settings.getScreenX(),
        y - view->ctrl->settings.getScreenY());
}

Here is the call graph for this function:

void CPDFLandscapeView::zoomFromRectContinousMode

(

rectangle &

rect

)

[private]

Definition at line 1045 of file PDFLandscapeView.cpp.

{
    // tmp var
    double ratio = 1.0, max = 1.0, min = 99999.0, z = 1.0, tmp = 1.0;

    // convert from screen to virtual screen
    layout.screenToVirtualScreen(view->ctrl, rect);

    // get max and min zoom factor for all visible pages
    int pn = nStart;
    CPageInfo * page = NULL;
    while (pn <= nEnd)
    {
        tmp = view->ctrl->core->getZoomMax(pn);
        if (max < tmp) max = tmp;

        // actually, should check which page is selected. todo
        page = view->ctrl->pageList.getPage(pn);
        tmp  = page->calZoom();
        if (min > tmp) min = tmp;
        ++pn;
    }
    z = min;
    ratio = view->calRatio(rect);

    // calcuate zoom factor from dpi: dpi = 0.01 * zoomA * 72
    // zoom and then calcuate the new position
    tmp = z * ratio;
    if (tmp >= max)
    {
        view->ctrl->settings.setNewZoom(max);
        ratio = max / z;
    }
    else if (tmp <= ZoomMin)
    {
        view->ctrl->settings.setNewZoom(ZoomMin);
        ratio = ZoomMin / z;
    }
    else
    {
        view->ctrl->settings.setNewZoom(tmp);
    }

    // reset
    init();

    // center the rectangle for continous mode
    swap(rect.left, rect.top); swap(rect.right, rect.bottom);
    adjustPositionContinousMode(rect, ratio);

    // display it with new zoom factor
    displayPage(view->ctrl->settings.getCurrentPage(), ScrollToPosition);
}

Here is the call graph for this function:

void CPDFLandscapeView::adjustPositionContinousMode	(	const rectangle &	oldRect,
		double	ratio
	)			[private]

Definition at line 1184 of file PDFLandscapeView.cpp.

{
    // calculate the center point & offset
    int x = 0, y = 0, offset = 0;
    point oldCenter, newCenter;
    oldCenter.x = (oldRect.left + oldRect.right) / 2;
    oldCenter.y = (oldRect.top + oldRect.bottom) / 2;
    offset = oldCenter.y - view->ctrl->settings.getScreenX();
    x = (int)((double)oldCenter.x * ratio);
    y = (int)((double)oldCenter.y * ratio);

    // new center point
    newCenter.x = x - view->ctrl->settings.getScreenHeight() / 2;
    if (SmallNone == view->lessThreshold(oldRect))
    {
        newCenter.y = y - view->ctrl->settings.getScreenWidth() / 2;
    }
    else
    {
        newCenter.y = y - offset;   // do not change offset
    }

    // update screen position
    view->ctrl->settings.setScreenX(newCenter.y);
    view->ctrl->settings.setScreenY(newCenter.x);
}

Here is the call graph for this function:

void CPDFLandscapeView::zoomFitContinousMode

(

)

[private]

Definition at line 1336 of file PDFLandscapeView.cpp.

{
    // calculate ratio
    double oldZoom = view->ctrl->calZoom(view->ctrl->settings.getCurrentPage());
    view->ctrl->settings.setZoom(ZoomPage);     // maybe use ZoomWidth
    double newZoom = view->ctrl->calZoom(view->ctrl->settings.getCurrentPage());
    view->ctrl->settings.setZoom(oldZoom);
    view->ctrl->settings.setNewZoom(newZoom);
    double ratio = newZoom / oldZoom;

    // get current virtual screen
    rectangle rect;
    rect.left = 0; rect.right = view->ctrl->settings.getScreenHeight();
    rect.top = view->ctrl->settings.getScreenX();
    rect.bottom = view->ctrl->settings.getScreenX();

    // reset page position list
    init();

    // adjust
    adjustPositionContinousMode(rect, ratio);

    // display
    displayPage(view->ctrl->settings.getCurrentPage(), ScrollToPosition);
}

Here is the call graph for this function:

GBool CPDFLandscapeView::doLinkContinousMode	(	const int	x,
		const int	y
	)			[private]

Definition at line 1407 of file PDFLandscapeView.cpp.

{
    point pt; pt.x = x; pt.y = y;
    layout.screenToVirtualScreen(view->ctrl, pt);
    int pn = layout.hitTest(pt.y, pt.x, nStart, nEnd);
    if (pn < 0)
    {
        return gFalse;
    }
    rectangle rect;
    layout.getPageRect(pn, rect);
    // pt.x = rect.top - view->ctrl->settings.getScreenX(); pt.x = x - pt.x;
    // pt.y = rect.left - view->ctrl->settings.getScreenY(); pt.y = y - pt.y;
    return view->doLink(pn, pt.x - rect.top, pt.y - rect.left);
}

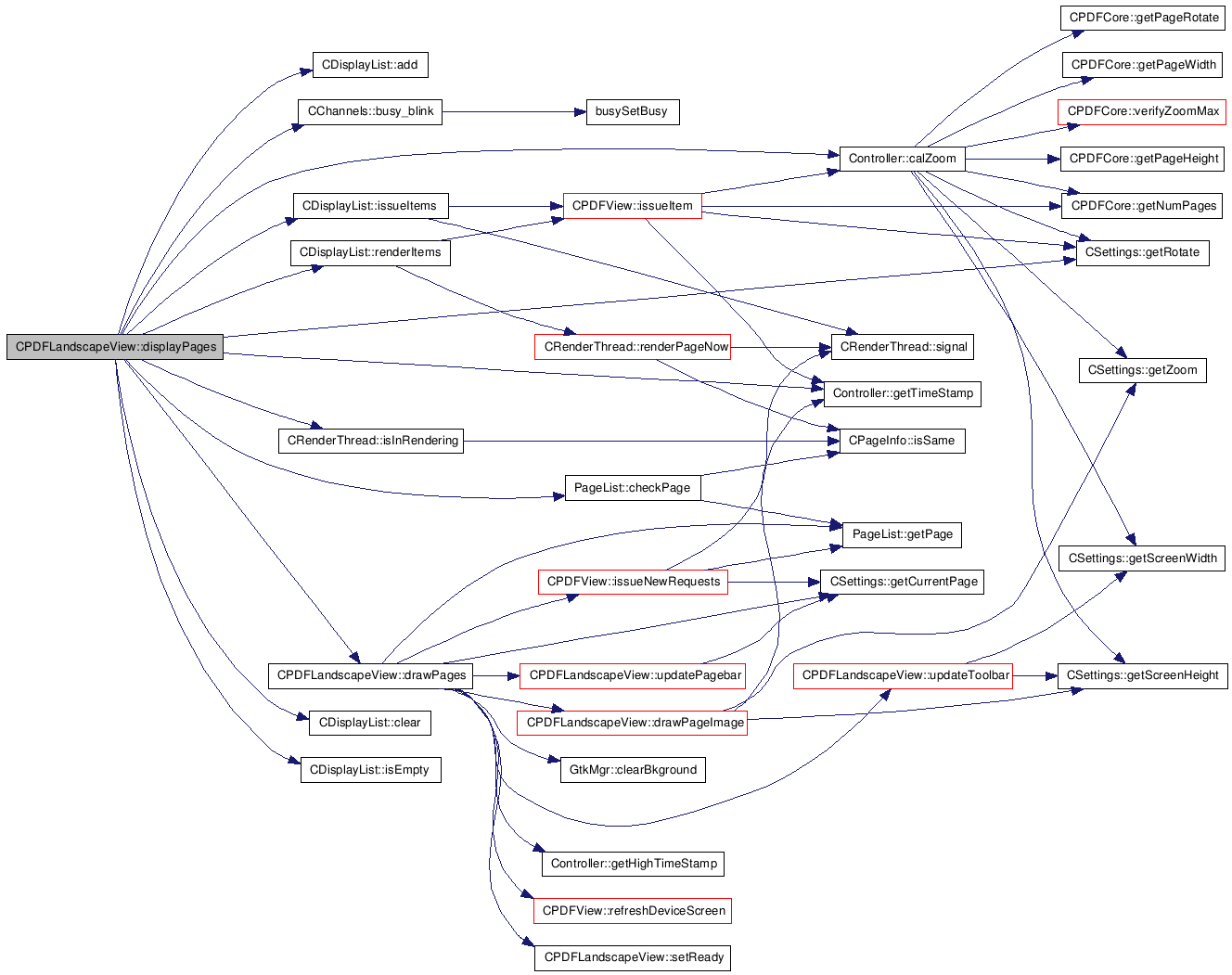

Here is the call graph for this function:

void CPDFLandscapeView::displayPages	(	const int	start,
		const int	end
	)			[private]

Definition at line 559 of file PDFLandscapeView.cpp.

{
    // blink
    view->ctrl->channels.busy_blink();

    // record
    nStart = start, nEnd = end;

    // check page number is valid or not
    GBool bRendering = gFalse;

    // clear all items
    list.clear();

    // check
    for(int i = start; i <= end; ++i)
    {
        if (i >= 1 && i <= view->ctrl->core->getNumPages())
        {
            CPageInfo info;
            info.pageNumber  = i;
            info.pageZoom    = view->ctrl->calZoom(i);
            info.rotate      = view->ctrl->settings.getRotate();
            CPageInfo * page = view->ctrl->pageList.checkPage(info);
            if (NULL == page)
            {
                TodoItem * item = new TodoItem;
                item->pageNumber = info.pageNumber;
                item->rotate     = info.rotate;
                item->zoom       = info.pageZoom;
                item->timeStamp  = view->ctrl->getTimeStamp();
                if (view->ctrl->thread.isInRendering(item))
                {
                    bRendering = gTrue;
                    PV_LOGPRINTF("page %d is in rendering!\n", i);
                    item->timeStamp = 0;    // set a flag
                }
                list.add(item);
            }
        }
    }

    // draw now if available
    if (list.isEmpty())
    {
        drawPages(start, end);
    }
    else
    {
        if (bRendering)
        {
            list.issueItems(view);
        }
        else
        {
            list.renderItems(view);  // abort and issue
        }
    }
}

Here is the call graph for this function:

void CPDFLandscapeView::drawPages	(	const int	start,
		const int	end
	)			[private]

Definition at line 649 of file PDFLandscapeView.cpp.

{
    // update pagebar
    updatePagebar();

    // update toolbar
    CPageInfo * page = NULL;
    page = view->ctrl->pageList.getPage(view->ctrl->settings.getCurrentPage());
    updateToolbar(page);

#if (PV_PROFILE_ON)
    int t1 = view->ctrl->getHighTimeStamp();
#endif

    // clear background
    view->ctrl->gtkMgr.clearBkground();

    // draw page image
    for(int i = start; i <= end; ++i)
    {
        page = view->ctrl->pageList.getPage(i);
        if (page)
        {
            drawPageImage(page);
        }
    }

    // sync
    XSync(view->ctrl->gtkMgr.display, gTrue);

#if (PV_PROFILE_ON)
    int t2 = view->ctrl->getHighTimeStamp();
    PV_DUMP("\ndrawImage and XSync time %d\n", t2 - t1);
#endif

    // check reference count
    if (view->ctrl->updateReq <= 0)
    {
        view->refreshDeviceScreen(dmQFull);
        view->ctrl->updateReq = 0;
    }

    // set ready. Now enable handle mouse event
    setReady();

    // issue new requests now
    view->issueNewRequests();
}

Here is the call graph for this function:

void CPDFLandscapeView::drawPageImage

(

CPageInfo *

page

)

[private]

Definition at line 777 of file PDFLandscapeView.cpp.

{
    // update page time stamp
    page->timestamp = view->ctrl->getTimeStamp();

    // page position
    int x = view->ctrl->settings.getScreenX();
    int y = view->ctrl->settings.getScreenY();

    // should adjust page position
    if (view->isPageMode())
    {
        if (page->bitmap->getHeight() <= view->ctrl->settings.getScreenHeight() ||
            view->ctrl->settings.getZoom() == ZoomPage)
        {
            y = ((view->ctrl->settings.getScreenHeight() - page->bitmap->getHeight()) >> 1);
            view->ctrl->settings.setScreenY(y);
        }
        layout.updatePageRect(x, y, page->bitmap->getWidth(), page->bitmap->getHeight());
    }
    else if (view->isContinousMode())
    {
        rectangle rect;
        layout.getPageRect(page->pageNumber, rect);
        x = rect.top - view->ctrl->settings.getScreenX();
        y = rect.left - view->ctrl->settings.getScreenY();
    }

    // display image. draws border only in continous mode
    view->ctrl->gtkMgr.drawImage(page->bitmap,
        0, 0,
        x, y,
        page->bitmap->getWidth(), page->bitmap->getHeight(),
        view->isContinousMode());

    // when drawing scribble, should use another y position
    y += page->bitmap->getHeight();
    drawScribble(x, y, page);
}

Here is the call graph for this function:

void CPDFLandscapeView::setView

(

CPDFView *

p

)

[inline]

Definition at line 84 of file PDFLandscapeView.h.

{ view = p; }

void CPDFLandscapeView::init

(

)

Definition at line 49 of file PDFLandscapeView.cpp.

{
    list.clear();
    if (view->isPageMode())
    {
        // validatePosition();
    }
    else if (view->isContinousMode())
    {
        // update zoom, otherwise zoomPage and zoomWidth will cause
        // some page problems.
        double z = layout.initPagesPosition(view->ctrl);
        view->ctrl->settings.setZoom(z);
    }
    setReady(gFalse);
}

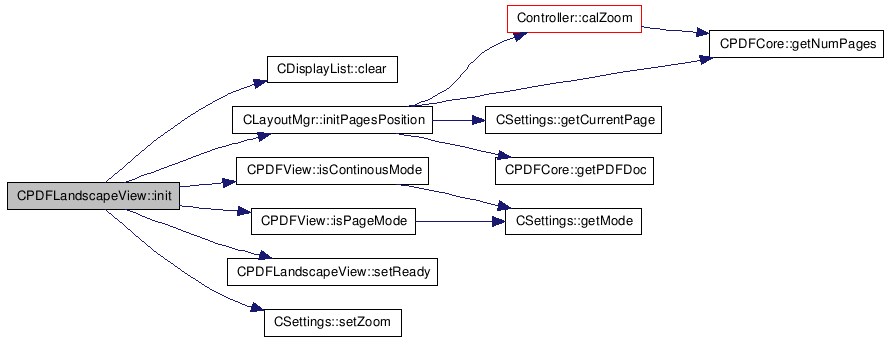

Here is the call graph for this function:

void CPDFLandscapeView::clear

(

)

Definition at line 66 of file PDFLandscapeView.cpp.

{
    list.clear();
    layout.clear();
}

Here is the call graph for this function:

void CPDFLandscapeView::displayPage	(	const int	pageNumber,
		const ContinousModeScroll	mode = ScrollToPage
	)

Definition at line 519 of file PDFLandscapeView.cpp.

{
    // check page number is valid or not
    if (pageNumber <= 0 ||
        pageNumber > view->ctrl->core->getNumPages())
    {
        PV_ERRORPRINTF("Invalid page number %d!", pageNumber);
        view->ctrl->channels.busy_off();
        return;
    }

    // set busy, not allow mouse input
    setReady(gFalse);

    if (view->isPageMode())
    {
        // change current page
        view->ctrl->settings.setCurrentPage(pageNumber);

        // display it
        displayPages(pageNumber, pageNumber);
    }
    else if (view->isContinousMode())
    {
        // calcuate pages should be displayed from pagenumber and scroll mode
        int start = pageNumber, end = pageNumber;
        getPagesRange(start, end, pageNumber, scroll);

        // debug
        PV_LOGPRINTF("Visible page range [%d, %d] current page %d", start, end,
            view->ctrl->settings.getCurrentPage());

        // display them
        displayPages(start, end);
    }
}

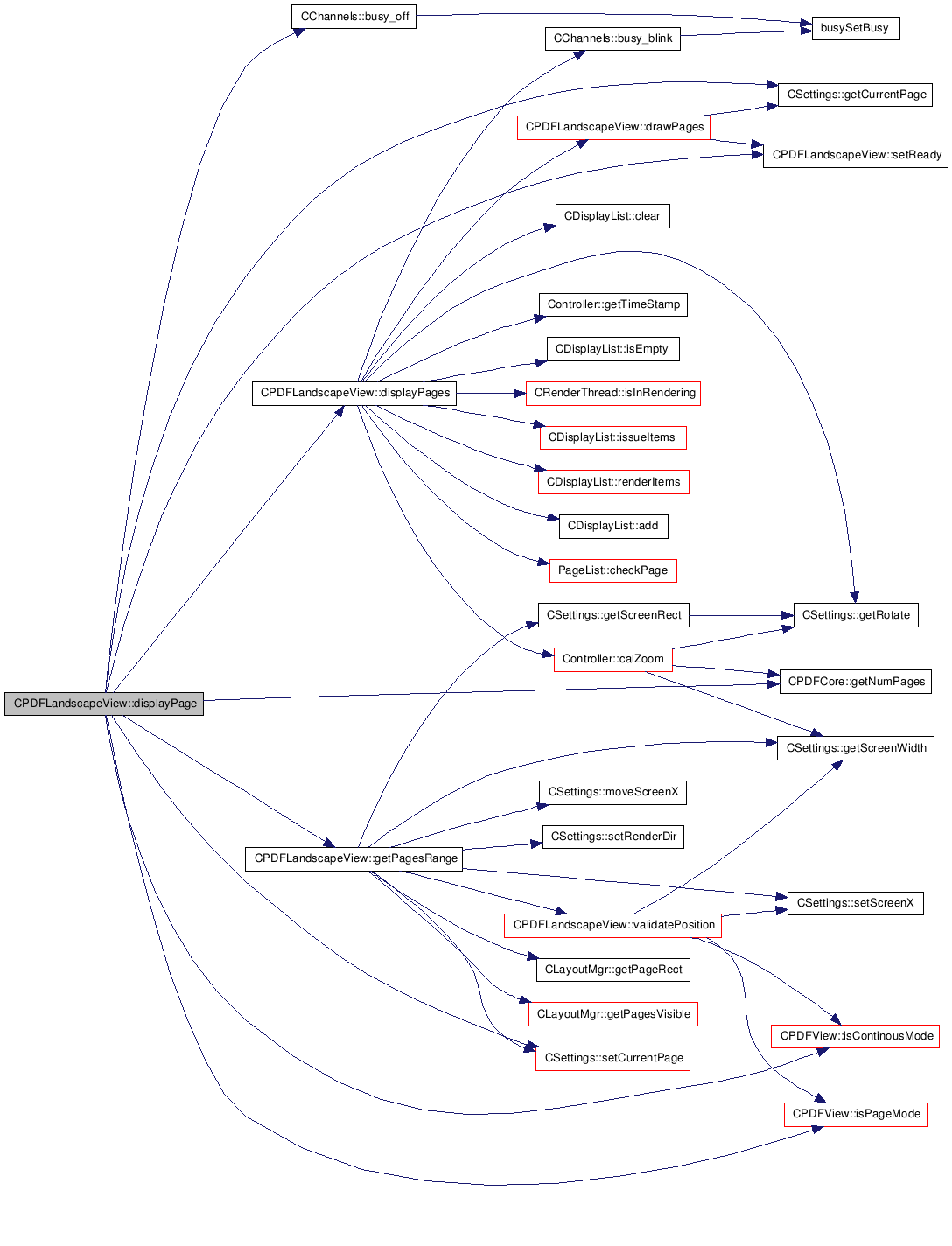

Here is the call graph for this function:

void CPDFLandscapeView::ipcCbk	(	gint *	fd,
		GdkInputCondition	id
	)

Definition at line 354 of file PDFLandscapeView.cpp.

{
    char szBuffer[IPC_BUF_MAX];
    int nBuf = IPC_BUF_MAX;
    erIpcCmd_t command;
    erServerChannel_t channel = view->ctrl->channels.erIpcChannel;
    erIpcGetMessage(channel, szBuffer, &nBuf);
    if (vwrParseCommand(szBuffer, &command) >= 0)
    {
        switch (command.cc)
        {
        case ccVwrJumpToPage:
        {
            int pg = atoi(command.arg[1]);

            // should change render direction
            if (pg < view->ctrl->settings.getCurrentPage())
            {
                if (pg <= 1)
                {
                    view->ctrl->settings.setRenderDir(RenderNext);
                }
                else
                {
                    view->ctrl->settings.setRenderDir(RenderPrev);
                }
            }
            else if (pg > view->ctrl->settings.getCurrentPage())
            {
                if (pg >= view->ctrl->core->getNumPages())
                {
                    view->ctrl->settings.setRenderDir(RenderPrev);
                }
                else
                {
                    view->ctrl->settings.setRenderDir(RenderNext);
                }
            }

            displayPage(pg);
            break;
        }
        case ccVwrToolbar:
        {
            // protect toolbar
            if (!isReady())
            {
                PV_TBPRINTF("Not allow to handle it during rendering!");
                return;
            }
            PV_TBPRINTF("Received toolbar message!");

            int iconID = atoi(command.arg[0]);
            int state  = atoi(command.arg[1]);
            if (view->ctrl->channels.onReceiveToolbarMsg(iconID, state))
            {
                view->ctrl->channels.setToolbarUpdateType();
                view->ctrl->channels.redrawToolbar();
            }
            if (iconID == iconID_zoomfit)
            {
                if (view->isPageMode())
                {
                    zoomFitPageMode();
                }
                else if (view->isContinousMode())
                {
                    zoomFitContinousMode();
                }
            }
            else if (iconID == iconID_portrait_landscape ||
                     iconID == iconID_landscape_portrait )
            {
                view->ctrl->channels.setRotateState(RotateDirty);
                if (view->isPageMode())
                {
                    view->rotatePageMode(90);
                }
                else
                {
                    view->rotateContinousMode(90);
                }
            }
            else if (iconID == iconID_page_mode ||
                     iconID == iconID_continuous_mode)
            {
                switchMode();
            }
            else if (iconID == iconID_zoomback)
            {
                zoomBack();
            }
            else if (iconID == iconID_back)
            {
                backward();
            }
            else if (iconID == iconID_forward)
            {
                forward();
            }
            else if (view->ctrl->scbMgr.isEraseDirty())
            {
                if (view->ctrl->channels.isScribbleIcon(iconID) ||
                    iconID == iconID_pan ||
                    iconID == iconID_zoomin)
                {
                    // need to redraw the page now
                    view->ctrl->scbMgr.setEraseDirty(gFalse);
                    view->ctrl->channels.setToolbarUpdateType(dmQFull);
                    if (iconID == iconID_zoomin)
                    {
                        // for zoom in, need to do something more
                        view->ctrl->channels.setZoomIn(3);
                    }
                    view->displayPage(view->ctrl->settings.getCurrentPage(), ScrollRedraw);
                }
            }
            break;
        }
        case ccVwrToolbarSync:
        {
            PV_TBPRINTF("Receive toolbar sync!");
            if (view->ctrl->channels.getToolbarUpdateType() == dmQTyping)
            {
                PV_TBPRINTF("Toolbar sync typing!");
                view->refreshDeviceScreen(dmQTyping, gFalse);
                view->ctrl->channels.setToolbarDirty(gFalse);
                view->ctrl->channels.setToolbarUpdateType(dmQUndefined);
            }
            // happens when a new page is displayed.
            else if (view->ctrl->channels.getToolbarUpdateType() == dmQFull)
            {
                PV_TBPRINTF("Toolbar sync full update!");
                --view->ctrl->updateReq;
                if (view->ctrl->updateReq <= 0)
                {
                    view->refreshDeviceScreen(dmQFull);
                    view->ctrl->updateReq = 0;
                }
                view->ctrl->channels.setToolbarDirty(gFalse);
                view->ctrl->channels.setToolbarUpdateType(dmQUndefined);
            }
            break;
        }
        case ccVwrPagebarSync:
        {
            --view->ctrl->updateReq;
            if (view->ctrl->updateReq <= 0)
            {
                view->refreshDeviceScreen(dmQFull);
                view->ctrl->updateReq = 0;
            }
            PV_TBPRINTF("Received pageBar sync!");
            break;
        }
        default:
            break;
        }
    }
}

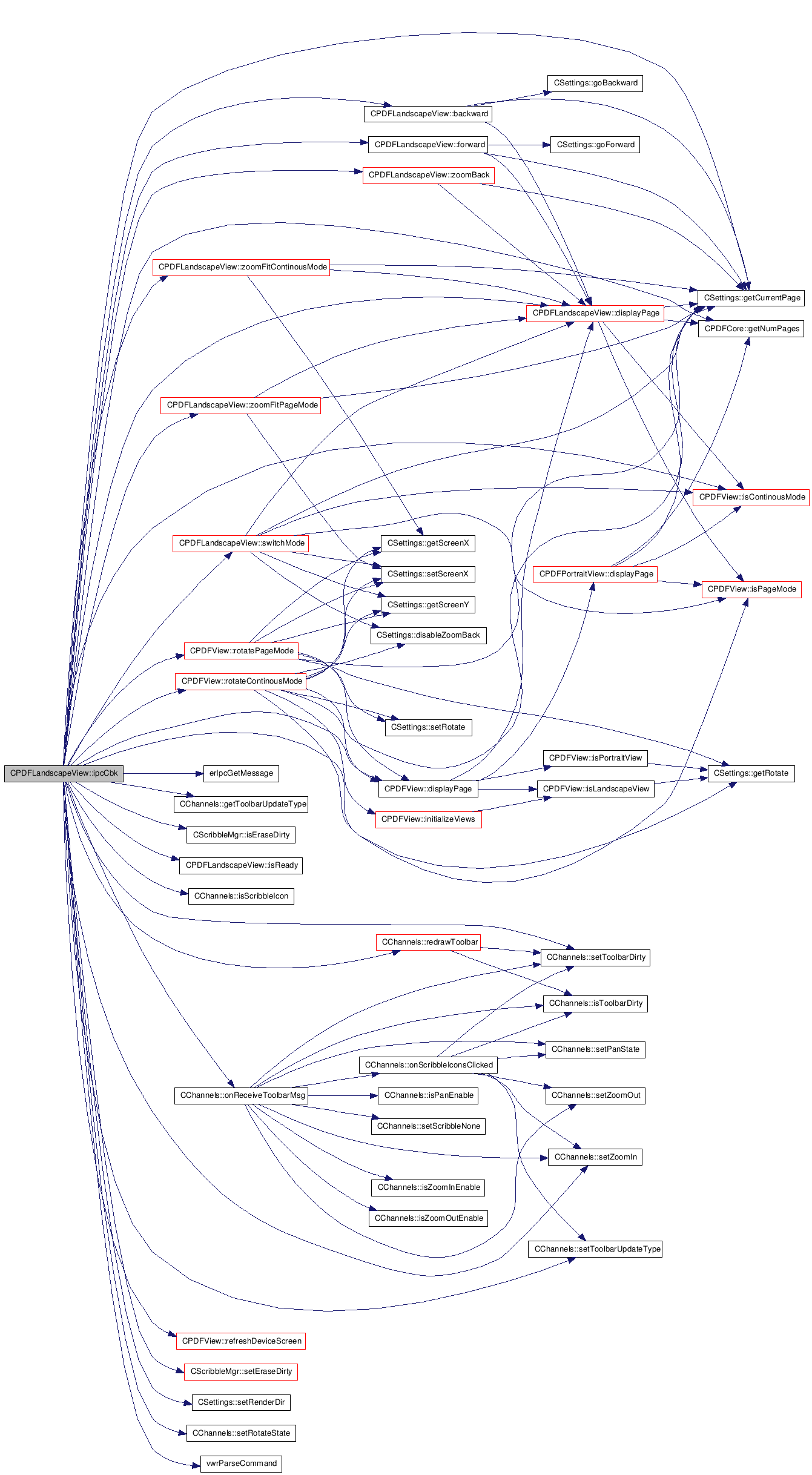

Here is the call graph for this function:

int CPDFLandscapeView::hitTest	(	const int	x,
		const int	y,
		int &	ox,
		int &	oy
	)

Definition at line 1365 of file PDFLandscapeView.cpp.

{
    if (view->isPageMode())
    {
        if (layout.hitTest(x, y))
        {
            // convert to page offset
            oy = x - view->ctrl->settings.getScreenX();
            ox = layout.getVirtualScreen().bottom - y;
            return view->ctrl->settings.getCurrentPage();
        }
    }
    else
    {
        if (nStart > 0 && nEnd > 0 && list.isEmpty())
        {
            // from screen to virtual screen
            oy = x + view->ctrl->settings.getScreenX();
            ox = y + view->ctrl->settings.getScreenY();
            int pn = layout.hitTest(ox, oy, nStart, nEnd);
            if (pn > 0)
            {
                rectangle rect;
                layout.getPageRect(pn, rect);
                oy -= rect.top;
                ox = rect.right - ox;
                return pn;
            }
            return -1;
        }
    }
    return -1;
}

Here is the call graph for this function:

GBool CPDFLandscapeView::isReady

(

)

const [inline]

Definition at line 90 of file PDFLandscapeView.h.

{ return bReady; }

gboolean CPDFLandscapeView::buttonPressCbk

(

GdkEventButton *

event

)

Definition at line 74 of file PDFLandscapeView.cpp.

{
    if (!isReady())
    {
        PV_LOGPRINTF("Not allow to handle mouse event now!");
        return FALSE;
    }
    int x = (int)event->x;
    int y = (int)event->y;
    if (y >= view->ctrl->settings.getScreenHeight())
    {
        return FALSE;
    }
    if (view->isPanEnable())
    {
        // enable panning, record the position
        view->initPan(x, y);
    }
    else if (view->isZoomInEnable() ||
        view->isZoomOutEnable())
    {
        view->initZoomRect(x, y);
    }
    else if (view->isScribbleEnable())
    {
        int ox, oy;
        int px, py;
        int pn = hitTest(x, y, ox, oy);

        // get page x & y
        getPageScreenPosition(pn, px, py);
        view->ctrl->scbMgr.onScribblePress(pn, view->ctrl, px, py,
            x, y, ox, oy);
        return FALSE;
    }
    else if (view->isEraseEnable())
    {
        int ox, oy;
        int pn = hitTest(x, y, ox, oy);
        getPageScreenPosition(pn, x, y);
        view->ctrl->scbMgr.onErasePress(pn, view->ctrl,
            x, y, ox, oy);
    }
    return FALSE;
}

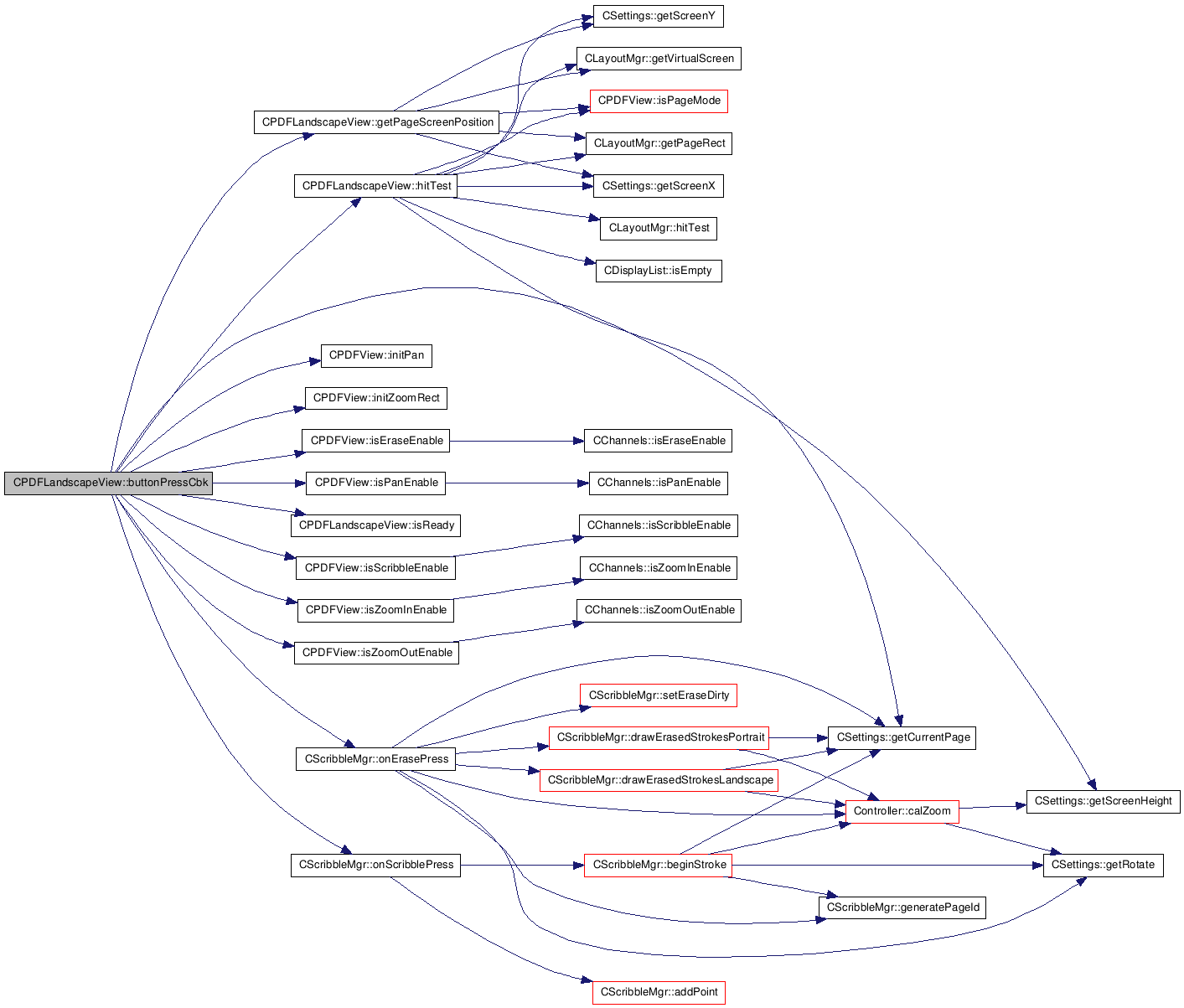

Here is the call graph for this function:

gboolean CPDFLandscapeView::buttonReleaseCbk

(

GdkEventButton *

event

)

Definition at line 121 of file PDFLandscapeView.cpp.

{
    if (!isReady())
    {
        PV_LOGPRINTF("Not allow to handle mouse event now!");
        return FALSE;
    }

    int x = (int)event->x;
    int y = (int)event->y;
    if (y >= view->ctrl->settings.getScreenHeight()) return FALSE;

    if (view->isScribbleEnable())
    {
        int ox, oy;
        int px, py;
        int pn = hitTest(x, y, ox, oy);
        // get page x & y
        getPageScreenPosition(pn, px, py);
        view->ctrl->scbMgr.onScribbleRelease(pn, view->ctrl, px, py,
            x, y, ox, oy);
        return FALSE;
    }
    else if (view->isEraseEnable())
    {
        int ox, oy;
        int pn = hitTest(x, y, ox, oy);
        getPageScreenPosition(pn, x, y);
        view->ctrl->scbMgr.onEraseRelease(pn, view->ctrl,
            x, y, ox, oy);
        return FALSE;
    }
    // try to do hyper link at first. if not in scribble
    if (view->isSmallOffset(x, y))
    {
        PV_LOGPRINTF("Small Offset!");
        if (view->isPageMode())
        {
            if (doLinkPageMode(x, y))
                return FALSE;
        }
        else
        {
            if (doLinkContinousMode(x, y))
                return FALSE;
        }
        PV_LOGPRINTF("Seems no link!");
    }
    if (view->isPanEnable())
    {
        // pan should never out of range of current document
        int deltaX = view->panPt.x - x;
        int deltaY = view->panPt.y - y;

        if (view->isPageMode())
        {
            view->ctrl->settings.moveScreenX(-deltaX);
            view->ctrl->settings.moveScreenY(-deltaY);
        }
        else
        {
            view->ctrl->settings.moveScreenX(deltaX);
            view->ctrl->settings.moveScreenY(deltaY);
        }
        validatePosition();
        displayPage(view->ctrl->settings.getCurrentPage(), ScrollToPosition);
        return FALSE;
    }
    else if (view->isZoomInEnable())
    {
        view->adjustZoomRect(x, y);
        zoomFromRect(view->zoomRect.left,
            view->zoomRect.top,
            view->zoomRect.right,
            view->zoomRect.bottom);

    }
    else if (view->isZoomOutEnable())
    {
        view->adjustZoomRect(x, y);
        zoomToRect(view->zoomRect.left,
            view->zoomRect.top,
            view->zoomRect.right,
            view->zoomRect.bottom);
    }
    return FALSE;
}

Here is the call graph for this function:

gboolean CPDFLandscapeView::motionNotifyCbk

(

GdkEventMotion *

event

)

Definition at line 209 of file PDFLandscapeView.cpp.

{
    if (!isReady())
    {
        PV_LOGPRINTF("Not allow to handle mouse event now!");
        return FALSE;
    }
    int x = (int)event->x;
    int y = (int)event->y;
    if (y >= view->ctrl->settings.getScreenHeight())
    {
        PV_LOGPRINTF("Not allow to handle mouse event now!");
        return FALSE;
    }
    if (view->isZoomInEnable() ||
        view->isZoomOutEnable())
    {
        view->adjustZoomRect(x, y);
    }
    else if (view->isScribbleEnable())
    {
        int ox, oy;
        int px, py;
        int pn = hitTest(x, y, ox, oy);

        // get page x & y
        getPageScreenPosition(pn, px, py);
        view->ctrl->scbMgr.onScribbleMove(pn, view->ctrl, px, py,
            x, y, ox, oy);
    }
    else if (view->isEraseEnable())
    {
        int ox, oy;
        int pn = hitTest(x, y, ox, oy);
        getPageScreenPosition(pn, x, y);
        view->ctrl->scbMgr.onEraseMove(pn, view->ctrl,
            x, y, ox, oy);
    }
    return FALSE;
}

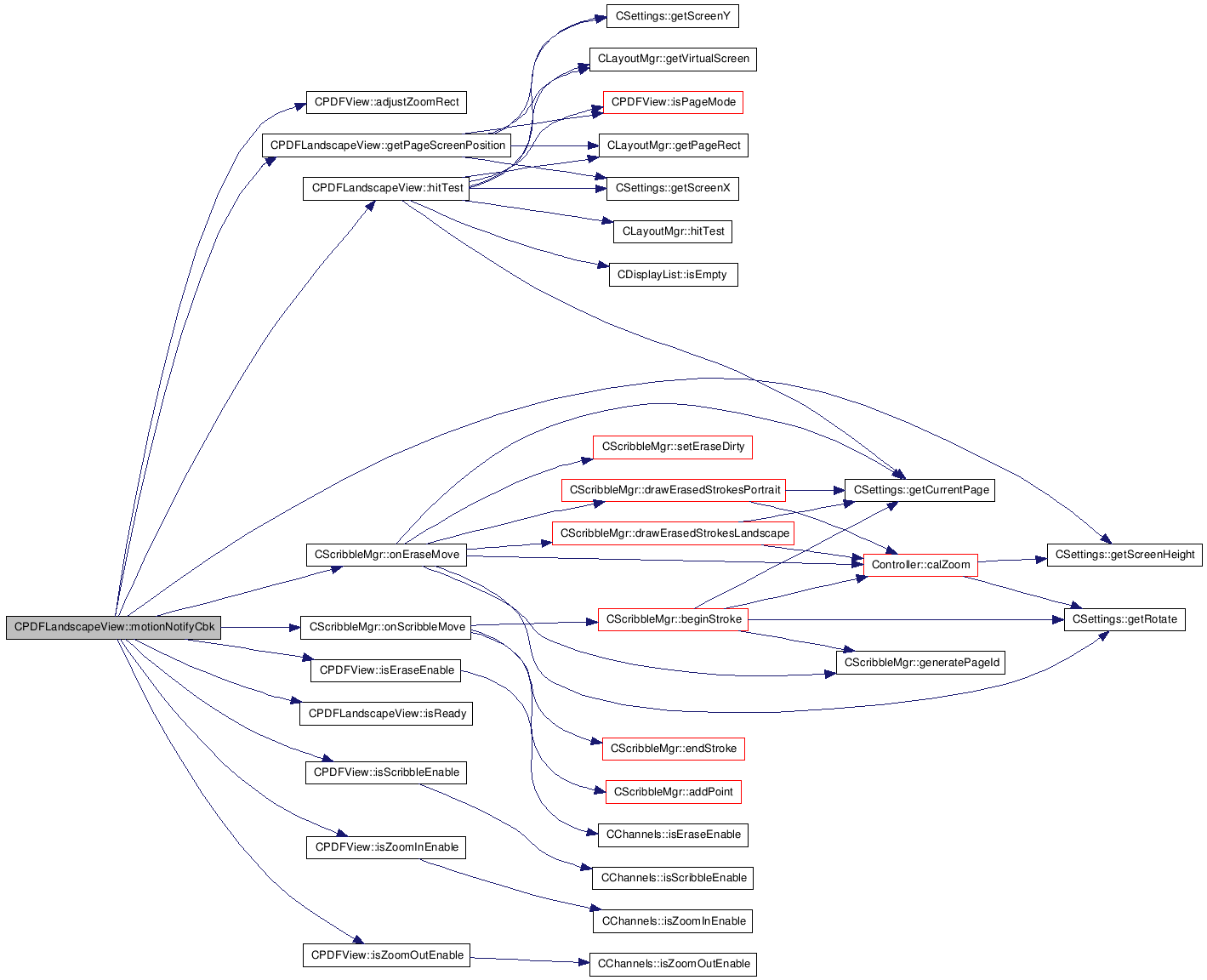

Here is the call graph for this function:

gboolean CPDFLandscapeView::keyPressCbk

(

GdkEventKey *

event

)

Definition at line 250 of file PDFLandscapeView.cpp.

{
    if (event->time == 0)
    {
        onPageRendered(event->state);
        return FALSE;
    }

    switch (event->keyval)
    {
    case GDK_Home:
        displayPage(1);
        break;
    case GDK_F5:
        view->quit();
        break;
    case GDK_Page_Up:
        view->ctrl->settings.setRenderDir(RenderPrev);
        if (view->ctrl->settings.getCurrentPage() <= 1)
        {
            displayPage(1, ScrollToPrevPage);
        }
        else
        {
            displayPage(view->ctrl->settings.getCurrentPage() - 1, ScrollToPrevPage);
        }
        break;
    case GDK_Page_Down:
        view->ctrl->settings.setRenderDir(RenderNext);
        if (view->ctrl->settings.getCurrentPage() >= view->ctrl->core->getNumPages())
        {
            displayPage(view->ctrl->settings.getCurrentPage(), ScrollToNextPage);
        }
        else
        {
            displayPage(view->ctrl->settings.getCurrentPage() + 1, ScrollToNextPage);
        }
        break;
    case GDK_F1: // iRex: long pageflip forward
        view->ctrl->settings.setRenderDir(RenderNext);
        if (view->ctrl->settings.getCurrentPage() + JumpWidth > view->ctrl->core->getNumPages())
        {
            displayPage(view->ctrl->core->getNumPages());
        }
        else
        {
            displayPage(view->ctrl->settings.getCurrentPage() + JumpWidth, ScrollToNextPages);
        }
        break;
    case GDK_F2: // iRex: long pageflip backward
        view->ctrl->settings.setRenderDir(RenderPrev);
        if ((view->ctrl->settings.getCurrentPage() - JumpWidth) < 1)
        {
            displayPage(1);
        }
        else
        {
            displayPage(view->ctrl->settings.getCurrentPage() - JumpWidth, ScrollToPrevPages);
        }
        break;
    default:
        view->ctrl->channels.busy_off();
        break; // no return: do not bypass keyPressCbk
    }
    return FALSE;
}

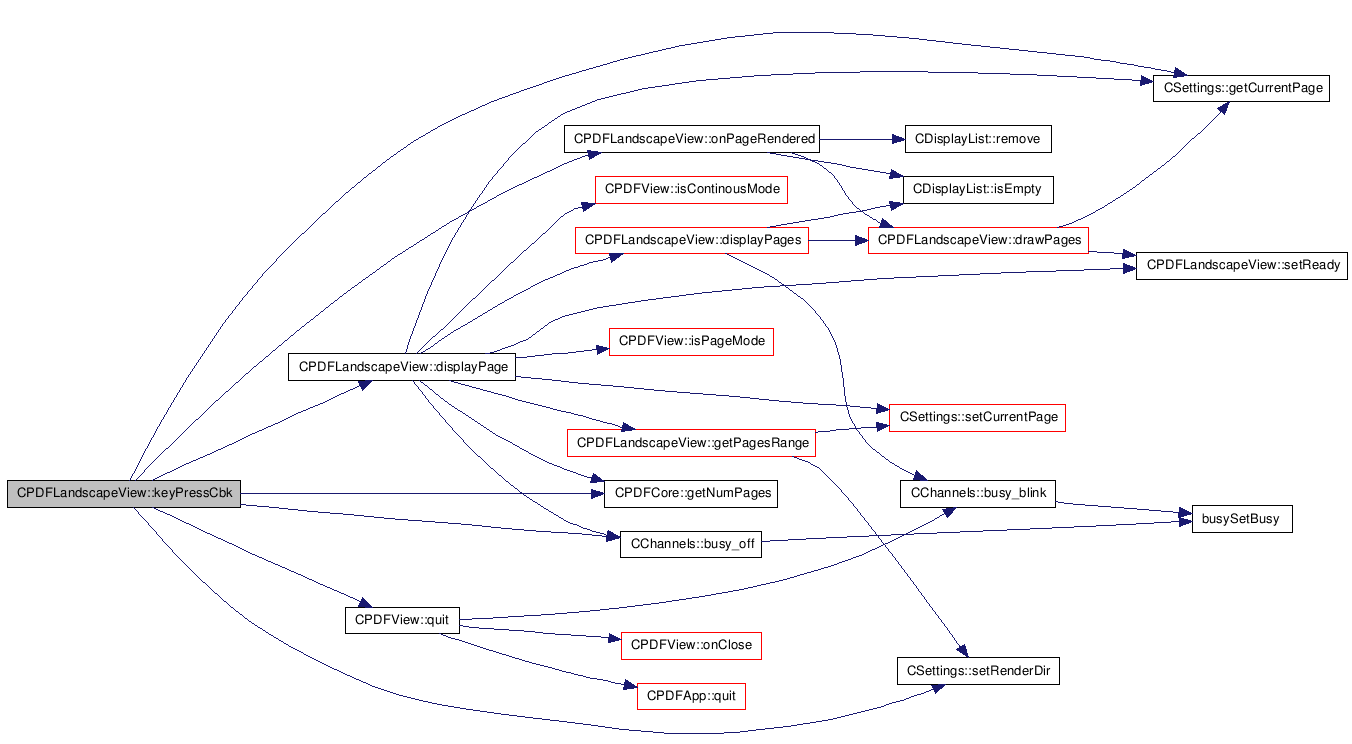

Here is the call graph for this function:

gboolean CPDFLandscapeView::deleteCbk

(

GdkEvent *

event

)

Definition at line 317 of file PDFLandscapeView.cpp.

{
    return TRUE;
}

---

Member Data Documentation

CPDFView* CPDFLandscapeView::view [private]

Definition at line 38 of file PDFLandscapeView.h.

CLayoutMgr CPDFLandscapeView::layout [private]

Definition at line 39 of file PDFLandscapeView.h.

CDisplayList CPDFLandscapeView::list [private]

Definition at line 40 of file PDFLandscapeView.h.

int CPDFLandscapeView::nStart [private]

Definition at line 41 of file PDFLandscapeView.h.

int CPDFLandscapeView::nEnd [private]

Definition at line 41 of file PDFLandscapeView.h.

int CPDFLandscapeView::nOffset [private]

Definition at line 42 of file PDFLandscapeView.h.

GBool CPDFLandscapeView::bReady [private]

Definition at line 43 of file PDFLandscapeView.h.

---

The documentation for this class was generated from the following files:

• ipdf-svn/inc/PDFLandscapeView.h
• ipdf-svn/src/PDFLandscapeView.cpp
