settings/src/iLiadStartUpScreen.h File Reference

settings - users customized startup behaviour Screen More...

#include <sys/types.h>
#include "background.h"

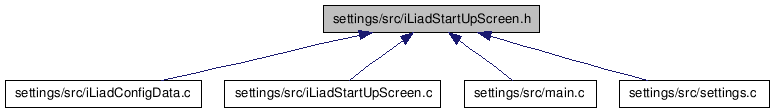

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	gtkBehaviour_t
struct	gtkCalibration_t
struct	gtkStartUp_t
Defines
#define	STARTUP_ITEM_PADDING_TOP   10
#define	STARTUP_ITEM_PADDING_BOTTOM   10
#define	STARTUP_ITEM_PADDING_LEFT   13
#define	STARTUP_ITEM_PADDING_RIGHT   13
#define	STARTUP_ITEM_SPACING   10
#define	STARTUP_BEHAVIOUR_HEIGHT   300
#define	STARTUP_CALIBRATION_HEIGHT   115
#define	STARTUP_LABEL_WIDTH
#define	STARTUP_BUTTON_WIDTH   310
#define	STARTUP_BUTTON_HEIGHT   27
#define	STARTUP_BUTTON_NUMBER   9
Functions
GtkWidget *	iLiad_startup_screen_create (void)
void	iLiad_startup_screen_set_text (void)
void	iLiad_startup_screen_display_data (void)
pid_t	get_xtscal_pid ()
void	handle_xtscal_quit ()
void	stop_xtscal ()

---

Detailed Description

settings - users customized startup behaviour Screen

Copyright (C) 2005-2008 iRex Technologies B.V. All rights reserved.

Providing GUI interface to let users input their customized startup behaviour.

Definition in file iLiadStartUpScreen.h.

---

Define Documentation

#define STARTUP_BEHAVIOUR_HEIGHT   300

Definition at line 49 of file iLiadStartUpScreen.h.

#define STARTUP_BUTTON_HEIGHT   27

Definition at line 57 of file iLiadStartUpScreen.h.

#define STARTUP_BUTTON_NUMBER   9

Definition at line 59 of file iLiadStartUpScreen.h.

#define STARTUP_BUTTON_WIDTH   310

Definition at line 56 of file iLiadStartUpScreen.h.

#define STARTUP_CALIBRATION_HEIGHT   115

Definition at line 50 of file iLiadStartUpScreen.h.

#define STARTUP_ITEM_PADDING_BOTTOM   10

Definition at line 43 of file iLiadStartUpScreen.h.

#define STARTUP_ITEM_PADDING_LEFT   13

Definition at line 44 of file iLiadStartUpScreen.h.

#define STARTUP_ITEM_PADDING_RIGHT   13

Definition at line 45 of file iLiadStartUpScreen.h.

#define STARTUP_ITEM_PADDING_TOP   10

Definition at line 42 of file iLiadStartUpScreen.h.

#define STARTUP_ITEM_SPACING   10

Definition at line 47 of file iLiadStartUpScreen.h.

#define STARTUP_LABEL_WIDTH

Value:

(TITLE_MIN_WIDTH \
                                         - STARTUP_ITEM_PADDING_LEFT \
                                         - STARTUP_ITEM_PADDING_RIGHT)

Definition at line 52 of file iLiadStartUpScreen.h.

---

Function Documentation

pid_t get_xtscal_pid

(

)

Definition at line 380 of file iLiadStartUpScreen.c.

{
    return g_xtscal_pid;
}

void handle_xtscal_quit

(

)

Definition at line 385 of file iLiadStartUpScreen.c.

{
    // Remember child process gone
    g_xtscal_pid = 0;

    // Refresh screen
    gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(g_startup.calibration.button), FALSE);
    // display_update_request_screen_refresh(MAIN_WINDOW_EXPOSE_LEVEL, WAVEFORM_FULLSCREEN);
}

GtkWidget* iLiad_startup_screen_create

(

void

)

Definition at line 85 of file iLiadStartUpScreen.c.

{
    GtkWidget *vbox;
    GtkWidget *behaviour;
    GtkWidget *calibration;

    ST_LOGPRINTF("entry");

    memset(&g_startup, 0, sizeof(gtkStartUp_t));

    vbox = gtk_vbox_new(FALSE, STARTUP_ITEM_SPACING);
    g_startup.widget = vbox;

    behaviour = gtk_behaviour_new(&(g_startup.behaviour));
    gtk_box_pack_start(GTK_BOX(vbox), behaviour, FALSE, FALSE, 0);

    calibration = gtk_calibration_new(&(g_startup.calibration));
    gtk_box_pack_start(GTK_BOX(vbox), calibration, FALSE, FALSE, 0);

    // show widgets
    gtk_widget_show(vbox);

    return vbox;
}

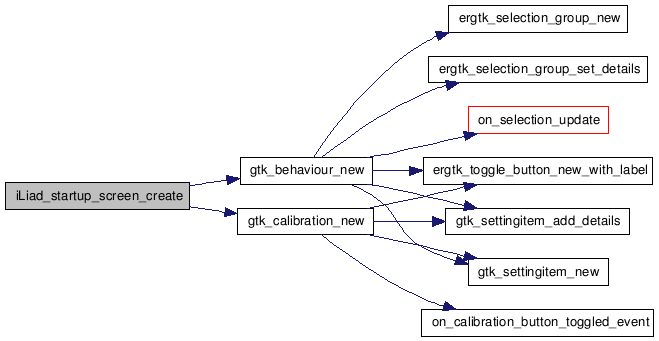

Here is the call graph for this function:

void iLiad_startup_screen_display_data

(

void

)

Definition at line 315 of file iLiadStartUpScreen.c.

{
    startup_behaviour_t behaviour;
    GtkWidget*          button;
    int                 i;

    ST_LOGPRINTF("entry");

    behaviour = iLiad_startup_data_get_behaviour();
    for (i = 0 ; i < STARTUP_BUTTON_NUMBER ; i++)
    {
        if (g_button_info[i].behaviour == behaviour)
        {
            button = g_startup.behaviour.buttons[i];
            gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(button), TRUE);
            gtk_widget_grab_focus(button);
        }
    }
}

Here is the call graph for this function:

void iLiad_startup_screen_set_text

(

void

)

Definition at line 291 of file iLiadStartUpScreen.c.

{
    ST_LOGPRINTF("entry");
    int i;

    if (g_startup.widget)
    {
        gtkBehaviour_t* behaviour = &(g_startup.behaviour);
        gtkCalibration_t* calibration = &(g_startup.calibration);

        gtk_settingitem_set_header_text(GTK_SETTINGITEM(behaviour->item), _("Start-up Settings"));
        gtk_label_set_text(GTK_LABEL(behaviour->label), _("Please select what to open when starting up your iLiad."));

        for (i = 0; i < STARTUP_BUTTON_NUMBER; i++)
        {
            gtk_button_set_label( GTK_BUTTON(behaviour->buttons[i]), _(g_button_info[i].text) );
        }

        gtk_settingitem_set_header_text(GTK_SETTINGITEM(calibration->item), _("Stylus calibration"));
        gtk_label_set_text(GTK_LABEL(calibration->label), _("With this function you can re-calibrate your stylus."));
        gtk_button_set_label(GTK_BUTTON(calibration->button), _("Start Calibration"));
    }
}

Here is the call graph for this function:

void stop_xtscal

(

)

Definition at line 395 of file iLiadStartUpScreen.c.

{
    if (g_xtscal_pid != 0)
    {
        kill(g_xtscal_pid, SIGTERM);
    }
}
