settings/src/iLiadTimediDSScreen.h File Reference

settings - Timed iDS connection settings More...

#include "background.h"

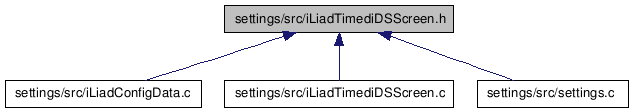

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  gtk_enable_timedids_t
struct  gtk_time_entry_t
struct  gtk_time_settings_t
struct  gtk_timedids_screen_t

Defines

#define TIMEDIDS_ITEM_SPACING   10
#define ENABLE_TIMEDIDS_HEIGHT   115
#define TIMEDIDS_SCREEN_ITEM_PADDING_TOP   10
#define TIMEDIDS_SCREEN_ITEM_PADDING_BOTTOM   10
#define TIMEDIDS_SCREEN_ITEM_PADDING_LEFT   13
#define TIMEDIDS_SCREEN_ITEM_PADDING_RIGHT   13
#define ENABLE_TIMEDIDS_LABEL_WIDTH
#define ENABLE_TIMEDIDS_ITEM_SPACING   15
#define TIME_SETTINGS_HEIGHT   230
#define TIME_SETTINGS_ITEM_SPACING   10
#define TIME_SETTINGS_CONNECTAT_WIDTH   120
#define TIME_SETTINGS_COLON_WIDTH   10
#define TIME_SETTINGS_ENTRY_WIDTH   40
#define TIME_SETTINGS_ENTRY_HEIGHT   30

Functions

GtkWidget * iLiad_timedids_screen_create (void)
void iLiad_timedids_screen_set_text (void)
void iLiad_timedids_screen_data_display (void)
void iLiad_timedids_handle_page_switch (void)

Detailed Description

settings - Timed iDS connection settings

Copyright (C) 2005-2008 iRex Technologies B.V. All rights reserved.

User interface for user to set the timed iDS connection

Definition in file iLiadTimediDSScreen.h.

Define Documentation

#define ENABLE_TIMEDIDS_HEIGHT   115

Definition at line 42 of file iLiadTimediDSScreen.h.

#define ENABLE_TIMEDIDS_ITEM_SPACING   15

Definition at line 52 of file iLiadTimediDSScreen.h.

#define ENABLE_TIMEDIDS_LABEL_WIDTH

Value:

(TITLE_MIN_WIDTH \
                                      - TIMEDIDS_SCREEN_ITEM_PADDING_LEFT \
                                      - TIMEDIDS_SCREEN_ITEM_PADDING_RIGHT)

Definition at line 49 of file iLiadTimediDSScreen.h.

#define TIME_SETTINGS_COLON_WIDTH   10

Definition at line 56 of file iLiadTimediDSScreen.h.

#define TIME_SETTINGS_CONNECTAT_WIDTH   120

Definition at line 55 of file iLiadTimediDSScreen.h.

#define TIME_SETTINGS_ENTRY_HEIGHT   30

Definition at line 58 of file iLiadTimediDSScreen.h.

#define TIME_SETTINGS_ENTRY_WIDTH   40

Definition at line 57 of file iLiadTimediDSScreen.h.

#define TIME_SETTINGS_HEIGHT   230

Definition at line 53 of file iLiadTimediDSScreen.h.

#define TIME_SETTINGS_ITEM_SPACING   10

Definition at line 54 of file iLiadTimediDSScreen.h.

#define TIMEDIDS_ITEM_SPACING   10

Definition at line 41 of file iLiadTimediDSScreen.h.

#define TIMEDIDS_SCREEN_ITEM_PADDING_BOTTOM   10

Definition at line 45 of file iLiadTimediDSScreen.h.

#define TIMEDIDS_SCREEN_ITEM_PADDING_LEFT   13

Definition at line 46 of file iLiadTimediDSScreen.h.

#define TIMEDIDS_SCREEN_ITEM_PADDING_RIGHT   13

Definition at line 47 of file iLiadTimediDSScreen.h.

#define TIMEDIDS_SCREEN_ITEM_PADDING_TOP   10

Definition at line 44 of file iLiadTimediDSScreen.h.

Function Documentation

void iLiad_timedids_handle_page_switch ( void   )

Definition at line 391 of file iLiadTimediDSScreen.c.

00392 {
00393     // If disabled timed-iDS, toggle button
00394     gtk_enable_timedids_t* enable_timedids = &g_timedids_screen->enable_timedids;
00395
00396     if (!g_cur_settings->enable)
00397     {
00398         gtk_toggle_button_set_active(enable_timedids->button_timedids_off, TRUE);
00399     }
00400 }

GtkWidget* iLiad_timedids_screen_create ( void   )

Definition at line 75 of file iLiadTimediDSScreen.c.

00076 {
00077     GtkWidget* vbox;
00078     GtkWidget* enable_timedids;
00079     GtkWidget* settime;
00080     GtkWidget* info;
00081
00082     ST_LOGPRINTF("entry");
00083
00084     vbox = gtk_vbox_new(FALSE, TIMEDIDS_ITEM_SPACING);
00085
00086     g_timedids_screen = g_new0(gtk_timedids_screen_t, 1);
00087
00088     enable_timedids = create_enable_timedids(&g_timedids_screen->enable_timedids);
00089     gtk_box_pack_start(GTK_BOX(vbox), enable_timedids, FALSE, FALSE, 0);
00090
00091     settime = create_time_settings(&g_timedids_screen->settime);
00092     gtk_box_pack_start(GTK_BOX(vbox), settime, FALSE, FALSE, 0);
00093
00094     info = gtk_infoitem_new(FALSE);
00095     gtk_box_pack_start(GTK_BOX(vbox), info, FALSE, FALSE, 0);
00096     g_timedids_screen->infoitem = info;
00097
00098     // show widgets
00099     gtk_widget_show(vbox);
00100     return vbox;
00101 }

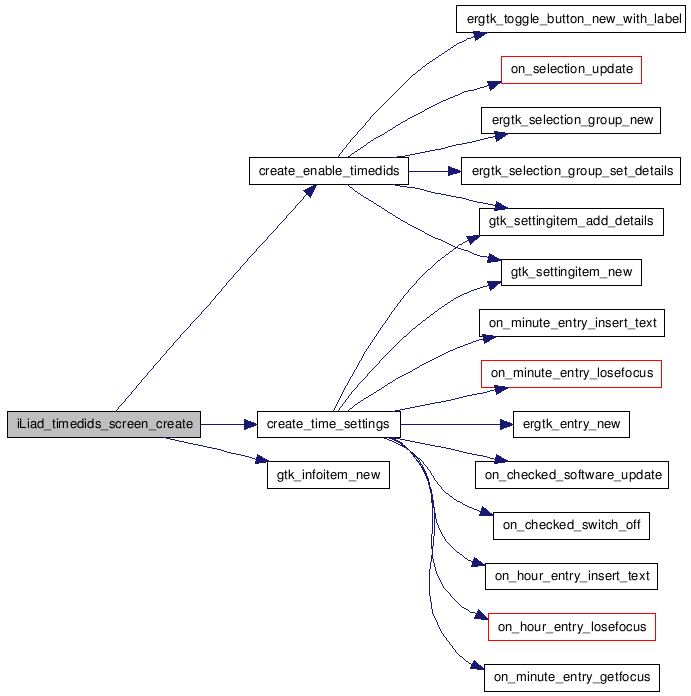

Here is the call graph for this function:

void iLiad_timedids_screen_data_display ( void   )

Definition at line 351 of file iLiadTimediDSScreen.c.

00352 {
00353     ST_LOGPRINTF("entry");
00354
00355     gtk_enable_timedids_t* enable_timedids = &g_timedids_screen->enable_timedids;
00356     gtk_time_settings_t*   settime         = &g_timedids_screen->settime;
00357
00358     g_cur_settings = get_current_timedids_settings();
00359
00360     // Enable timed-iDS or not
00361     if (g_cur_settings->enable)
00362     {
00363         gtk_toggle_button_set_active(enable_timedids->button_timedids_on, TRUE);
00364     }
00365     else
00366     {
00367         gtk_toggle_button_set_active(enable_timedids->button_timedids_off, TRUE);
00368     }
00369
00370     // Time set
00371     int i;
00372     char hh[4], mm[4];
00373     for (i=0; i<g_cur_settings->timeCnt; i++)
00374     {
00375         snprintf(hh, 4, "%02d", g_cur_settings->timeSet[i] / 3600);
00376         gtk_entry_set_text(GTK_ENTRY(settime->time_entries[i].entry_hour), hh);
00377
00378         snprintf(mm, 4, "%02d", g_cur_settings->timeSet[i] / 60 % 60);
00379         gtk_entry_set_text(GTK_ENTRY(settime->time_entries[i].entry_minute), mm);
00380     }
00381
00382     // Include software updates while connected to iDS
00383     gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(settime->check_software_update),
00384             g_cur_settings->swUpdate);
00385
00386     // Switch off iLiad again after waking iLiad up
00387     gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(settime->check_auto_shutdown),
00388             g_cur_settings->switchOff);
00389 }

Here is the call graph for this function:

void iLiad_timedids_screen_set_text ( void   )

Definition at line 312 of file iLiadTimediDSScreen.c.

00313 {
00314     ST_LOGPRINTF("entry");
00315     if (g_timedids_screen == NULL)
00316     {
00317         return;
00318     }
00319
00320     gtk_enable_timedids_t* enable_timedids = &g_timedids_screen->enable_timedids;
00321     gtk_time_settings_t* settime = &g_timedids_screen->settime;
00322
00323     gtk_settingitem_set_header_text(GTK_SETTINGITEM(enable_timedids->settingitem),
00324             _("Time to connect to iDS"));
00325     gtk_label_set_text(GTK_LABEL(enable_timedids->label_desc),
00326             _("Enabling \"time to connection\" causes the iLiad to download content from the iDS at a set time."));
00327
00328     gtk_button_set_label(GTK_BUTTON(enable_timedids->button_timedids_on), _("On"));
00329     gtk_button_set_label(GTK_BUTTON(enable_timedids->button_timedids_off), _("Off"));
00330
00331     gtk_settingitem_set_header_text(GTK_SETTINGITEM(settime->settingitem),
00332             _("Set the time"));
00333     gtk_label_set_text(GTK_LABEL(settime->label_desc), _("The iLiad will connect to iDS at the set time:"));
00334
00335     int i;
00336     for (i=0; i<TIME_OPTIONS; i++)
00337     {
00338         gtk_label_set_text(GTK_LABEL(settime->time_entries[i].label_connectat), _("Connect at"));
00339     }
00340
00341     gtk_button_set_label(GTK_BUTTON(settime->check_software_update),
00342             _("Include software downloads while connected to iDS."));
00343     gtk_button_set_label(GTK_BUTTON(settime->check_auto_shutdown),
00344             _("Switch off again after waking up the device."));
00345
00346     // Information text
00347     gtk_infoitem_set_text(GTK_INFOITEM(g_timedids_screen->infoitem),
00348             _("When the iLiad is switched off, it will 'wake-up' to download content from the iDS."));
00349 }

Here is the call graph for this function:
