connectionMgr/src/editScreenStatic.c File Reference

connectionMgr - "Static IP address" screen More...

#include "config.h"
#include <string.h>
#include <gtk/gtk.h>
#include <liberregxml/erregapi.h>
#include "connectionMgrLog.h"
#include "connectionMgr.h"
#include "displayStatus.h"
#include "erbusy.h"
#include "background.h"
#include "gtkSettingItem.h"
#include "gtkInfoItem.h"
#include "editScreen.h"
#include "editScreenOverview.h"
#include "widgetUtils.h"
#include "editScreenStatic.h"
#include "languages.h"

Go to the source code of this file.

Enumerations

enum  staticStatus_t {
  inputAddr_e = 0, inputNetmask_e, inputGateway_e, inputDns_e,
  undefStatus_e
}

Functions

static void on_next (GtkToggleButton *button, gpointer data)
static void edit_static_set_address (const char *address)
static void edit_static_set_netmask (const char *netmask)
static void edit_static_set_gateway (const char *gateway)
static void edit_static_set_dns (const char *dns)
static const char * edit_static_get_address (void)
static const char * edit_static_get_netmask (void)
static const char * edit_static_get_gateway (void)
static const char * edit_static_get_dns (void)
static void edit_static_backup_network_settings (void)
GtkWidget * edit_static_create (void)
void edit_static_set_text (void)
static staticStatus_t edit_static_detect_status (void)
static void edit_static_determine_status (void)
void edit_static_set_network_settings (const regNetworkProfile_t *settings)
void edit_static_set_title (const char *profilename)
void edit_static_get_network_settings (regNetworkProfile_t *settings)
gboolean edit_static_check_network_settings (void)
void edit_static_restore_network_settings (void)
void edit_static_screen_leave (void)
static gboolean on_delayed_next (gpointer data)
gboolean on_edit_static_keypress (GdkEventKey *event)

Variables

static GtkWidget * g_static = NULL
static wdtLabelEntry * g_address = NULL
static wdtLabelEntry * g_netmask = NULL
static wdtLabelEntry * g_gateway = NULL
static wdtLabelEntry * g_dns = NULL
static GtkWidget * g_info = NULL
static regIpSetting_t * g_old_settings = NULL

Detailed Description

connectionMgr - "Static IP address" screen

Copyright (C) 2007 iRex Technologies BV.

Definition in file editScreenStatic.c.

Enumeration Type Documentation

enum staticStatus_t

Enumerator:
inputAddr_e
inputNetmask_e
inputGateway_e
inputDns_e
undefStatus_e

Definition at line 44 of file editScreenStatic.c.

00045 {
00046     inputAddr_e = 0,
00047     inputNetmask_e,
00048     inputGateway_e,
00049     inputDns_e,
00050     undefStatus_e
00051 }staticStatus_t;

Function Documentation

static void edit_static_backup_network_settings ( void   )  [static]

Definition at line 532 of file editScreenStatic.c.

00533 {
00534     const char *address, *netmask, *gateway, *dns;
00535
00536     CN_LOGPRINTF("entry");
00537
00538     address = edit_static_get_address();
00539     netmask = edit_static_get_netmask();
00540     gateway = edit_static_get_gateway();
00541     dns = edit_static_get_dns();
00542
00543     if (g_old_settings)
00544     {
00545         g_free(g_old_settings->address);
00546         g_free(g_old_settings->netmask);
00547         g_free(g_old_settings->gateway);
00548         g_free(g_old_settings->dns);
00549         g_free(g_old_settings);
00550     }
00551
00552     g_old_settings = g_new0(regIpSetting_t, 1);
00553     g_assert(g_old_settings != NULL);
00554     g_old_settings->address = g_strdup(address);
00555     g_old_settings->netmask = g_strdup(netmask);
00556     g_old_settings->gateway = g_strdup(gateway);
00557     g_old_settings->dns = g_strdup(dns);
00558 }

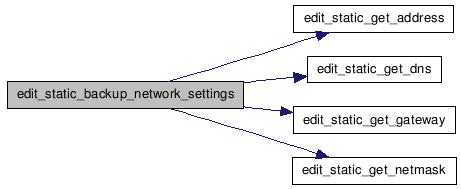

Here is the call graph for this function:

gboolean edit_static_check_network_settings ( void   )

Definition at line 513 of file editScreenStatic.c.

00514 {
00515     staticStatus_t status;
00516     gboolean valid = TRUE;
00517
00518     CN_LOGPRINTF("entry");
00519
00520     status = edit_static_detect_status();
00521     if (status != undefStatus_e)
00522     {
00523         valid = FALSE;
00524     }
00525
00526     CN_LOGPRINTF("return valid=%d", valid);
00527     return valid;
00528 }

Here is the call graph for this function:

GtkWidget* edit_static_create ( void   )

Definition at line 93 of file editScreenStatic.c.

00094 {
00095     GtkWidget *item;
00096     GtkWidget *topVbox;
00097     GtkWidget *background;
00098     GtkWidget *alignment;
00099     GtkWidget *vbox;
00100     wdtLabelEntry *address;
00101     wdtLabelEntry *netmask;
00102     wdtLabelEntry *gateway;
00103     wdtLabelEntry *dns;
00104     GtkWidget *info;
00105     GtkWidget *widget;
00106
00107     CN_LOGPRINTF("entry");
00108
00109     // item
00110     item = gtk_settingitem_new("");
00111
00112     // topVbox
00113     topVbox = gtk_vbox_new(FALSE, VBOX_SPACING);
00114     gtk_settingitem_add_details(GTK_SETTINGITEM(item), topVbox);
00115
00116     // background
00117     background = gtk_event_box_new();
00118     gtk_widget_set_name(background, "bk_grey_666_273");
00119     gtk_widget_set_size_request(background,
00120             BK_666_273_WIDTH, BK_666_273_HEIGHT);
00121     gtk_box_pack_start(GTK_BOX(topVbox), background, FALSE, FALSE, 0);
00122
00123     // alignment
00124     alignment = gtk_alignment_new(0.0, 0.0, 0, 0);
00125     gtk_alignment_set_padding(GTK_ALIGNMENT(alignment),
00126             PADDING_TOP, PADDING_BOTTOM, PADDING_LEFT, PADDING_RIGHT);
00127     gtk_container_add(GTK_CONTAINER(background), alignment);
00128
00129     // vbox
00130     vbox = gtk_vbox_new(FALSE, VBOX_SPACING);
00131     gtk_container_add(GTK_CONTAINER(alignment), vbox);
00132
00133     // address
00134     address = wdt_label_entry_new(ipAddress_e);
00135     gtk_box_pack_start(GTK_BOX(vbox), address->parent, FALSE, FALSE, 0);
00136
00137     // netmask
00138     netmask = wdt_label_entry_new(ipAddress_e);
00139     gtk_box_pack_start(GTK_BOX(vbox), netmask->parent, FALSE, FALSE, 0);
00140
00141     // gateway
00142     gateway = wdt_label_entry_new(ipAddress_e);
00143     gtk_box_pack_start(GTK_BOX(vbox), gateway->parent, FALSE, FALSE, 0);
00144
00145     // dns
00146     dns = wdt_label_entry_new(ipAddress_e);
00147     gtk_box_pack_start(GTK_BOX(vbox), dns->parent, FALSE, FALSE, 0);
00148
00149     // info item
00150     info = gtk_infoitem_new(FALSE);
00151     gtk_box_pack_start(GTK_BOX(topVbox), info, FALSE, FALSE, 0);
00152
00153     // signal handlers
00154     widget = dns->button;
00155     g_signal_connect_after(G_OBJECT(widget), "toggled",
00156                            G_CALLBACK(on_next), NULL);
00157
00158     // show the widgets
00159     gtk_widget_show(item);
00160     gtk_widget_show(topVbox);
00161     gtk_widget_show(background);
00162     gtk_widget_show(alignment);
00163     gtk_widget_show(vbox);
00164     gtk_widget_show(address->parent);
00165     gtk_widget_hide(address->button);
00166     gtk_widget_show(netmask->parent);
00167     gtk_widget_hide(netmask->button);
00168     gtk_widget_show(gateway->parent);
00169     gtk_widget_hide(gateway->button);
00170     gtk_widget_show(dns->parent);
00171     gtk_widget_show(info);
00172
00173     // set the global variables
00174     g_static = item;
00175     g_address = address;
00176     g_netmask = netmask;
00177     g_gateway = gateway;
00178     g_dns = dns;
00179     g_info = info;
00180
00181     CN_LOGPRINTF("done");
00182
00183     // return
00184     return item;
00185 }

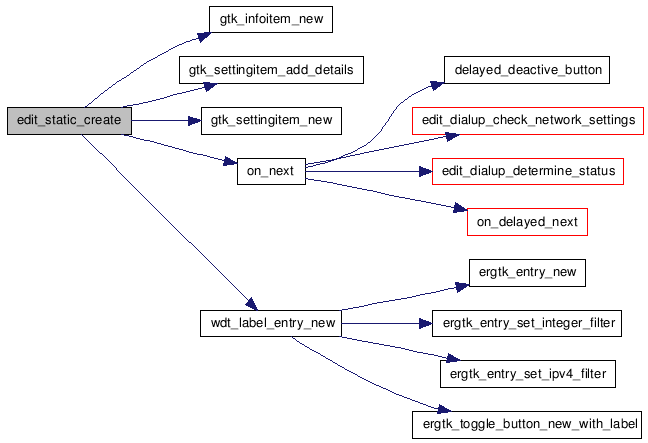

Here is the call graph for this function:

static staticStatus_t edit_static_detect_status ( void   )  [static]

Definition at line 238 of file editScreenStatic.c.

00239 {
00240     staticStatus_t status = undefStatus_e;
00241
00242     if (!ergtk_entry_check_field(ERGTK_ENTRY(g_address->entry)))
00243     {
00244         status = inputAddr_e;
00245     }
00246     else if (!ergtk_entry_check_field(ERGTK_ENTRY(g_netmask->entry)))
00247     {
00248         status = inputNetmask_e;
00249     }
00250     else if (!ergtk_entry_check_field(ERGTK_ENTRY(g_gateway->entry)))
00251     {
00252         status = inputGateway_e;
00253     }
00254     else if (!ergtk_entry_check_field(ERGTK_ENTRY(g_dns->entry)))
00255     {
00256         status = inputDns_e;
00257     }
00258
00259     CN_LOGPRINTF("return %d", status);
00260     return status;
00261 }

Here is the call graph for this function:

static void edit_static_determine_status ( void   )  [static]

Definition at line 263 of file editScreenStatic.c.

00264 {
00265     staticStatus_t status;
00266     GtkWidget *widget = NULL;
00267
00268     status = edit_static_detect_status();
00269     switch (status)
00270     {
00271         case inputAddr_e:
00272             widget = g_address->entry;
00273             break;
00274         case inputNetmask_e:
00275             widget = g_netmask->entry;
00276             break;
00277         case inputGateway_e:
00278             widget = g_gateway->entry;
00279             break;
00280         case inputDns_e:
00281             widget = g_dns->entry;
00282             break;
00283         default:
00284             widget = g_address->entry;
00285             break;
00286     }
00287
00288     if (widget)
00289     {
00290         gtk_widget_grab_focus(widget);
00291     }
00292 }

Here is the call graph for this function:

static const char * edit_static_get_address ( void   )  [static]

Definition at line 452 of file editScreenStatic.c.

00453 {
00454     GtkWidget *widget;
00455     const char *address = NULL;
00456
00457     if (g_address)
00458     {
00459         widget = g_address->entry;
00460         address = gtk_entry_get_text(GTK_ENTRY(widget));
00461     }
00462
00463     CN_LOGPRINTF("return address=%s", address);
00464
00465     return address;
00466 }

static const char * edit_static_get_dns ( void   )  [static]

Definition at line 498 of file editScreenStatic.c.

00499 {
00500     GtkWidget *widget;
00501     const char *dns = NULL;
00502
00503     if (g_dns)
00504     {
00505         widget = g_dns->entry;
00506         dns = gtk_entry_get_text(GTK_ENTRY(widget));
00507     }
00508
00509     CN_LOGPRINTF("return dns=%s", dns);
00510     return dns;
00511 }

static const char * edit_static_get_gateway ( void   )  [static]

Definition at line 483 of file editScreenStatic.c.

00484 {
00485     GtkWidget *widget;
00486     const char *gateway = NULL;
00487
00488     if (g_gateway)
00489     {
00490         widget = g_gateway->entry;
00491         gateway = gtk_entry_get_text(GTK_ENTRY(widget));
00492     }
00493
00494     CN_LOGPRINTF("return gateway=%s", gateway);
00495     return gateway;
00496 }

static const char * edit_static_get_netmask ( void   )  [static]

Definition at line 468 of file editScreenStatic.c.

00469 {
00470     GtkWidget *widget;
00471     const char *netmask = NULL;
00472
00473     if (g_netmask)
00474     {
00475         widget = g_netmask->entry;
00476         netmask = gtk_entry_get_text(GTK_ENTRY(widget));
00477     }
00478
00479     CN_LOGPRINTF("return netmask=%s", netmask);
00480     return netmask;
00481 }

void edit_static_get_network_settings ( regNetworkProfile_t *  settings  )

Definition at line 408 of file editScreenStatic.c.

00409 {
00410     const gchar *address, *netmask, *gateway, *dns;
00411     regIpSetting_t *ipSettings;
00412
00413     CN_LOGPRINTF("entry");
00414
00415     g_return_if_fail(settings != NULL);
00416     g_return_if_fail(settings->addressMode == static_t);
00417
00418     // clear static IP settings
00419     ipSettings = settings->ipSettings;
00420     if (ipSettings)
00421     {
00422         g_free(ipSettings->address);
00423         g_free(ipSettings->netmask);
00424         g_free(ipSettings->gateway);
00425         g_free(ipSettings->dns);
00426         g_free(ipSettings);
00427         ipSettings = NULL;
00428         settings->ipSettings = NULL;
00429     }
00430
00431     // get current value from screen objects
00432     address = edit_static_get_address();
00433     netmask = edit_static_get_netmask();
00434     gateway = edit_static_get_gateway();
00435     dns = edit_static_get_dns();
00436
00437     // store new settings, if static IP selected
00438     if (settings->addressMode == static_t)
00439     {
00440         ipSettings = g_new0(regIpSetting_t, 1);
00441         if (ipSettings)
00442         {
00443             ipSettings->address = g_strdup(address);
00444             ipSettings->netmask = g_strdup(netmask);
00445             ipSettings->gateway = g_strdup(gateway);
00446             ipSettings->dns     = g_strdup(dns    );
00447         }
00448         settings->ipSettings = ipSettings;
00449     }
00450 }

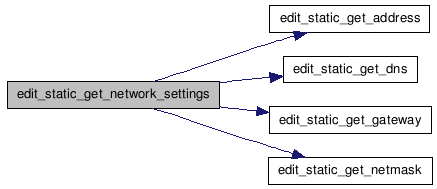

Here is the call graph for this function:

void edit_static_restore_network_settings ( void   )

Definition at line 560 of file editScreenStatic.c.

00561 {
00562     char *address = NULL;
00563     char *netmask = NULL;
00564     char *gateway = NULL;
00565     char *dns = NULL;
00566
00567     CN_LOGPRINTF("entry");
00568
00569     if (g_old_settings)
00570     {
00571        address = g_old_settings->address;
00572        netmask = g_old_settings->netmask;
00573        gateway = g_old_settings->gateway;
00574        dns = g_old_settings->dns;
00575     }
00576
00577     edit_static_set_address(address);
00578     edit_static_set_netmask(netmask);
00579     edit_static_set_gateway(gateway);
00580     edit_static_set_dns(dns);
00581 }

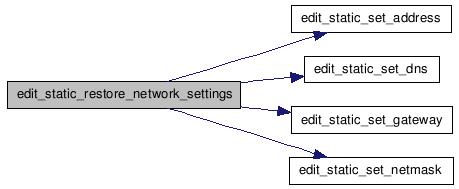

Here is the call graph for this function:

void edit_static_screen_leave ( void   )

Definition at line 583 of file editScreenStatic.c.

00584 {
00585     gboolean valid = TRUE;
00586
00587     CN_LOGPRINTF("entry");
00588
00589     valid = edit_static_check_network_settings();
00590
00591     // force overview screen to DHCP when no static settings
00592     if (!valid)
00593     {
00594         edit_overview_set_address(dhcp_t);
00595     }
00596 }

Here is the call graph for this function:

static void edit_static_set_address ( const char *  address  )  [static]

Definition at line 356 of file editScreenStatic.c.

00357 {
00358     GtkWidget *widget;
00359
00360     CN_LOGPRINTF("entry %s", address);
00361
00362     if (g_address)
00363     {
00364         widget = g_address->entry;
00365         gtk_entry_set_text(GTK_ENTRY(widget), address ? address : "");
00366     }
00367 }

static void edit_static_set_dns ( const char *  dns  )  [static]

Definition at line 395 of file editScreenStatic.c.

00396 {
00397     GtkWidget *widget;
00398
00399     CN_LOGPRINTF("entry [%s]", dns);
00400
00401     if (g_dns)
00402     {
00403         widget = g_dns->entry;
00404         gtk_entry_set_text(GTK_ENTRY(widget), dns ? dns : "");
00405     }
00406 }

static void edit_static_set_gateway ( const char *  gateway  )  [static]

Definition at line 382 of file editScreenStatic.c.

00383 {
00384     GtkWidget *widget;
00385
00386     CN_LOGPRINTF("entry [%s]", gateway);
00387
00388     if (g_gateway)
00389     {
00390         widget = g_gateway->entry;
00391         gtk_entry_set_text(GTK_ENTRY(widget), gateway ? gateway : "");
00392     }
00393 }

static void edit_static_set_netmask ( const char *  netmask  )  [static]

Definition at line 369 of file editScreenStatic.c.

00370 {
00371     GtkWidget *widget;
00372
00373     CN_LOGPRINTF("entry [%s]", netmask);
00374
00375     if (g_netmask)
00376     {
00377         widget = g_netmask->entry;
00378         gtk_entry_set_text(GTK_ENTRY(widget), netmask ? netmask : "");
00379     }
00380 }

void edit_static_set_network_settings ( const regNetworkProfile_t *  settings  )

Definition at line 295 of file editScreenStatic.c.

00296 {
00297     gchar *profilename = NULL;
00298     gchar *address = NULL;
00299     gchar *netmask = NULL;
00300     gchar *gateway = NULL;
00301     gchar *dns     = NULL;
00302     regIpSetting_t* ipSettings;
00303
00304     CN_LOGPRINTF("entry [%p]", settings);
00305
00306     g_return_if_fail(settings != NULL);
00307     // g_return_if_fail(settings->addressMode == static_t);
00308
00309     profilename = settings->name;
00310
00311     ipSettings = settings->ipSettings;
00312     if (ipSettings)
00313     {
00314         address = ipSettings->address;
00315         netmask = ipSettings->netmask;
00316         gateway = ipSettings->gateway;
00317         dns = ipSettings->dns;
00318     }
00319
00320     edit_static_set_title(profilename);
00321     edit_static_set_address(address);
00322     edit_static_set_netmask(netmask);
00323     edit_static_set_gateway(gateway);
00324     edit_static_set_dns(dns);
00325
00326     edit_static_determine_status();
00327
00328     // a backup copy of settings
00329     edit_static_backup_network_settings();
00330 }

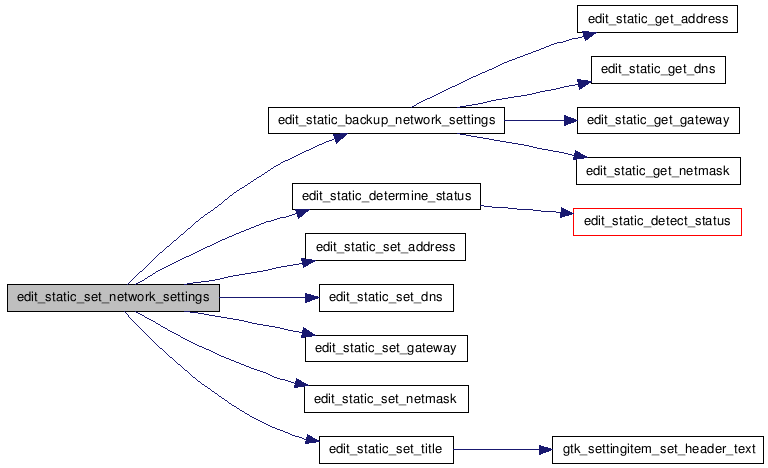

Here is the call graph for this function:

void edit_static_set_text ( void   )

Definition at line 187 of file editScreenStatic.c.

00188 {
00189     GtkWidget* widget = NULL;
00190
00191     CN_LOGPRINTF("entry");
00192
00193     if (g_static)
00194     {
00195         gtk_settingitem_set_header_text(GTK_SETTINGITEM(g_static),
00196                                         _("Network profile"));
00197     }
00198
00199     if (g_address)
00200     {
00201         widget = g_address->label;
00202         gtk_label_set_text(GTK_LABEL(widget),
00203                 _("Enter the iLiad's IP address:"));
00204     }
00205
00206     if (g_netmask)
00207     {
00208         widget = g_netmask->label;
00209         gtk_label_set_text(GTK_LABEL(widget),
00210                 _("Enter the iLiad's netmask:"));
00211     }
00212
00213     if (g_gateway)
00214     {
00215         widget = g_gateway->label;
00216         gtk_label_set_text(GTK_LABEL(widget),
00217                 _("Enter the default gateway's IP address:"));
00218    }
00219
00220     if (g_dns)
00221     {
00222         widget = g_dns->label;
00223         gtk_label_set_text(GTK_LABEL(widget),
00224                 _("Enter the DNS name server's IP address:"));
00225
00226         widget = g_dns->button;
00227         gtk_button_set_label(GTK_BUTTON(widget), _("Next"));
00228     }
00229
00230     if (g_info)
00231     {
00232         gtk_infoitem_set_text(GTK_INFOITEM(g_info),
00233                 _("If you do not know the settings for this network, "
00234                   "please ask your network administrator."));
00235     }
00236 }

Here is the call graph for this function:

void edit_static_set_title ( const char *  profilename  )

Definition at line 332 of file editScreenStatic.c.

00333 {
00334     char *title = NULL;
00335
00336     CN_LOGPRINTF("entry[%s]", profilename);
00337
00338     if (g_static)
00339     {
00340         if (profilename)
00341         {
00342             title = g_strdup_printf(_("Network profile: %s/static"),
00343                                     profilename);
00344         }
00345         else
00346         {
00347             title = g_strdup(_("Network profile: static"));
00348         }
00349
00350         gtk_settingitem_set_header_text(GTK_SETTINGITEM(g_static), title);
00351
00352         g_free(title);
00353     }
00354 }

Here is the call graph for this function:

static gboolean on_delayed_next ( gpointer  data  )  [static]

Definition at line 599 of file editScreenStatic.c.

00600 {
00601     gboolean valid;
00602     GtkToggleButton *button;
00603
00604     erbusy_blink();
00605
00606     valid = edit_static_check_network_settings();
00607     if (valid)
00608     {
00609         // before leave this page, backup the settings
00610         edit_static_backup_network_settings();
00611
00612         edit_goto_page(editScreenOverview_e);
00613         edit_overview_update_info_text(inputProxy_e);
00614     }
00615     else
00616     {
00617         edit_static_determine_status();
00618     }
00619
00620     button = GTK_TOGGLE_BUTTON(data);
00621     gtk_toggle_button_set_active(button, FALSE);
00622
00623     return FALSE;
00624 }

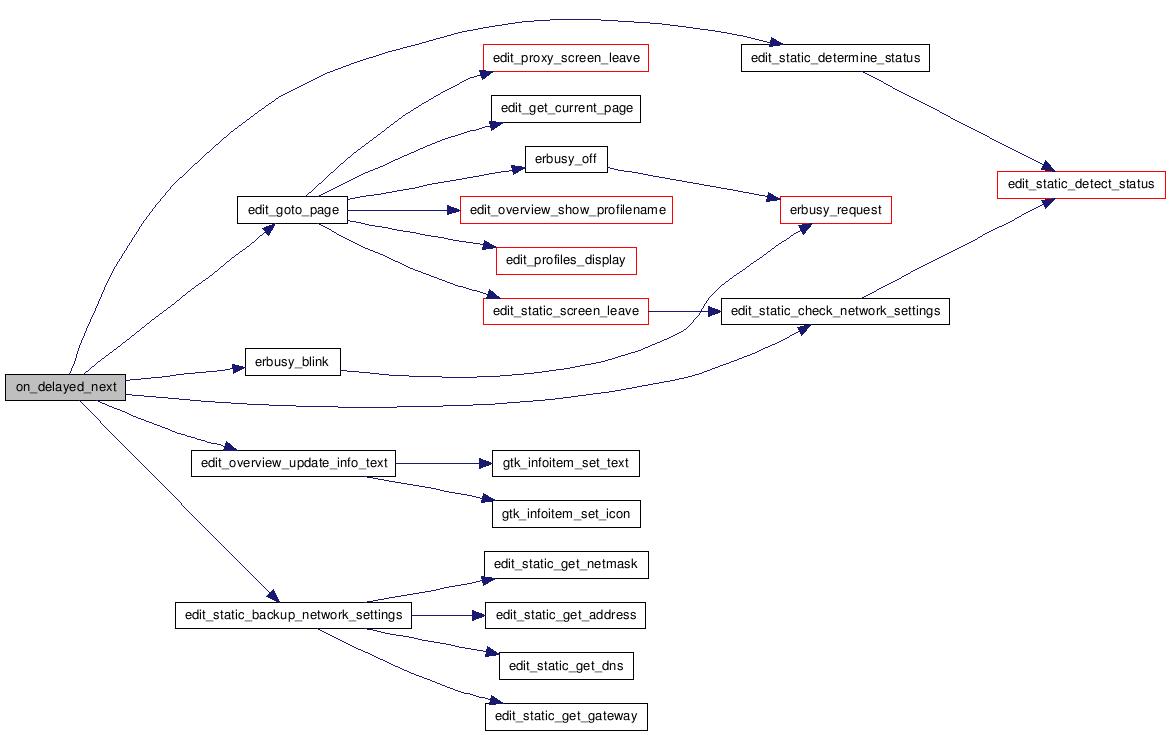

Here is the call graph for this function:

gboolean on_edit_static_keypress ( GdkEventKey *  event  )

Definition at line 640 of file editScreenStatic.c.

00641 {
00642     GtkToggleButton *button;
00643     gboolean ret = FALSE;
00644
00645     CN_LOGPRINTF("entry");
00646
00647     switch (event->keyval)
00648     {
00649         case GDK_Return:
00650             // 'Enter' key is pressed
00651             // simulate clicking the 'Next' button
00652             if (g_dns)
00653             {
00654                 button = GTK_TOGGLE_BUTTON(g_dns->button);
00655                 gtk_toggle_button_set_active(button, TRUE);
00656             }
00657             ret = TRUE;
00658             break;
00659
00660         case GDK_F5:
00661             // 'UP' key is pressed
00662             // goto the one top level page
00663             cmgr_up_page();
00664             ret = TRUE;
00665             break;
00666
00667         case GDK_Down:
00668         case GDK_Up:
00669             // avoid the standard GTK behaviour for GtkEntries
00670             erbusy_off();
00671             ret = TRUE;
00672
00673         default:
00674             erbusy_off();
00675             break;
00676     }
00677
00678     return ret;
00679 }

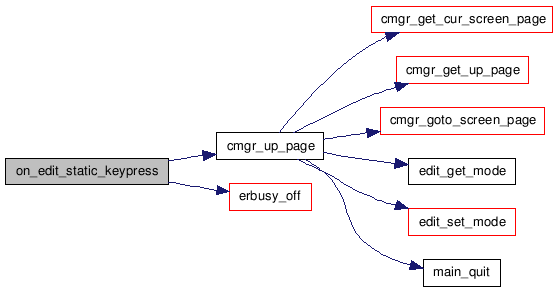

Here is the call graph for this function:

static void on_next ( GtkToggleButton *  button,
gpointer  data
) [static]

Definition at line 626 of file editScreenStatic.c.

00627 {
00628     gboolean active;
00629
00630     CN_LOGPRINTF("entry");
00631
00632     active = gtk_toggle_button_get_active(button);
00633     if (active)
00634     {
00635         g_timeout_add(500, on_delayed_next, button);
00636     }
00637 }

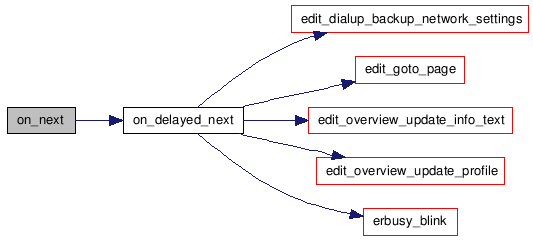

Here is the call graph for this function:

Variable Documentation

wdtLabelEntry* g_address = NULL [static]

Definition at line 55 of file editScreenStatic.c.

wdtLabelEntry* g_dns = NULL [static]

Definition at line 58 of file editScreenStatic.c.

wdtLabelEntry* g_gateway = NULL [static]

Definition at line 57 of file editScreenStatic.c.

GtkWidget* g_info = NULL [static]

Definition at line 60 of file editScreenStatic.c.

wdtLabelEntry* g_netmask = NULL [static]

Definition at line 56 of file editScreenStatic.c.

regIpSetting_t* g_old_settings = NULL [static]

Definition at line 63 of file editScreenStatic.c.

GtkWidget* g_static = NULL [static]

Definition at line 53 of file editScreenStatic.c.

Generated on Sun Dec 14 17:16:30 2008 by  doxygen 1.5.6
