connectionMgr/src/editScreenOverview.c File Reference

connectionMgr - edit overview screen More...

#include "config.h"
#include <string.h>
#include <gtk/gtk.h>
#include <liberdm/connectionMgrConstants.h>
#include <liberregxml/erregapi.h>
#include <libergtk/ergtk.h>
#include "connectionMgrLog.h"
#include "displayStatus.h"
#include "erbusy.h"
#include "connectionMgr.h"
#include "gtkSettingItem.h"
#include "gtkInfoItem.h"
#include "gtkProfileEntry.h"
#include "widgetUtils.h"
#include "commonData.h"
#include "connectScreenData.h"
#include "editScreenData.h"
#include "editScreen.h"
#include "editScreenOverview.h"
#include "editScreenWireless.h"
#include "editScreenWirelessExt.h"
#include "editScreenDialup.h"
#include "editScreenStatic.h"
#include "editScreenProxy.h"
#include "connectPing.h"
#include "connectBackground.h"
#include "background.h"
#include "languages.h"

Go to the source code of this file.

Functions
static ip_address_mode_t	edit_overview_get_address (void)
static gboolean	edit_overview_get_proxy (void)
static const char *	edit_overview_get_profilename (void)
static gboolean	on_delayed_edit_goto_page (gpointer new_page)
static gboolean	delayed_deactive_button (gpointer data)
static gboolean	on_button_press (GtkWidget *button, GdkEventButton *event, gpointer data)
static gboolean	on_profile_entry_button_press (GtkWidget *widget, GdkEventButton *event, gpointer data)
static void	on_ip_address_mode_update (GtkWidget *selection, gpointer button, gpointer data)
static void	on_proxy_onoff_update (GtkWidget *selection, gpointer button, gpointer data)
static void	on_profilename_changed (GtkEntry *widget, gpointer data)
static void	on_buttons_update (GtkWidget *selection, gpointer button, gpointer data)
static void	on_test (void)
static void	on_save (void)
static void	on_saveconnect (void)
static void	edit_overview_restore_ping_ctxt (gboolean toTest)
static void	on_test_connected (int profileIndex)
static void	on_test_failed (void)
static void	on_connected (int profileIndex)
static void	on_failed (void)
static void	ui_test_update_status (int profileIndex, pingStatus_t status)
static void	ui_update_status (int profileIndex, pingStatus_t status)
static void	ui_display_settings (int profileIndex, gboolean resetStatus)
static void	ui_select_profile (int profileIndex)
static void	ui_unselect_all_profile (void)
static void	edit_overview_freeze_ui (gboolean freeze)
GtkWidget *	edit_overview_create (void)
void	edit_overview_set_text (void)
void	edit_overview_update_info_text (overviewStatus_t status)
void	edit_overview_update_profile (void)
void	edit_overview_show_profilename (void)
void	edit_overview_enable_save_button (gboolean enable)
void	edit_overview_set_network_settings (const regNetworkProfile_t *settings)
void	edit_overview_set_profile (const regNetworkProfile_t *settings)
void	edit_overview_set_address (const ip_address_mode_t addressMode)
void	edit_overview_set_proxy (const gboolean use_proxy)
void	edit_overview_set_profilename (const gchar *profilename)
void	edit_overview_get_network_settings (regNetworkProfile_t *settings)
gboolean	edit_overview_check_network_settings (void)
static gboolean	on_delayed_save (gpointer data)
static gboolean	on_delayed_saveconnect (gpointer data)
void	edit_overview_click_test (void)
void	edit_overview_click_save (void)
void	edit_overview_click_saveconnect (void)
static void	deactive_button (void)
gboolean	on_edit_overview_keypress (GdkEventKey *event)
Variables
static GtkWidget *	g_overview = NULL
static bkProfileEntry *	g_profile_entry = NULL
static bkWdtLabelButton *	g_address = NULL
static bkWdtLabelButton *	g_proxy = NULL
static bkWdtLabelEntry *	g_profilename = NULL
static bkWdtLabelButton *	g_buttons = NULL
static GtkWidget *	g_info = NULL

---

Detailed Description

connectionMgr - edit overview screen

connectionMgr - "edit network configuration overview" screen

Copyright (C) 2007 iRex Technologies BV.

Definition in file editScreenOverview.c.

---

Function Documentation

static void deactive_button

(

void

)

[static]

Definition at line 1211 of file editScreenOverview.c.

{
    erGtkSelectionGroup *item;
    int nsel;
    GtkToggleButton *button;

    // deactive the button
    if (g_buttons)
    {
        item = ERGTK_SELECTION_GROUP(g_buttons->details->selection);
        ergtk_selection_group_get_selected_buttons(item, &nsel, 1);
        if ((nsel >= 0) && (nsel <= 2))
        {
            button = g_buttons->details->buttonList[nsel];
            g_timeout_add(500, delayed_deactive_button, button);
        }
    }
}

Here is the call graph for this function:

static gboolean delayed_deactive_button

(

gpointer

data

)

[static]

Definition at line 890 of file editScreenOverview.c.

{
    GtkToggleButton *button = GTK_TOGGLE_BUTTON(data);

    if (button)
    {
        gtk_toggle_button_set_active(button, FALSE);
    }

    return FALSE;
}

gboolean edit_overview_check_network_settings

(

void

)

Definition at line 732 of file editScreenOverview.c.

{
    editMode_t mode;
    connection_t networkType;
    ip_address_mode_t address;
    gboolean useproxy;
    erGtkEntry *profilename;
    gboolean valid = TRUE;

    CN_LOGPRINTF("entry");

    networkType =  edit_data_get_network_type();
    address = edit_overview_get_address();
    useproxy = edit_overview_get_proxy();
    profilename = ERGTK_ENTRY(g_profilename->details->entry);

    switch (networkType)
    {
        case wired_t:
            if ((address < 0) || (address >= ip_address_mode_undefined_t)
                || (!ergtk_entry_check_field(profilename)))
            {
                valid = FALSE;
            }
            break;
        case wireless_t:
            mode = edit_get_mode();
            if (mode == editModeConnectFillIn_e)
            {
                valid = edit_wireless_ext_check_network_settings();
            }
            else
            {
                valid = edit_wireless_check_network_settings();
            }
            break;
        case dialup_t:
            valid = edit_dialup_check_network_settings();
            break;
        default:
            CN_ERRORPRINTF("unknown networkType[%d]", networkType);
            g_assert_not_reached();
            break;
    }
    g_return_val_if_fail(valid == TRUE, valid);

    // check the static ip address
    if (address == static_t)
    {
        valid = edit_static_check_network_settings();
    }
    g_return_val_if_fail(valid == TRUE, valid);

    // check the proxy settings
    if (useproxy)
    {
        valid = edit_proxy_check_network_settings();
    }
    g_return_val_if_fail(valid == TRUE, valid);

    return valid;
}

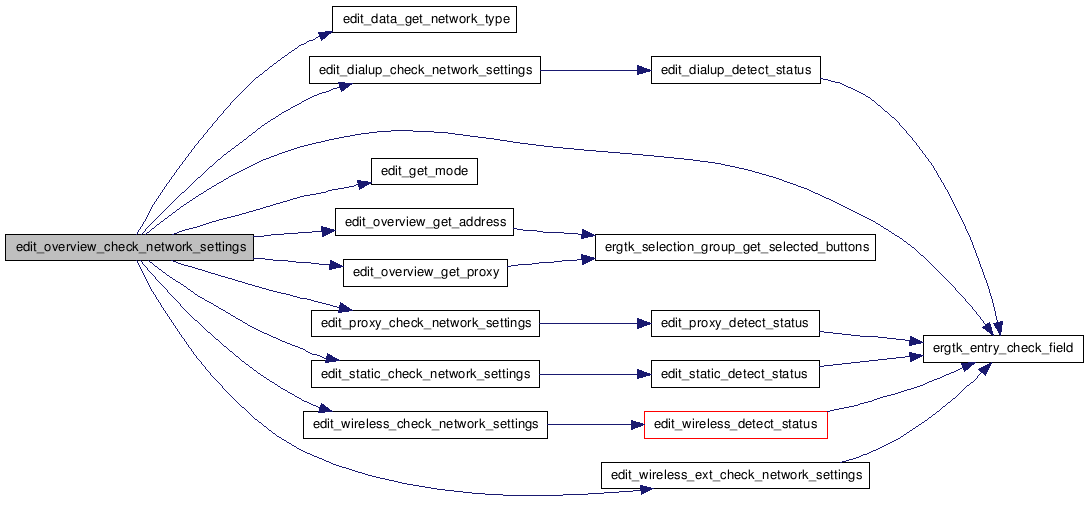

Here is the call graph for this function:

void edit_overview_click_save

(

void

)

Definition at line 1125 of file editScreenOverview.c.

{
    GtkWidget *widget;

    CN_LOGPRINTF("entry");

    if (g_buttons)
    {
        widget = GTK_WIDGET(g_buttons->details->buttonList[1]);
        gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(widget), TRUE);
    }
}

void edit_overview_click_saveconnect

(

void

)

Definition at line 1138 of file editScreenOverview.c.

{
    GtkWidget *widget;

    CN_LOGPRINTF("entry");

    if (g_buttons)
    {
        widget = GTK_WIDGET(g_buttons->details->buttonList[2]);
        gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(widget), TRUE);
    }
}

void edit_overview_click_test

(

void

)

Definition at line 1112 of file editScreenOverview.c.

{
    GtkWidget *widget;

    CN_LOGPRINTF("entry");

    if (g_buttons)
    {
        widget = GTK_WIDGET(g_buttons->details->buttonList[0]);
        gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(widget), TRUE);
    }
}

GtkWidget* edit_overview_create

(

void

)

Definition at line 123 of file editScreenOverview.c.

{
    GtkWidget *item;
    GtkWidget *vbox;
    bkProfileEntry   *profileEntry;
    bkWdtLabelButton *ipAddressMode;
    bkWdtLabelButton *proxyOnOff;
    bkWdtLabelEntry  *profileName;
    bkWdtLabelButton *buttons;
    GtkWidget *info;
    GtkWidget *widget;

    CN_LOGPRINTF("entry");

    // item
    item = gtk_settingitem_new("");

    // vbox
    vbox = gtk_vbox_new(FALSE, VBOX_SPACING);
    gtk_settingitem_add_details(GTK_SETTINGITEM(item), vbox);

    // profileEntry
    profileEntry = bk_profile_entry_new();
    gtk_box_pack_start(GTK_BOX(vbox), profileEntry->background,
                       FALSE, FALSE, 0);

    // ipAddressMode
    ipAddressMode = bk_wdt_label_button_new(2, FALSE, 1, 1);
    gtk_box_pack_start(GTK_BOX(vbox), ipAddressMode->background,
                       FALSE, FALSE, 0);

    // proxyOnOff
    proxyOnOff = bk_wdt_label_button_new(2, FALSE, 1, 1);
    gtk_box_pack_start(GTK_BOX(vbox), proxyOnOff->background,
                       FALSE, FALSE, 0);

    // profilename
    profileName = bk_wdt_label_entry_new(string_e);
    gtk_box_pack_start(GTK_BOX(vbox), profileName->background,
                       FALSE, FALSE, 0);

    // buttons
    buttons = bk_wdt_label_button_new(3, FALSE, 0, 1);
    gtk_box_pack_start(GTK_BOX(vbox), buttons->background,
                       FALSE, FALSE, 0);

    // info
    info = gtk_infoitem_new(FALSE);
    gtk_box_pack_start(GTK_BOX(vbox), info, FALSE, FALSE, 0);

    // signal handlers
    widget = profileEntry->background;
    g_signal_connect(G_OBJECT(widget), "button-press-event",
                 G_CALLBACK(on_button_press), (gpointer)inputDetails_e);
    widget = ipAddressMode->background;
    g_signal_connect(G_OBJECT(widget), "button-press-event",
                 G_CALLBACK(on_button_press), (gpointer)inputAddress_e);
    widget = proxyOnOff->background;
    g_signal_connect(G_OBJECT(widget), "button-press-event",
                 G_CALLBACK(on_button_press), (gpointer)inputProxy_e);
    widget = profileName->background;
    g_signal_connect(G_OBJECT(widget), "button-press-event",
             G_CALLBACK(on_button_press), (gpointer)inputProfileName_e);

    widget = gtk_profile_entry_get_namebutton(GTK_PROFILE_ENTRY(profileEntry->details));
    g_signal_connect(G_OBJECT(widget), "button-press-event",
                     G_CALLBACK(on_profile_entry_button_press), NULL);

    widget = ipAddressMode->details->selection;
    g_signal_connect(G_OBJECT(widget), "selection-update",
                     G_CALLBACK(on_ip_address_mode_update), NULL);

    widget = proxyOnOff->details->selection;
    g_signal_connect(G_OBJECT(widget), "selection-update",
                     G_CALLBACK(on_proxy_onoff_update), NULL);

    widget = profileName->details->entry;
    g_signal_connect_after(G_OBJECT(widget), "changed-stable",
                           G_CALLBACK(on_profilename_changed), NULL);

    widget = buttons->details->selection;
    g_signal_connect(G_OBJECT(widget), "selection-update",
                     G_CALLBACK(on_buttons_update), NULL);

    // show widgets
    gtk_widget_show(item);
    gtk_widget_show(vbox);
    gtk_widget_show(profileEntry->background);
    gtk_widget_show(ipAddressMode->background);
    gtk_widget_show(proxyOnOff->background);
    gtk_widget_show(profileName->background);
    gtk_widget_hide(profileName->details->button);
    gtk_widget_grab_focus(profileName->details->entry);
    gtk_widget_show(buttons->background);
    gtk_widget_show(info);

    // global variables
    g_overview = item;
    g_profile_entry = profileEntry;
    g_address = ipAddressMode;
    g_proxy = proxyOnOff;
    g_profilename = profileName;
    g_buttons = buttons;
    g_info = info;

    CN_LOGPRINTF("done");

    // return
    return item;
}

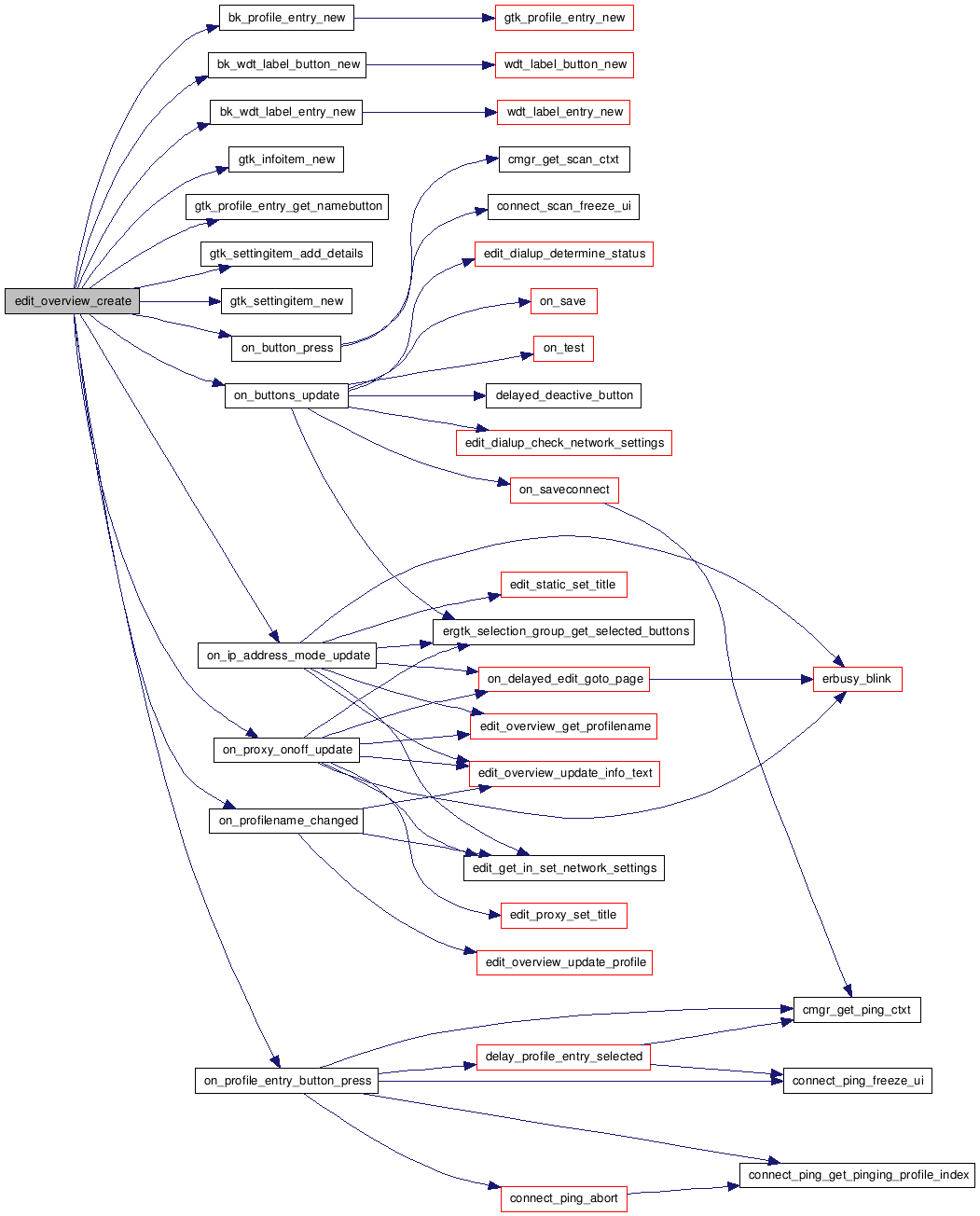

Here is the call graph for this function:

void edit_overview_enable_save_button

(

gboolean

enable

)

Definition at line 449 of file editScreenOverview.c.

{
    GtkWidget *widget;

    CN_LOGPRINTF("entry %d", enable);

    if (g_buttons)
    {
        widget = GTK_WIDGET(g_buttons->details->buttonList[1]);
        gtk_widget_set_sensitive(widget, enable);
    }
}

static void edit_overview_freeze_ui

(

gboolean

freeze

)

[static]

Definition at line 1436 of file editScreenOverview.c.

{
    GtkProfileEntry *item;
    editMode_t mode;
    connection_t networkType;
    gboolean sensitive;
    GtkWidget *widget;

    CN_LOGPRINTF("entry[%d]", freeze);

    sensitive = !freeze;

    // the name button of profile entry
    item = GTK_PROFILE_ENTRY(g_profile_entry->details);
    widget = gtk_profile_entry_get_namebutton(item);
    gtk_widget_set_sensitive(widget, sensitive);

    // ipaddress mode buttons
    widget = GTK_WIDGET(g_address->details->buttonList[0]);
    gtk_widget_set_sensitive(widget, sensitive);

    widget = GTK_WIDGET(g_address->details->buttonList[1]);
    gtk_widget_set_sensitive(widget, sensitive);

    // proxy buttons
    widget = GTK_WIDGET(g_proxy->details->buttonList[0]);
    gtk_widget_set_sensitive(widget, sensitive);

    widget = GTK_WIDGET(g_proxy->details->buttonList[1]);
    gtk_widget_set_sensitive(widget, sensitive);

    // profilename entry
    widget = g_profilename->details->entry;
    gtk_widget_set_sensitive(widget, sensitive);

    // buttons
    widget = GTK_WIDGET(g_buttons->details->buttonList[0]);
    gtk_widget_set_sensitive(widget, sensitive);

    widget = GTK_WIDGET(g_buttons->details->buttonList[1]);
    gtk_widget_set_sensitive(widget, sensitive);

    widget = GTK_WIDGET(g_buttons->details->buttonList[2]);
    gtk_widget_set_sensitive(widget, sensitive);

    if (sensitive)
    {
        // restore the previous in-sensitive widgets
        // static button
        networkType = edit_data_get_network_type();
        if ((networkType == wireless_t)
            || (networkType == dialup_t))
        {
            widget = GTK_WIDGET(g_address->details->buttonList[1]);
            gtk_widget_set_sensitive(widget, FALSE);
        }

        // save button
        mode = edit_get_mode();
        if ((mode == editModeConnectFillIn_e)
            || (mode == editModeConnectCreate_e)
            || (mode == editModeConnectNormal_e))
        {
            edit_overview_enable_save_button(FALSE);
        }
    }
}

Here is the call graph for this function:

static ip_address_mode_t edit_overview_get_address

(

void

)

[static]

Definition at line 631 of file editScreenOverview.c.

{
    GtkWidget *widget;
    erGtkSelectionGroup *item;
    int nsel;
    ip_address_mode_t mode;

    CN_LOGPRINTF("entry");

    g_return_val_if_fail(g_address != NULL, dhcp_t);

    widget = g_address->details->selection;
    item = ERGTK_SELECTION_GROUP(widget);

    ergtk_selection_group_get_selected_buttons(item, &nsel, 1);
    if (nsel == 0)
    {
        mode = dhcp_t;
    }
    else
    {
        mode = static_t;
    }

    CN_LOGPRINTF("return mode=%d", mode);
    return mode;
}

Here is the call graph for this function:

void edit_overview_get_network_settings

(

regNetworkProfile_t *

settings

)

Definition at line 608 of file editScreenOverview.c.

{
    const gchar *profilename;

    CN_LOGPRINTF("entry");

    g_return_if_fail(settings != NULL);

    // connection
    settings->connection = edit_data_get_network_type();

    // address mode
    settings->addressMode = edit_overview_get_address();

    // proxy
    settings->proxy = edit_overview_get_proxy();

    // profile name
    profilename = edit_overview_get_profilename();
    g_free(settings->name);
    settings->name = g_strdup(profilename);
}

Here is the call graph for this function:

static const char * edit_overview_get_profilename

(

void

)

[static]

Definition at line 687 of file editScreenOverview.c.

{
    GtkWidget *widget;
    const char *profilename = NULL;
    connection_t networkType;
    editMode_t mode;

    CN_LOGPRINTF("entry");

    networkType = edit_data_get_network_type();
    switch (networkType)
    {
        case wired_t:
            if (g_profilename)
            {
                widget = g_profilename->details->entry;
                profilename = gtk_entry_get_text(GTK_ENTRY(widget));
            }
            break;
        case wireless_t:
            mode = edit_get_mode();
            if (mode == editModeConnectFillIn_e)
            {
                if (g_profilename)
                {
                    widget = g_profilename->details->entry;
                    profilename = gtk_entry_get_text(GTK_ENTRY(widget));
                }
            }
            else
            {
                profilename = edit_wireless_get_profilename();
            }
            break;
        case dialup_t:
            profilename = edit_dialup_get_profilename();
            break;
        default:
            break;
    }

    CN_LOGPRINTF("return profilename=%s", profilename);
    return profilename;
}

Here is the call graph for this function:

static gboolean edit_overview_get_proxy

(

void

)

[static]

Definition at line 659 of file editScreenOverview.c.

{
    GtkWidget *widget;
    erGtkSelectionGroup *item;
    int nsel;
    gboolean useproxy;

    CN_LOGPRINTF("entry");

    g_return_val_if_fail(g_proxy != NULL, FALSE);

    widget = g_proxy->details->selection;
    item = ERGTK_SELECTION_GROUP(widget);

    ergtk_selection_group_get_selected_buttons(item, &nsel, 1);
    if (nsel == 0)
    {
        useproxy = FALSE;
    }
    else
    {
        useproxy = TRUE;
    }

    CN_LOGPRINTF("return useproxy=%d", useproxy);
    return useproxy;
}

Here is the call graph for this function:

static void edit_overview_restore_ping_ctxt

(

gboolean

toTest

)

[static]

Definition at line 1154 of file editScreenOverview.c.

{
    pingContext_t *ctxt;
    cmgrConnectType_t connectType;

    CN_LOGPRINTF("entry");

    ctxt = cmgr_get_ping_ctxt();

    if (ctxt)
    {
        // set mode and connect type
        connect_ping_ctxt_set_mode(ctxt, editPing_e);
        connectType = connect_data_get_connect_type();
        connect_ping_ctxt_set_connect_type(ctxt, connectType);

        // ping done callbacks
        if (toTest)
        {
            connect_ping_ctxt_set_done_callbacks(ctxt,
                        on_test_connected, on_test_failed);
        }
        else
        {
            connect_ping_ctxt_set_done_callbacks(ctxt,
                                on_connected, on_failed);
        }

        // data access callbacks
        connect_ping_ctxt_set_get_initial_profile(ctxt,
                            edit_get_initial_profile);
        connect_ping_ctxt_set_access_network_profiles_callbacks(ctxt,
                                    edit_get_n_network_profiles,
                                    edit_get_network_profile,
                                    edit_select_next_regprofile);

        // ui callbacks
        if (toTest)
        {
            connect_ping_ctxt_set_ui_callbacks(ctxt,
                                        ui_test_update_status,
                                        ui_display_settings,
                                        ui_select_profile,
                                        ui_unselect_all_profile);

        }
        else
        {
            connect_ping_ctxt_set_ui_callbacks(ctxt,
                                        ui_update_status,
                                        ui_display_settings,
                                        ui_select_profile,
                                        ui_unselect_all_profile);
        }
    }
}

Here is the call graph for this function:

void edit_overview_set_address

(

const ip_address_mode_t

addressMode

)

Definition at line 520 of file editScreenOverview.c.

{
    GtkWidget *widget;

    CN_LOGPRINTF("entry");

    g_return_if_fail(g_address != NULL);

    switch (addressMode)
    {
        case dhcp_t:
        case ip_address_mode_undefined_t:
            widget = GTK_WIDGET(g_address->details->buttonList[0]);
            gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(widget), TRUE);
            break;
        case static_t:
            widget = GTK_WIDGET(g_address->details->buttonList[1]);
            gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(widget), TRUE);
            break;
        default:
            CN_ERRORPRINTF("Illegal dhcp mode [%d]", addressMode);
            g_assert_not_reached();
    }
}

void edit_overview_set_network_settings

(

const regNetworkProfile_t *

settings

)

Definition at line 465 of file editScreenOverview.c.

{
    CN_LOGPRINTF("entry");

    g_return_if_fail(settings != NULL);

    edit_overview_set_profile(settings);
    edit_overview_set_address(settings->addressMode);
    edit_overview_set_proxy(settings->proxy);
    edit_overview_set_profilename(settings->name);
}

Here is the call graph for this function:

void edit_overview_set_profile

(

const regNetworkProfile_t *

settings

)

Definition at line 477 of file editScreenOverview.c.

{
    connection_t mode;
    GtkWidget   *widget;

    CN_LOGPRINTF("entry");

    g_return_if_fail(settings != NULL);

    // show the current selection
    mode = settings->connection;
    switch (mode)
    {
        case wired_t:
            // wired profile: static ip allowed
            if (g_address)
            {
                widget = GTK_WIDGET(g_address->details->buttonList[1]);
                gtk_widget_set_sensitive(widget, TRUE);
            }
            break;
        case wireless_t:
        case dialup_t:
           // not a wired profile: force to DHCP and hide the static button
           if (g_address)
           {
               widget = GTK_WIDGET(g_address->details->buttonList[0]);
               gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(widget),
                                            TRUE);

               widget = GTK_WIDGET(g_address->details->buttonList[1]);
               gtk_widget_set_sensitive(widget, FALSE);
           }
           break;
        case connection_undefined_t:
        default:
            CN_ERRORPRINTF("Illegal wired mode [%d]", mode);
            g_assert_not_reached();
    }

    bk_profile_entry_display(g_profile_entry, settings);
}

Here is the call graph for this function:

void edit_overview_set_profilename

(

const gchar *

profilename

)

Definition at line 565 of file editScreenOverview.c.

{
    GtkWidget *widget;
    connection_t networkType;
    editMode_t mode;

    CN_LOGPRINTF("entry profilename[%s]", profilename);

    networkType = edit_data_get_network_type();
    switch (networkType)
    {
        case wired_t:
            if (g_profilename)
            {
                widget = g_profilename->details->entry;
                gtk_entry_set_text(GTK_ENTRY(widget),
                        profilename ? profilename : "");
            }
            break;
        case wireless_t:
            mode = edit_get_mode();
            if (mode == editModeConnectFillIn_e)
            {
                if (g_profilename)
                {
                    widget = g_profilename->details->entry;
                    gtk_entry_set_text(GTK_ENTRY(widget),
                            profilename ? profilename : "");
                }
            }
            else
            {
                edit_wireless_set_profilename(profilename);
            }
            break;
        case dialup_t:
            edit_dialup_set_profilename(profilename);
            break;
        default:
            break;
    }
}

Here is the call graph for this function:

void edit_overview_set_proxy

(

const gboolean

use_proxy

)

Definition at line 545 of file editScreenOverview.c.

{
    GtkWidget *widget;

    CN_LOGPRINTF("entry: use_proxy [%d]", use_proxy);

    g_return_if_fail(g_proxy != NULL);

    if (use_proxy == FALSE)
    {
        widget = GTK_WIDGET(g_proxy->details->buttonList[0]);
    }
    else
    {
        widget = GTK_WIDGET(g_proxy->details->buttonList[1]);
    }

    gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(widget), TRUE);
}

void edit_overview_set_text

(

void

)

Definition at line 237 of file editScreenOverview.c.

{
    CN_LOGPRINTF("entry");

    GtkWidget *widget;

    if (g_overview)
    {
        gtk_settingitem_set_header_text(GTK_SETTINGITEM(g_overview),
                                        _("Network profile"));
    }

    if (g_address)
    {
        widget = g_address->details->label;
        gtk_label_set_text(GTK_LABEL(widget),
                _("Select how your iLiad gets a network address."));

        widget = GTK_WIDGET(g_address->details->buttonList[0]);
        gtk_button_set_label(GTK_BUTTON(widget), _("Automatic"));

        widget = GTK_WIDGET(g_address->details->buttonList[1]);
        gtk_button_set_label(GTK_BUTTON(widget), _("Static"));
    }

    if (g_proxy)
    {
        widget = g_proxy->details->label;
        gtk_label_set_text(GTK_LABEL(widget),
                _("Select if there is a proxy server present."));

        widget = GTK_WIDGET(g_proxy->details->buttonList[0]);
        gtk_button_set_label(GTK_BUTTON(widget), _("No proxy"));

        widget = GTK_WIDGET(g_proxy->details->buttonList[1]);
        gtk_button_set_label(GTK_BUTTON(widget), _("Proxy"));
    }

    if (g_profilename)
    {
        widget = g_profilename->details->label;
        gtk_label_set_text(GTK_LABEL(widget),
                _("You can personalize the profile name."));
    }

    if (g_buttons)
    {
        widget = g_buttons->details->label;
        gtk_label_set_text(GTK_LABEL(widget),
                _("Select an action for this profile."));

        widget = GTK_WIDGET(g_buttons->details->buttonList[0]);
        gtk_button_set_label(GTK_BUTTON(widget), _("Test"));

        widget = GTK_WIDGET(g_buttons->details->buttonList[1]);
        gtk_button_set_label(GTK_BUTTON(widget), _("Save"));

        widget = GTK_WIDGET(g_buttons->details->buttonList[2]);
        gtk_button_set_label(GTK_BUTTON(widget), _("Save & Connect"));
    }

    edit_overview_update_info_text(inputDetails_e);
}

Here is the call graph for this function:

void edit_overview_show_profilename

(

void

)

Definition at line 427 of file editScreenOverview.c.

{
    connection_t networkType;

    CN_LOGPRINTF("entry");

    g_return_if_fail(g_profilename != NULL);

    networkType = edit_data_get_network_type();
    switch (networkType)
    {
        case wireless_t:
        case dialup_t:
            gtk_widget_hide(g_profilename->background);
            break;
        case wired_t:
        default:
            gtk_widget_show(g_profilename->background);
            break;
    }
}

Here is the call graph for this function:

void edit_overview_update_info_text

(

overviewStatus_t

status

)

Definition at line 301 of file editScreenOverview.c.

{
    CN_LOGPRINTF("entry");

    g_return_if_fail(g_info != NULL);

    switch (status)
    {
        case inputDetails_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconInfo_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("A wireless or dial-up network requires "
                   "specific settings.\n"
                   "Hint: You can fill in the details "
                   "for them by clicking the profile entry."));
             break;
        case inputAddress_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconInfo_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("An automatic network address requires a DHCP server "
                  "to be present "
                  "in your network. A static network address requires "
                  "specific settings.\n"
                  "Hint: If you are not sure, select 'Automatic' "
                  "and 'No proxy'."));
           break;
        case inputProxy_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconInfo_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("A proxy server regulates internet traffic "
                  "and is usually installed "
                  "in company networks, "
                  "this requires additional settings.\n"
                  "Hint: If you are not sure, select 'No proxy'."));
            break;
        case inputProfileName_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconInfo_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("If you personalize the profile name, "
                  "it will be easy to recognize "
                  "in the iLiad's network profile list."));
            break;
        case toSaveConnect_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconInfo_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("The profile has been saved. "
                  "The iLiad is trying to connect to the server."));
            break;
        case toSave_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconInfo_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                    _("The profile will be saved."));
            break;
        case testing_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconInfo_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("The iLiad is testing your network profile "
                  "and is trying to make a connection to the server."));
            break;
        case testAborting_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconInfo_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("The iLiad is aborting the test."));
            break;
        case testAborted_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconInfo_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("The test has been aborted."));
            break;
        case testSucceeded_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconOk_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("Connection to the server "
                  "has been established correctly.\n"
                  "Press the 'Save & Connect' button "
                  "to create a connection."));
            break;
        case testFailed_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconFailed_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                    _("Connection to the server "
                      "can not be established correctly."));
            break;
        case connecting_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconInfo_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("The iLiad is trying to connect to the server."));
            break;
        case connectAborting_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconInfo_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("The iLiad is aborting the connection."));
            break;
        case connectAborted_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconInfo_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("The connection has been aborted."));
            break;
        case connectSucceeded_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconOk_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                _("Connection to the server established."));
            break;
        case connectFailed_e:
            gtk_infoitem_set_icon(GTK_INFOITEM(g_info), iconFailed_e);
            gtk_infoitem_set_text(GTK_INFOITEM(g_info),
                    _("Connection to the server "
                      "can not be established correctly."));
            break;
        default:
            break;
    }
}

Here is the call graph for this function:

void edit_overview_update_profile

(

void

)

Definition at line 415 of file editScreenOverview.c.

{
    regNetworkProfile_t *settings;

    CN_LOGPRINTF("entry");

    settings = edit_get_network_settings();
    edit_overview_set_profile(settings);
    erRegFreeNetworkProfile(settings);
}

Here is the call graph for this function:

static gboolean on_button_press	(	GtkWidget *	button,
		GdkEventButton *	event,
		gpointer	data
	)			[static]

Definition at line 798 of file editScreenOverview.c.

{
    overviewStatus_t status = (overviewStatus_t)data;

    CN_LOGPRINTF("entry");

    edit_overview_update_info_text(status);

    display_update_request_screen_refresh (STATUS_ITEM_CHANGE,
                                           WAVEFORM_TYPING);

    return FALSE;
}

Here is the call graph for this function:

static void on_buttons_update	(	GtkWidget *	selection,
		gpointer	button,
		gpointer	data
	)			[static]

Definition at line 995 of file editScreenOverview.c.

{
    gboolean   active;
    gboolean   valid;
    int        nsel;
    erGtkSelectionGroup *widget;
    gboolean toDeactive = TRUE;

    CN_LOGPRINTF("entry");

    active = gtk_toggle_button_get_active(button);
    valid = edit_overview_check_network_settings();
    if (active && valid)
    {
        widget = ERGTK_SELECTION_GROUP(g_buttons->details->selection);
        ergtk_selection_group_get_selected_buttons(widget, &nsel, 1);
        switch (nsel)
        {
            case 0:
                // test button is selected
                on_test();
                toDeactive = FALSE;
                break;
            case 1:
                // save button is selected
                on_save();
                toDeactive = FALSE;
                break;
            case 2:
                // save&connect button is selected
                on_saveconnect();
                toDeactive = FALSE;
                break;
            default:
                break;
        }
    }

    if (active && toDeactive)
    {
        g_timeout_add(500, delayed_deactive_button, button);
    }
}

Here is the call graph for this function:

static void on_connected

(

int

profileIndex

)

[static]

Definition at line 1248 of file editScreenOverview.c.

{
    CN_LOGPRINTF("entry");

    edit_save_profile();

    edit_overview_freeze_ui(FALSE);

    deactive_button();

    edit_on_connected();
}

Here is the call graph for this function:

static gboolean on_delayed_edit_goto_page

(

gpointer

new_page

)

[static]

Definition at line 879 of file editScreenOverview.c.

{
    erbusy_blink();

    // switch page
    on_edit_goto_page((guint)new_page);

    // don't call again
    return FALSE;
}

Here is the call graph for this function:

static gboolean on_delayed_save

(

gpointer

data

)

[static]

Definition at line 1055 of file editScreenOverview.c.

{
    GtkToggleButton *button;

    erbusy_blink();

    edit_save_profile();

    edit_goto_page(editScreenProfiles_e);

    // de-active the button
    if (g_buttons)
    {
        button = g_buttons->details->buttonList[1];
        gtk_toggle_button_set_active(button, FALSE);
    }

    return FALSE;
}

Here is the call graph for this function:

static gboolean on_delayed_saveconnect

(

gpointer

data

)

[static]

Definition at line 1085 of file editScreenOverview.c.

{
    pingContext_t *ctxt;

    erbusy_blink();

    edit_overview_freeze_ui(TRUE);

    edit_overview_restore_ping_ctxt(FALSE);

    ctxt = cmgr_get_ping_ctxt();
    connect_ping_select_initial_profile(ctxt);
    connect_ping(ctxt, TRUE);

    return FALSE;
}

Here is the call graph for this function:

gboolean on_edit_overview_keypress

(

GdkEventKey *

event

)

Definition at line 1390 of file editScreenOverview.c.

{
    pingContext_t *ctxt;
    gboolean ret = FALSE;

    CN_LOGPRINTF("entry");

    ctxt = cmgr_get_ping_ctxt();

    switch (event->keyval)
    {
        case GDK_Return:
            // 'Enter' key is pressed
            if (!connect_ping_in_pinging(ctxt))
            {
                // simulate clicking 'Save & Connect' button
                edit_overview_click_saveconnect();
                ret = TRUE;
            }
            break;

        case GDK_F5:
            // 'UP' key is pressed
            // goto the one top level page
            connect_ping_abort(ctxt);
            cmgr_up_page();
            ret = TRUE;
            break;

        default:
            erbusy_off();
    }

    return ret;
}

Here is the call graph for this function:

static void on_failed

(

void

)

[static]

Definition at line 1261 of file editScreenOverview.c.

{
    CN_LOGPRINTF("entry");

    edit_overview_freeze_ui(FALSE);

    deactive_button();
}

Here is the call graph for this function:

static void on_ip_address_mode_update	(	GtkWidget *	selection,
		gpointer	button,
		gpointer	data
	)			[static]

Definition at line 902 of file editScreenOverview.c.

{
    // open the static screen
    gboolean active;
    int        nsel;
    erGtkSelectionGroup *sel;
    const char *profilename;

    CN_LOGPRINTF("entry");

    g_return_if_fail(g_address != NULL);

    active = gtk_toggle_button_get_active(button);
    if (active)
    {
        if (!edit_get_in_set_network_settings())
        {
            sel = ERGTK_SELECTION_GROUP(selection);
            ergtk_selection_group_get_selected_buttons(sel, &nsel, 1);
            if (nsel == 1)
            {
                erbusy_blink();

                // update the title for edit static screen
                // before going to this page
                profilename = edit_overview_get_profilename();
                edit_static_set_title(profilename);

                g_timeout_add(500,
                        on_delayed_edit_goto_page,
                        (gpointer)(editScreenStatic_e + 1));
            }
        }
    }
    edit_overview_update_info_text(inputAddress_e);
}

Here is the call graph for this function:

static gboolean on_profile_entry_button_press	(	GtkWidget *	widget,
		GdkEventButton *	event,
		gpointer	data
	)			[static]

Definition at line 814 of file editScreenOverview.c.

{
    CN_LOGPRINTF("entry");

    GtkToggleButton *button;
    gboolean active;
    connection_t networktype;
    editMode_t mode;

    button = GTK_TOGGLE_BUTTON(widget);
    active = gtk_toggle_button_get_active(button);
    if (!active)
    {
        if (!edit_get_in_set_network_settings())
        {
            erbusy_blink();

            networktype = edit_data_get_network_type();
            switch (networktype)
            {
                case wired_t:
                    // profile for wired, nothing need to do
                    break;
                case wireless_t:
                    edit_set_back_overview(TRUE);
                    // profile for wireless, open the edit wireless screen
                    mode = edit_get_mode();
                    if (mode == editModeConnectFillIn_e)
                    {
                        g_timeout_add(500,
                                on_delayed_edit_goto_page,
                                (gpointer)(editScreenWirelessExt_e + 1));

                    }
                    else
                    {
                        g_timeout_add(500,
                                on_delayed_edit_goto_page,
                                (gpointer)(editScreenWireless_e + 1));
                    }
                    break;
                case dialup_t:
                    edit_set_back_overview(TRUE);
                    // profile for dialup, open the edit dialup screen
                    g_timeout_add(500,
                            on_delayed_edit_goto_page,
                            (gpointer)(editScreenDialup_e + 1));
                    break;
                default:
                    break;
            }
        }

        // de-active the button
        g_timeout_add(500, delayed_deactive_button, button);
    }

    edit_overview_update_info_text(inputDetails_e);

    return FALSE;
}

Here is the call graph for this function:

static void on_profilename_changed	(	GtkEntry *	widget,
		gpointer	data
	)			[static]

Definition at line 981 of file editScreenOverview.c.

{
    CN_LOGPRINTF("entry");

    if (!edit_get_in_set_network_settings())
    {
        // update the profile entry as well
        edit_overview_update_profile();

        // update the info text
        edit_overview_update_info_text(inputProfileName_e);
    }
}

Here is the call graph for this function:

static void on_proxy_onoff_update	(	GtkWidget *	selection,
		gpointer	button,
		gpointer	data
	)			[static]

Definition at line 941 of file editScreenOverview.c.

{
    // open the proxy screen
    gboolean   active;
    int        nsel;
    erGtkSelectionGroup *sel;
    const char* profilename;

    CN_LOGPRINTF("entry");

    g_return_if_fail(g_proxy != NULL);

    active = gtk_toggle_button_get_active(button);
    if (active)
    {
        if (!edit_get_in_set_network_settings())
        {
            sel = ERGTK_SELECTION_GROUP(selection);
            ergtk_selection_group_get_selected_buttons(sel, &nsel, 1);
            if (nsel == 1)
            {
                erbusy_blink();

                // update the title for edit static screen
                // before going to this page
                profilename = edit_overview_get_profilename();
                edit_proxy_set_title(profilename);

                g_timeout_add(500,
                        on_delayed_edit_goto_page,
                        (gpointer)(editScreenProxy_e + 1));
            }
        }
    }

    edit_overview_update_info_text(inputProxy_e);
}

Here is the call graph for this function:

static void on_save

(

void

)

[static]

Definition at line 1076 of file editScreenOverview.c.

{
    CN_LOGPRINTF("entry");

    edit_overview_update_info_text(toSave_e);

    g_timeout_add(500, on_delayed_save, NULL);
}

Here is the call graph for this function:

static void on_saveconnect

(

void

)

[static]

Definition at line 1103 of file editScreenOverview.c.

{
    CN_LOGPRINTF("entry");

    edit_overview_update_info_text(toSaveConnect_e);

    g_timeout_add(500, on_delayed_saveconnect, NULL);
}

Here is the call graph for this function:

static void on_test

(

void

)

[static]

Definition at line 1040 of file editScreenOverview.c.

{
    pingContext_t *ctxt;

    CN_LOGPRINTF("entry");

    edit_overview_freeze_ui(TRUE);

    edit_overview_restore_ping_ctxt(TRUE);

    ctxt = cmgr_get_ping_ctxt();
    connect_ping_select_initial_profile(ctxt);
    connect_ping(ctxt, TRUE);
}

Here is the call graph for this function:

static void on_test_connected

(

int

profileIndex

)

[static]

Definition at line 1230 of file editScreenOverview.c.

{
    CN_LOGPRINTF("entry");

    edit_overview_freeze_ui(FALSE);

    deactive_button();
}

Here is the call graph for this function:

static void on_test_failed

(

void

)

[static]

Definition at line 1239 of file editScreenOverview.c.

{
    CN_LOGPRINTF("entry");

    edit_overview_freeze_ui(FALSE);

    deactive_button();
}

Here is the call graph for this function:

static void ui_display_settings	(	int	profileIndex,
		gboolean	resetStatus
	)			[static]

Definition at line 1348 of file editScreenOverview.c.

{
    CN_LOGPRINTF("entry");
    // nothing to do
}

static void ui_select_profile

(

int

profileIndex

)

[static]

Definition at line 1354 of file editScreenOverview.c.

{
    GtkProfileEntry *profileEntry;

    CN_LOGPRINTF("entry");

    if (g_profile_entry)
    {
        profileEntry = GTK_PROFILE_ENTRY(g_profile_entry->details);
        gtk_profile_entry_set_buttons_active(profileEntry, TRUE, FALSE);

        display_update_request_screen_refresh (STATUS_ITEM_CHANGE,
                                               WAVEFORM_TYPING);
    }
}

Here is the call graph for this function:

static void ui_test_update_status	(	int	profileIndex,
		pingStatus_t	status
	)			[static]

Definition at line 1270 of file editScreenOverview.c.

{
    overviewStatus_t state;

    CN_LOGPRINTF("entry");

    bk_profile_entry_update_status(g_profile_entry, status);

    switch (status)
    {
        case pingSucceeded_e:
            state = testSucceeded_e;
            break;
        case pingFailed_e:
        case pingFailedPCShare_e:
        case pingFailedNetwork_e:
            state = testFailed_e;
            break;
        case pingConnecting_e:
            state = testing_e;
            break;
        case pingAborting_e:
            state = testAborting_e;
            break;
        case pingAborted_e:
            state = testAborted_e;
            on_failed();
            break;
        default:
            state = undefinedStatus_e;
            break;
    }

    edit_overview_update_info_text(state);

    display_update_request_screen_refresh (STATUS_ITEM_CHANGE,
                                           WAVEFORM_TYPING);
}

Here is the call graph for this function:

static void ui_unselect_all_profile

(

void

)

[static]

Definition at line 1370 of file editScreenOverview.c.

{
    GtkProfileEntry *profileEntry;

    CN_LOGPRINTF("entry");

    if (g_profile_entry)
    {
        profileEntry = GTK_PROFILE_ENTRY(g_profile_entry->details);
        gtk_profile_entry_set_buttons_active(profileEntry, FALSE, FALSE);

        display_update_request_screen_refresh(STATUS_ITEM_CHANGE,
                                              WAVEFORM_TYPING);
    }
}

Here is the call graph for this function:

static void ui_update_status	(	int	profileIndex,
		pingStatus_t	status
	)			[static]

Definition at line 1309 of file editScreenOverview.c.

{
    overviewStatus_t state;

    CN_LOGPRINTF("entry");

    bk_profile_entry_update_status(g_profile_entry, status);

    switch (status)
    {
        case pingSucceeded_e:
            state = connectSucceeded_e;
            break;
        case pingFailed_e:
        case pingFailedPCShare_e:
        case pingFailedNetwork_e:
            state = connectFailed_e;
            break;
        case pingConnecting_e:
            state = connecting_e;
            break;
        case pingAborting_e:
            state = connectAborting_e;
            break;
        case pingAborted_e:
            state = connectAborted_e;
            on_failed();
            break;
        default:
            state = undefinedStatus_e;
            break;
    }

    edit_overview_update_info_text(state);

    display_update_request_screen_refresh (STATUS_ITEM_CHANGE,
                                           WAVEFORM_TYPING);
}

Here is the call graph for this function:

---

Variable Documentation

bkWdtLabelButton* g_address = NULL [static]

Definition at line 62 of file editScreenOverview.c.

bkWdtLabelButton* g_buttons = NULL [static]

Definition at line 65 of file editScreenOverview.c.

GtkWidget* g_info = NULL [static]

Definition at line 67 of file editScreenOverview.c.

GtkWidget* g_overview = NULL [static]

Definition at line 59 of file editScreenOverview.c.

bkProfileEntry* g_profile_entry = NULL [static]

Definition at line 61 of file editScreenOverview.c.

bkWdtLabelEntry* g_profilename = NULL [static]

Definition at line 64 of file editScreenOverview.c.

bkWdtLabelButton* g_proxy = NULL [static]

Definition at line 63 of file editScreenOverview.c.
